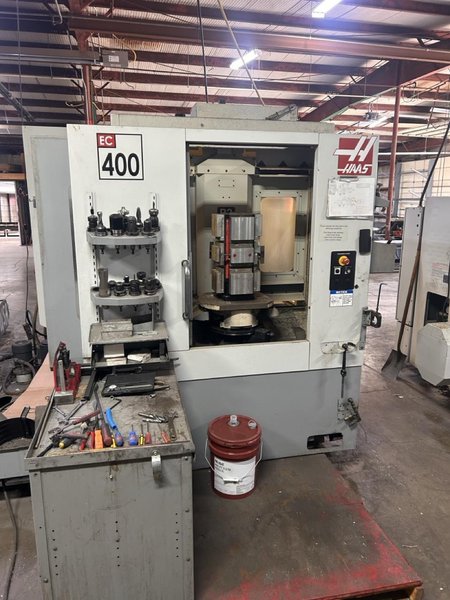

Haas EC-400 Horizontal Machining Center, 2006 – Through Spindle Coolant, Tombstone
Brand
Category
Model
EC-400
Stock #
927647
Year
2006
Condition
Not specified
Location
Not specified
|
X-Axis Travels: 20″
Y-Axis Travels: 20″
Z-Axis Travels: 20″
B-Axis (full 4th): 0.001
Pallet Size: 15.75″ x 15.75″
Pallet Change Time: 15 seconds
Max. Weight on Pallet: 880 lbs
Max. Spindle Speed: 12,000 RPM
Spindle Power: 30 HP
Taper: CAT 40
Rapid Traverse: 1,000 IPM
Max. Tool Diameter: 5″
Max. Tool Length: 12″
Max. Tool Weight: 12 lbs
Approx. Dimensions: 150″ x 102″ x 95″
Approx. Weight: 20,000 lbs

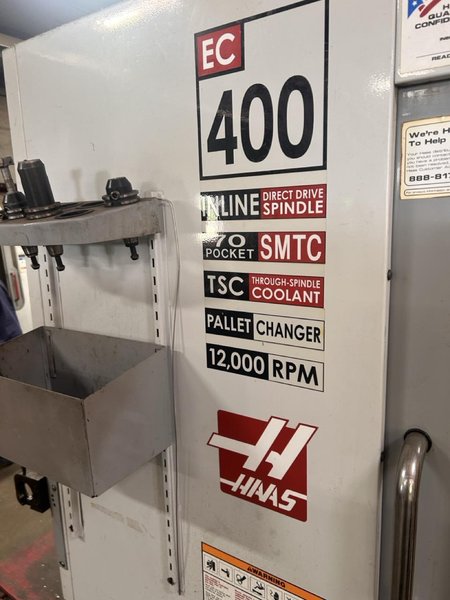

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Through Spindle Coolant 70 Tool SMTC Tomstone w/ Vises All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
