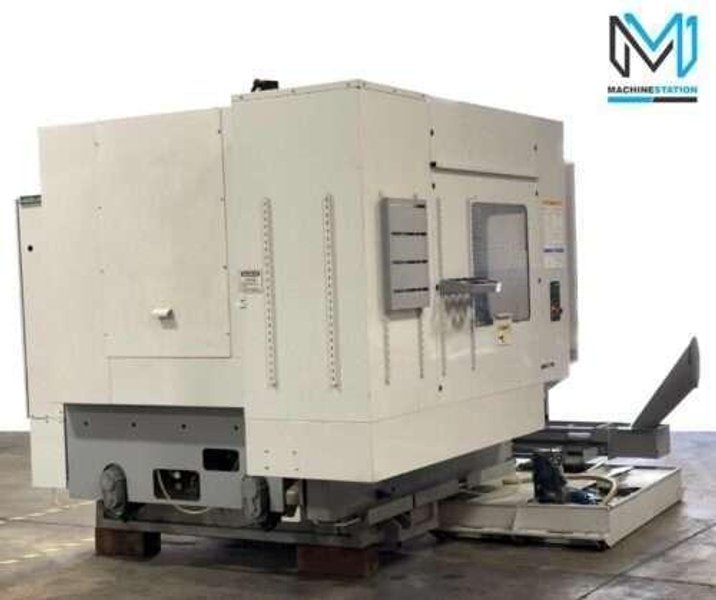

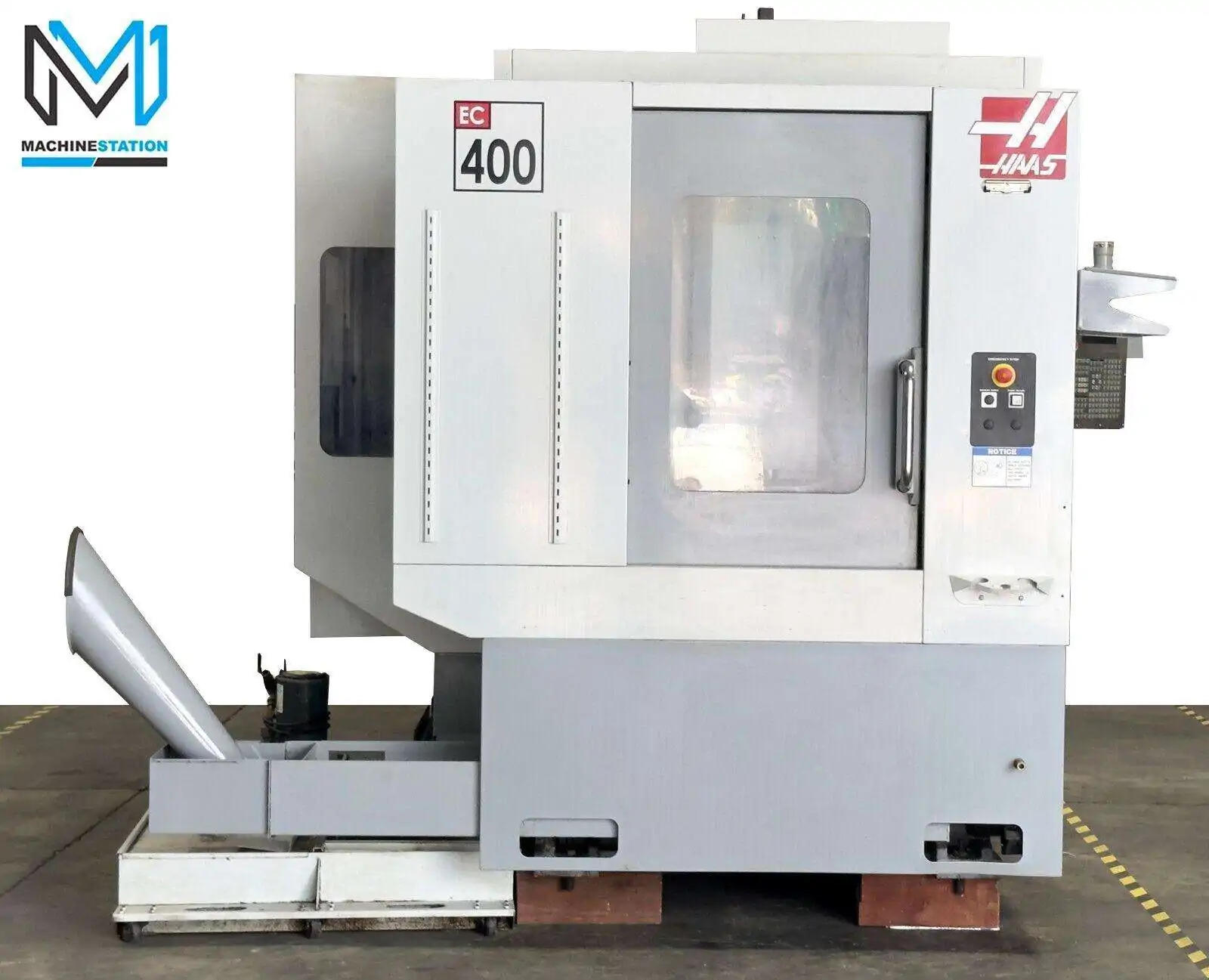

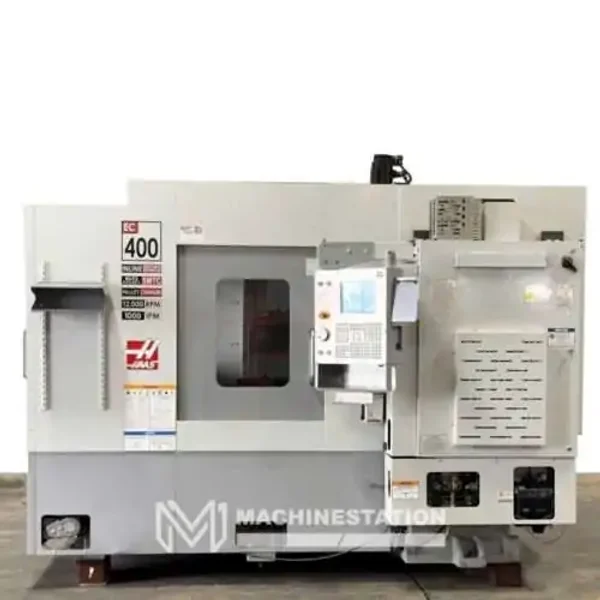

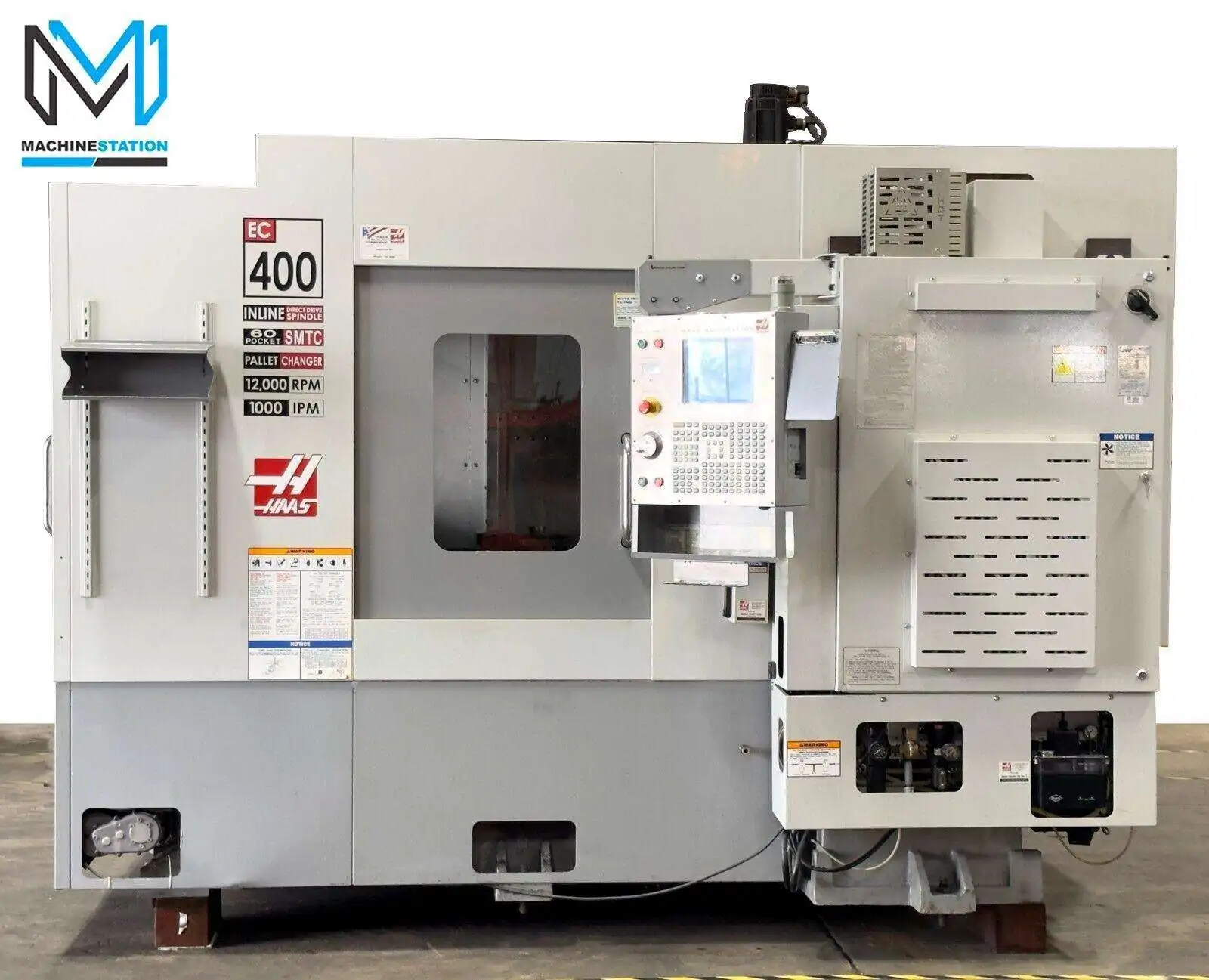

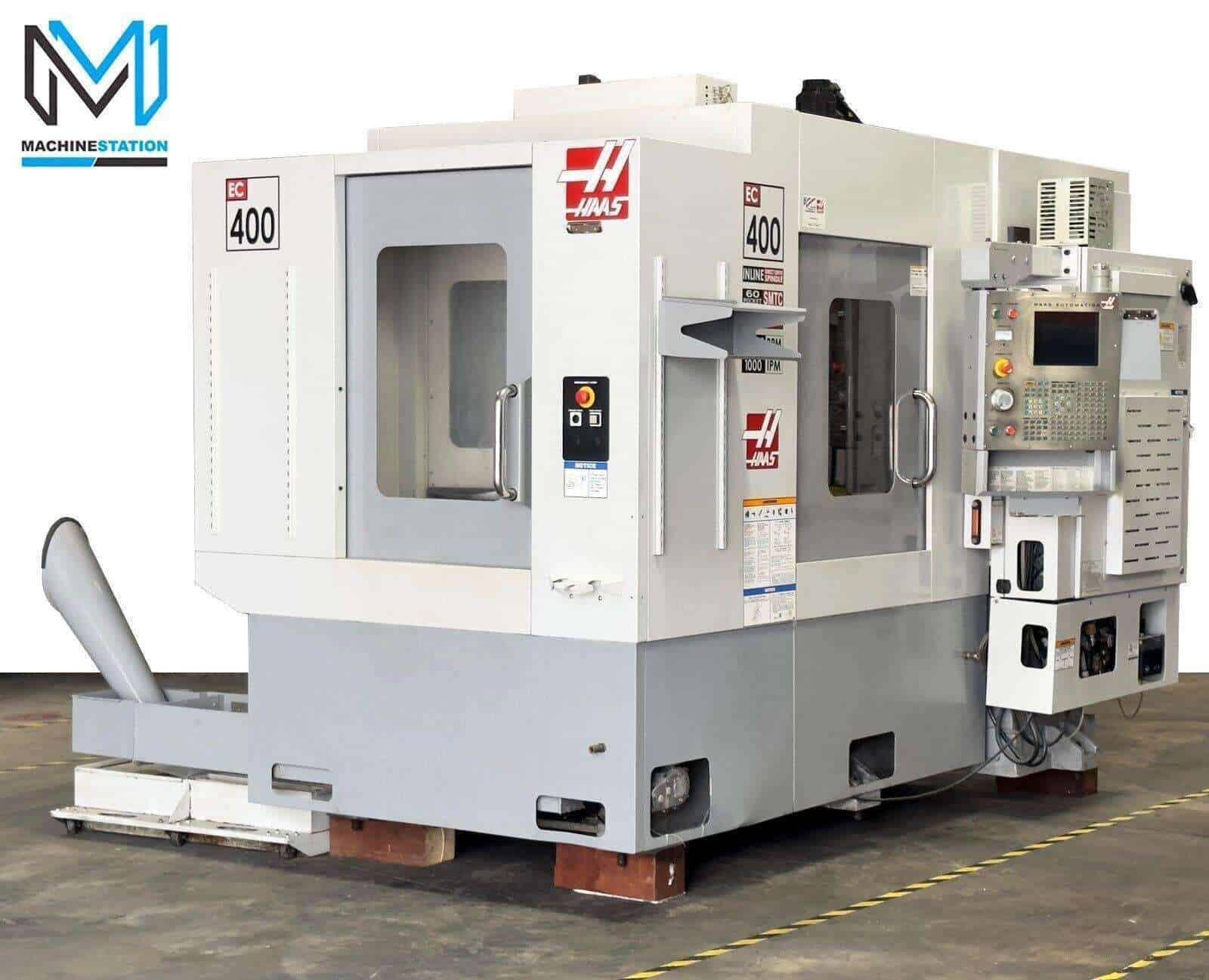

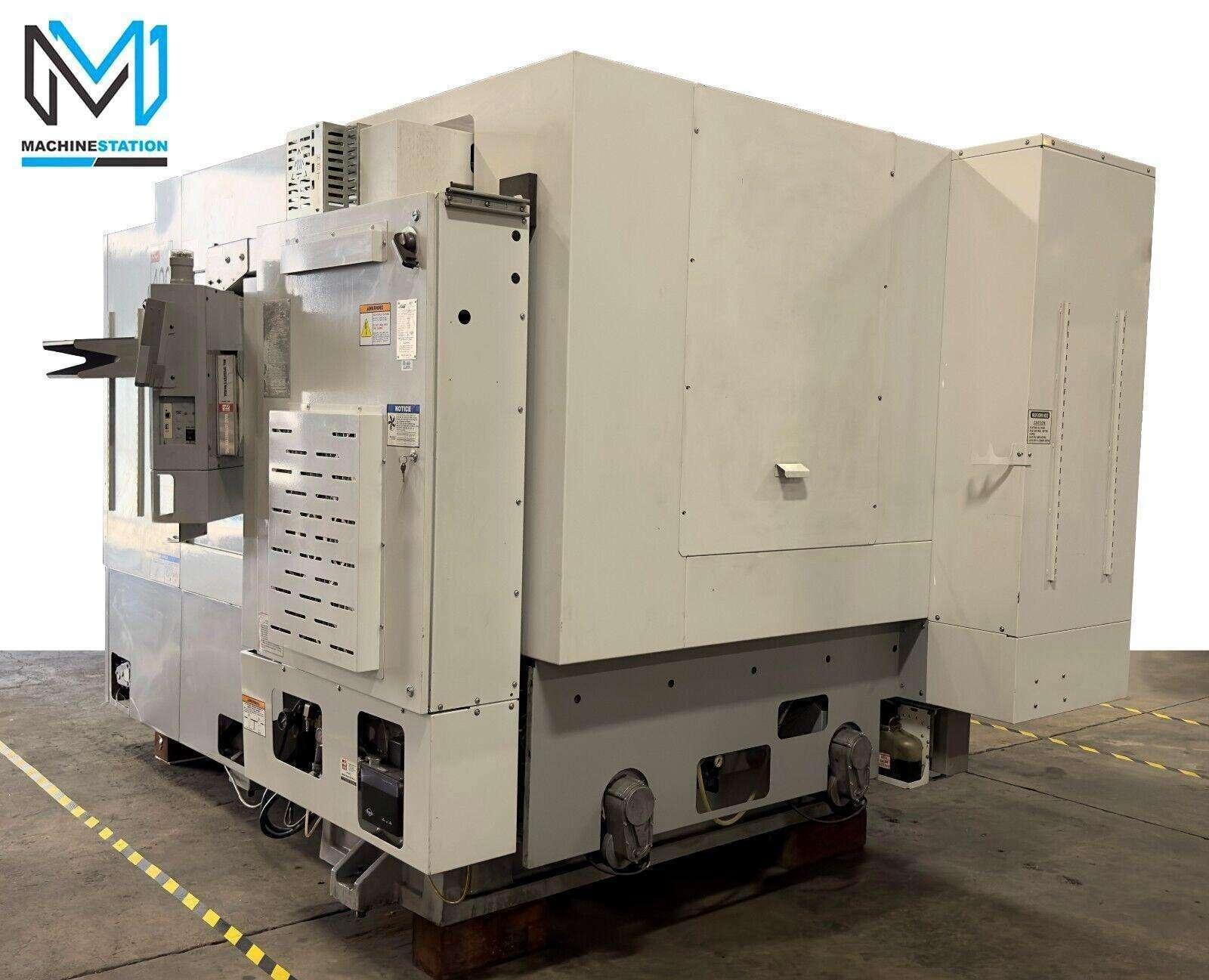

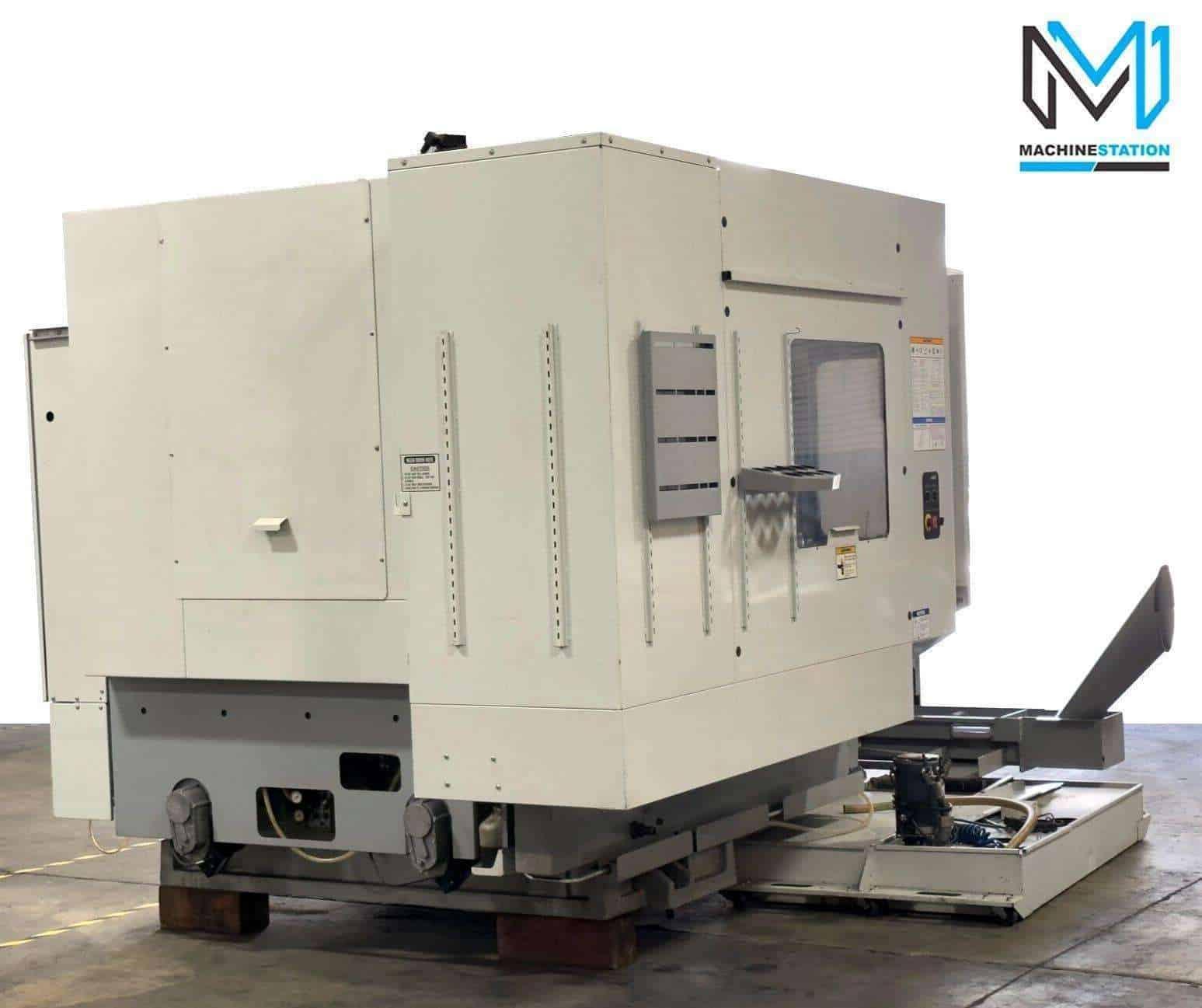

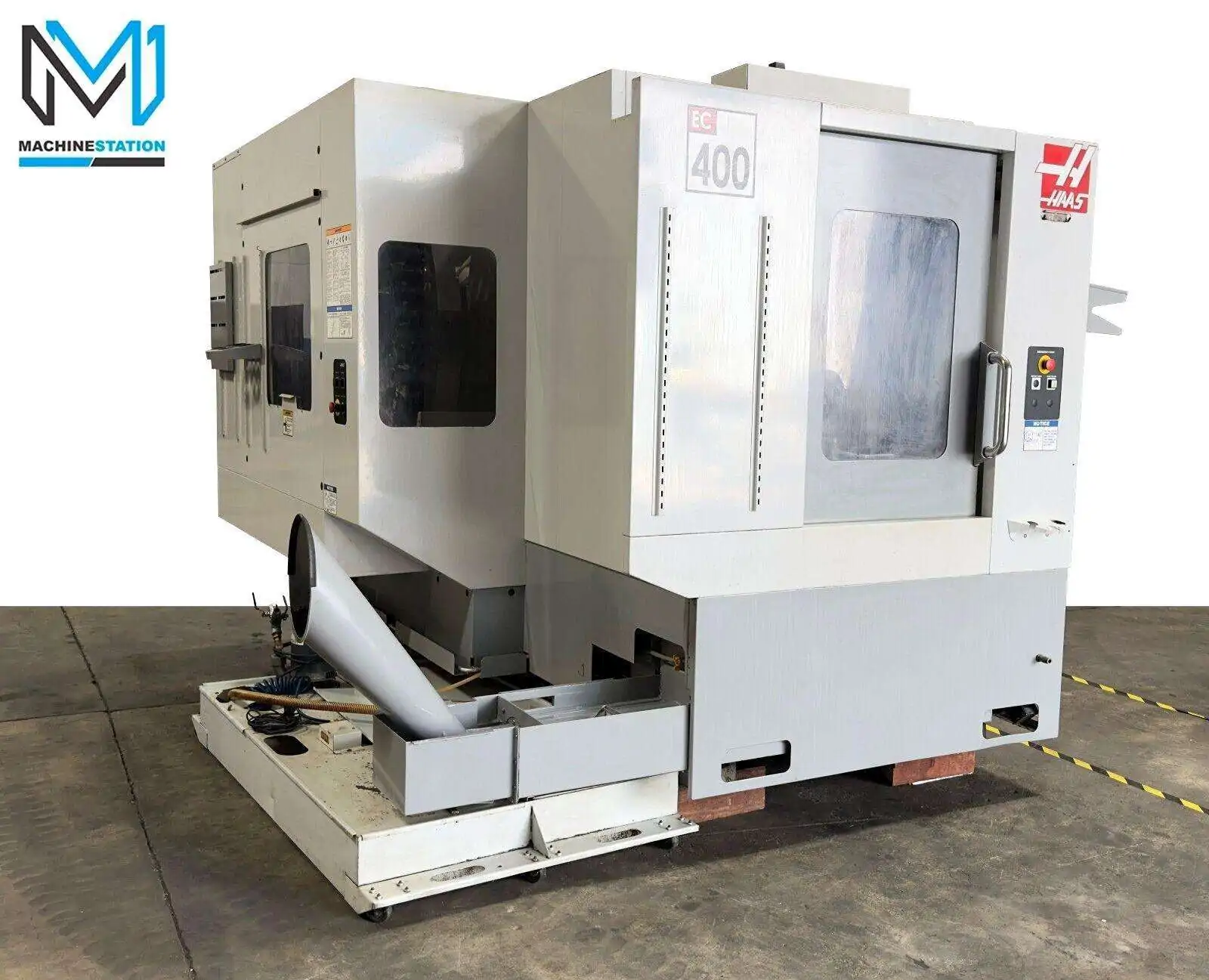

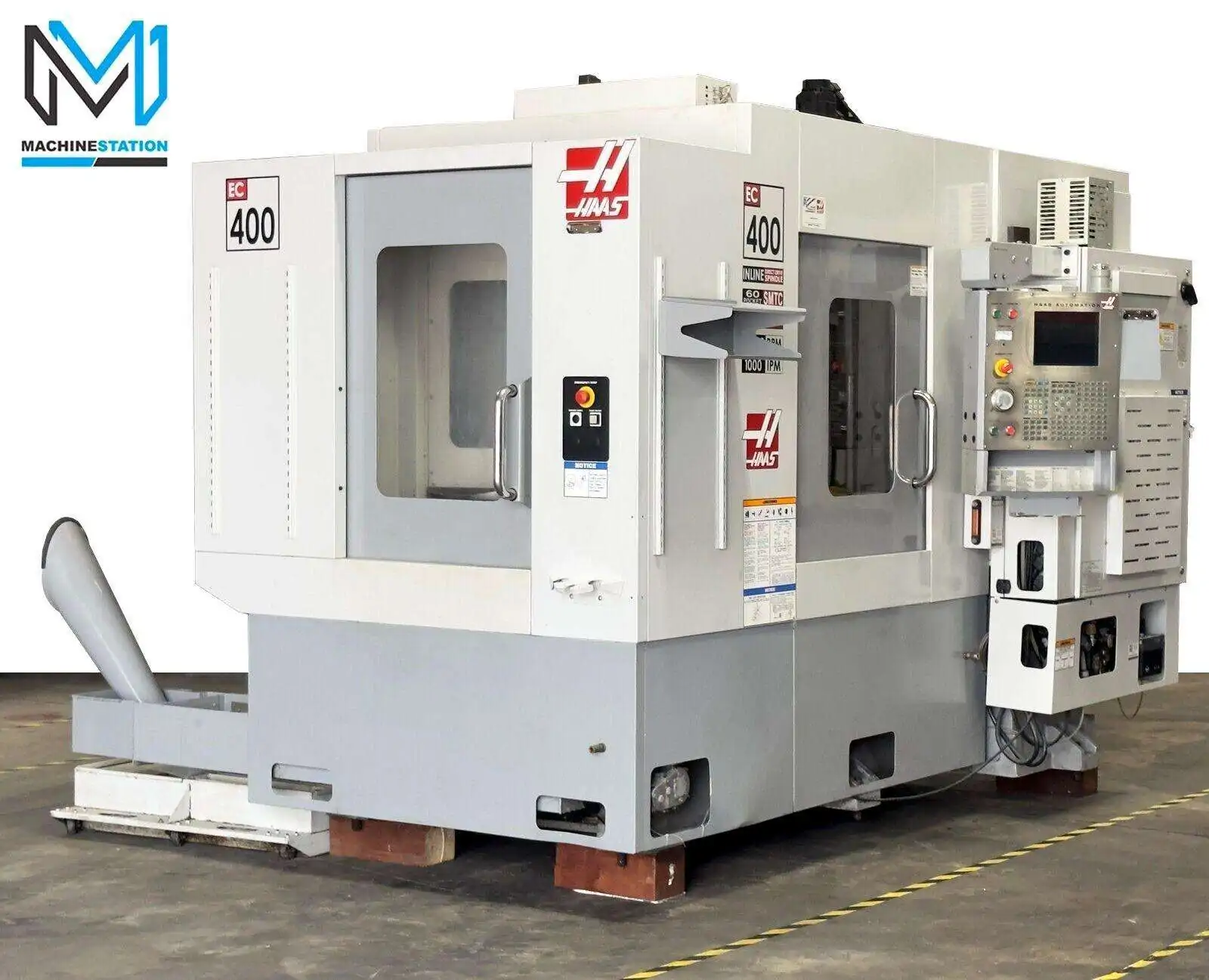

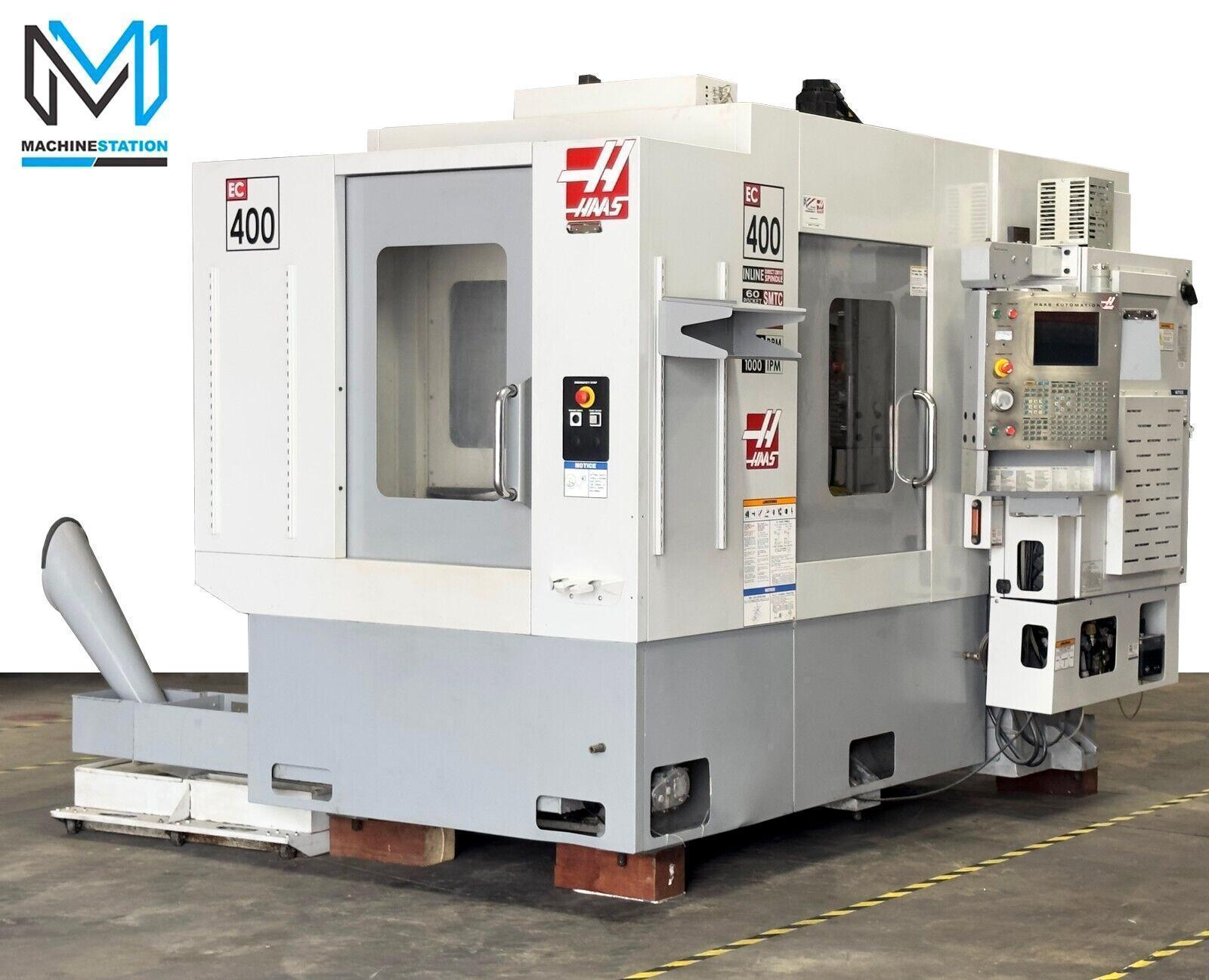

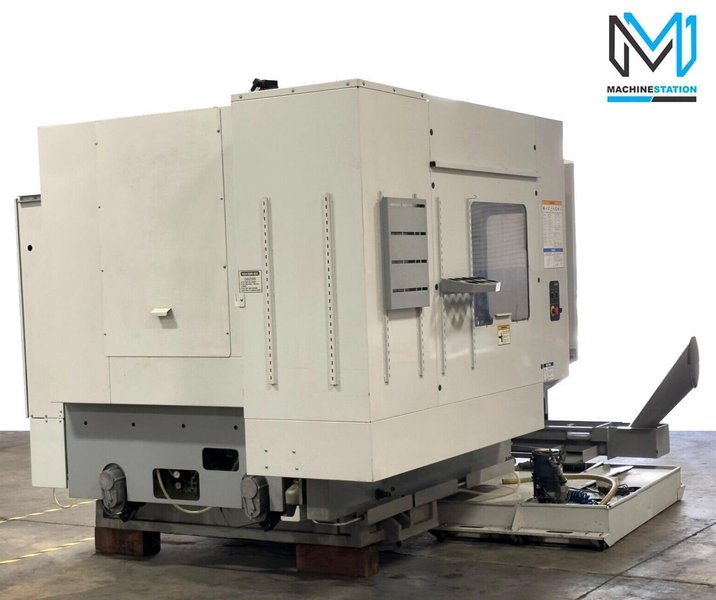

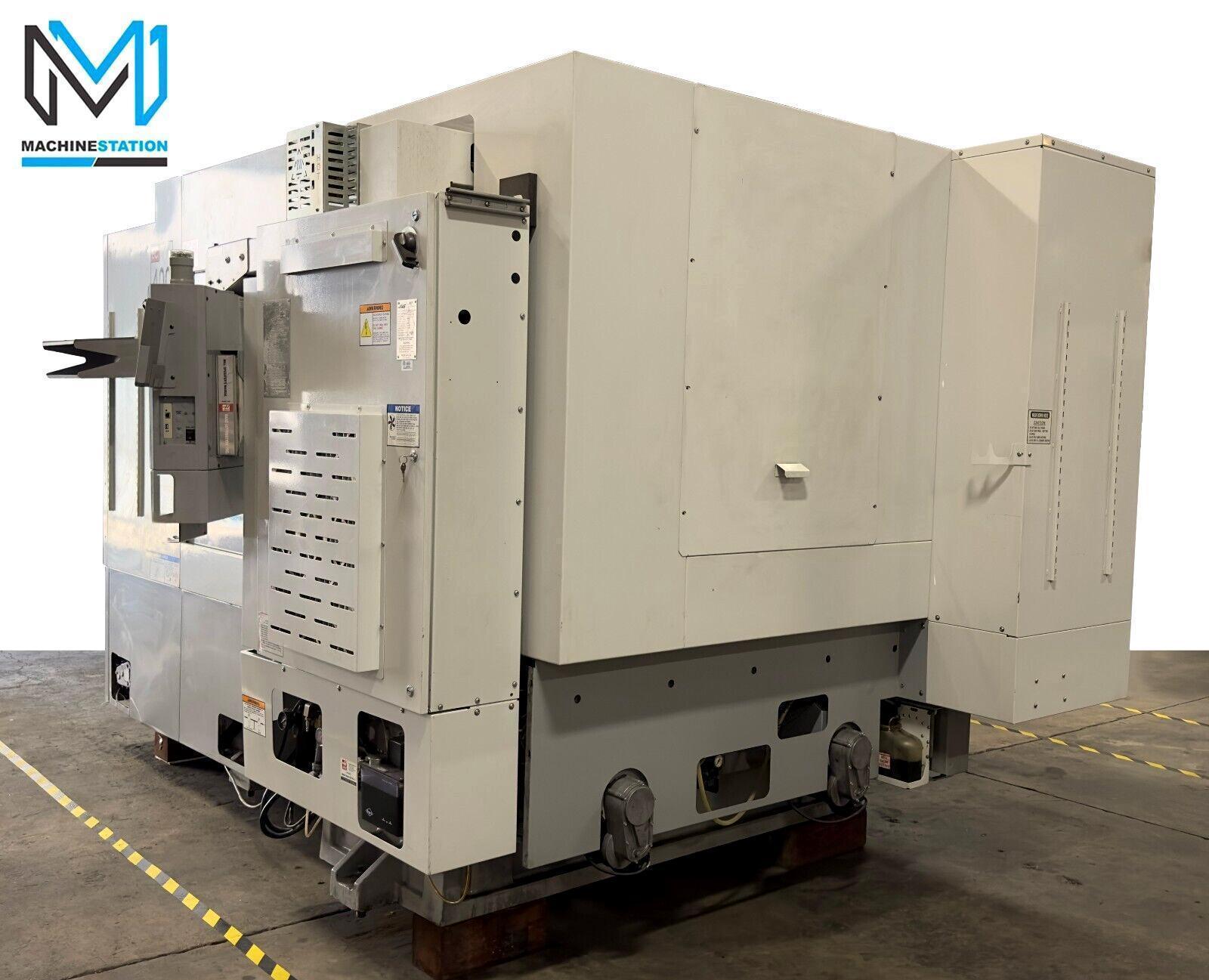

Haas EC-400 Horizontal Machining Center – Mill

Haas EC-400 Horizontal Machining Center – Mill

Name: Haas EC-400 Horizontal Machining Center – Mill
Brand: HAAS
SKU: 112461
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	HAAS
Model:	EC4004AX
Year:	2005
Condition:	Used – Good

Haas EC-400-4AX Features:

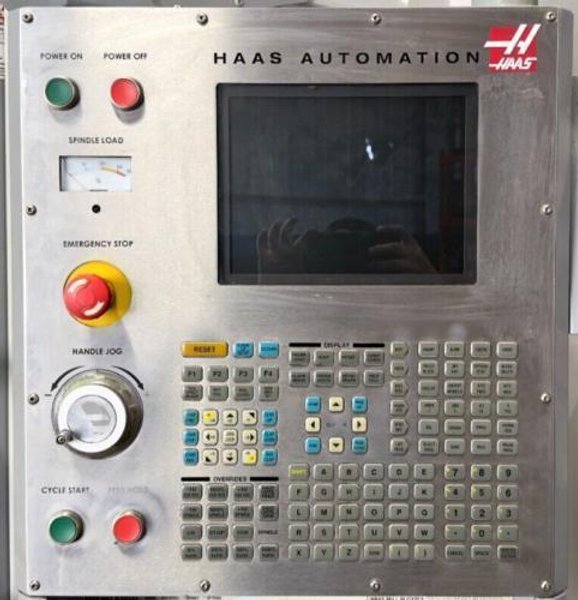

Haas CNC Control
12000 RPM Inline Direct Drive Spindle
1000 IPM Fast Rapid Traverse Rate
4th Axis Dual Pallet Changer
60 Tools Side Mount Tool Changer
Expanded Program Memory
Rigid Tapping
High Speed Machining
Advanced Tool Management
Power Failure Detection Module
User Definable Macros Spindle Orientation and Coordinate Rotational Scaling
Brush-type servo drive motors on all axis
Programmable coolant
Telescopic way covers
High Pressure Coolant system?
Chip Auger

Haas EC-400-4AX Specifications:
Travels:
X Axis: 22″
Y Axis: 25″
Z Axis: 22″
B Axis: 0.001° ( Full 4th )

Pallet:
Dual Pallet Changer
Pallet Size: 15.75″ X 15.75″
Pallet Change Time: 15 Seconds
Max Weight on Pallet: 880 lbs

Spindle:
Taper Size: CAT 40
Spindle Speed: 12000 RPM
Spindle Power: 30 HP
Max Torque: 90ft-lb @ 2000RPM

Feed rates:
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute

Tool changer:
Capacity: 60 Station Side Mounted
Max Tool Diameter: 5″
Max Tool Length: 12″
Max Tool Weight: 12 lbs.
Tool Change Time (Tool to Tool): 2.8 Second

General:
Air Required: 100 psi 4 scfm

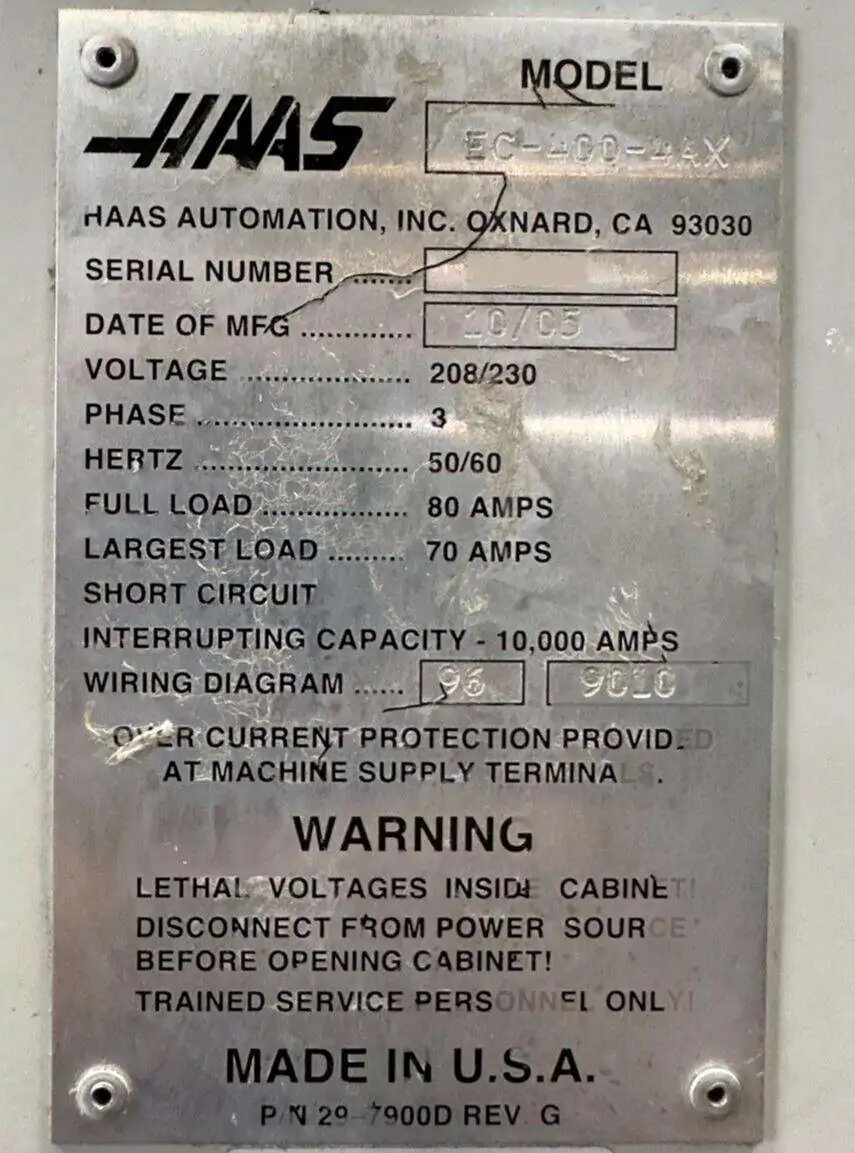

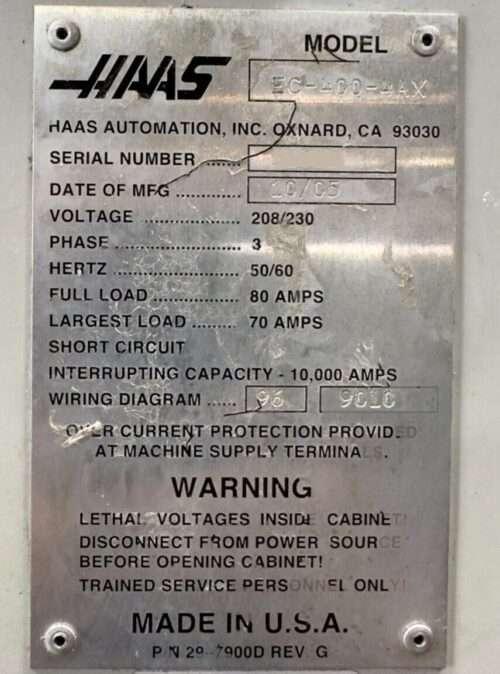

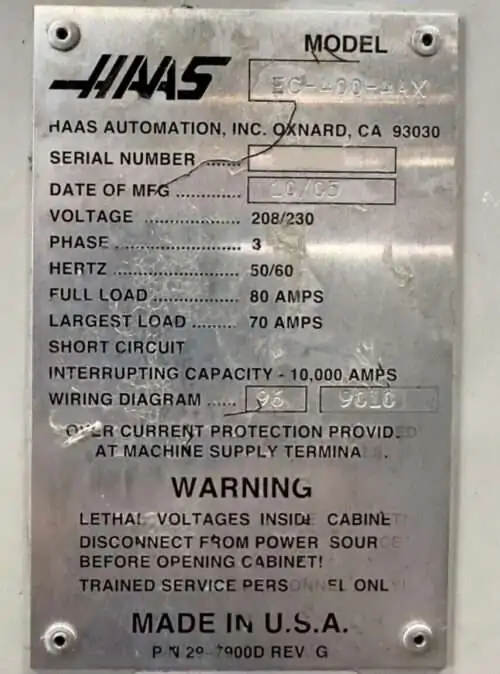

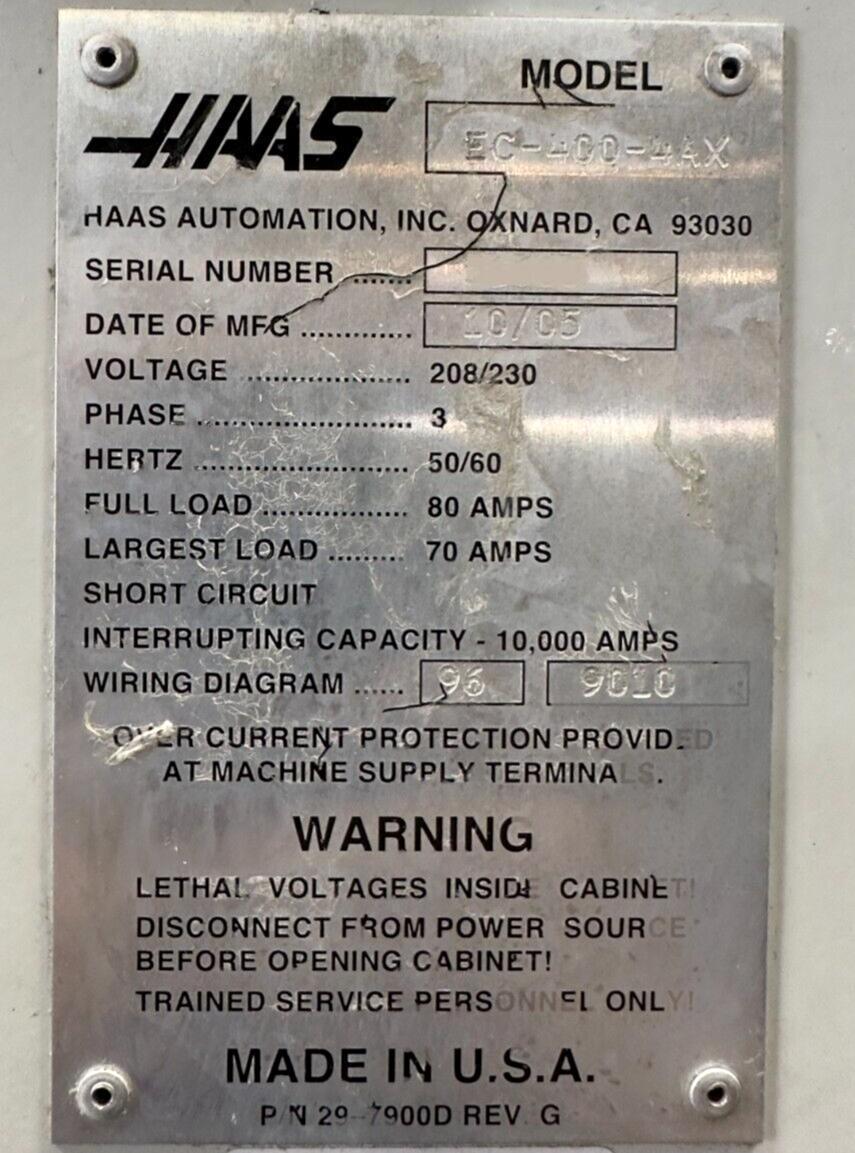

Power: 220v / 66FLA / 3-Phase
Overall Shipping Dimensions: 150″ x 102″ x 95″ High ( Machine )
Chip Conveyor Coolant Tanks Coolant systems Dimensions extra
Weight: 20000 lbs
