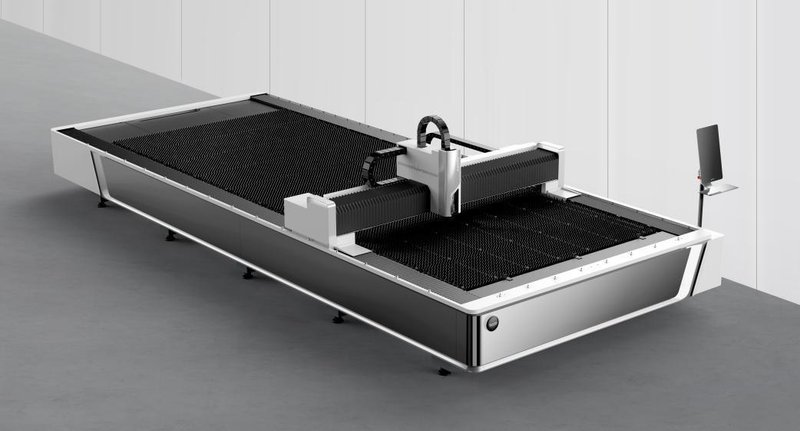

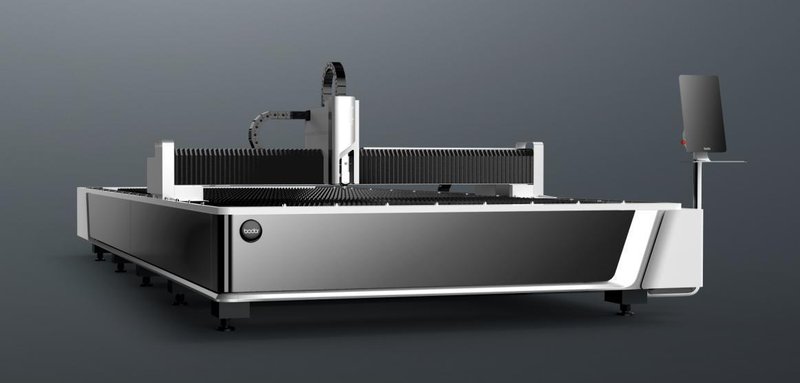

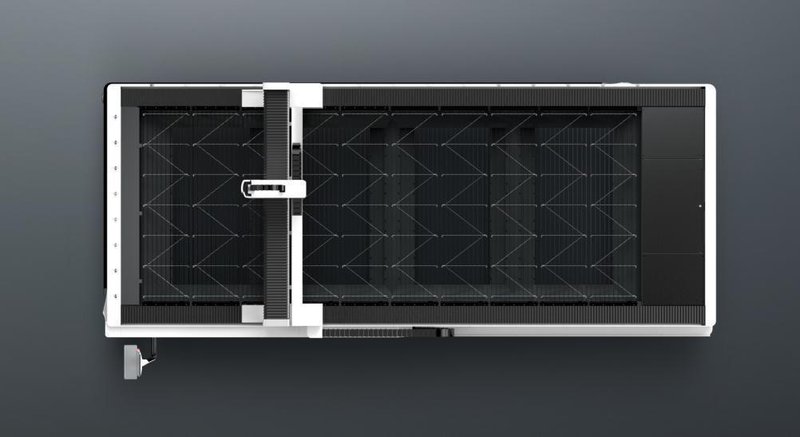

| FIBER LASER CUTTING MACHINE: |
| |
Laser Power |
|
| |
12kw |
|
| Freight&Tariff |
Included |
| Installation & Training Cost |
Included |
| Transportantion |
By Sea |
| Loading Container |
1*40'FR+1*20'GP |
| Payment Terms |
30% down payment, 70% before shipment. |
| Warranty |
Five years limited warranty for main parts. One year free labor. |
| Optional: |
| Centrifugal Fan |
|
| Fume Filter |
|
| Air Compressor |
|
| Flowbox |
|
| Extra Laser Head |
|
| Basic Parameter: |
| Working area |
6100mm*1524mm (≈19.96'x4.98') |
| Max. linkage speed |
100m/min (328ft/min） |
| Intelligent Function: |
| Bodor Lightning perforation technology |
● |
| High Speed Cutting Expert Database |
● |
| Remnant Typesetting |
● |
| Air pressure intelligent control |
× |
| Automatic adjustment of cutting gas pressure |
6kW and below：O2
above 6kW：O2、N2、air |
| Cutting Parameter AutoMatch |
● 12KW and above
(Not available for optional scanning cutting |
| Auto-focus of laser head |
● |
| Laser cutting technology expert database |
● |
| Ergonomic Remote Control (Bodor Mango®) |
● |
| Touchscreen Display |
× |
| Active anti-collision function |
●
(Not available for optional bevel cutting) |
| intellgent over-heat adaptation |
● 12KW and above |
| Intelligent anti-shake |
● |
| High quality Cutting Expert Database |
● |
| Mineral casting anti burning |
3KW and above |
| Gas-saving steady flow nozzle |
● |
| Automatic lubrication |
● |
| Intelligent maintenance reminder |
● |
| WIFI internet connection |
● |
| Bodor Cloud sevice |
● |
| Performance: |
| Requirements for sheet |
Plate thickness≥0.8mm |
| Max. acceleration |
1.5G |
| Table load bearing |
1824kg（1-6kw）
2192Kg（12KW） |
| Machine overall dimensions |
8108*2910*1755mm |
| Overall weight |
About 3140kg |
| Z axis travel |
100mm |
| Positioning accuracy |
±0.05mm/m |
| Repositioning accuracy |
±0.03mm |
| Φ30mm roundness |
≤0.15mm |
| □30mm adjacent side dimension difference |
≤0.06mm |
| □190mm adjacent side dimension difference |
≤0.15mm |
| □190mm diagonal size difference |
≤0.20mm |
| Configuration: |
| Laser source |
Bodor Power |
| Laser head |
BodorGenius |
| Machine bed |
Mortise-and-tenon structure bed |
| Gantry structure |
Stretched Aluminum gantry |
| Linear Rails |
Bodor |
| Rack |
Bodor |
X-axis、Y-axis、Z-axis、A-axis
Servo motor and driver |
Bodor |
| Integral aluminum cantilever for high pressure steel mould casting |
Yes |
| Control system |
Bodor Thinker |
| Display size |
21.5 inches |
| System identification file format |
DXF、DWG、PLT、NC、G file |
| Intelligent alarm |
Yes |
| Water Chiller |
Yes |
| Power Requirements |
220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) |
| Total power capacity/current with 12KW source (380V) |
49.4KW/93.8A |
| Total power capacity/current with 6KW source (380V) |
29.4KW/55.0A |
