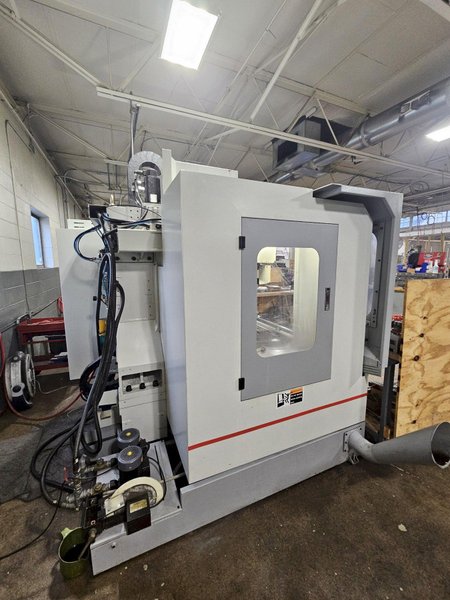

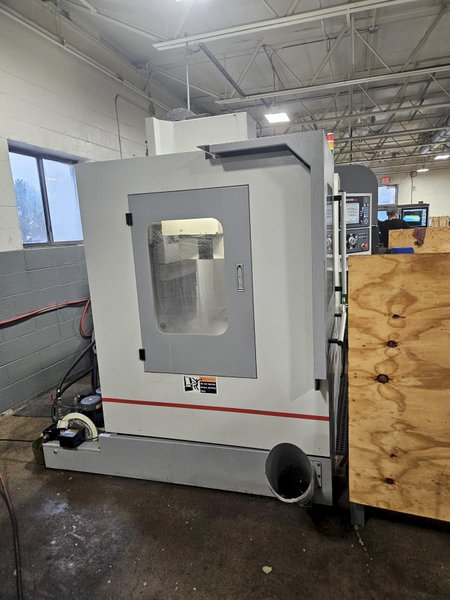

Southwestern Industries Trak LPM Vertical Machining Center (2019)

SPECIFICATIONS:

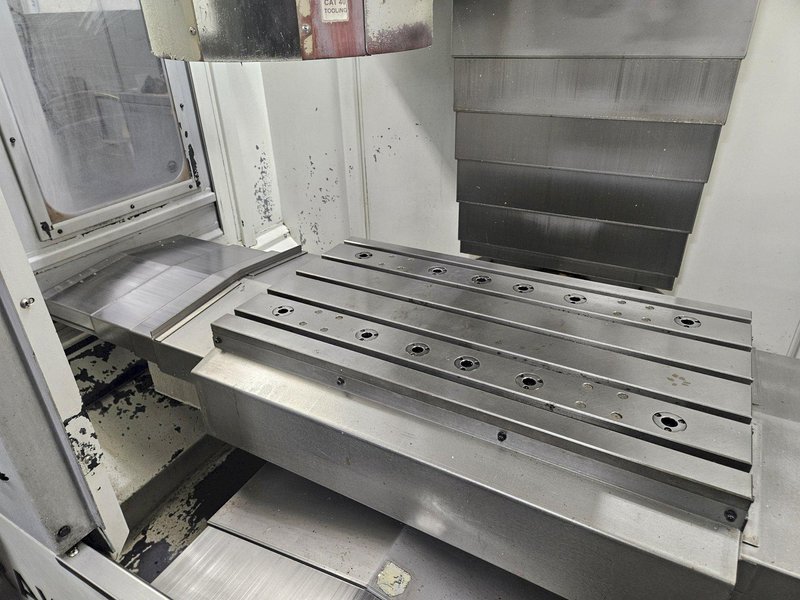

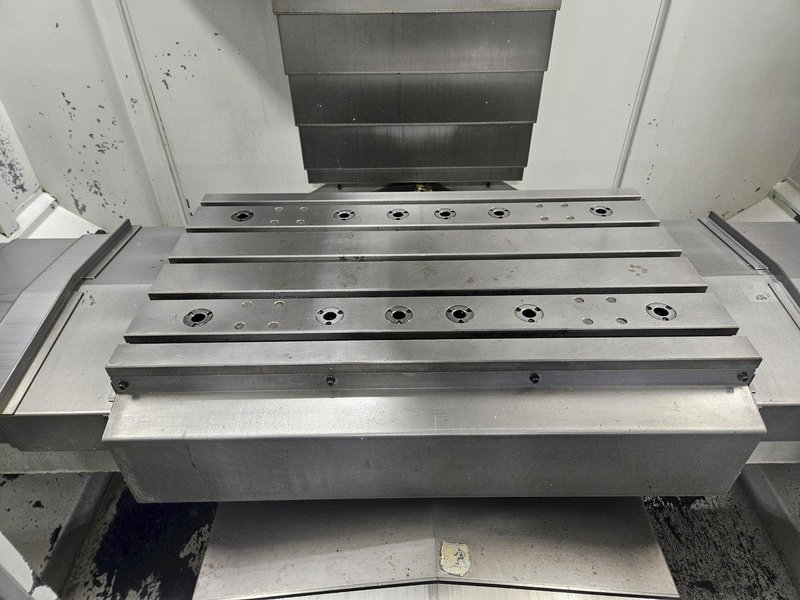

Table size:................................................... 35 3/8" X 19 5/8"
Tee slots: no. x width x pitch:........................ 5 x .71" x 3.94"
Table max load:........................................... 1000 lbs.
Travels: X x Y x Z:....................................... 31" x 18.5" x 21"
Max spindle nose to table:.............................. 24"
Min spindle nose to table:............................... 3 3/8"
Max clearance spindle center to column:.......... 19 1/4"
Max Rapid speed........................................... X x Y x Z ipm 800 x 800 x 700

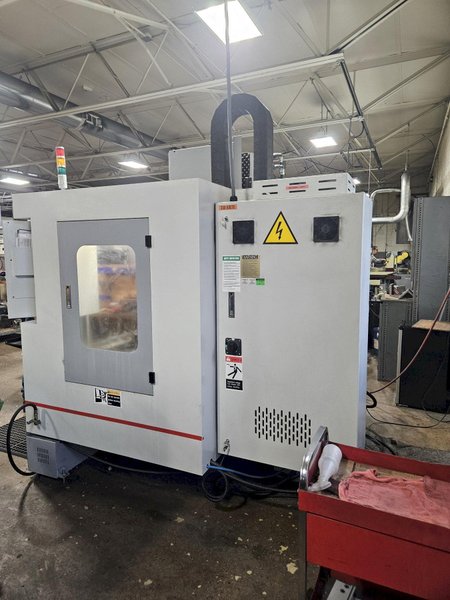

Electrical requirements................................... 208-240V / 70 amp
Tool holder type............................................ CAT40
Spindle nose diameter..................................... 2.75
Max RPM..................................................... 8000
Tool Capacity:............................................... 16
Max tool weight incl holder:............................ 15 lbs
Max tool diameter:......................................... 3.14
Tool clamping force:...................................... 1500 lbs
Tool carousel to table:.................................... 18"
HP Peak:...................................................... 15
HP Continuous:............................................. 10
Overall L x W x H 13.9' x 7.37' x 9'

Equipped with the following:

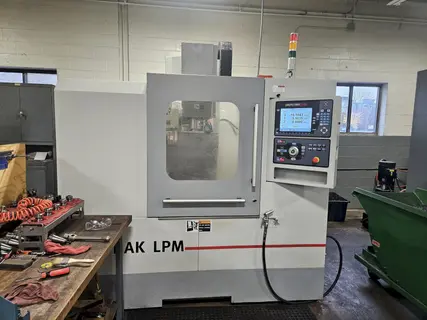

Prototrak PMX CNC Control
