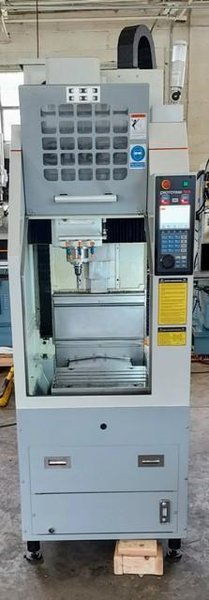

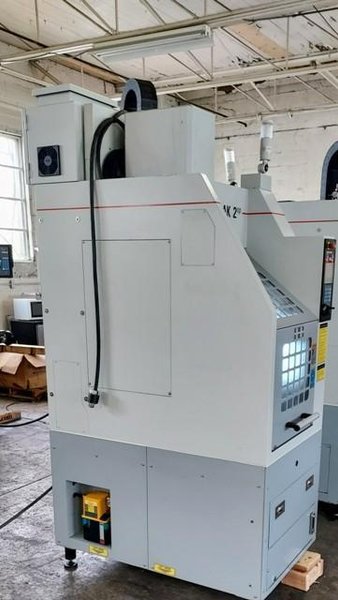

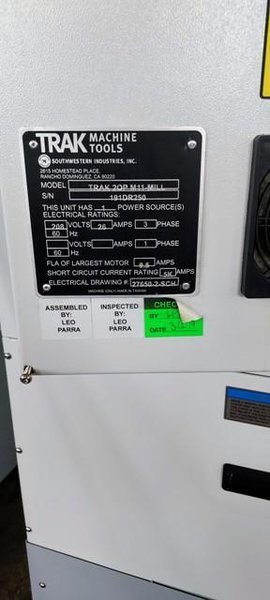

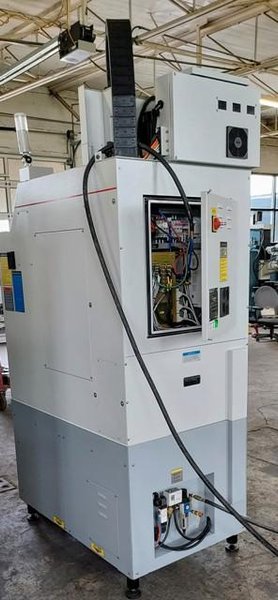

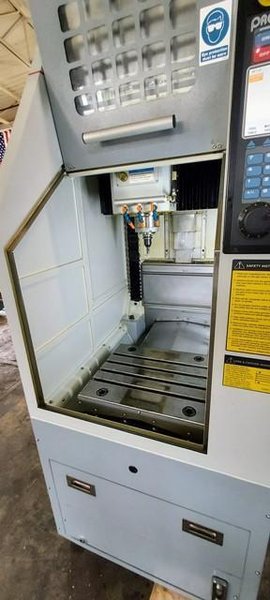

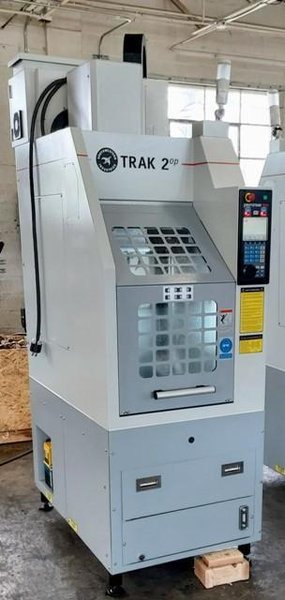

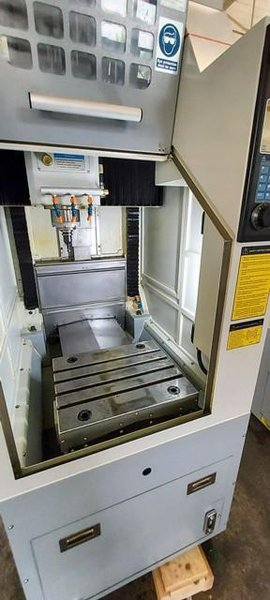

Machine Specifications Width of machine 30.5” Depth of machine 52” Height of mill with head all the way up 101” Minimum height to fit mill through doorway 92” (Z cable carrier collapsed, resistor cover and resistors removed) Table Dimensions Table size 18” x 15” Number of tee slots and pitch 4 @ 63 mm Tee slot width 0.630” or 16 mm Table maximum load 500 lbs. Ball Lock ® hold down force 2250 lbs @ 35 in/lbs of torque Machine Weight ~2825 lbs Machine Shipping Weight ~3175 lbs Travel X-axis 14” Y-axis 18” (12” of machining travel) Z-axis 17” Maximum distance from spindle nose table surface 20.25” Minimum distance from spindle nose table surface 2.75” Maximum swing clearance from spindle center to column 14” Maximum Rapid speed X, Y & Z-axis, inches per minute 600 Spindle Tool holder type BT30 Spindle nose diameter 2.2” or 56 mm Maximum RPM Horsepower 6000 3 HP Automatic Tool Changer Tool Capacity 8 Maximum tool diameter 2” Air Requirements Pressure 90 psi Quality CFM SCFM Air dried/filtered water separator upstream of the machine 2.5 at 90 psi 18 Auto Lube Pump Fluorescent Worklamp Coolant Pump Limit Switches Electronic Handwheel 4 Ball Lock Receivers in table Main Electrical Power Cord with Plug Equipped With ProtoTRAK TMX *** PALLET JACK NOT INCLUDED
|
