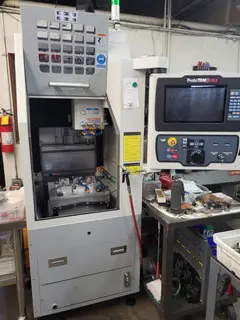

Southwestern Industries Trak VMC 2 RMX (2024)

Southwestern Industries Trak VMC 2 RMX (2024)

Name: Used SOUTHWESTERN INDUSTRIES Trak VMC 2 For Sale 104310
Brand: SOUTHWESTERN INDUSTRIES
SKU: 104310
Availability: PreOrder

Brand

SOUTHWESTERN INDUSTRIES

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

CNC Control

yes

Table size	18″ x 15″
T-slots (number x width x pitch)	4 x 0.629″ x 2.480″ (4 x 16 mm x 63 mm)
Travel (X, Y, Z axis) with soft limits	14″ x 12″ x 17″
Rapid traverse X, Y, Z	400 IPM in Toolroom Ops 600 IPM in Production Ops
Spindle taper	30 Taper
Spindle speed range - Production Ops	50 - 10,000 RPM
Spindle speed range - Toolroom Ops	50 - 5,000 RPM
Spindle nose diameter	2.2″
Tool clamping force (90 psi)	850 - 1,000 lbs
Tool holder type	BT 30
ATC tool capacity	8
Maximum tool weight (incl. holder)	8 lbs
Maximum tool diameter	2″
Tool carrier speed	1.2 - 1.4 sec from front to back
Tool selection system	Shortest path
Spindle motor HP - peak	4.5 HP
Spindle motor HP - continuous	3 HP
Power requirements	208V (208-240V is acceptable), 3P, 30A 480V with transformer options (440-520V is acceptable), 3P, 15A
Maximum weight of workpiece	500 lbs
Height of table from bottom of bed***	34″
Min. spindle nose to table distance ****	2.75″
Max. spindle nose to table distance ****	20.25″
Spindle center to spindle head casting face	15.7″
Min. machine height ***	93″
Min. machine height to fit through doorway **	93″
Max. machine height (head all the way up) ***	101.5″
Length (pendant enclosure rotated at 90°)	88.25″
Overall length of machine with electrical cabinet fully open 180° and pendant enclosure rotated 90°	113.5″
Footprint of machine (width x length)	30.5″ x 52″
Weight net / shipping (lbs)	2,825 / 3,175
Coolant capacity	15 gal
Coolant pump power	1/4 HP
Air - CFM (at 90 psi), SCFM	2.5 CFM, 18 SCFM
Air quality	Air dried/water separator upstream of VMC
Lubrication pump capacity	2 liter

Equipped With:
Prototrak RMX CNC Control

Specifications subject to change.* User may cause damage if machine crashes.** Must remove resistor and all sheet metal attached to top of electrical cabinet.*** Height changes slightly based on how machine is leveled on leveling screws.**** Can vary slightly due to home switch location and soft limit settings.
