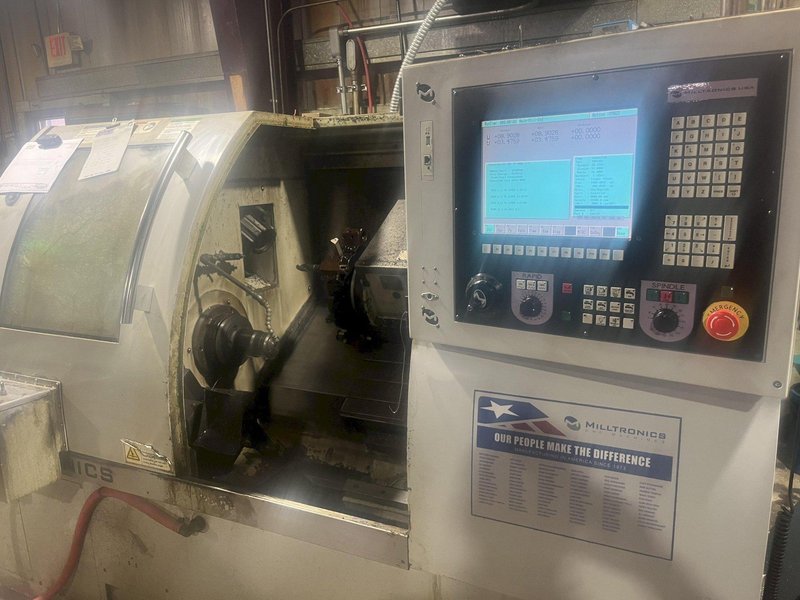

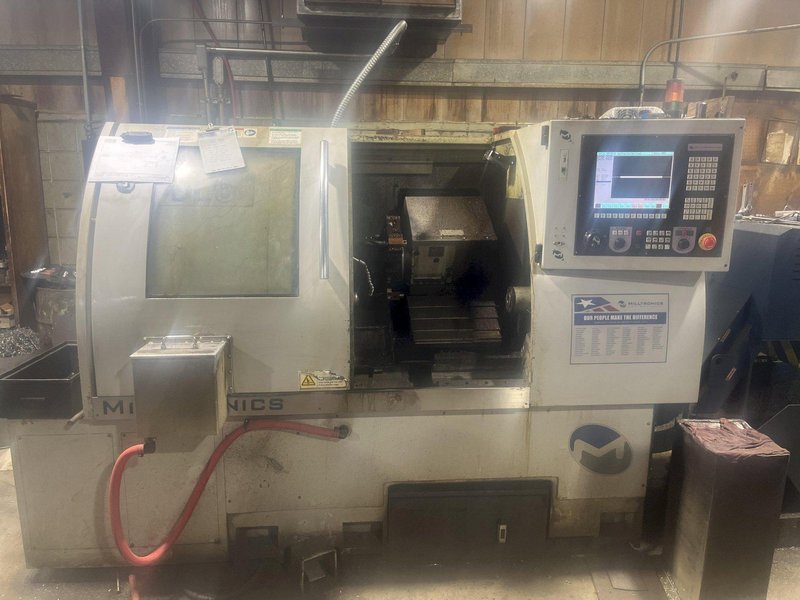

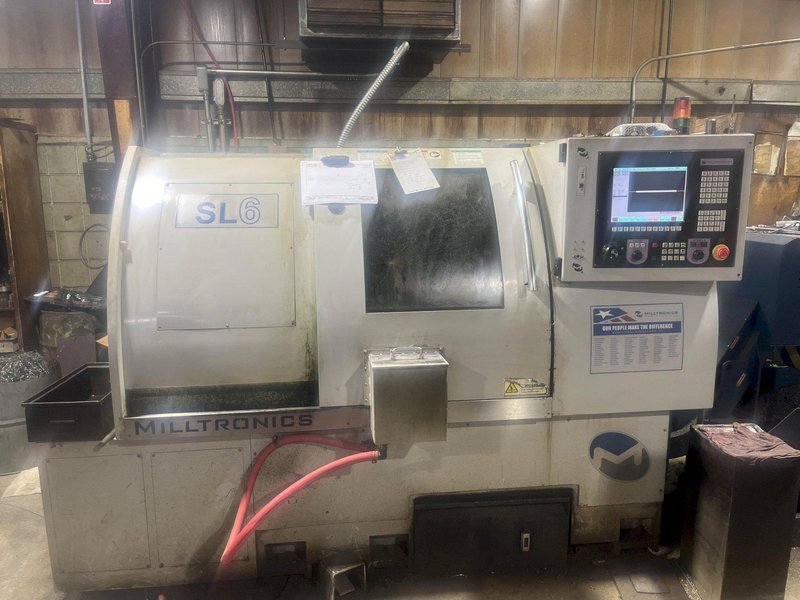

Milltronics Model SL6 CNC Turning Center, New 2012.
Brand
Category
Type
Model
SL6
Stock #
34818C
Year
2012
Condition
Used
Location
Ohio
|
Specifications:
Swing Over Way Cover - 20" Swing Over Carriage - 9" Travel (X Axis) Cross Slide - 8" Travel (Z-Axis) Long Slide - 21" Bar Capacity, Diameter - 1.65" Chuck Size - 6" (currently equipped with collet chuck) Spindle Load Capacity (Work Holding & Part) - 300 Lbs. Turning Diameter - 12.25" Spindle Motor - 12/10 HP Spindle Nose - A2-5 Spindle Speeds - 50 to 6000 RPM Tail Stock Quill Stroke - 2" Tail Stock Quill Diameter - 2.55" Tail Stock Quill Taper - No. 4MT Turret Tool Size - 3/4" Turret Index Time, 1 Station - 0.7 Sec. Rapid Traverse X & Z - 1,000 IPM Maximum Feedrate - 500 IPM Bed Inclination - 30 Degrees Machine Dimensions Without Accessories - 91" L x 68" D x 63" H Machine Weight, Approx - 7000 Lbs. Equipped with: Milltronics 7200 Conversational Control 12" Color LCD Display Collet Chuck Linear Way Construction Automatic Metered Lubrication 1" 8 Position Turret Hydraulic Tailstock Chip Conveyor Flood Coolant System Notes: Machine is located in northeast Ohio shop Offered on consignment. No warranty or return privilege. Loading is at expense of buyer. Shipping not included. Specifications subject to independent verification by the buyer. |
