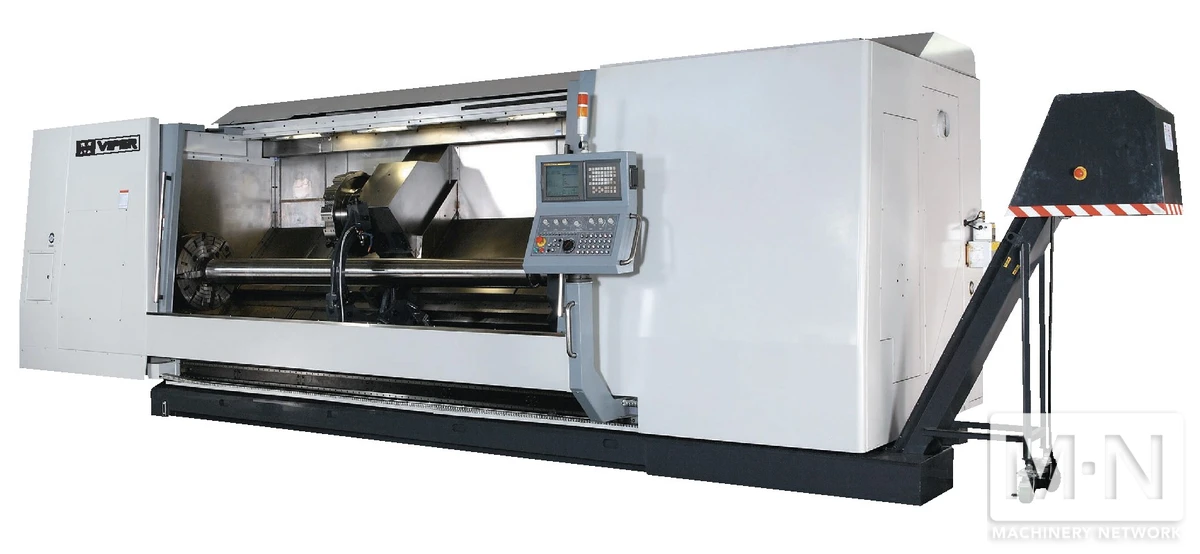

Mighty Viper VT-40BM x2000 High-Precision CNC Turning Machine

Brand

RCASANOVA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

MIGHTY VIPER

Model:

VT-40BM X2000

Stock #:

40855

Status:

For Sale

Description

31.29" max turning diameter, 77.17 max turning length, 9.4" bar capacity, two-step gearbox, Star Type VDI-60 live turret, Mitsubishi M70L CNC control, Samchully 24" 3-jaw hydraulic chuck, manual tool presetter, Heidenheim C-axis encoder, programmable tailstock, link-type chip conveyor, coolant system, heat exchanger

Specifications

ImperialMetric

Swing	39.37"	1,000 mm
Machining Length	77.2"	1,960.9 mm
Chuck Size	24"	609.6 mm
Bar Capacity	7"	177.8 mm
Power	50 hp	37.3 kW
Max RPM	1,500 RPM	1,500 RPM
Tailstock	Yes	Yes
Live Tooling	Yes	Yes
Sub Spindle	No	No
Control	CNC (Mitsubishi M70L CNC control)	CNC (Mitsubishi M70L CNC control)

Turning Dia: 31.3"

Equipped With:

Star Type VDI-60 live turret
Samchully 24" 3-jaw hydraulic chuck
Manual tool presetter
Heidenheim C-axis encoder
Programmable tailstock
Link-type chip conveyor
Coolant system
Heat exchanger

No files or videos to display
