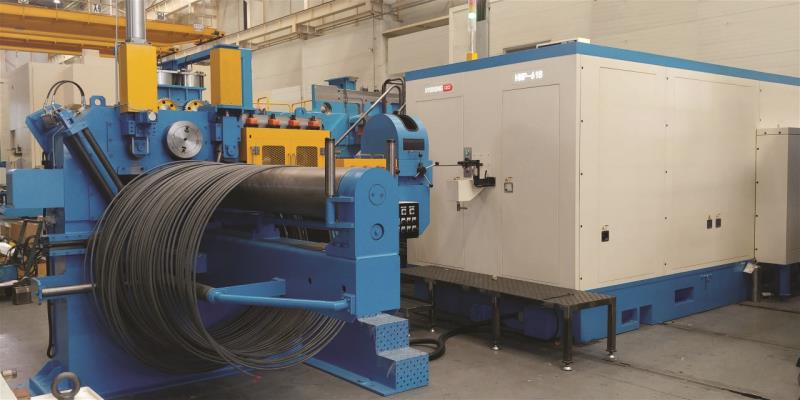

HYODONG HLNP-611 // 615 // 618 6Die Link Nut Part Former [ Eco Design ]

HL Series Highlights:

** Innovative former design using knuckle press type structure & power transmission method. With no crank shaft, machine uses the knuckle type ram mechanism, allowing more time to form products at front position.

>> Result is reduced tooling loads and deformation resistance!

>> Advantageous in production of variety of material types & with thin & high precision parts!

~ Very effective especially for aluminum & copper parts, like those found in Electric Vehicles.

** Link former can exert superior power & bigger forging loads, 30% more power, compared to standard existing type formers, and at same time the main motor size is reduced by half, saving on energy use!

HLNP-618 Specifications:

No of dies: 6 Dies
Forging Load: 1,800kN
Cut-Off (Dia x Lgth): 18 x 50mm
Open up Dia: 24.5mm
KO: 50mm
PKO: 25mm
Output speed: up to 180ppm
