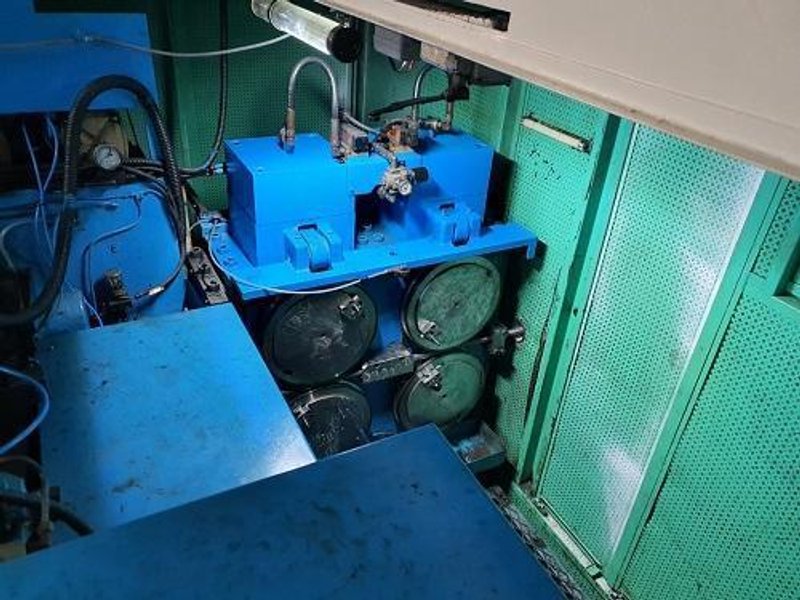

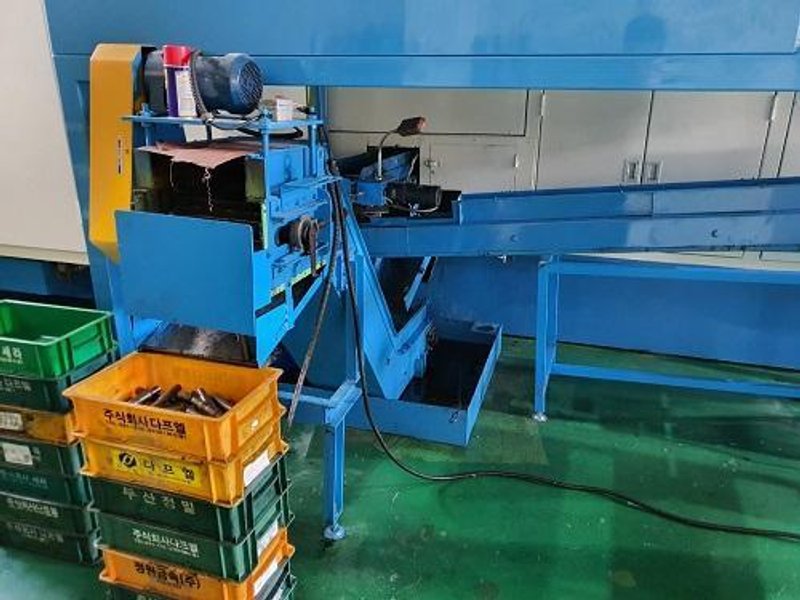

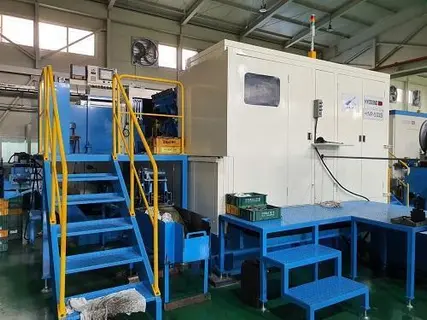

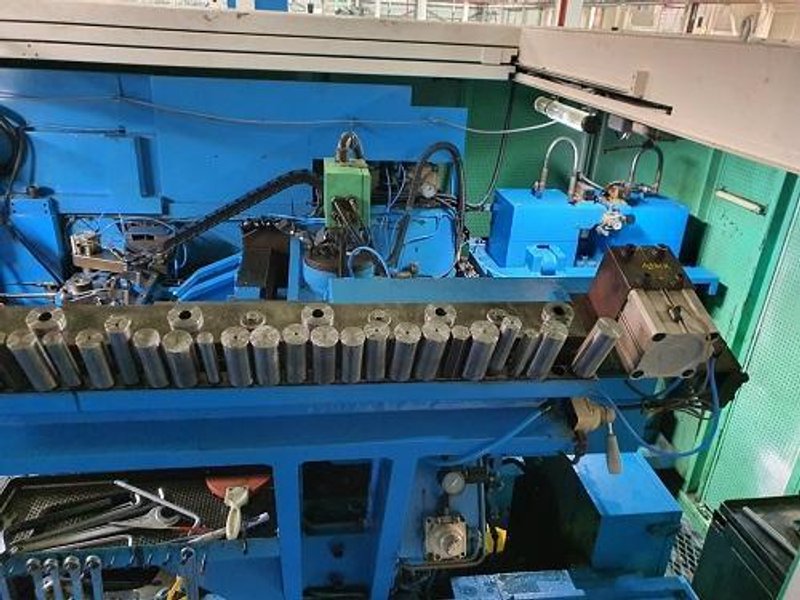

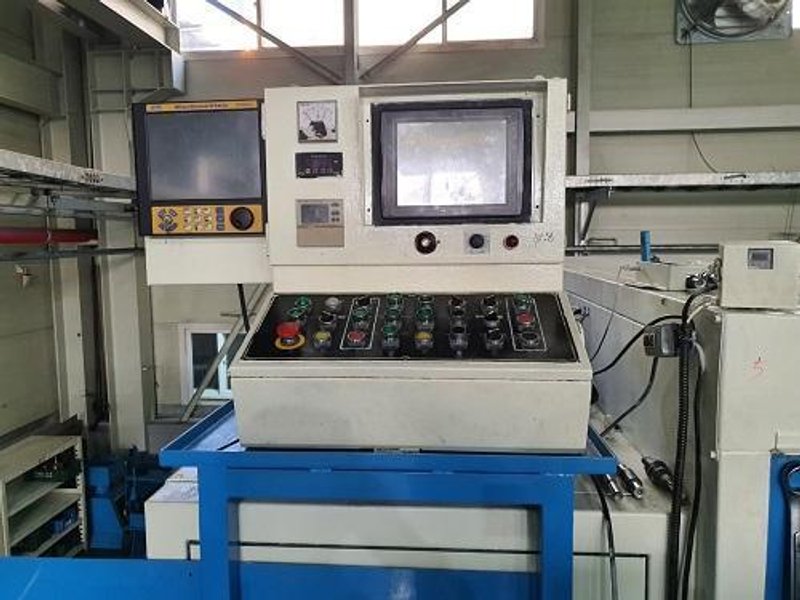

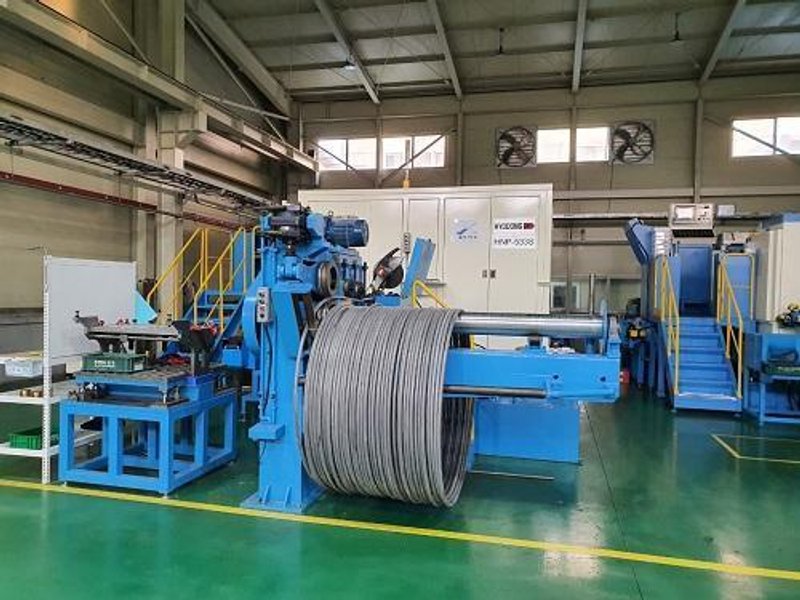

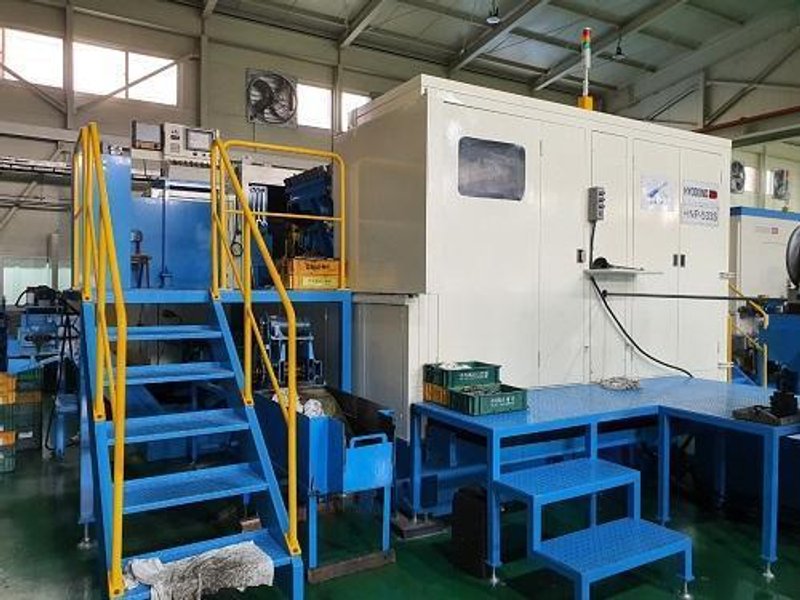

HYO DONG #HNP-533 FORMER
Brand
Category
Type
Model
HNP-533
Stock #
116095
Year
2003
Condition
Used
Location
Not specified
|
HYO DONG FORMER MODEL : HNP-533

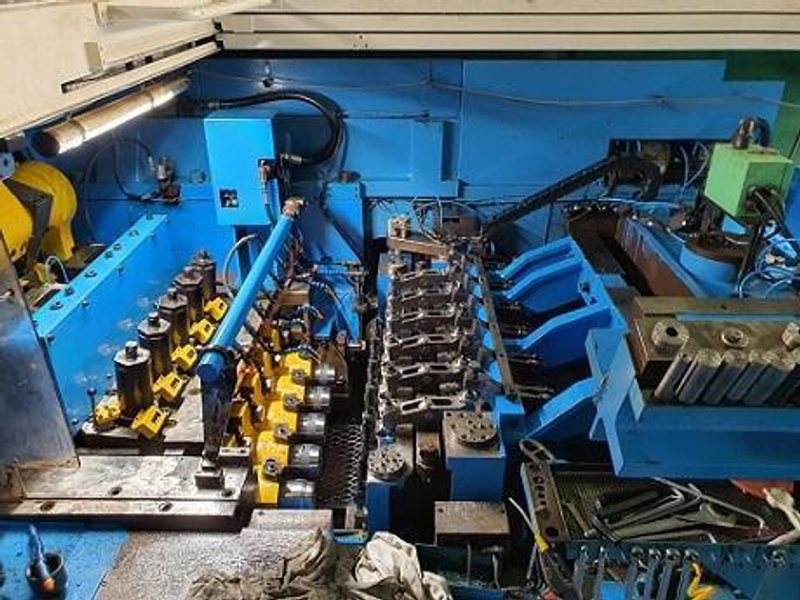

Forging station - 5 station
Forging dia - 33(32AF) mm
Open up-dia. - 46 mm
Forging load - 400,000 kgf
Cut-off Dia. - 33(29) mm
Cut-off length - 30 - 150 mm
Cut-off knife size - 105 x 34 mm
Cut-off quill size - 100 x 155 mm
Punch dia. - 110 x 282 mm
Die dia. - 150 x 240 mm
Center distance between dies - 168 mm
P.K.O stroke - 40(50) mm
K.O stroke - 120 mm
Max RPM - 100 pcs/min
Main motor - 90 kw
Machine dimensions - 7.5L x 4.5W x 2.8H
Machine weight - 80,000 kg
Electric capacity - 100 KVA
Air capacity - 4.0 L/J
Lubrication oil capacity & Coolant oil capacity - 1200 L
Lubrication pump capacity - 1.5 kw
Coolant pump capacity - 1.5 kw
|
