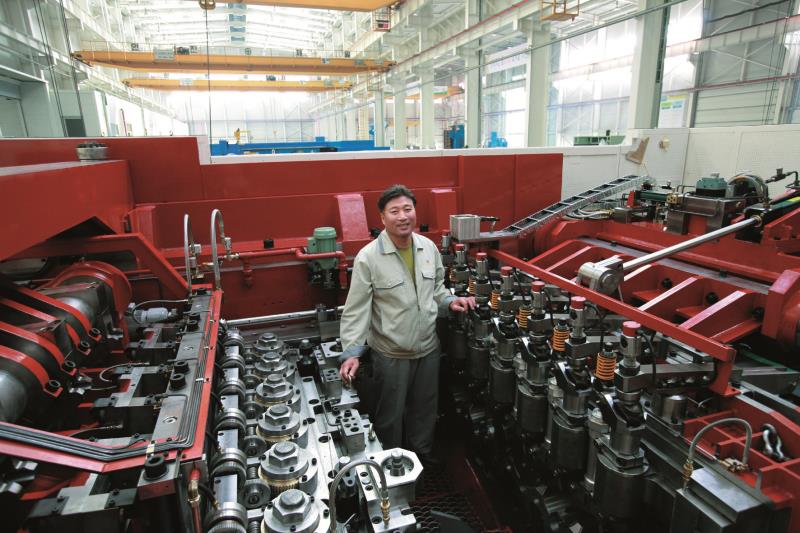

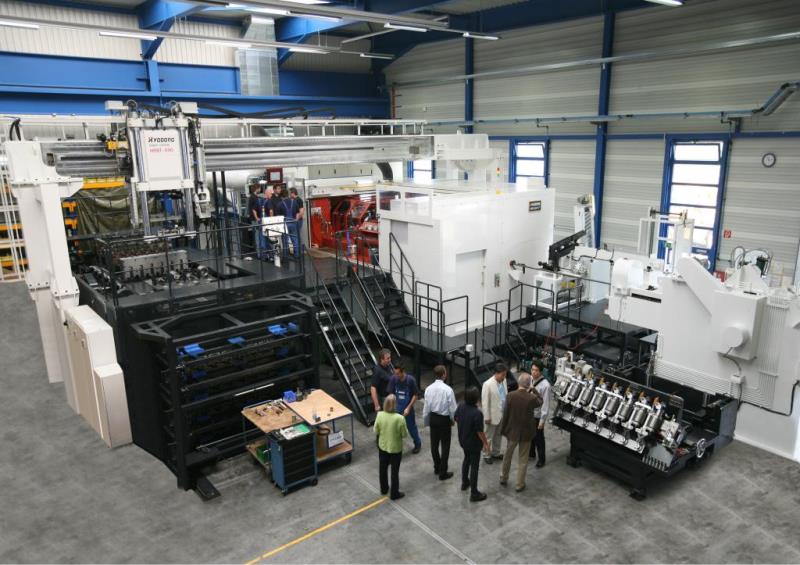

HYODONG HBP Multi Die Parts Former

EXAMPLES OF TECHNOLOGY OPTIONS:

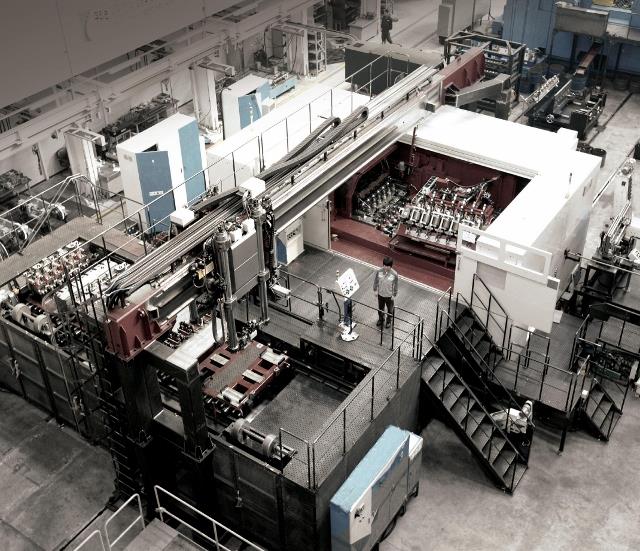

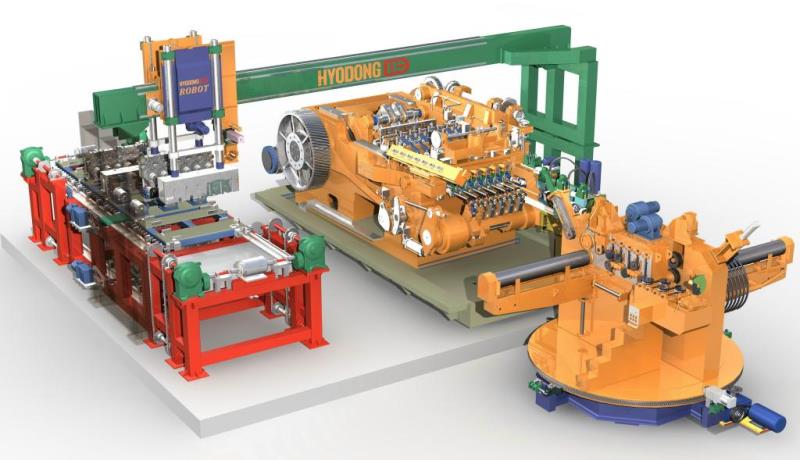

1) Built-in Robot tool change system
A built-in tool change system for quick die change with better compact design. The die block and punch block can be replaced only within 1.5 minutes. (the world?s first developed in 2014)

2) Servo Type Slow Forging Technology
A device which allow safe tool setup with actual forging at low speed by a pulse jog system. Operators can do tool setup easily and it also saves energy compared to conventional tool setup by jog buttons.

3) Linear Feeding System
Straight line type of wire coil supplying fed by gripper without stop bar and is a favorable option for producing high precision products

4) Air Lifter System
Air lift device can hold the production products or goods of industrial by only compressed air and is a handler that can be handled the goods with up, down, left and right by three-dimensional arc moving in a sense of weightlessness without any S/W control.

5) Double Uncoiler
A device that maximizes operation time. It allows the next wire coil to be used by combining two uncoiler units on a rotating base.

Wire Dia. Range: M11- M50
No of dies avail: 5,6 and 7 Dies
