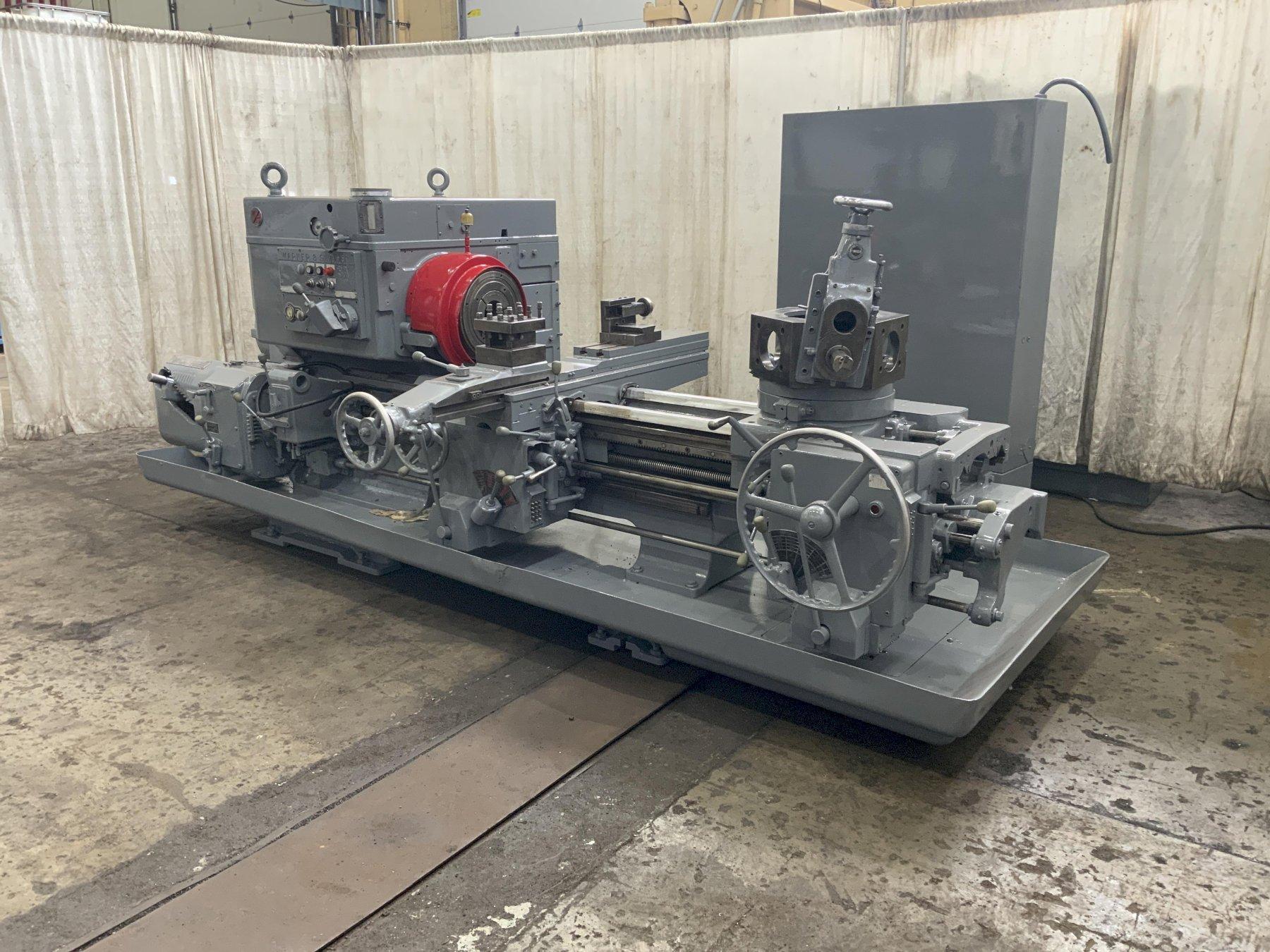

#3A WARNER & SWASEY MODEL #M3500 SADDLE TYPE TURRET LATHE: STOCK #78890
Brand
Category
Type
Model
M-3500
Stock #
78890
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL ............................. 20840168 MODEL .............................. 3A (M-3500) SQUARE HEAD SWING OVER BED ..................... 24-1/2" SWING OVER CARRIAGE HORN ........... 18" SPINDLE NOSE TO TURRET ............. 58-3/4" SPINDLE HOLE ....................... 6-1/8" SPINDLE SPEEDS ..................... (32) 12 TO 851 RPM CHUCK .............................. 21" 3 JAW POWER CHUCK WRENCH .. YES CARRIAGE LONGITUDINAL FEEDS ........ (16) .005 TO .167 IPR CARRIAGE CROSS FEEDS ............... (16) .002 TO .082 IPR TURRET LONGITUDINAL FEEDS .......... (16) .005 TO .167 IPR ADJUSTABLE SLIDE TOOLS .. 2 FLANGE TOOL HOLDER .. 4 CHIP PAN WITH COOLANT .............. YES MAIN MOTOR ......................... 25 HORSEPOWER |
