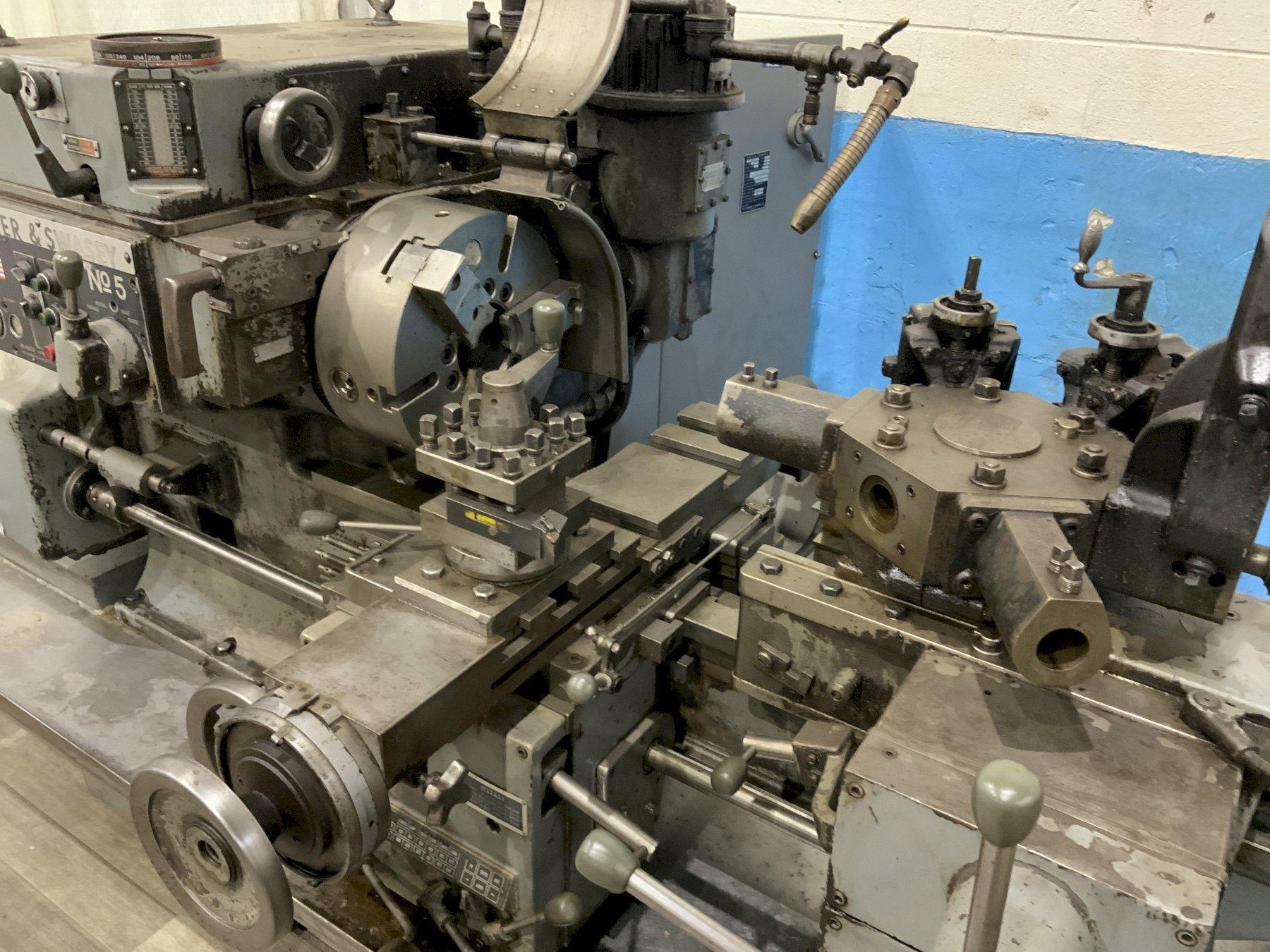

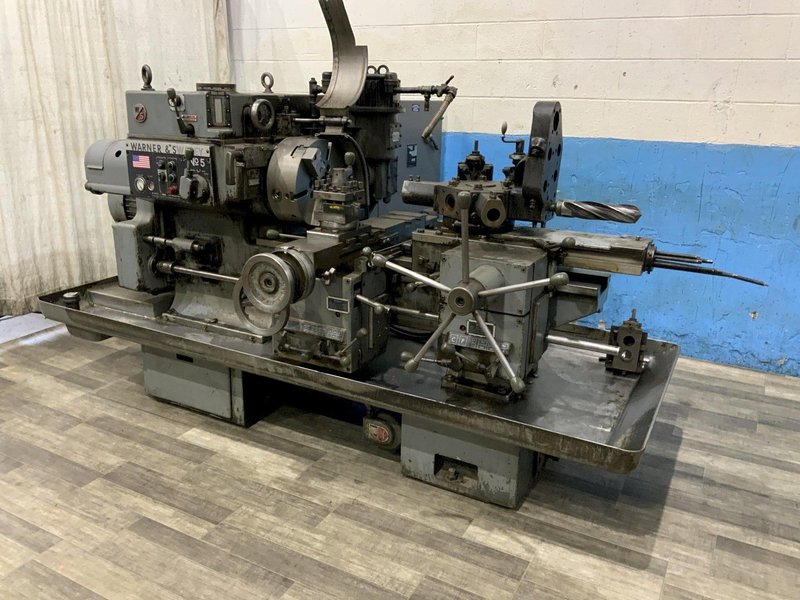

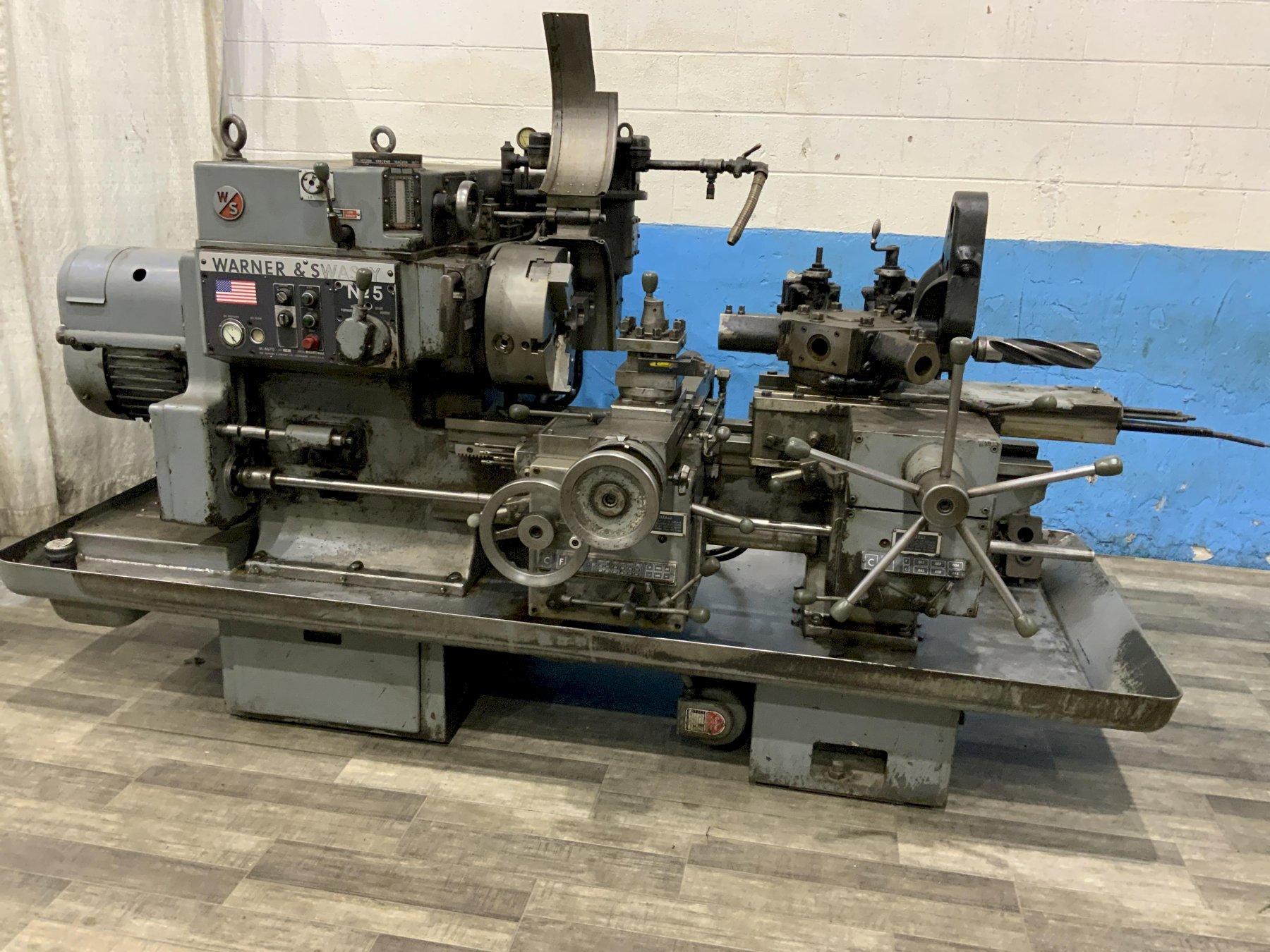

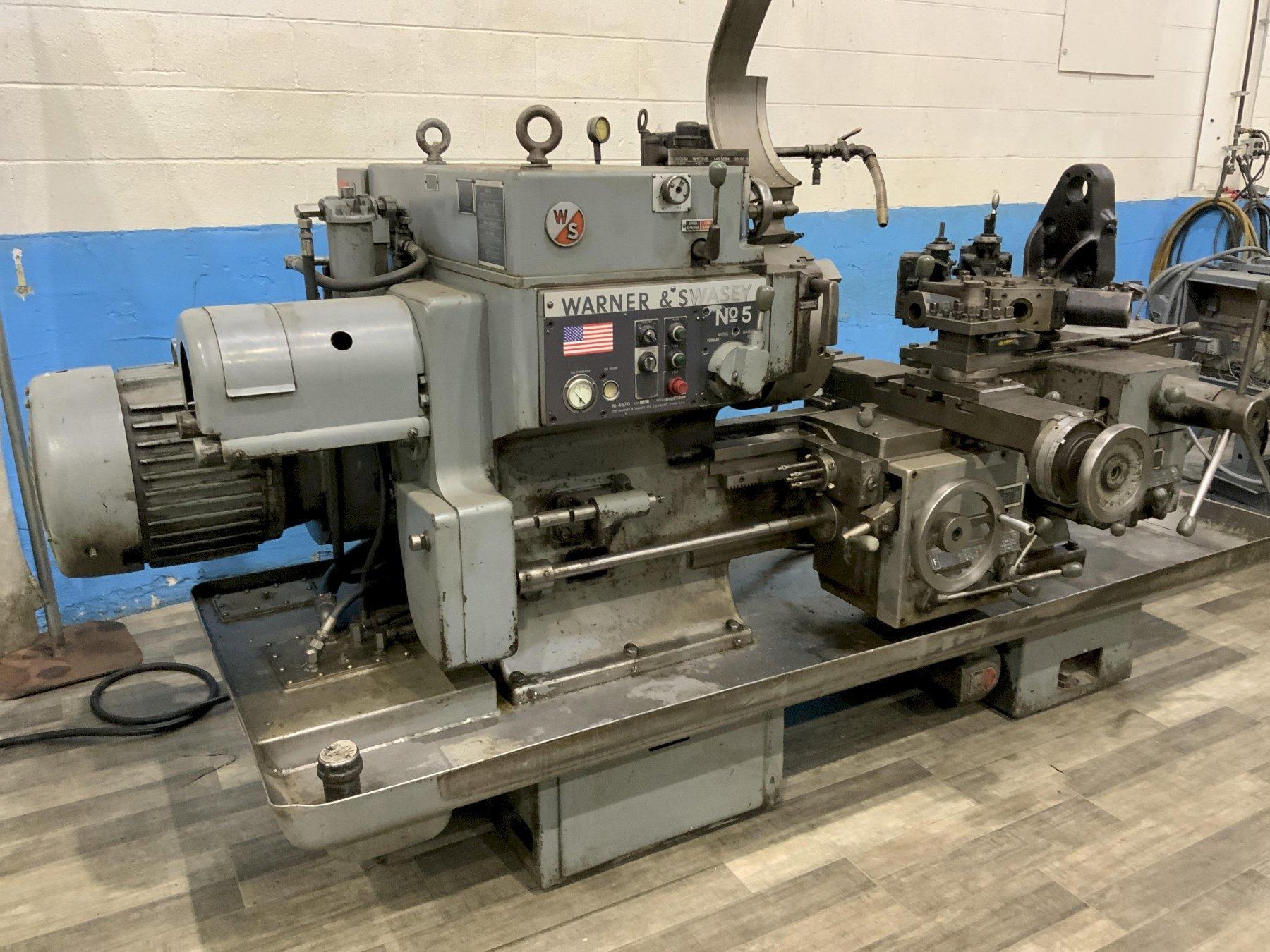

#5 WARNER & SWASEY M4670 RAM TURRET LATHE: STOCK #81450

SERIAL ................................ 2188597

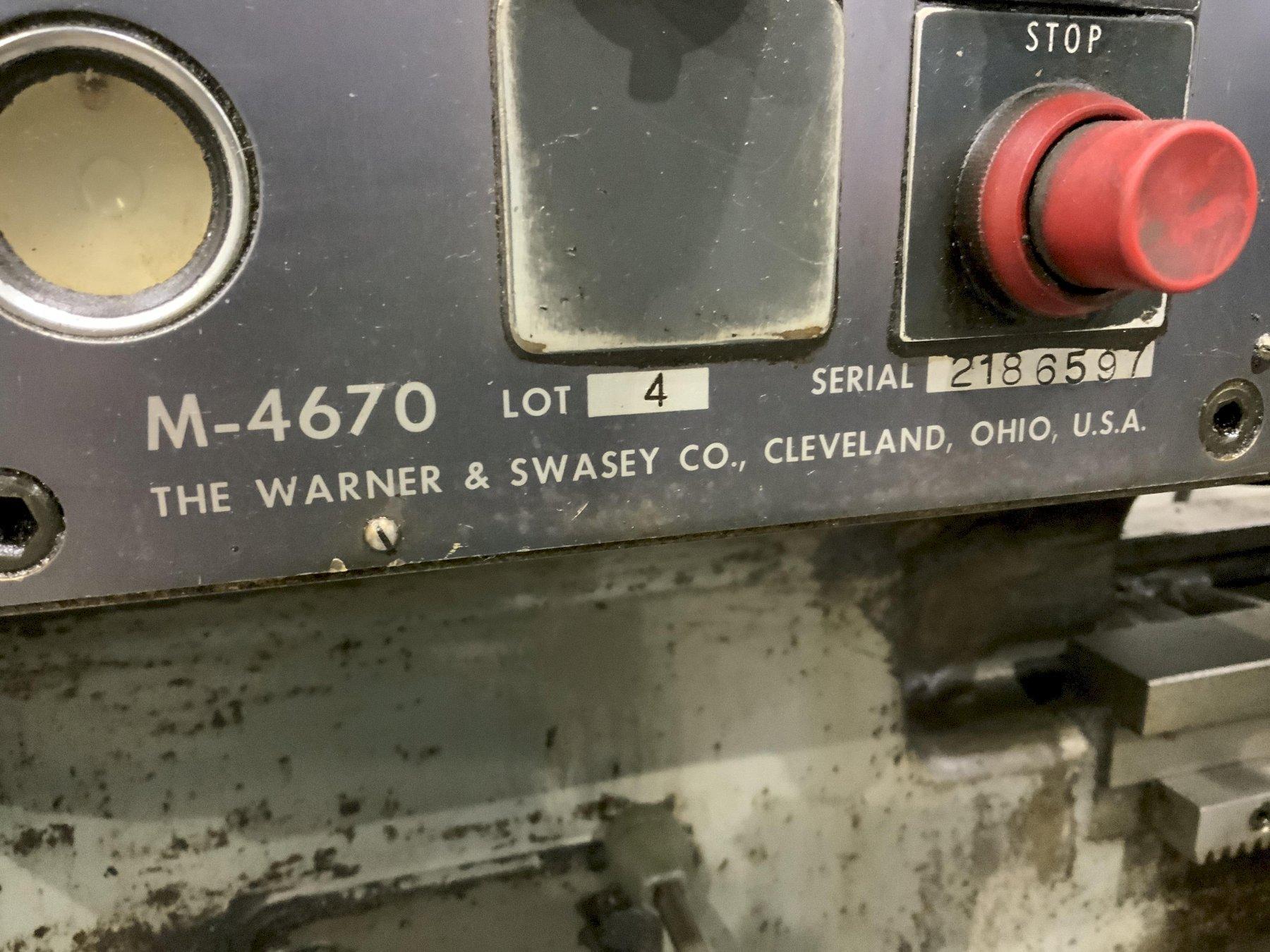

MODEL ................................. #5 (M-4670) SQUARE HEAD
SWING OVER BED ........................ 20"
SWING OVER CROSS SLIDE ................ 10-1/4"
ROUND BAR CAPACITY .................... 4-1/2"
SQUARE BAR CAPACITY ................... 3-3/16"
HEXAGON BAR CAPACITY .................. 4-5/8"
SPINDLE HOLE .......................... 4.5"
SPINDLE SPEEDS ........................ (24) 25 TO 1000 RPM
SPINDLE NOSE TO TURRET FACE (MAXIMUM) . 36-1/4"

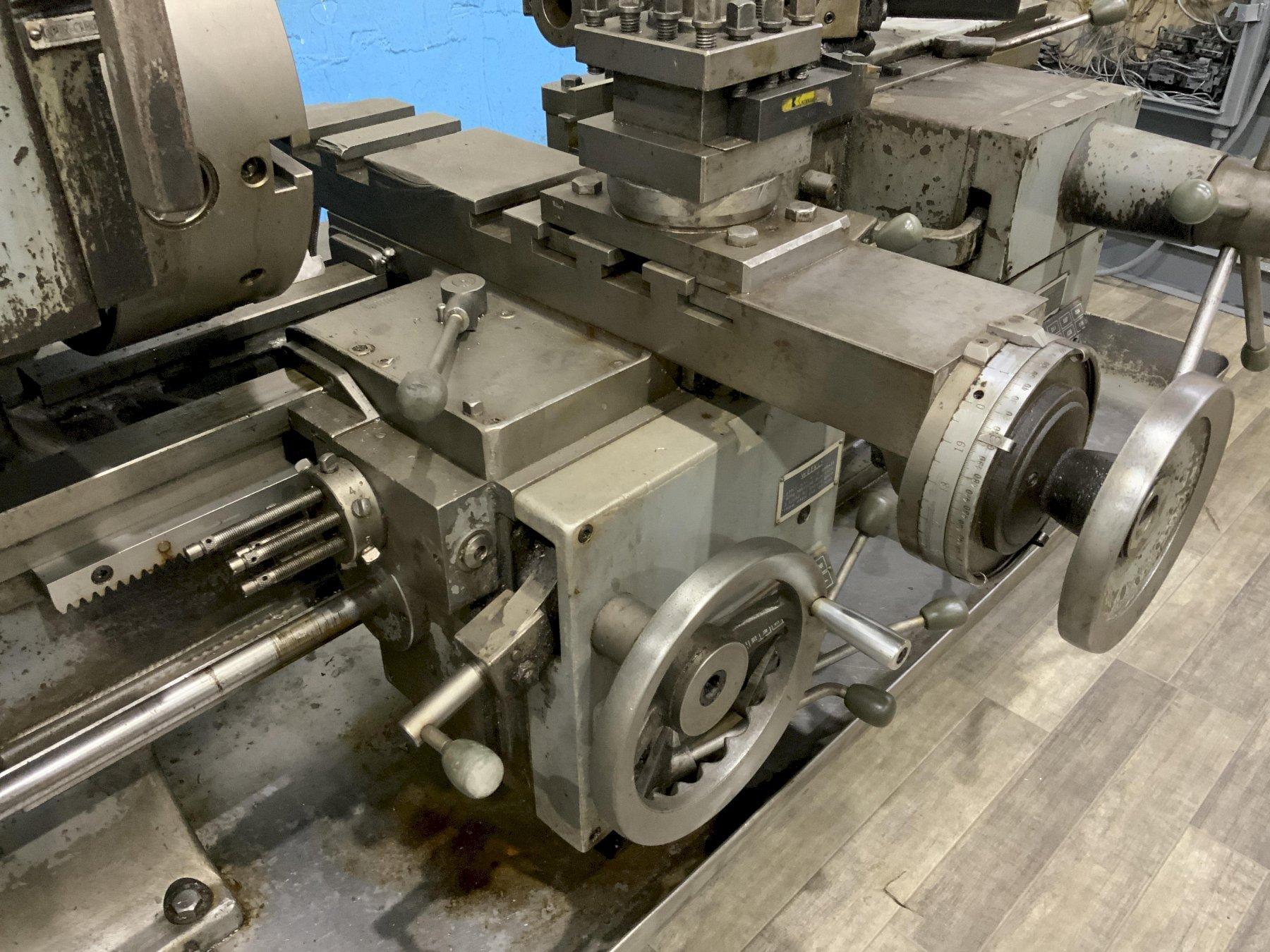

LONGITUDINAL CARRIAGE TRAVEL .......... 23"
CROSS TRAVEL .......................... 10"
LONGITUDINAL FEEDS .................... (6) .005 TO .047 IPR
CROSS FEEDS ........................... (6) .002 TO .019 IPR
TURRET FEEDS .......................... (6) .004 TO .045 IPR

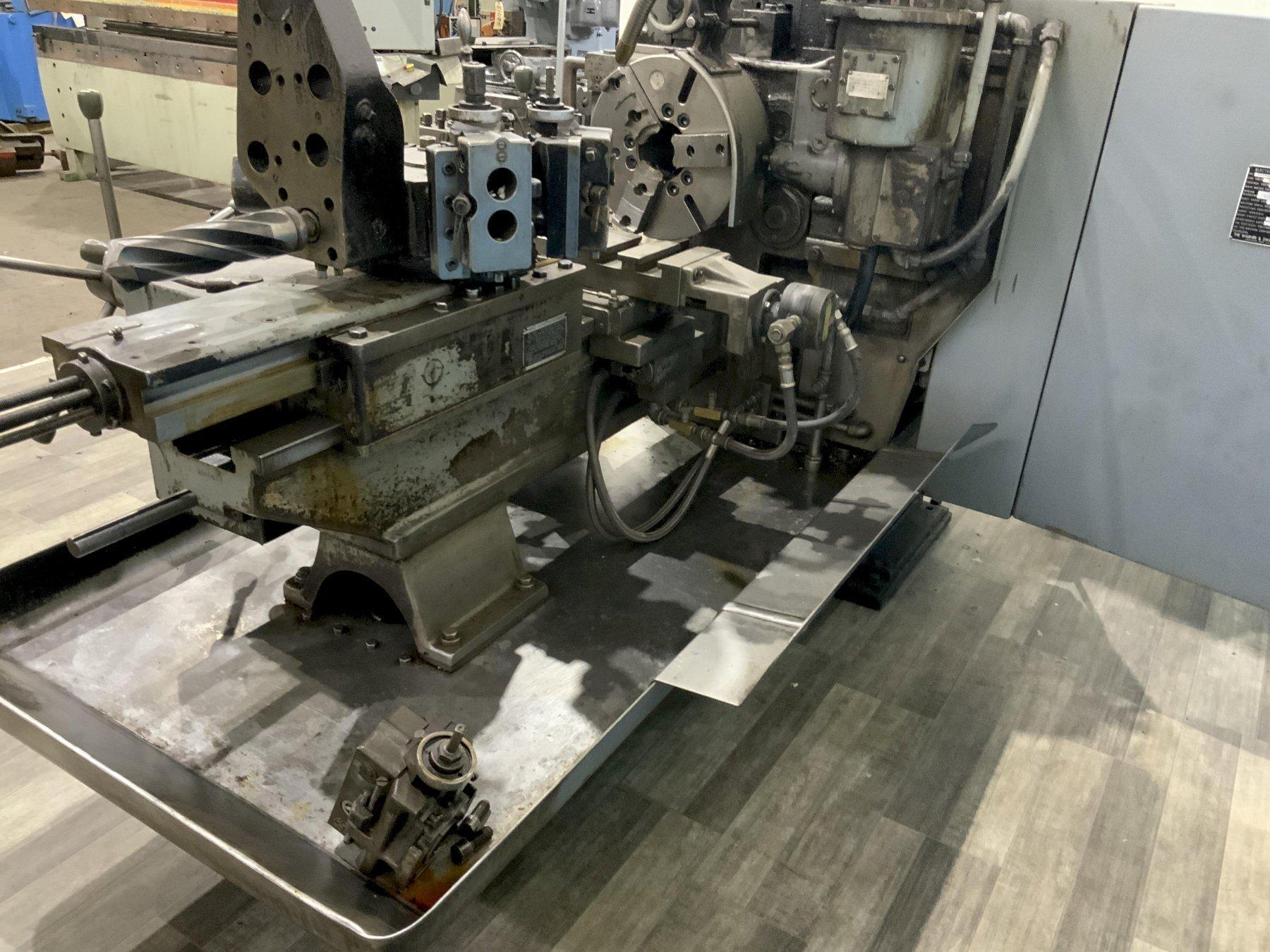

COOLANT CHIP PAN ...................... YES

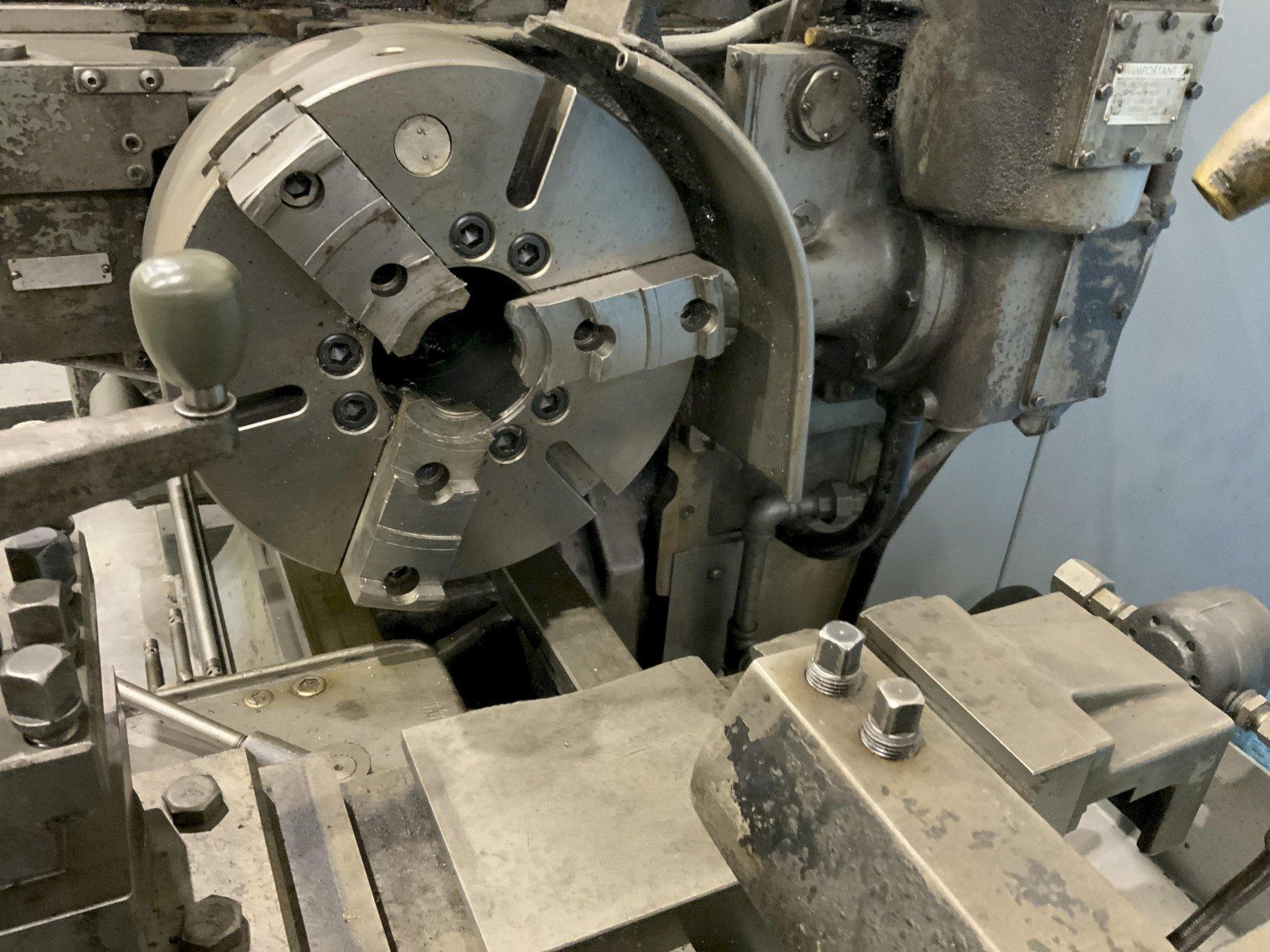

3-JAW CHUCK POWER CHUCK WRENCH ........ 15"
RAPID TRAVERSE ........................ YES
SLIDE TOOLS ........................... 3
FLANGE TOOL HOLDER .................... 2

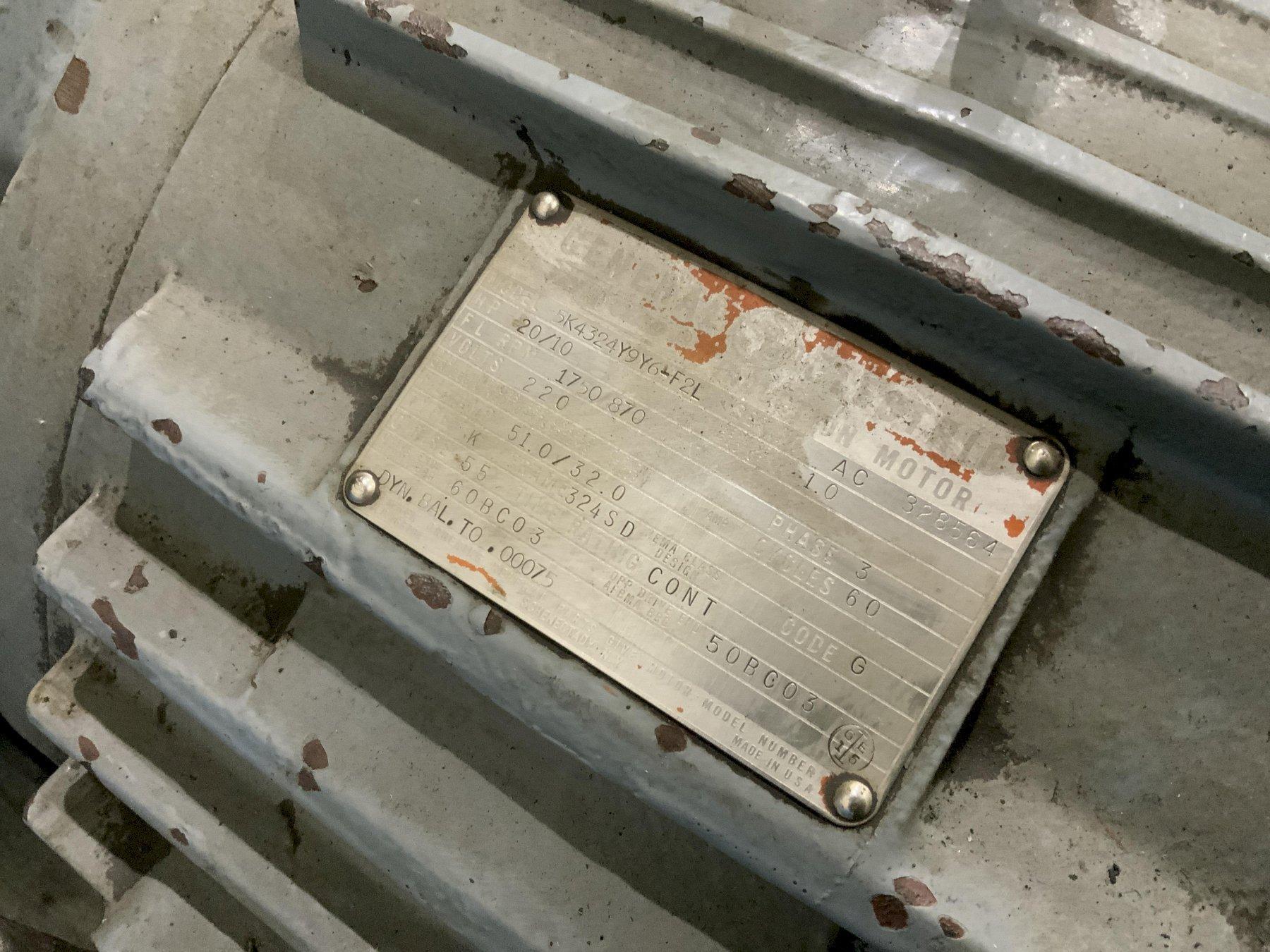

HORSEPOWER SPINDLE MOTOR .............. 20/10
