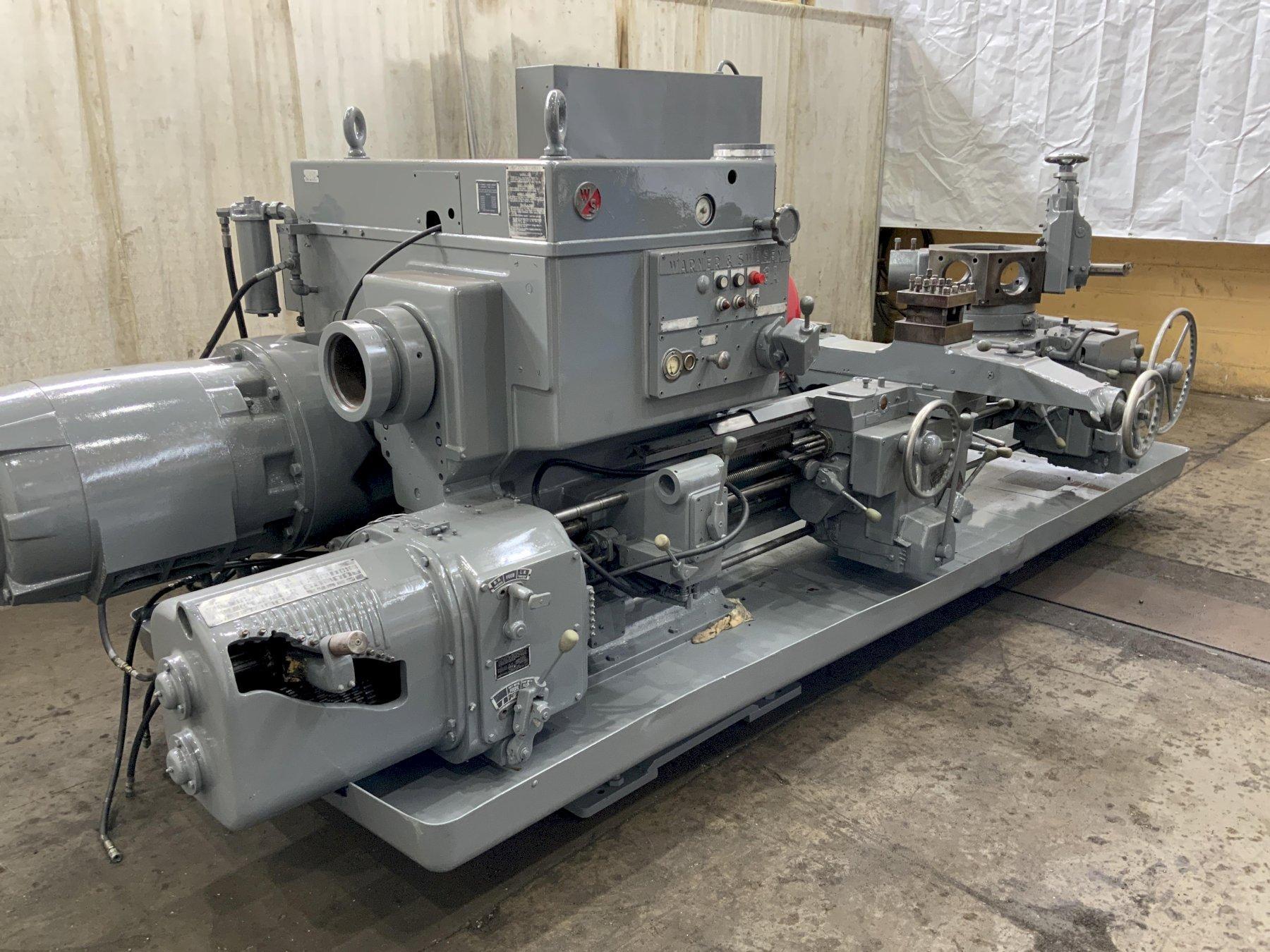

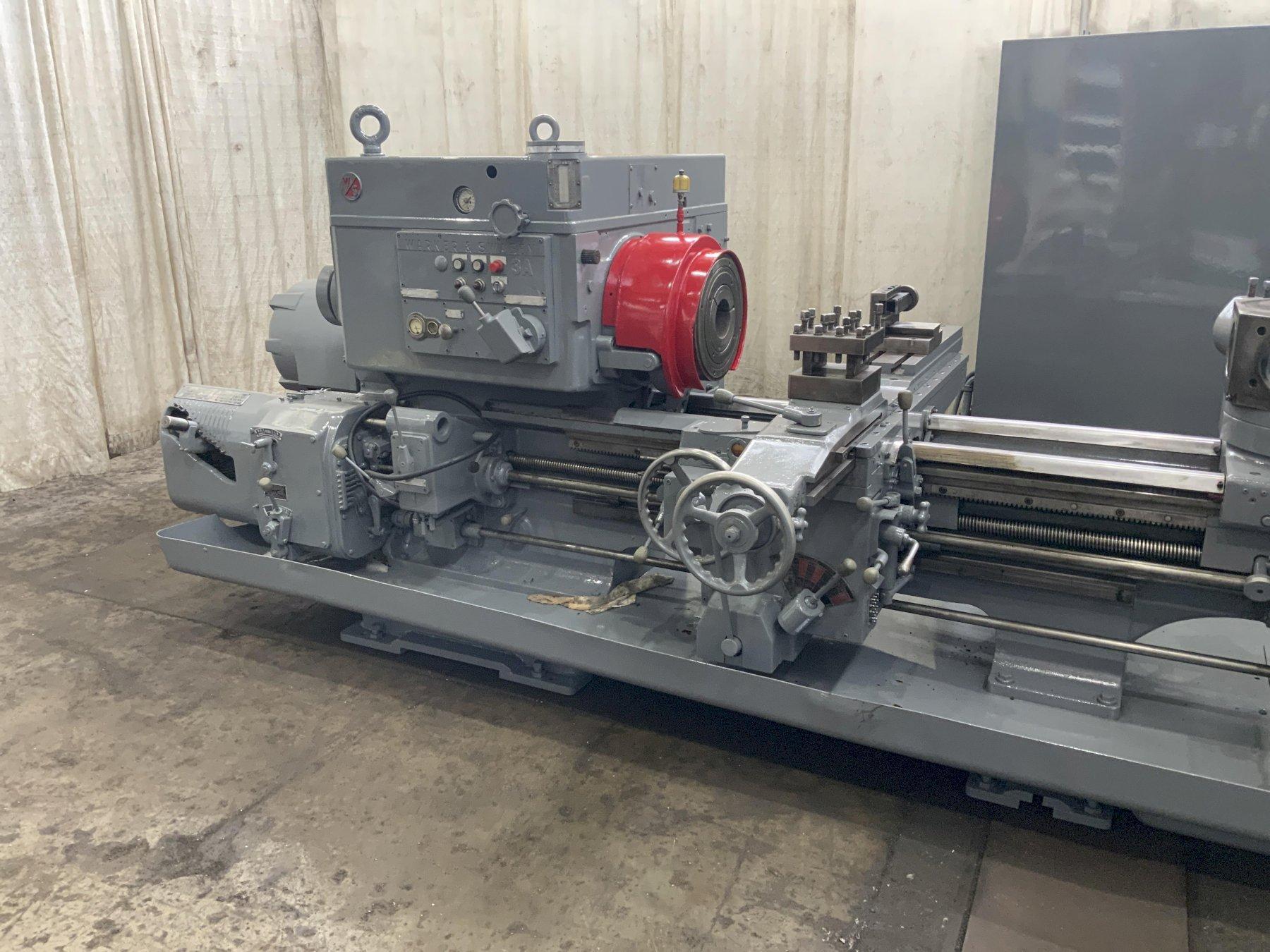

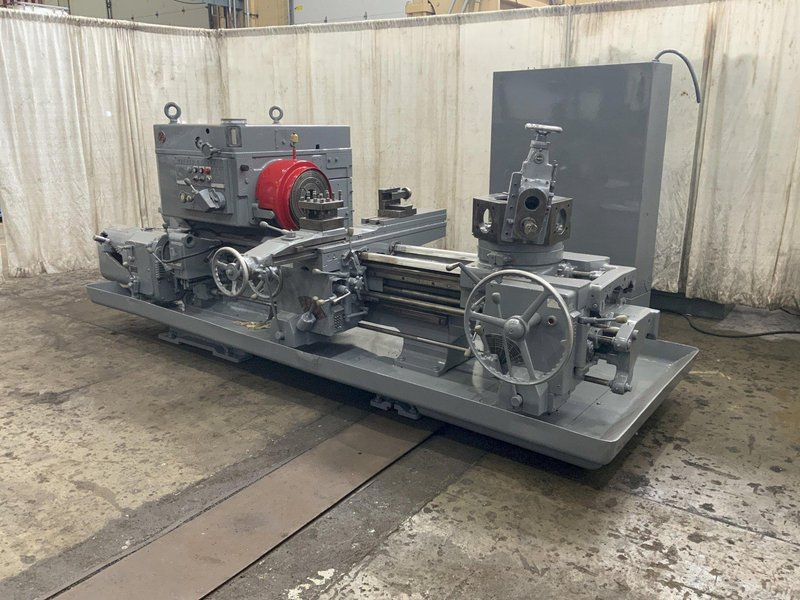

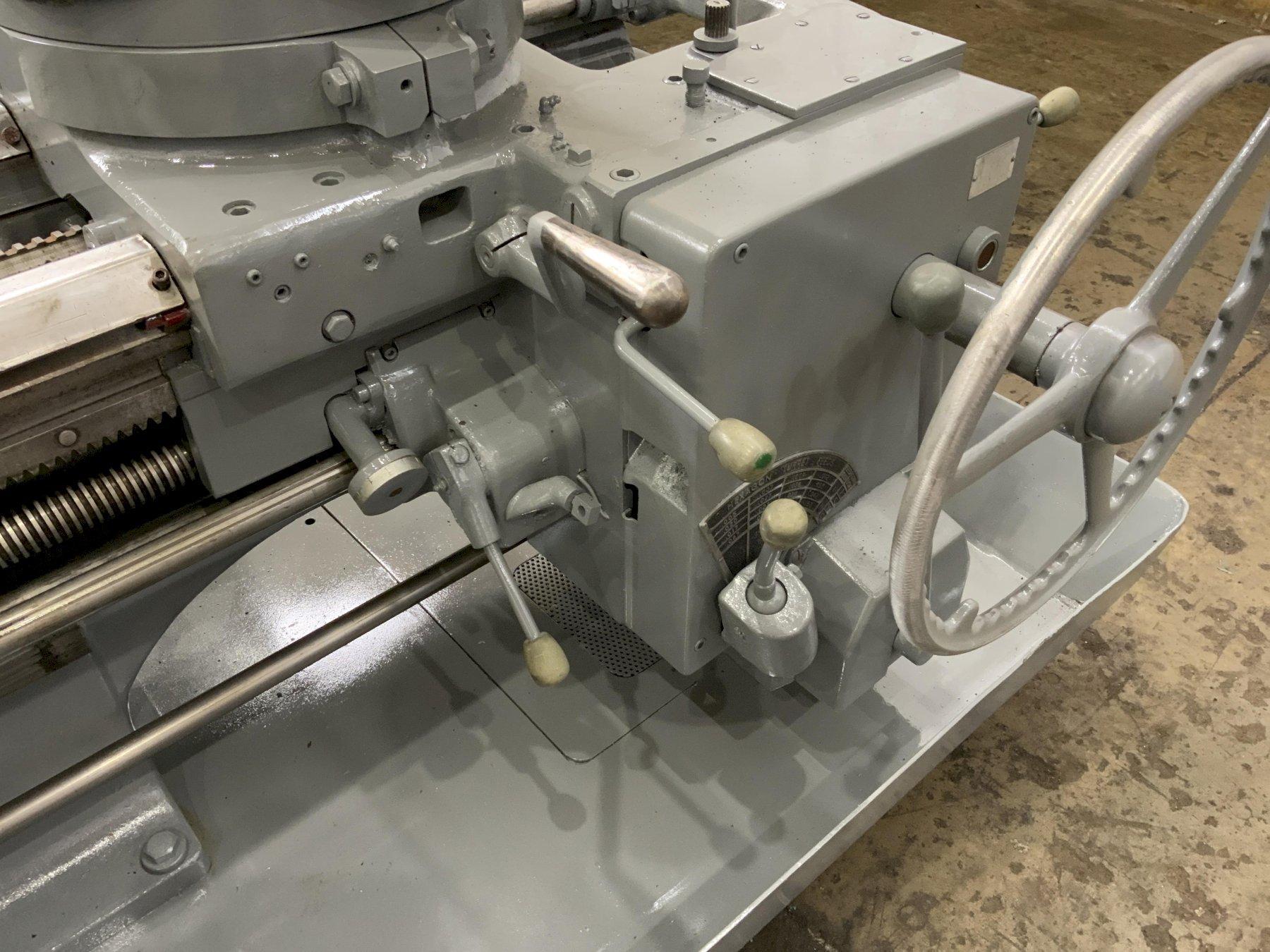

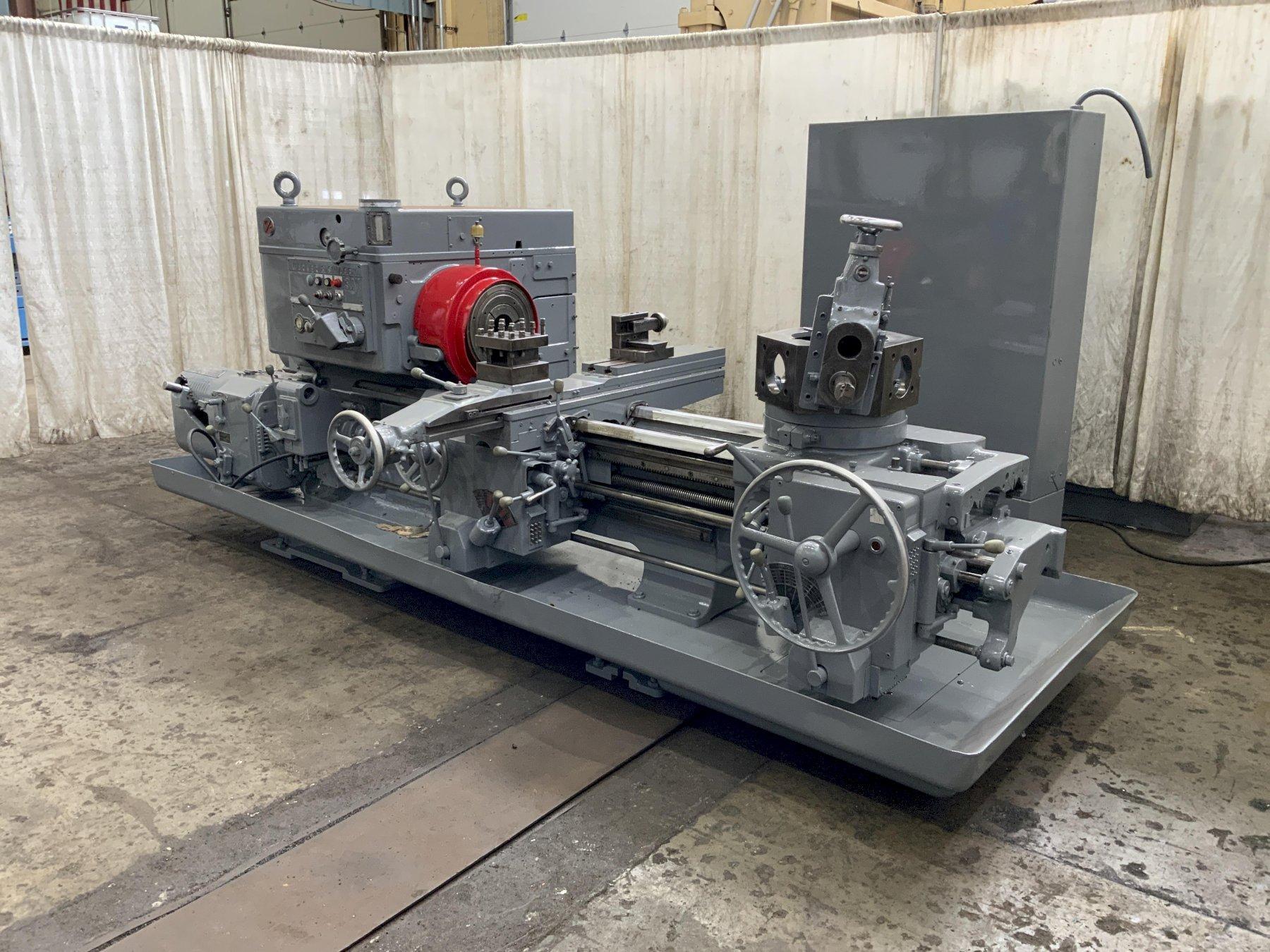

3A WARNER & SWASEY MODEL #M-3500 TURRET LATHE: STOCK #80925
Brand
Category
Type
Model
M-3500
Stock #
80925
Year
Not specified
Condition
Not specified
Location
Not specified
|

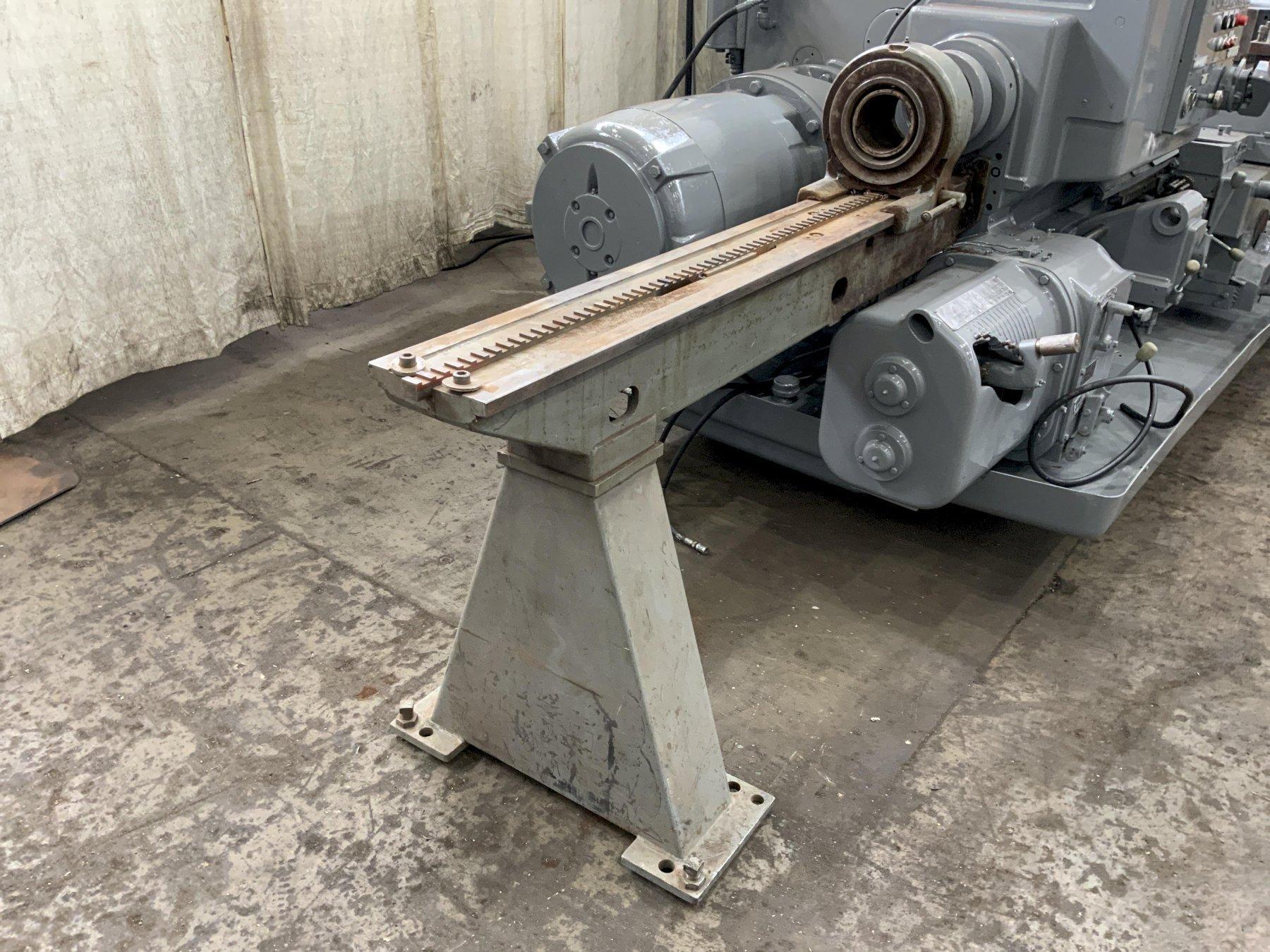

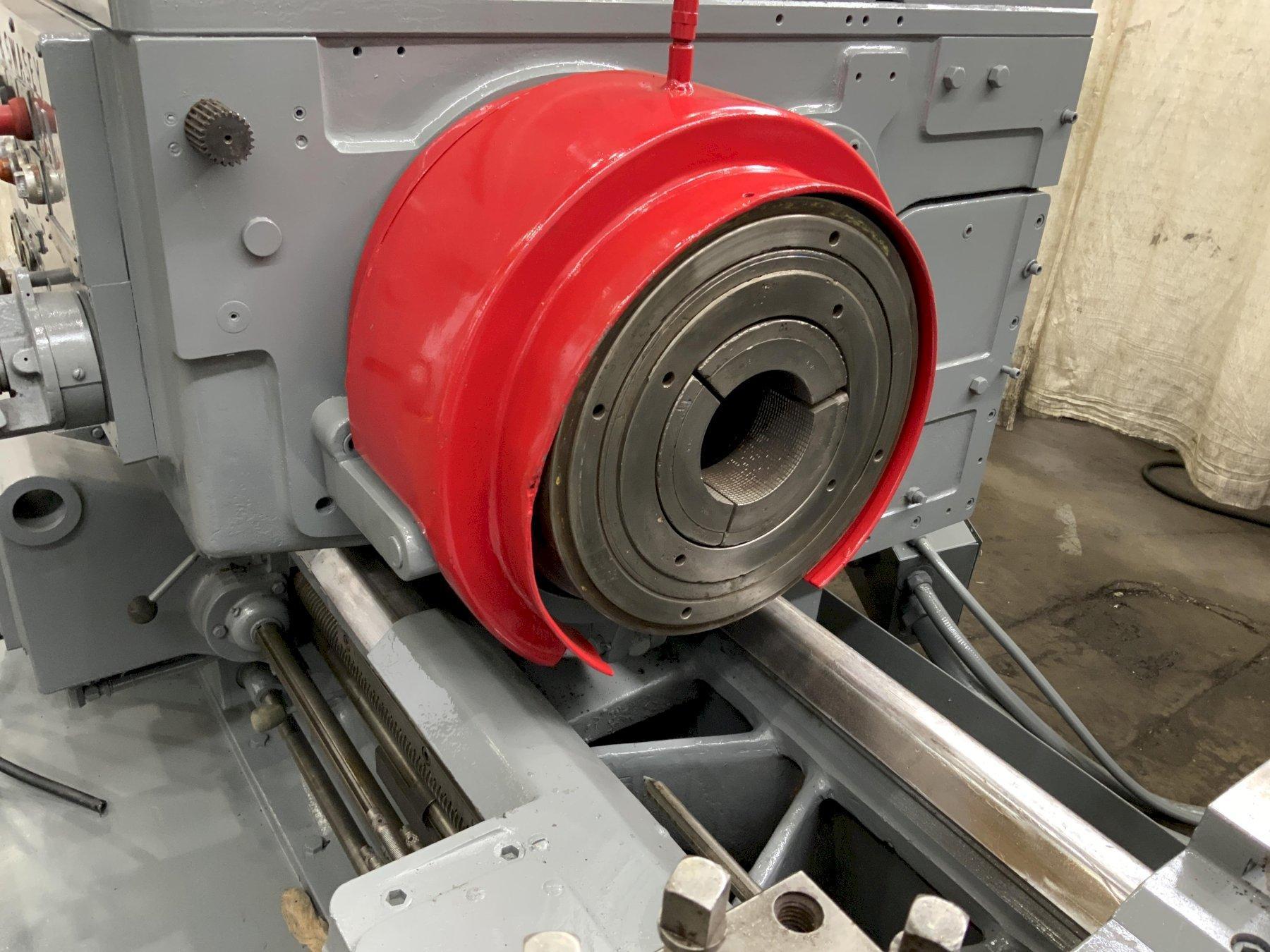

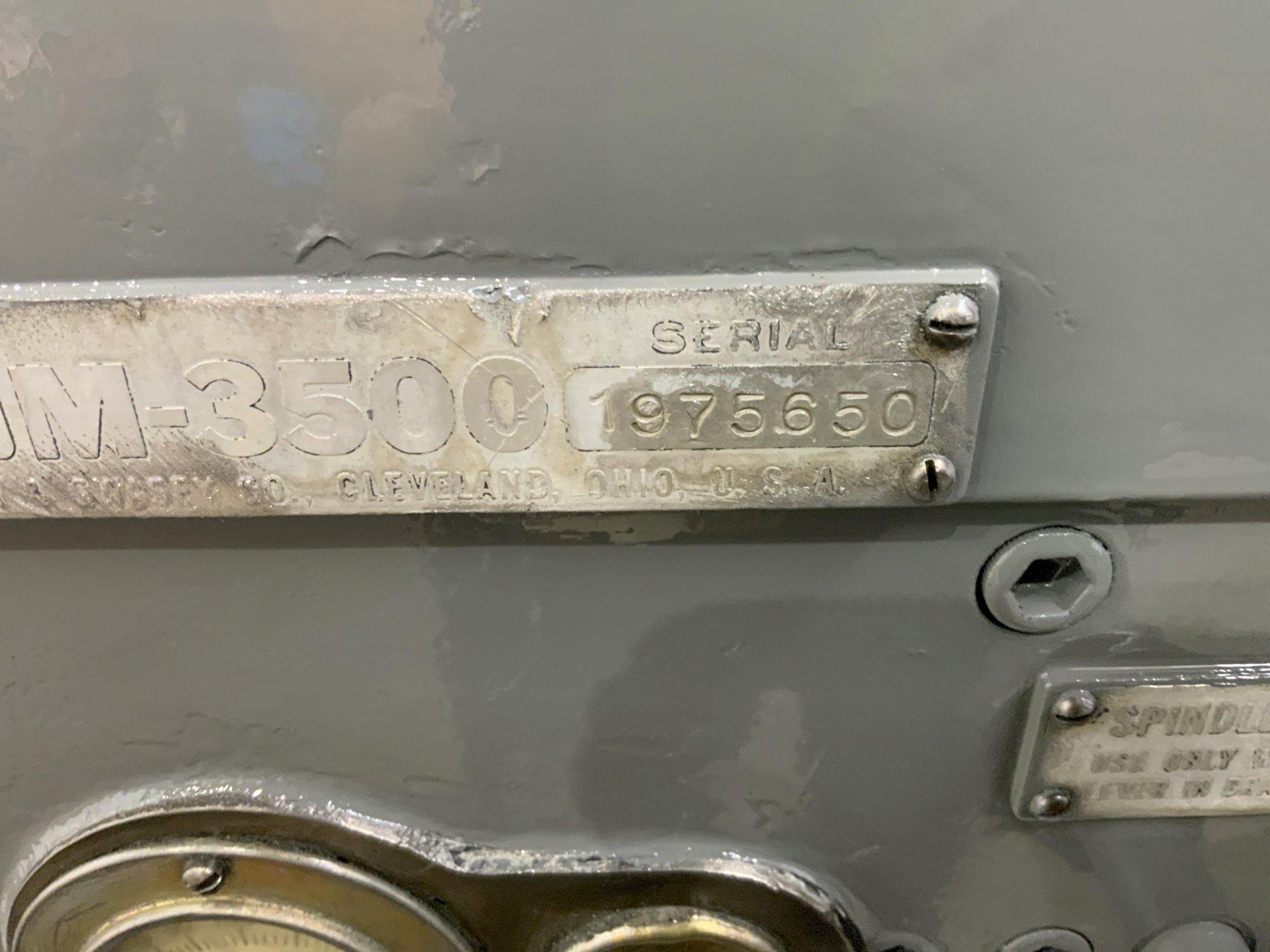

SERIAL ............................ 1975650 MODEL ............................. 3A (M3500) SQUARE HEAD SWING OVER BED .................... 24-1/2" SWING OVER CARRIAGE HORN .......... 18" SPINDLE NOT TO TURRET ............. 58 -3/4" SPINDLE SPEEDS .................... (32) 12 TO 851 RPM SPINDLE HOLE ...................... 6-1/2" CARRIAGE LONGITUDINAL FEEDS ....... (16) .005 TO .167 IPR CARRIAGE CROSS FEEDS .............. (16) .002 TO .082 IPR TURRET LONGITUDINAL FEEDS ......... (16) .005 TO .167 IPR TURRET CROSS FEEDS ................ (16) .003 TO .96 IPR COLLET NOSE ............................. YES FULL LENGTH THREADING .... YES BAR FEED .................... YES COOLANT ........................... YES MAIN MOTOR ........................ 30 HORSEPOWER |
