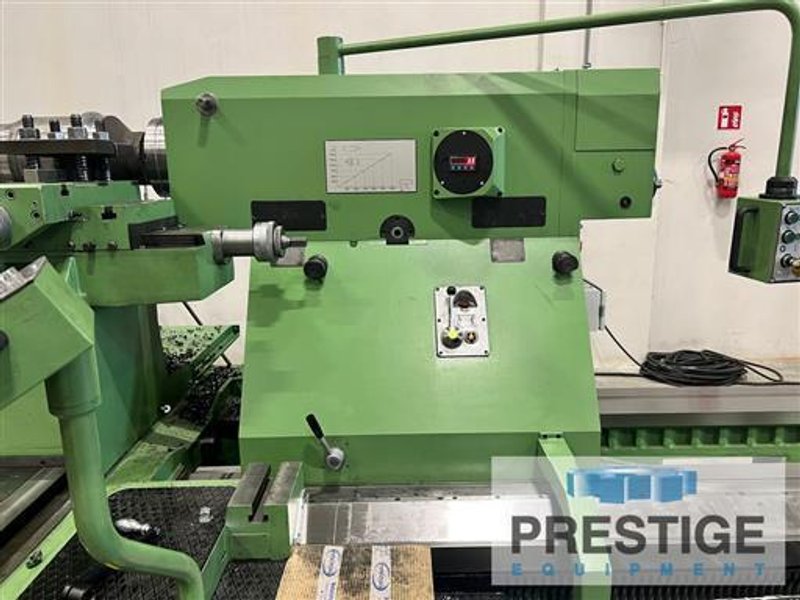

Lathes Flat Bed Manual & CNC

CAPACITY:
Maximum Swing Over Bedways 78.74"
Maximum Swing Over Carriage 66.14"
Distance Between Centers 551.18"
Spindle Speeds 0.8-160 RPM
Spindle Speeds, Number 24
Spindle Speed Ranges 3
Spindle Bore 4.13"
Spindle Torque, Maximum 63,000 Nm
Width of Bed 59.05"
Longitudinal Feed Rates 0.007-6.29 IPR
Overall Feed Rates 0.44-12.59 IPM
Rapid Traverse 157.48 IPM
Threading, Metric 1-192 MM
Threading, Inch .125-30 TPI
Front Bearing Diameter 12.59"
Tailstock Diameter 11.02"
Tailstock Quill Travel 7.87"
Tailstock Quill Rapid Traverse 11.81 IPM
Tailstock Rapid Traverse On Bed 59.05 IPM
Weight Capacity Between Centers 66,000 Lbs
Weight Capacity with One Steady Rest 77,000 Lbs
Weight Capacity with Two Steady Rest 88,000 Lbs



Equipped With:

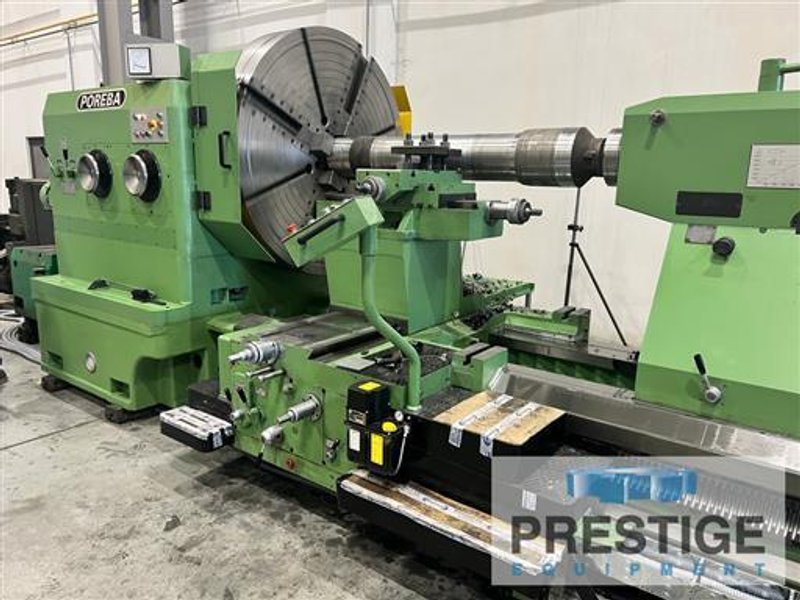

63" 4-Jaw Independent Chuck

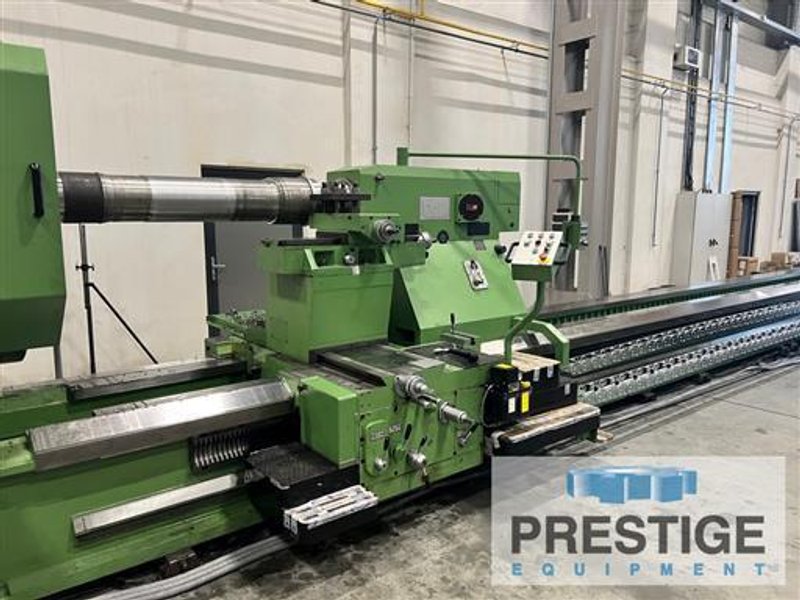

Operator Controls On Carriage
Inch/Metric Threading
Power Compound
6-Way Power Rapid Traverse

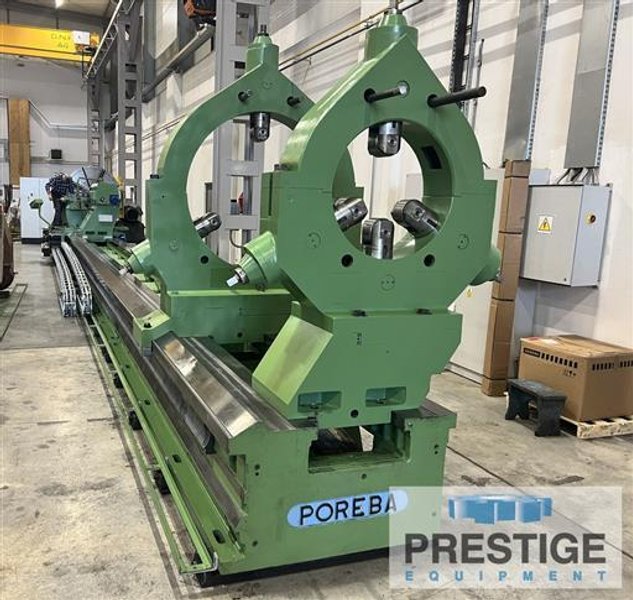

(1) 9.84" - 23.6" Roller Type Steady Rest
(1) 27.55" - 43.3" Roller Type Steady Rest

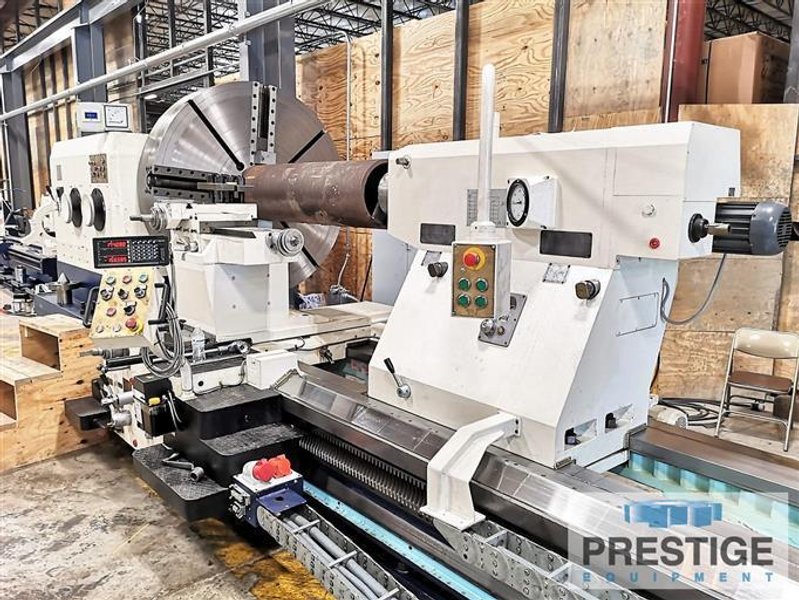

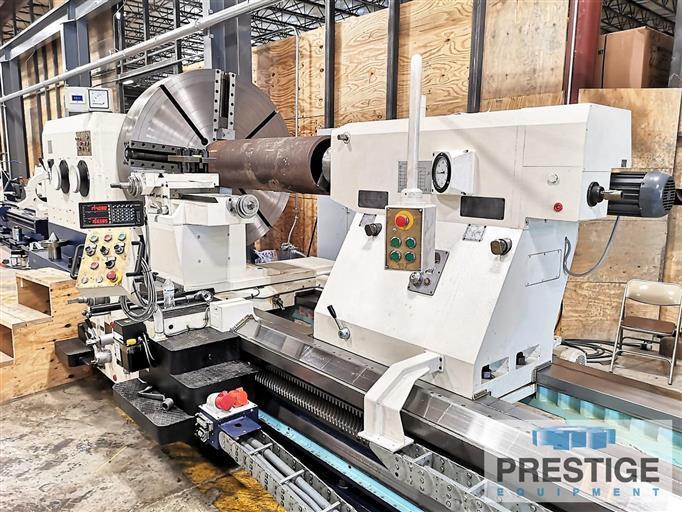

Power Tailstock and Quill
Hardened & Ground Replaceable Bedways
Hardened and Ground Gears & Spline Shafts
Heavy Duty Meehanite Casting

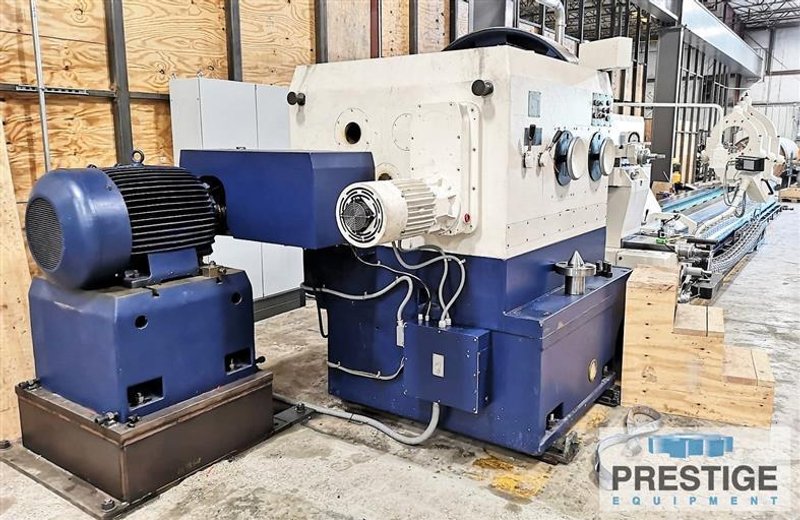

100 HP Main Drive 440 Volt


NOTE: New Electrics 2024


NOTE: Delivery 7 Months From Order


Refurbished: new cable conveyor (Kabelschlepp) for the apron and tailstock) the conveyors must be new,
new paiting, green (RAL 6011)
1 set of leveling pads (no foundation bolts)
cleaning all units of the lathe (headstock, apron, tailstock, carriage and bed),
new bronze worm and bearing on this axis for the apron
1 set of new V belts,
new cross spindle and nuts and new spindels for top slide,
new bearings on the tailstock spindle in 5 class,
centers 60 deg. for the headstock and tailstock,

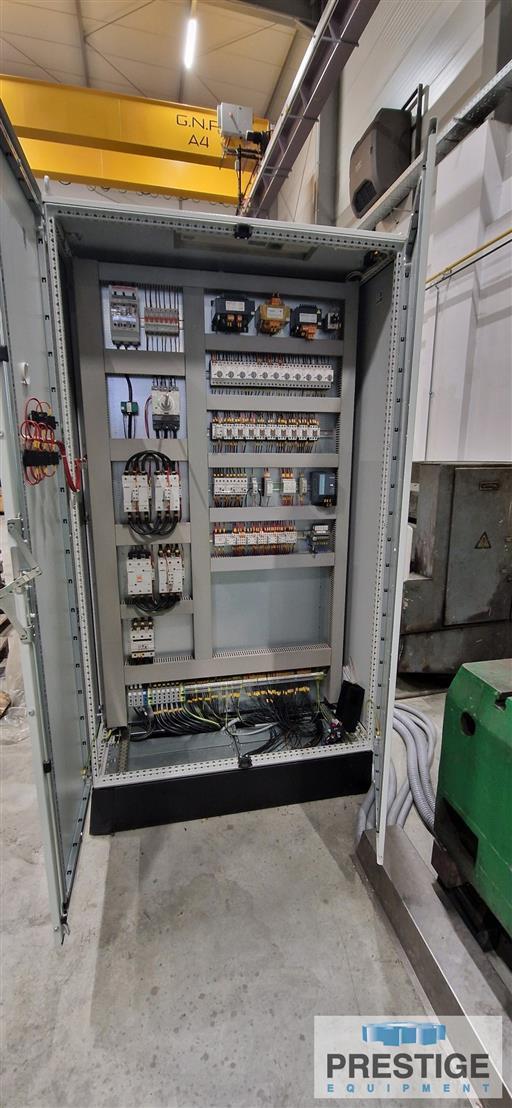

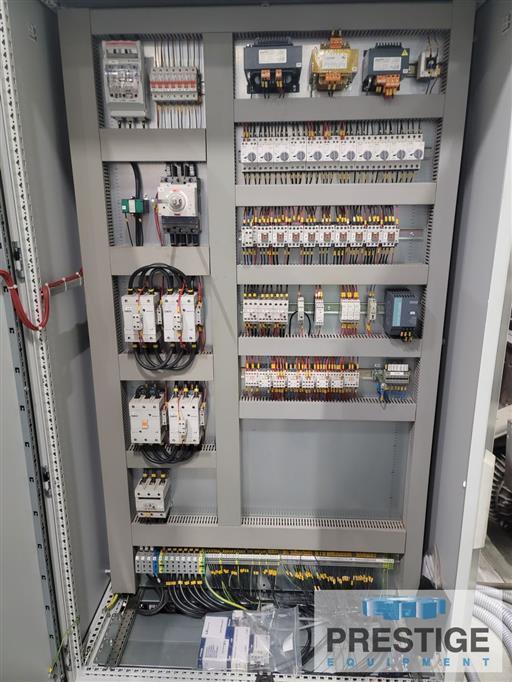

new electrical cabinet with new equipment with 460V transformer in the cabinet
new wires between cabinet and machine,
new wipers for the cariagge and tailstock,
geomerty acc. ISO 1708
