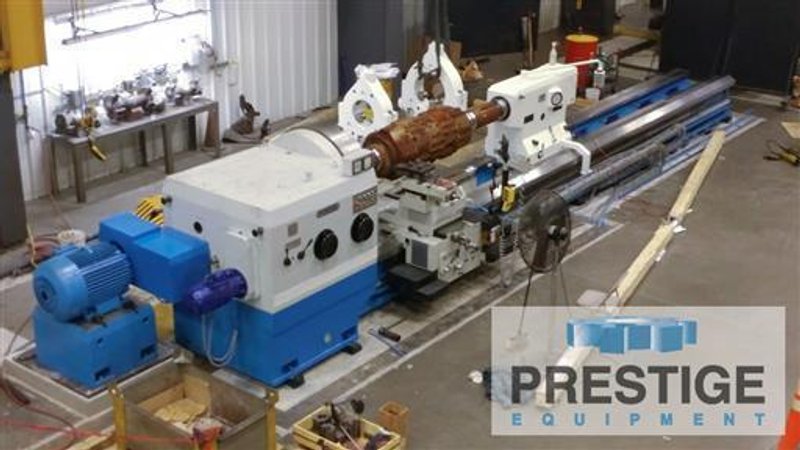

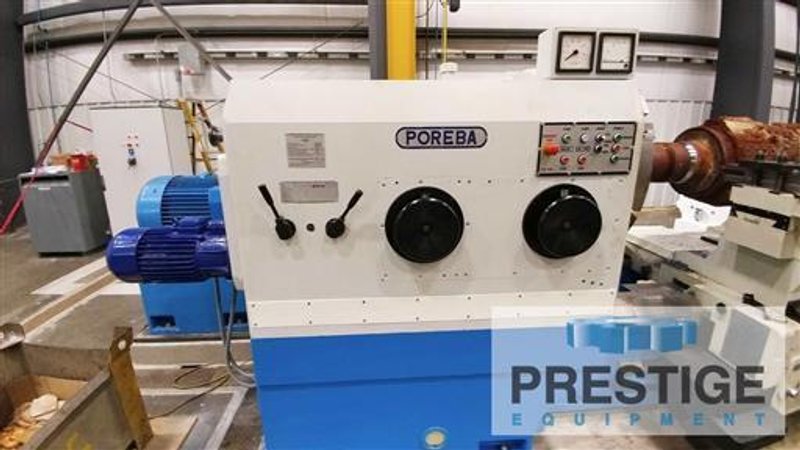

Lathes Flat Bed Manual & CNC

CAPACITY:
Maximum Swing Over Bedways 62.99"
Maximum Swing Over Carriage 51.18"
Distance Between Centers 314.96"
Spindle Speeds 1-200 RPM
Spindle Speeds, Number 24
Spindle Speed Ranges 3
Spindle Bore 4.13"
Spindle Torque, Maximum 63,000 Nm
Width of Bed 59.05"
Longitudinal Feed Rates 0.007-6.29 IPR
Overall Feed Rates 0.44-12.59 IPM
Rapid Traverse 157.48 IPM
Threading, Metric 1-192 MM
Threading, Inch .125-30 TPI
Front Bearing Diameter 12.59"
Tailstock Diameter 11.02"
Tailstock Quill Travel 7.87"
Tailstock Quill Rapid Traverse 11.81 IPM
Tailstock Rapid Traverse On Bed 59.05 IPM
Weight Capacity Between Centers 66,000 Lbs
Weight Capacity with One Steady Rest 77,000 Lbs
Weight Capacity with Two Steady Rest 88,000 Lbs



Equipped With:
63" 4-Jaw Chuck

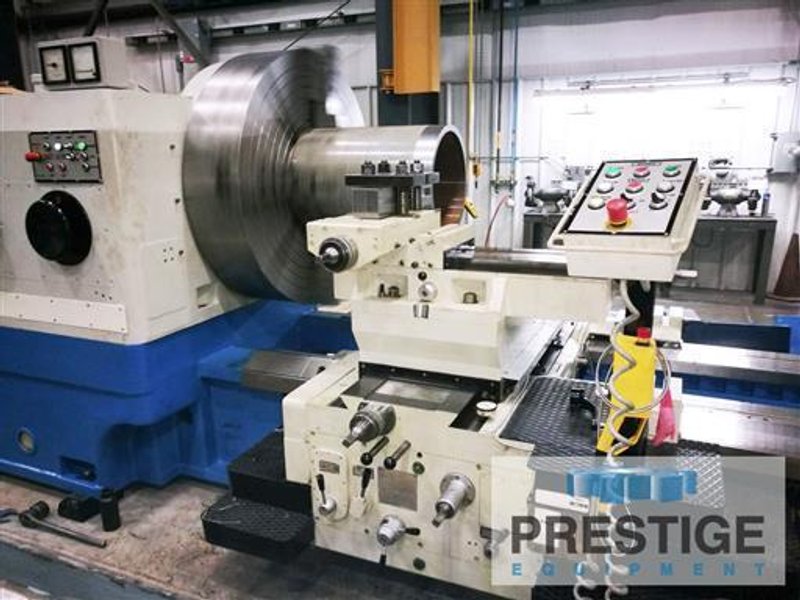

Operator Controls On Carriage
Inch/Metric Threading
6-Way Power Rapid Traverse
2-Heavy Duty Roller Type Steady Rests
Power Compound
Power Tailstock and Quill
Hardened & Ground Replaceable Bedways
Hardened and Ground Gears & Spline Shafts
Heavy Duty Meehanite Casting
100 HP Main Drive 440 Volt


NOTE: Inspect Under Power
