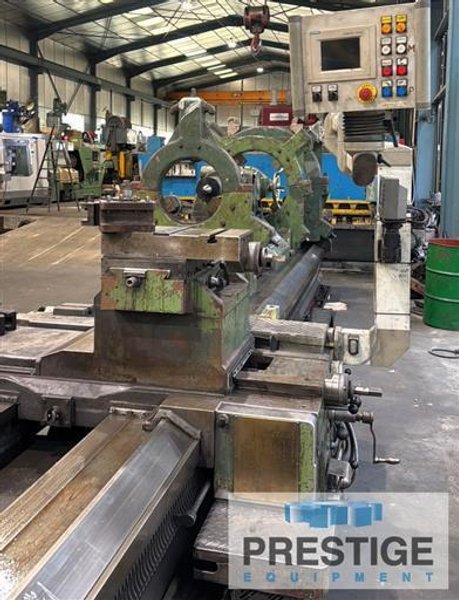

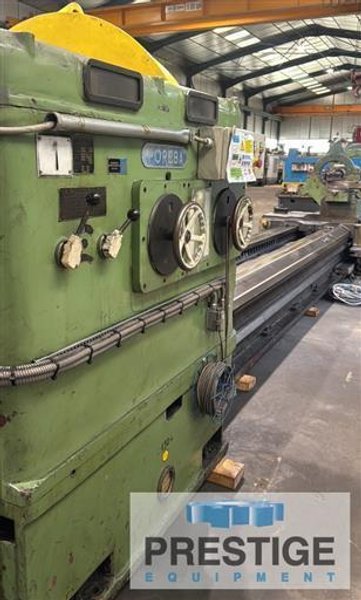

Lathes Flat Bed Manual & CNC
Brand
Category
Type
Model
TCC160/10M
Stock #
45135
Year
1970
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

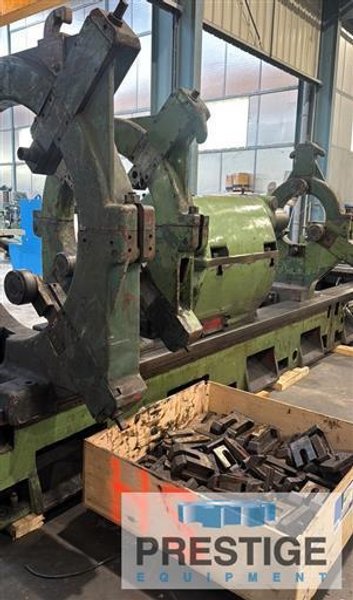

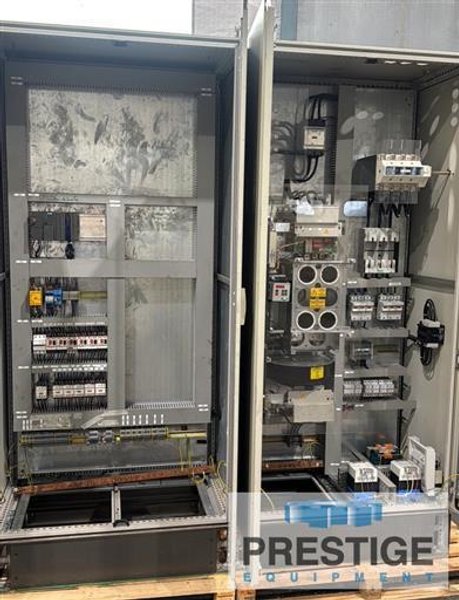

Maximum Swing Over Bedways 62.99" Maximum Swing Over Cross Slide 51.18" Distance Between Centers 393.70" Width Of Bed 43.3" Spindle Bore (No Hole Through Chuck) 4.13" Spindle Speeds (24) .85-170 RPM Diameter of Spindle Front Journal 10.25" Longitudinal Feeds (20) 0.007 to 0.2 IPR Cross Feeds (20) 0.0035 to 0.1 IPR Rapid Traverse 158 IPM Metric Threading 1 to 129 Inch Threading 30 to 1/8 Tailstock Quill Diameter 8.66" Tailstock Quill Travel 23.62" Weight Capacity Between Centers 35,200 lbs Equipped With: Siemens Simatic Panel 63"Independent 4-Jaw Chuck 100 HP Spindle Motor Power Compound for Taper Turning Threading Steady Rests Tailstock 100 HP Main Spindle Motor |
