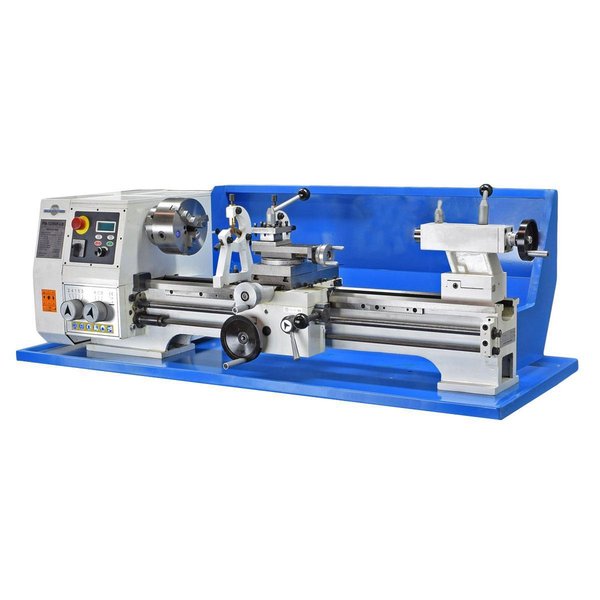

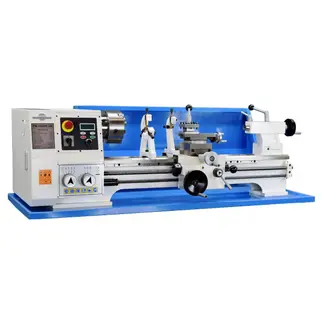

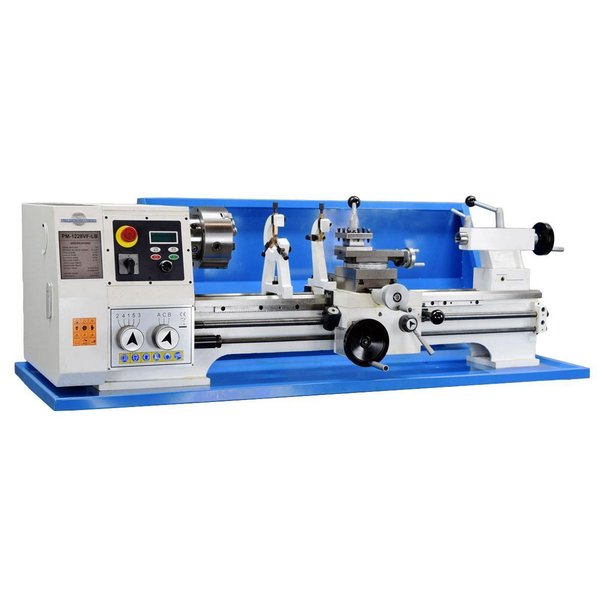

HIGHLIGHTS OF THE MACHINE:
- Operates on 110V Power, No special wiring needed
- Brushless DC Motor, Variable Speed
- Quick Change Gear Box, Many less change gears than other machines in this size
- INCH LEADSCREW AND FEED SCREWS for even, easy measurements
- POWER CROSS FEED, BOTH IN, OUT, and LEFT and RIGHT, and WILL CUT
LEFT HAND THREADS TOO
- Super Smooth and Quiet running machine
- Large Spindle Bore 1-1/2"
- Heavy Duty Bed Width (same width as most 12"x36" Machines)
- Variable Spindle Speeds From 50-2000 rpm
- Longest in class, 3 Year Warranty for added peace of mind
MAIN FEATURES:
- D1-4 CAMLOCK SPINDLE MOUNT, with LARGE 1.5” Spindle Bore, Best in class for universal chuck mounting, and the ability to accept larger diameter work that can pass through the spindle for much easier setup
- NOW WITH DIAL SPEED CHANGES FOR EASIER OPERATION
- Large Morse Taper #3 bore in tail stock, to allow for larger accessories and more gripping power for those tough drilling jobs, yet you can just use a reducing sleeve for smaller MT accessories
- Power feed on Carriage, and Cross Slide, both left and right, and in and out, for both turning and facing operations with automatic feed. Allows for the best surface finish in all directions.
- Variable Spindle Speeds from 50-2000 RPM in 2 Steps to provide more torque at low speeds, and the ability to perfectly match the speed for the job for increased cutting tool life and better surface finishes
- 2 HP BRUSHLESS DC MOTOR, for better torque, and best reliability during long term use
- Rigid Cast Iron Construction, for deeper cuts, and more vibration dampening
- Induction Hardened and Precision Ground Bed Ways to resist wear and give a long service life
- All gears and shafts in headstock hardened and precision ground for long life and quieter running
- High quality electronics used throughout machine
- Slip Clutch on feed rod, to help prevent overloading damage of feeds and allow the use of a solid carriage stop for repetitive work
- Precision Tapered Roller Bearings used in spindle, for the ultimate in long life, high precision, and best surface finishes
- Inch AND Metric thread cutting ability is a standard feature, with many quick change threads for less change gears. 15 different threads or feeds can be cut with one gear setup. Many less gears to change compared to others in this class
- TRUE INCH PITCH cross feed, tailstock, and compound slide lead screws are 10 TPI, which make it easier to use for the INCH measurement System, yet still has the Metric readings on dials for the ultimate in versatility for any job that may come about. Main lead screw is 8 TPI for threading
- Splash oil bath lubrication in Thread/Feed Gearbox, for efficient lubrication, and long life, especially compared to traditional open-non lubricated Thread/Feed Gearbox design, yet simple and reliable, and does not require any filter changes or pump maintenance as with oil pump lubrication systems. Also no risk of losing oil flow to expensive parts as there can be with pump lubricated systems
Standard Accessories:
- 6" 3 Jaw Chuck, Scroll Type
- Brushless DC, Variable Speed Drive Motor
- Variable Speed by Knob, new design
- D1-4 Camlock Spindle Mount
- Ready for our AXA Wedge Type Tool Post Set, (At additional cost) No machining required to mount, designed to be a bolt on item (May not work with other brands of tool posts)
- Steady Rest
- Follow Rest
- Chip Pan
- Back Splash Guard
- Inch and Metric Threading Ability, with minimal change gears needed, 15 quick lever
changes with each gear set
- Thread Chasing Dial, with 8 markings, 32 Tooth gear, 8 TPI Leadscrew
- Dead Centers
- Misc. Tools for operation (Wrenches, etc)
- Power Cross Feed, In, Out, Left, and Right Feed
- Left Hand thread cutting with the flip of a lever
- Large 1-1/2" Spindle Bore
- 3 Year Warranty
- (Stand Available, Sold Separately)
Main Specifications:
- Type Variable Speed
- Max. Swing over bed 12”
- Max. Swing over cross slide 7”
- Center Height 6”
- Spindle Center Line Distance from Floor Approx. 44” (With Stand)
- Max. Distance Between Centers 28”
- Spindle Chuck Mount D1-4, Camlock
- Spindle Face to Tail Stock Spindle Face Max Distance 30”
- Width of Bed 6-1/4”
- Spindle Bore 1-1/2”
- Spindle Taper, Internal MT #5
- Spindle Speeds (Variable, 2 Ranges) Low: 50-1000RPM High: 100-2000 RPM
- Bed Length 38”
- Lead Screw Diameter / Pitch 3/4” / 8 TPI
- Feed Rod Diameter 3/4”

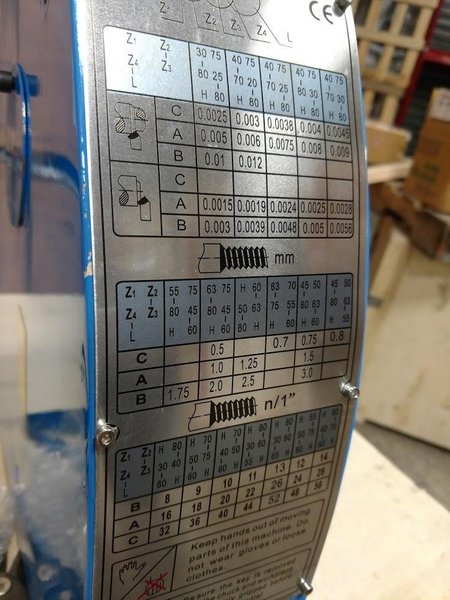

- Inch Thread Cutting Range 5-72 TPI, Choice of 27 Threads
- Metric Thread Cutting Range .25-2.5mm Pitch, Choice of 14 Threads
- Longitudinal Feed Range (Left and Right) .0015-.0159 Inches Per Revolution
- Cross Feed Range (In and Out) .001-.010 Inches Per Revolution
- Spindle Length through headstock, Protruding End to D1-4 Chuck Mounting face Approx. 13”
- Spindle Length through headstock, Protruding End to 3 Jaw Chuck face Approx. 16-1/2”
- Max Carriage Travel, Along Bed Ways 24”
- Cross Slide Travel 6-1/4”
- Compound Travel 3-1/4”
- Tail Stock Quill Diameter / Travel 1-1/4” / 4"
- Tail Stock Quill Taper MT #3
- Main Motor Horsepower / Type 2HP / DC BRUSHLESS High Torque
- Voltage / Phase/ Amps 120 Volts, 11 Amps
- Power Connection Type: Cord, Approx 5' length, includes standard 120V plug, with ground
- Max. Dimensions, Assembled (Includes cross slide handles) 49”H x 26”W x 59-1/4”L
- Foot Print (without Handles Included) 60”L x 21” Front of chip pan to back of splash guard
- Country or Origin: China
- Approximate Machine Weight Machine only, 490 Lbs, With Stand, 600 Lbs
|
