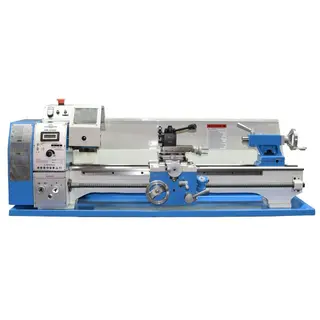

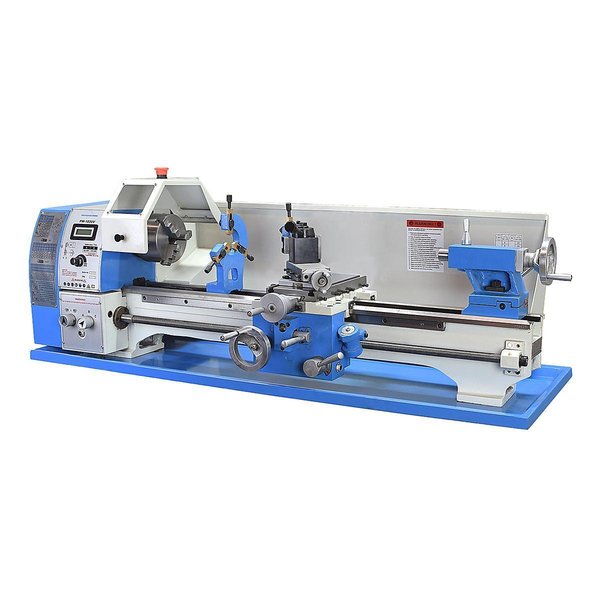

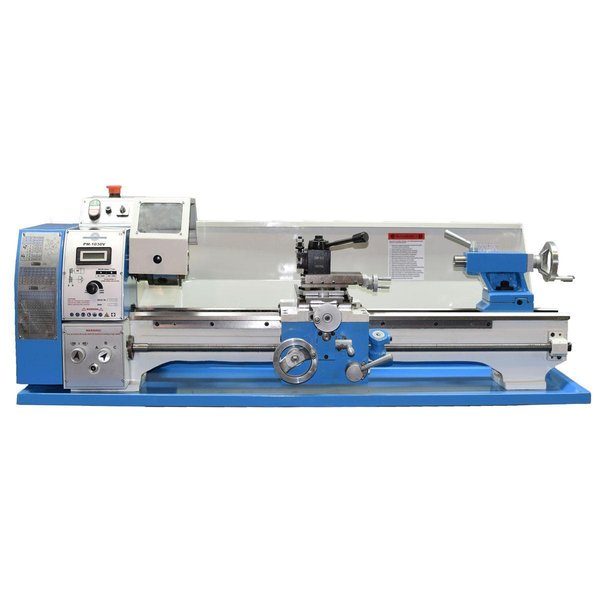

PRECISION MATTHEWS PM-1030V-w/QCTP VARIABLE SPEED PRECISION BENCH TOP LATHE

PRECISION MATTHEWS PM-1030V-w/QCTP VARIABLE SPEED PRECISION BENCH TOP LATHE

Name: PRECISION MATTHEWS PM-1030V-w/QCTP VARIABLE SPEED PRECISION BENCH TOP LATHE
Brand: PRECISION MATTHEWS
Availability: InStock

Brand

PRECISION MATTHEWS

Location

Pennsylvania

Specifications
Files & Videos

Swing	10 inches
Centers	30 inches
Spindle Bore	1 inches
Chuck Size	5 inches
Power	1 horsepower
Range Of Spindle Speeds	50-2000 RPM
Dimensions	52"L x 25"D x 19"H
Weight	395 pounds

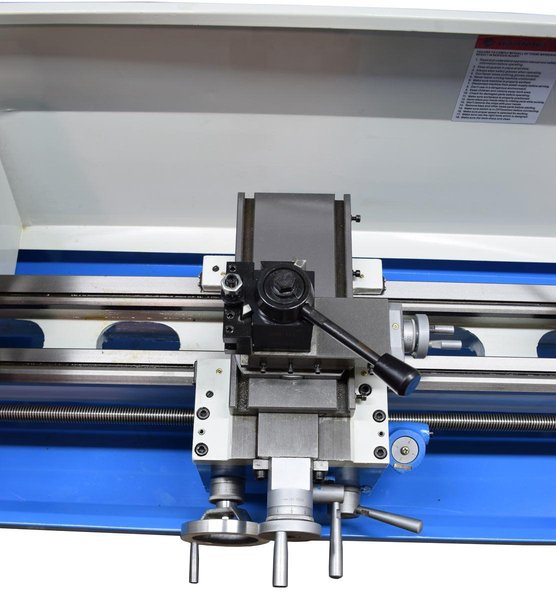

PRECISION MATTHEWS PM-1022V HIGHLIGHTS: Large 1" Spindle Bore, larger than most in this size range Quick Change Spindle Mount, secure mount for both forward and reverse, plus allows chuck changes in seconds! (Please see more information tab below for instructions) POWER CROSS FEED as well as feed on the carriage - Both in, out, left, and right AXA Wedge Type Quick Change Tool Post set included, installed, ready for use - Compare with others, most in this class do not even have it available as an option, or require extensive modifications to mount one Variable Spindle Speeds Super Quiet Running Machine Lead screws Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100” Per Turn) on Cross Slide, Compound Slide, and Tailstock for easy Inch measurement readings Many More great features with this machine, please see below Backed by an industry leading 3 year warranty STANDARD/INCLUDED ACCESSORIES: 100/AXA Series Wedge Type Quick Change Tool Post Set W/ 5 Holders (Turning, Turning/Boring, Knurling, Boring, Parting Holders) - THIS QUICK CHANGE TOOL POST IS MOUNTED ON MACHINE, AND READY TO USE! COMPARE WITH OTHERS, WHERE THIS TYPE OF TOOL POST IS NOT INCLUDED, AND WILL NOT EVEN FIT WITHOUT MAJOR MODIFICATIONS TO THE MACHINE Power Cross Feed Upgraded Variable Speed Drive Board 5" 3 Jaw Chuck (Includes a back plate for 3 jaw chuck, ready to mount on the spindle) 5" 4 Jaw Chuck (Includes a back plate for 4 jaw chuck, ready to mount on the spindle) 8" Face Plate Thread Chasing Dial Centers for the Tailstock and Headstock High Quality Electronics Chip Pan/Oil Tray Steady Rest Follow Rest Right/Left Hand Threading Inch/Metric Threading Misc. Hand Tools for operation Variable Speed Brushless DC Motor, with spindle speeds from 50-2000 RPM Additional Specifications: Dimensions: Chip Pan Size - PM-1022V 16-1/2" x 43-1/2", PM-1030V 16-1/2" x 51-1/2" Spindle centerline to top of chip tray: 12" (Center of chuck to where lathe sits on the chip tray) Height of machine, chuck guard closed (Without Stand) 20" Height with chuck guard open (Without Stand) 28" Optional Stand Height 30-5/8" Power Connection Type: Cord, Approx. 5' Length, includes standard 120V Plug with ground (20A 120V Outlet) Country of Origin: China
