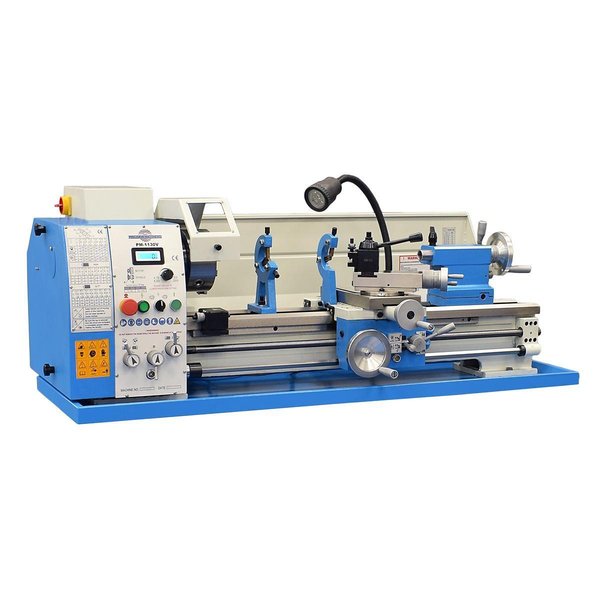

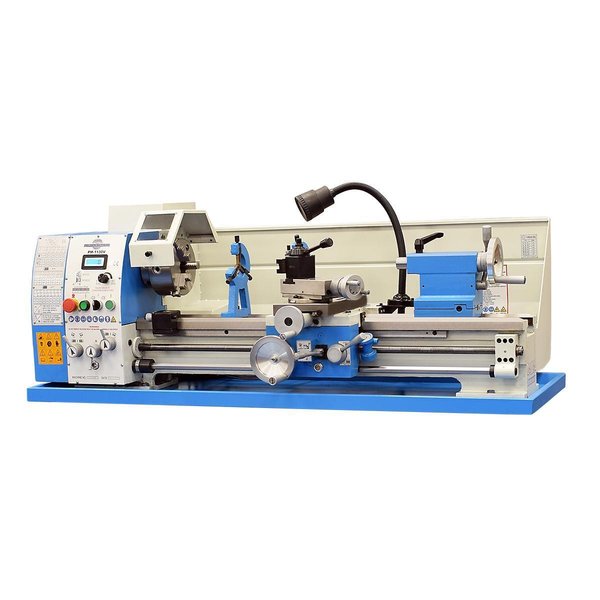

PRECISION MATTHEWS PM-1130V HIGHLIGHTS:
- D1-4 Camlock Spindle Mount Now Standard
- Large 1-1/2" Spindle Bore
- AXA Wedge Type Quick Change Tool Post set included, installed, ready for use
- Variable Spindle Speeds by reliable AC Inverter (VFD) Drive
- Super Smooth and Quiet Running Machine
- Lead screws Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100” Per Turn) on Cross Slide, Compound Slide, and Tailstock for easy Inch measurement readings
- Many More great features with this machine, please see below
- Backed by an industry leading 3 year warranty
MAIN FEATURES:
- D1-4 Camlock Spindle Mount
- Large 1-1/2" Spindle Bore
- Made in an ISO 9002 Certified Factory
- High Quality Electronics Used Throughout Machine for long term reliability
- POWER CROSS FEED, BOTH IN, OUT, and LEFT and RIGHT, and WILL CUT
- LEFT HAND THREADS TOO
- Super Smooth and Quiet running machine
- Heavy Duty Bed Width 7" (same width as most 12"x36" Machines)
- Variable Speed 120 Volt Single Phase Input Power, 1.5HP Main Motor, AC Inverter Drive
- Variable Spindle Speeds From 75-2000 rpm (2 Ranges, Low 75-500 RPM for more torque, and High 300-2000 RPM for more speed)
- Inch Threads and Metric Threading, Both Right and Left Hand Threading
- Spindle is Dynamically Balanced, Hardened and Precision Ground
- Spindle is Supported by High Precision, Class 5, Adjustable Tapered Roller
Bearings
- All Gears and Shafts are Hardened and Precision Ground
- Guideways Induction Hardened and Precision Ground for long life
- REAL INCH LEADSCREW AND FEED SCREWS for even, easy measurements, No Metric Conversions like with many others out there

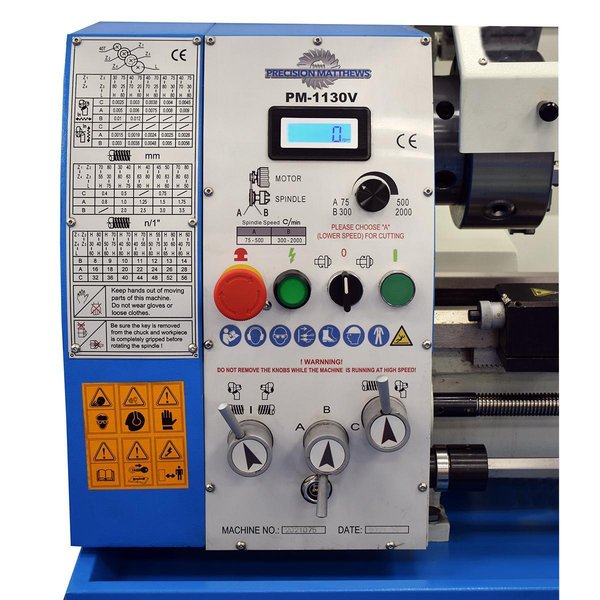

- Digital Speed Readout Tachometer on face of machine
- 3 Year Warranty - Best in the industry!
STANDARD/INCLUDED ACCESSORIES:
- 6" 3 Jaw Chuck, Scroll Type, D1-4 Mount w/Inside and Outside jaws

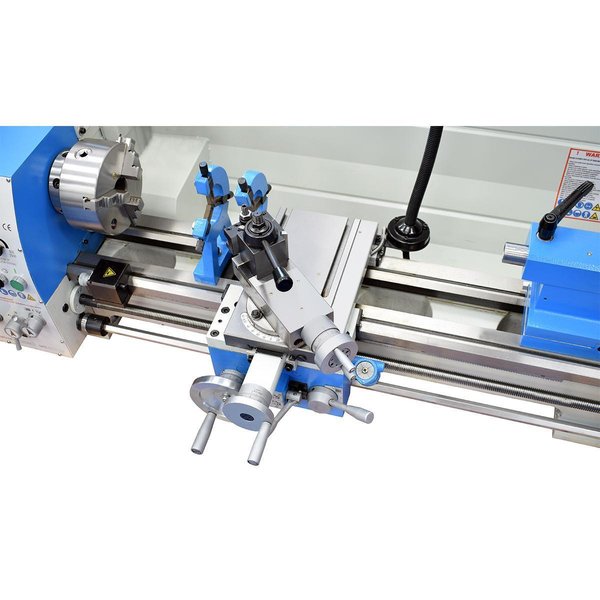

- Wedge Type Quick Change Tool Post, with 5 Holders (AXA/100 size)
- Face Plate, D1-4 Mount
- Steady Rest
- Follow Rest
- Micro Carriage Stop
- Inch and Metric Threading
- Thread Chasing Dial
- Headstock Dead Center
- Tailstock Dead Center
- Misc. Tools for operation (Wrenches, etc)
- Variable Spindle Speeds, 1.5HP Motor
- Power Cross Feed, In, Out, Left, and Right Feed
- Left Hand thread cutting with the flip of a lever
- Large 1-1/2" Spindle Bore
Main Specifications:
- Distance Between Centers 30"
- Max. Swing over Bed 11"
- Max Swing in Gap = No Gap
- Width of Bed 7"
- Spindle Mount D1-4 Camlock
- Spindle Bore 1-1/2"
- Spindle Speeds, Infinitely Variable 75-2000 RPM (2 Steps)
- Cross Slide, Compound, and Tailstock screw pitch: 10 TPI
- Leadscrew Pitch (Main, for threading) 8 TPI
- Longitudinal Feeds .0025-.012 IPR
- Cross Feeds .001-.0056 IPR
- Inch Threads 8 to 56 TPI (8,9,10,11,12,13,14,16,18,20,22,24,26,28,32,36,40,44,48,52,56 TPI)
- Metric Threads 3mm to .5mm Pitch
- Travel of Cross Slide 6"
- Travel of Compound 3"
- Tailstock Quill Travel 4"
- Tailstock Taper MT#3
- Main Motor 1.5HP Variable
- Machine Weight 575 Pounds
- Overall Height (Without stand, chip pan to top of electrical box) 21"
- Spindle Center Height: (Chip pan surface to centerline of spindle) 13-1/2"
- Optional Stand Height: 31"
- Dimensions: 61" L x 28" W (Width is measured from the rear electric box to the top of the cross slide handle, this is max width) Chip pan is 57"L x 17-3/4"W
- Country or Origin: China
- Power Requirements 120 Volt 1 phase, 20 Amp
- Cord Connection/Type: Plug Included, Standard 120V NEMA-5-15, Cord approx. 5' length
|
