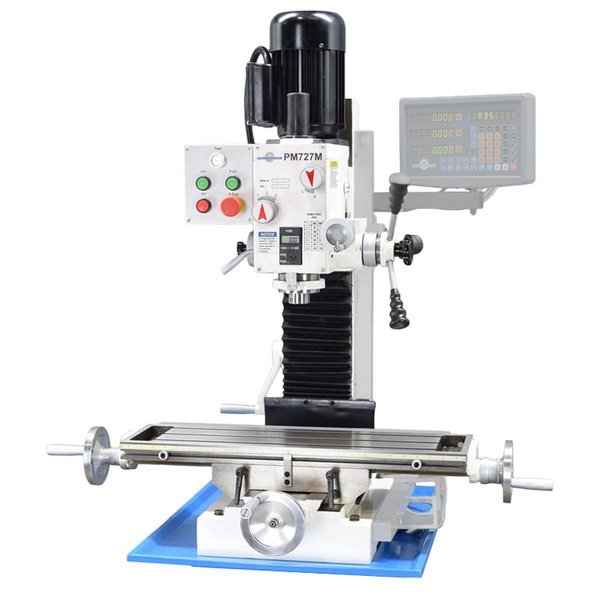

PRECISION MATTHEWS PM-727M Manual Speed Milling Machine

Highlights of this Machine:

• Compact, Accurate, Economical Machine. Great for those who are looking for a
compact machine for a smaller work shop, yet need the ability to take heavier cuts
compared with other machines in this size range
• Spindle is Supported by High Precision Tapered Roller Bearings

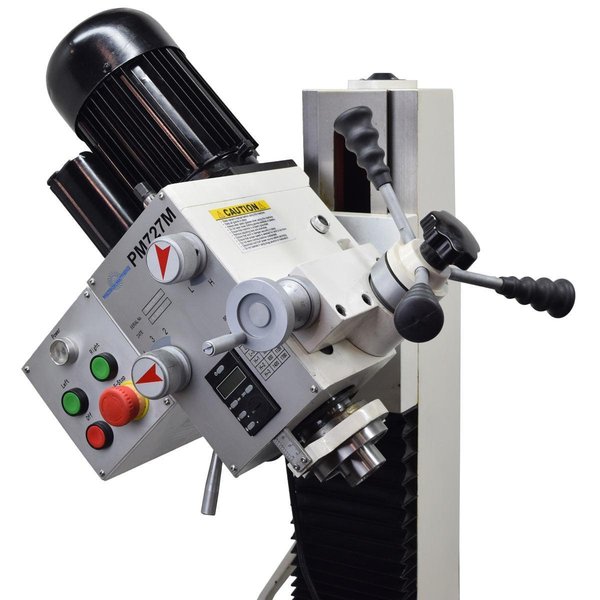

• Mill Head May be Tilted ±90° (both left and right)
• Precision Manual Fine Down Feed is standard
• Adjustable Tapered Gibs for longer life
• Positive Locks are standard for Table, Head, Quill, and Column
• Easy Reading Dials Have Satin Chrome Finish, Graduated in .001"
• Quill DRO is Standard, Accuracy of the Display 0.0005”, Selectable from
mm/inch
• Generous 18-1/4" Spindle To Table Max Distance for taller work
• 8-1/2" Y Axis Travel, More than other machines in this class

Standard Equipment:

• PM-727M Milling Machine
• Way Covers
• Drawbar
• R8 Spindle Taper
• Quill DRO
• Chip Tray

Main Specifications:

• Model No.: PM-727M
• Max. Drilling Capacity: 1-1/4"
• Max. End Milling Capacity: 1"
• Max. Face Milling Capacity: 3"
• Table Size: 27-1/2" x 7-1/8"
• Cross Travel (Y Axis): 8-1/2"
• Longitudinal Travel (X Axis): 15"
• Table Leadscrew Pitch 10 TPI (.100" Per Turn)
• Table Dial Graduations .001"
• Vertical Travel (Z Axis): 16"
• Max Distance Spindle to Table: 18-1/4"
• Taper of Spindle: R-8, w/7/16-20 Drawbar Thread
• Spindle (Quill) Travel: 3"
• T Slot Size: 1/2"(T Slots are slightly less than 1/2", actual size 12mm, our 1/2" kit
• is sized for this machine)
• Range of Spindle Speeds: 115-1700rpm, 6 Steps (115, 220, 320, 600, 1120, 1700 RPM)
• Head Tilt: Left & Right ±90°
• Motor: 1 HP
• Net Weight (Not Including Base): 475 LBS
• Net Weight (With Optional Base): 575 LBS
• Country or Origin: China
• Power Required: 110/120V, Minimum 15 Amp Circuit, Approx. 5' cord with standard 120V plug included
• Dimensions (Assembled on stand): 39"W x 74"H x 30"D
• Height with head at top of Z travel: 80" (On Stand)
• Height with head at normal working height: 75" (On Stand)

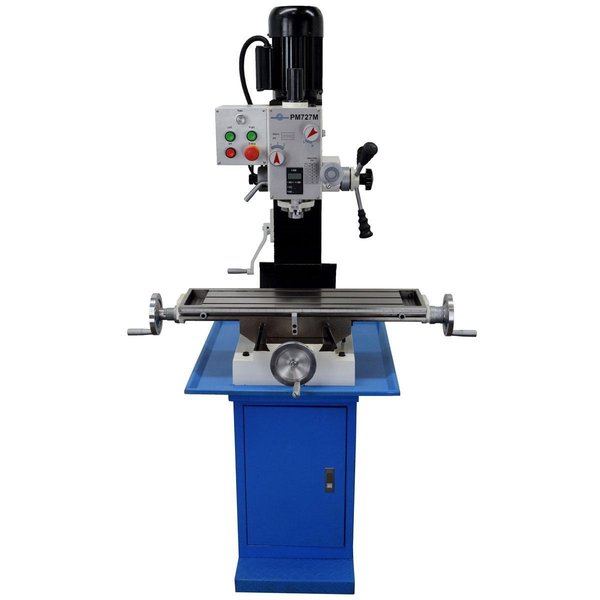

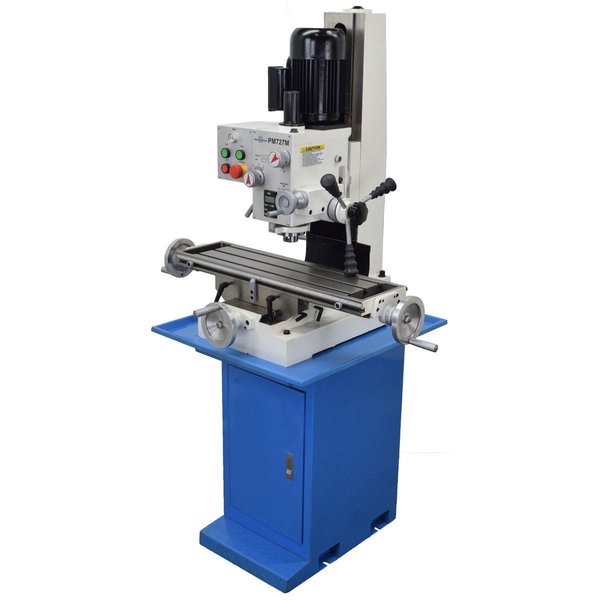

• Optional Stand Height 32"
• Machine Base Dimensions (Cast Iron Base of machine, where it sits on the chip pan) Approx. 13-1/2”Wx21”D
• Machine Base Dimension (Bolt Pattern) Approx. 11”Wx14-1/4”D
• Table Height, machine base (Where it sits on the chip tray) to table, approx. 8-1/2"
