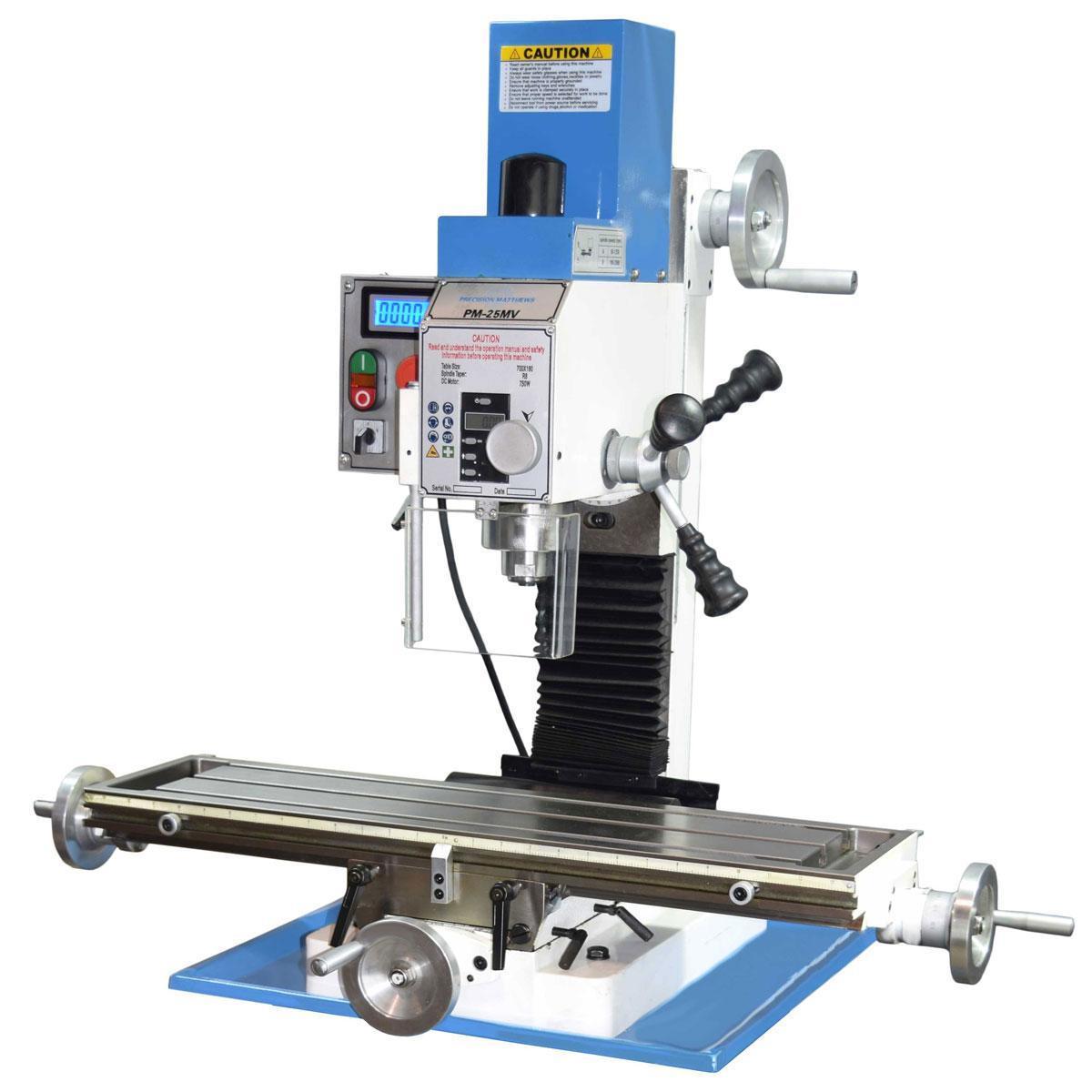

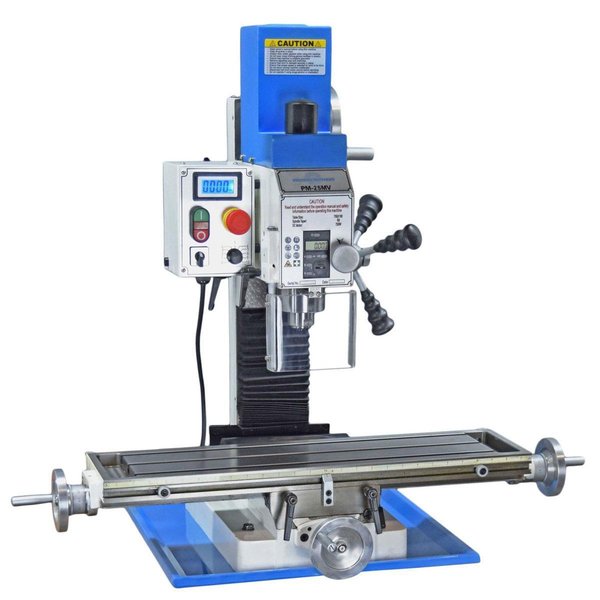

PRECISION MATTHEWS PM-25MV Milling Machine

• Completely different factory, castings, and design than many others out there, GREATLY improved design
• Extremely Reliable, Brushless DC Variable Speed Motor Included Standard

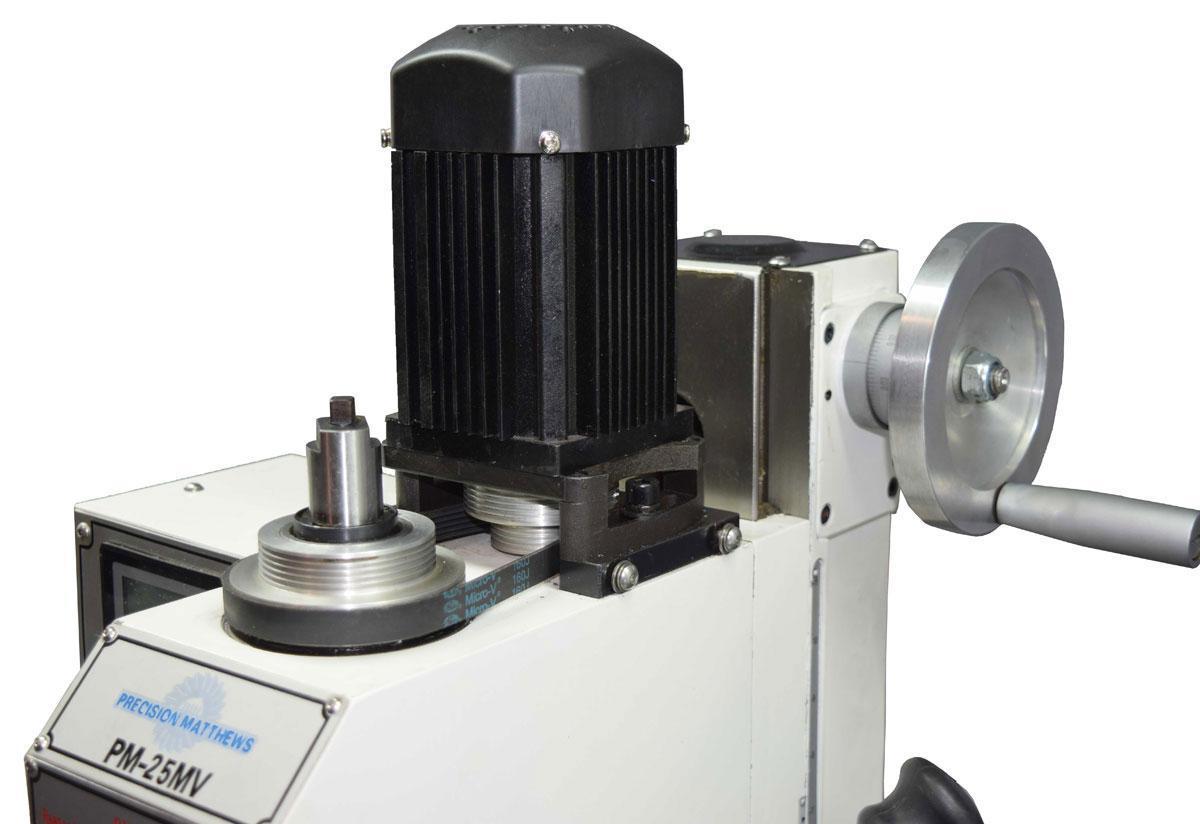

• Belt Drive Design, For Smoother, Quieter Running

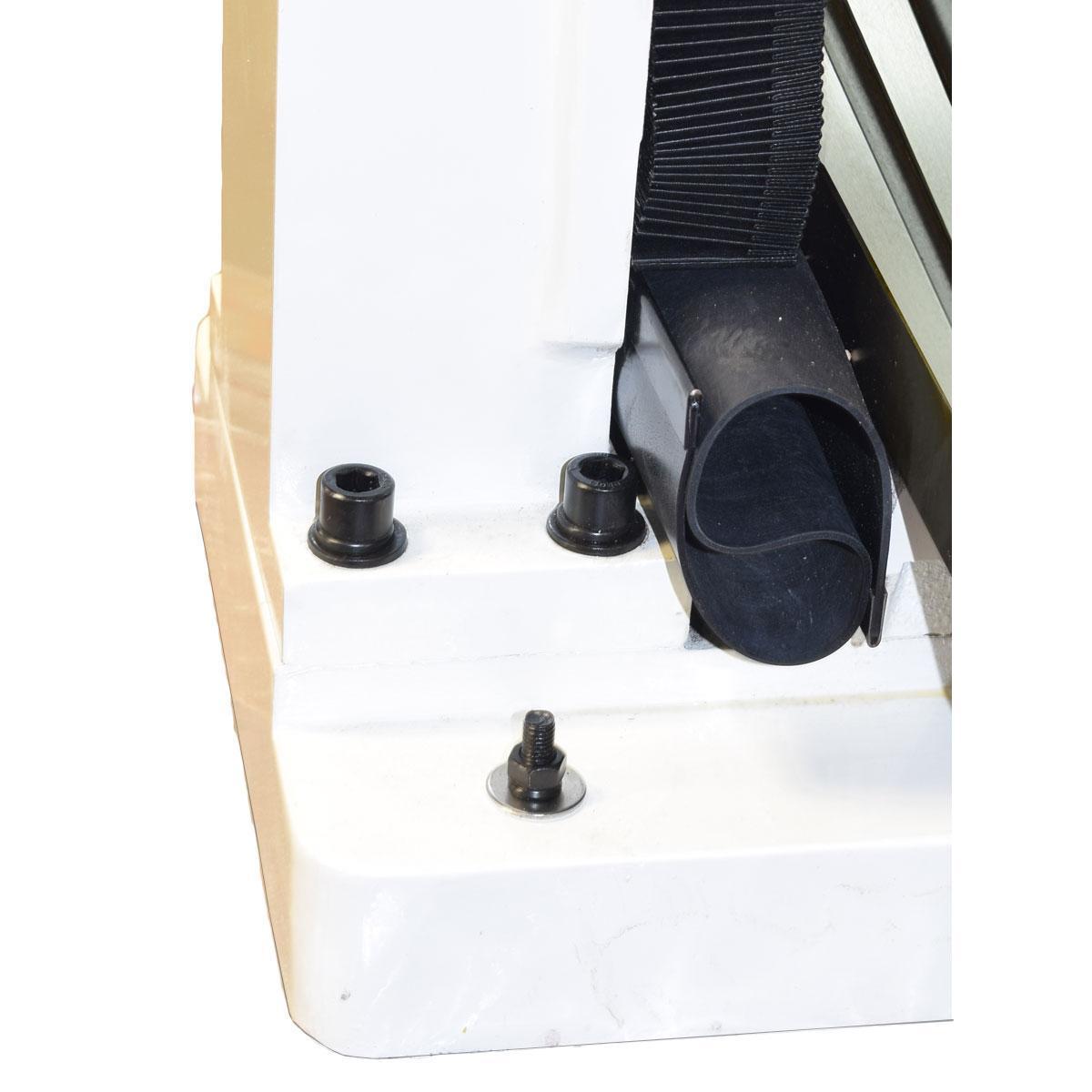

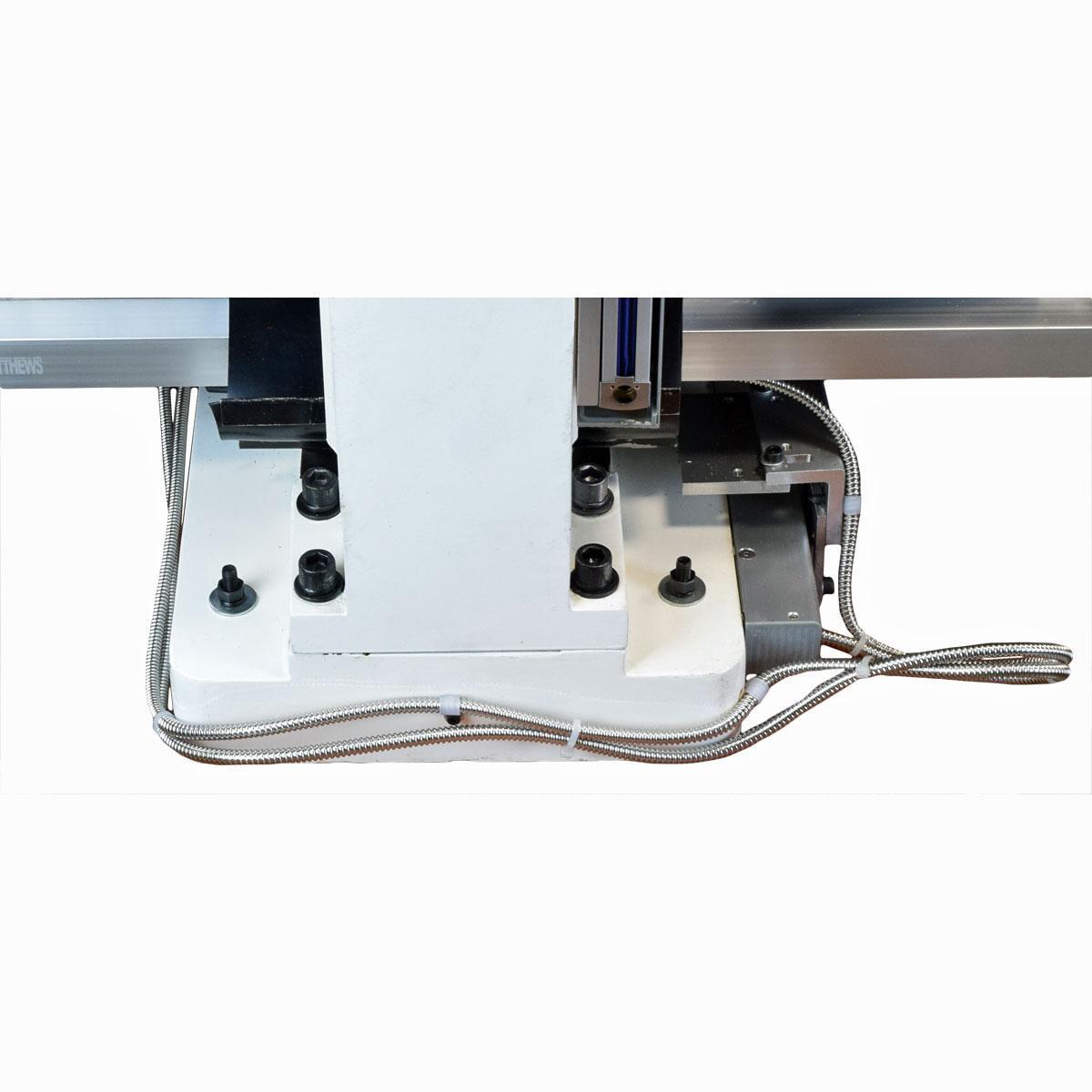

• Extra Large Column To Base Mount, Over 400% More Area, Makes A Much More Rigid Machine, Greatly Improved Over Other Machines In This Size Range
• 3 Bolt Head to Column Mount is Standard, Also For Increased Rigidity
• Runs in both Forward and Reverse, Good for Tapping
• Larger Dials at Table Ends, Graduated in .001”, For Easier to Read, Accurate Table Movements
• Leadscrews Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100” Per Turn)
• Machine Carries A 3 Year Warranty For Added Peace Of Mind
• This is NOT just the same old model with a belt drive upgrade – Be sure to compare carefully.

1. PM-25MV Milling Machine
2. Chip Tray
3. Variable Speed with Belt Drive and Brushless DC Motor
4. Way Cover Set
5. Drawbar
6. R8 Spindle Taper
7. Quill/Spindle Depth DRO
8. Spindle Locking Wrench

Optional Accessories:
1. Stand

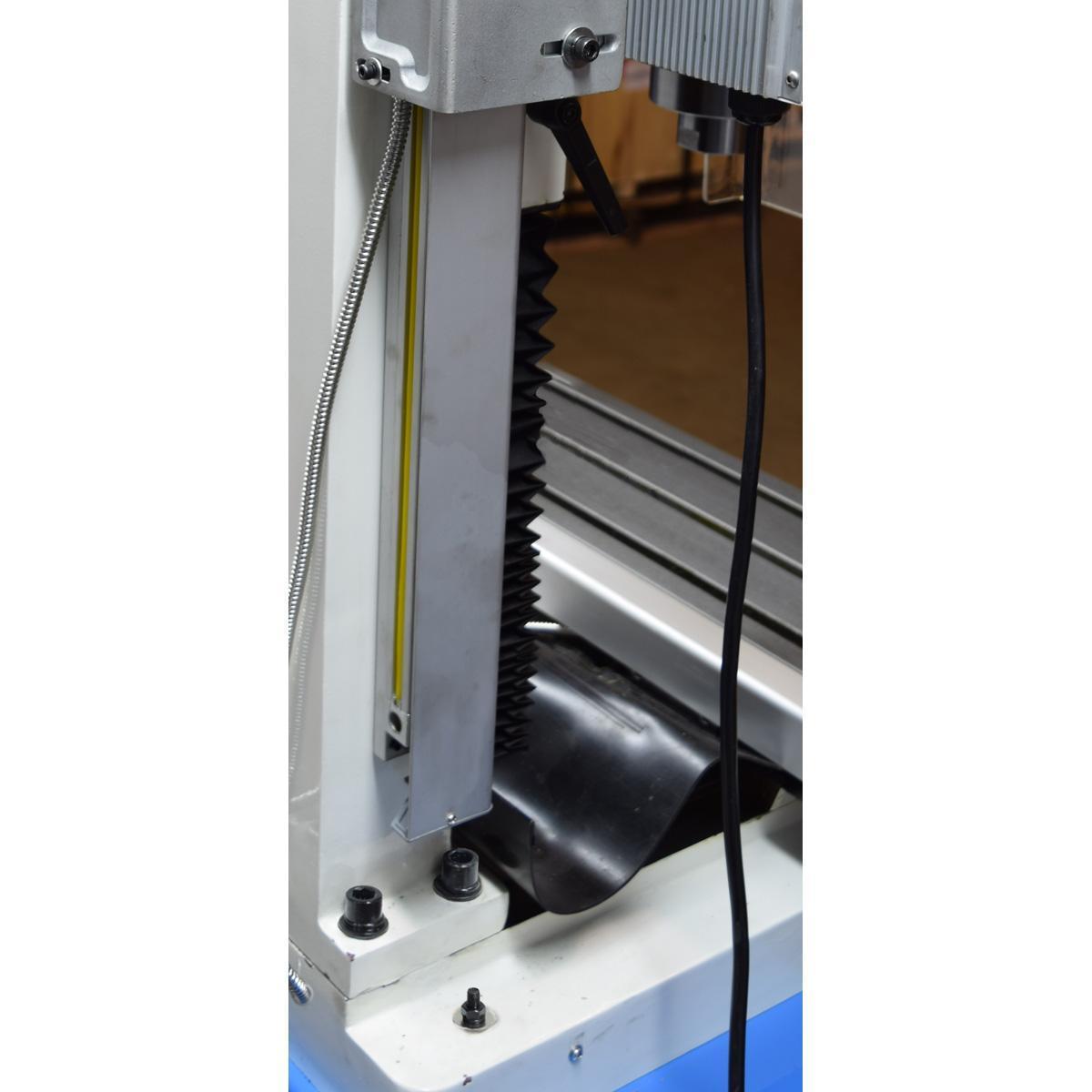

2. 3 Axis DRO Installed Note: if a 3 axis DRO is added to the machine, the 3rd axis of the DRO reads the HEAD up and down, Not the quill, so it is not doubling up on the measurement. If you add the 3 axis DRO, now both Z Axis movements are covered)

• Model No. PM25MV (DC Brushless Motor,and Belt Drive Head is Standard)
• Max. Drilling Capacity 1″
• Max. End Milling Capacity 3/4″
• Max. Face Milling Capacity 2/1/2″
• Table Size 27-1/2″ x 7-1/8″
• Cross Travel (Y Axis) 7″
• Longitudinal Travel (X Axis) 19″
• Table Leadscrew Pitch 10 TPI (.100″ Per Turn)
• Table Dial Graduations .001″
• Vertical Travel (Z Axis) 13″
• Max Distance Spindle to Table 13″
• Taper of Spindle R-8, w/7/16-20 Drawbar Thread
• Spindle Travel 2″
• T Slot Size Actual size 12mm, our 1/2″ kit listed is sized for this machine
• Range of Spindle Speeds 50-2500rpm, 2 Steps
• Headstock Tilt Left & Right ±90°
• Motor 1 HP
• Machine Height (Without Stand) 38-1/2”
• Stand Height (Stand is optional) 35-1/2” (New PM-25MV Stand with Leveling Feet only)
• Stand Dimensions: 13-3/4″W x 16-3/4″D (Top surface where machine mounts)
• Net Weight (Not Including Base) 275 LBS
• Net Weight (With Base) Approx. 340 LBS
• Country of Origin: China
• Power Required 110/120V, Minimum 15 Amp Circuit Approx. 5′ cord with standard 120V plug included
