HIGHLIGHTS OF THIS MACHINE:
- Very High Quality Milling Machine, 100% Made in Taiwan
- Belt Drive, Variable Speeds, 50-3200 RPM
- Built For Those Users Who Are Looking For Higher Quality In A Dovetail Type Mill Configuration
- Very Large Y and Z Travels Compared With Other Models In This Class, over 11″ Of Y axis Travel
- One Shot Lube System Standard
- Very High Grade Castings Used Throughout Machine
TYPICAL USERS:
- Industrial users looking for a top quality, bench type milling machine, built for industrial use, with a smaller size compared with a full sized mill, to save space
- High end gunsmiths looking for a smaller bench type milling machine, who wish to maintain the quality and features of a Taiwan made machine, but also want to save on space
- Users who appreciate a high end, bench type milling machine with the space saving characteristics this offers
- Any other users who can appreciate a top quality machine with full features and no shortcuts, in a smaller space-saving size, at a very reasonable price for the level of quality that you are purchasing
MAIN HIGH QUALITY FEATURES:
- VFD Driven VARIABLE SPEED BELT DRIVE, 50-3200 RPM (This is the difference between this and the 833T Model which is a geared head machine, same machine otherwise)
- High Grade Castings
- Head Swivels 90 degrees Left and Right for angled milling / drilling operations

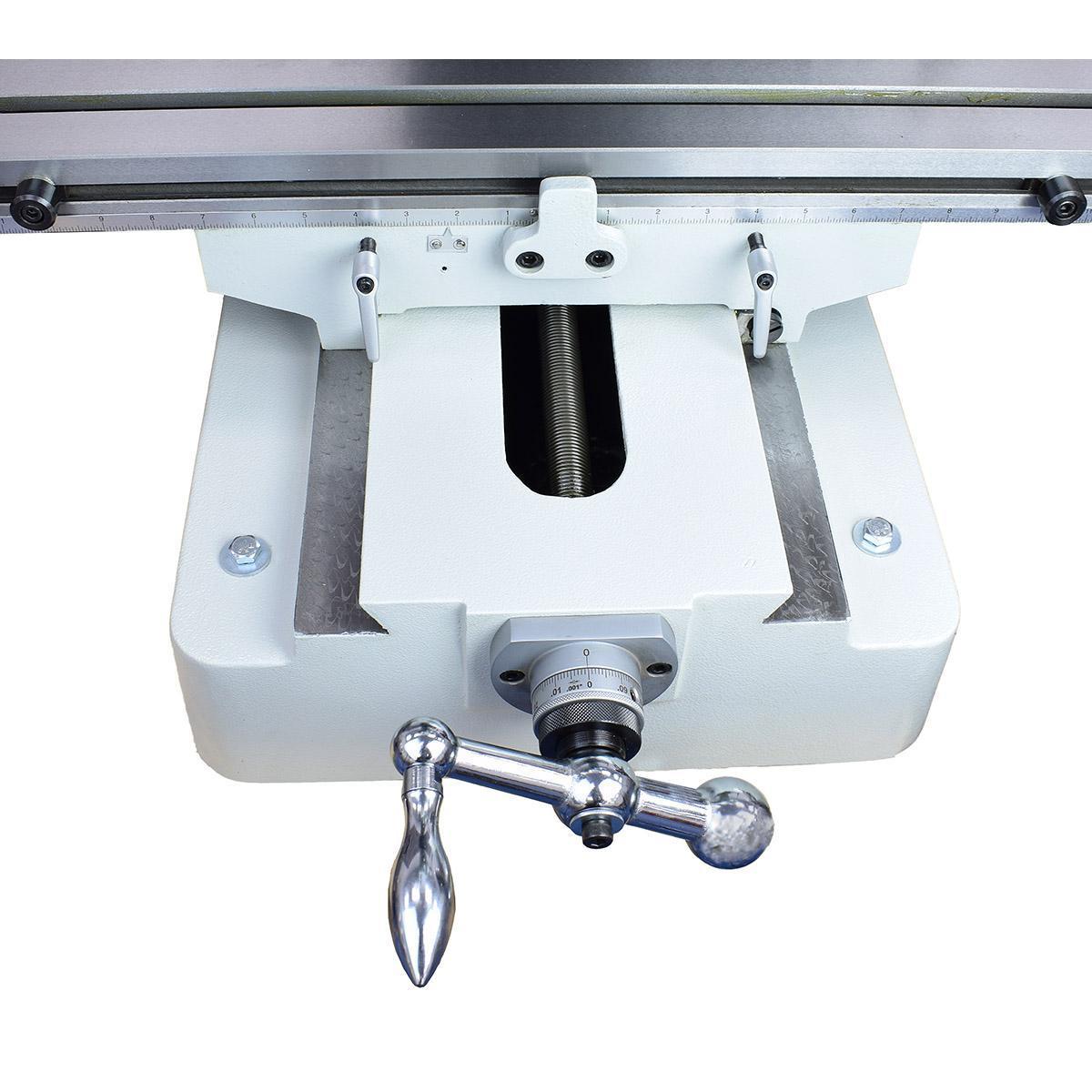

- Hand Scraped way Surfaces for better oil retention and fit, which leads to ultra smooth and very accurate movements
- One Shot Lubrication system is standard equipment, which also extends machine life, and reduces oiling times
- High precision Inch Pitch lead screws, for ease of use and greater accuracy (10 TPI Screws)
- High Precision Spindle with +/- .0002” or less runout for greater tool life and accuracy
- Precision Honed Quill Bore for tighter tolerance fit, which leads to improved accuracy when drilling and precision boring
- The Quill is Precision Ground, for higher accuracy
- Easy operation, simply turn a knob up and down while you are running to change speeds
- Tolerance Test check, each machine is checked for accuracy through a careful inspection process before shipment, the customer can always be sure they will receive a top quality machine that exceeds their expectations
- Longest in class 5 YEAR WARRANTY against defective parts, including electrical
MAIN SPECIFICATIONS:

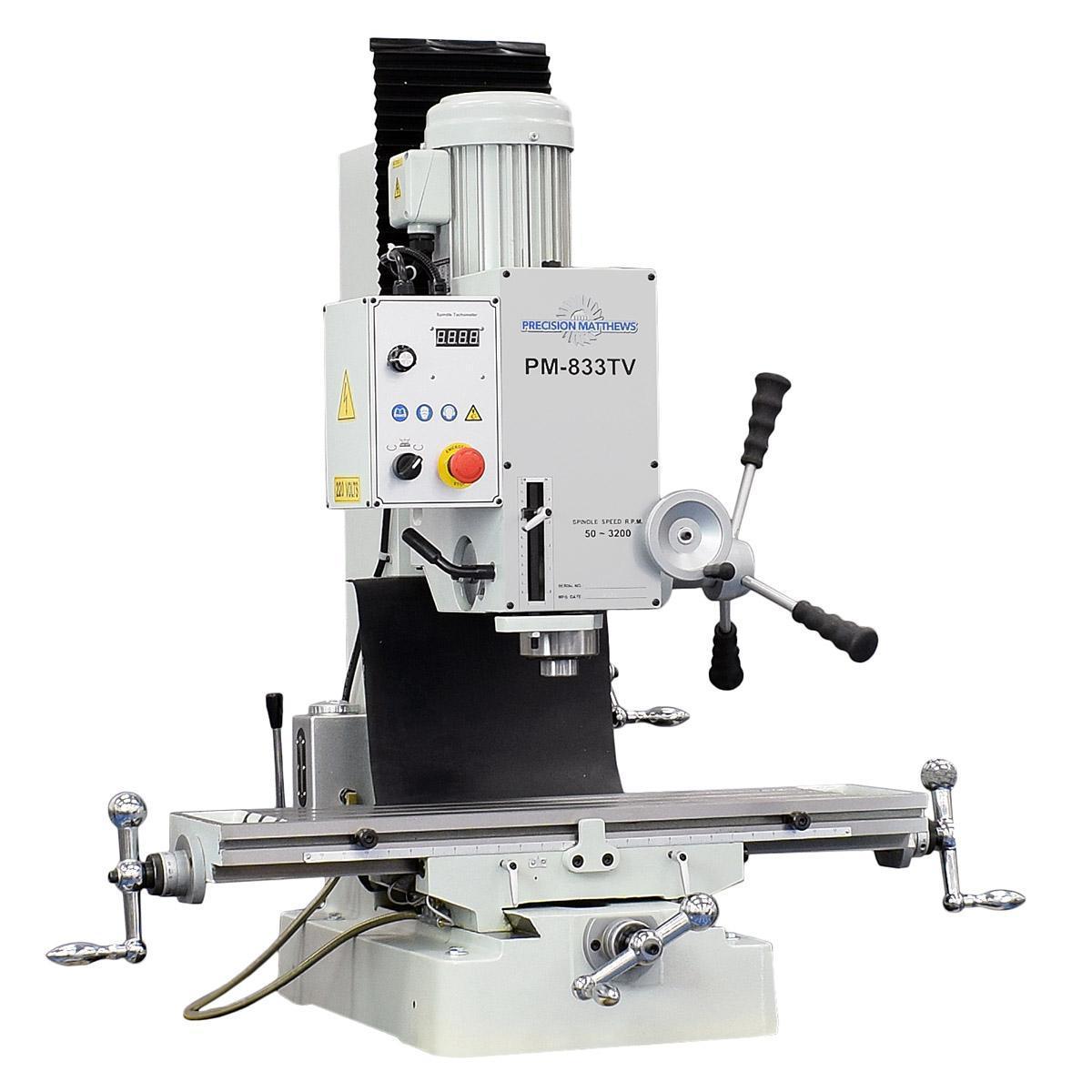

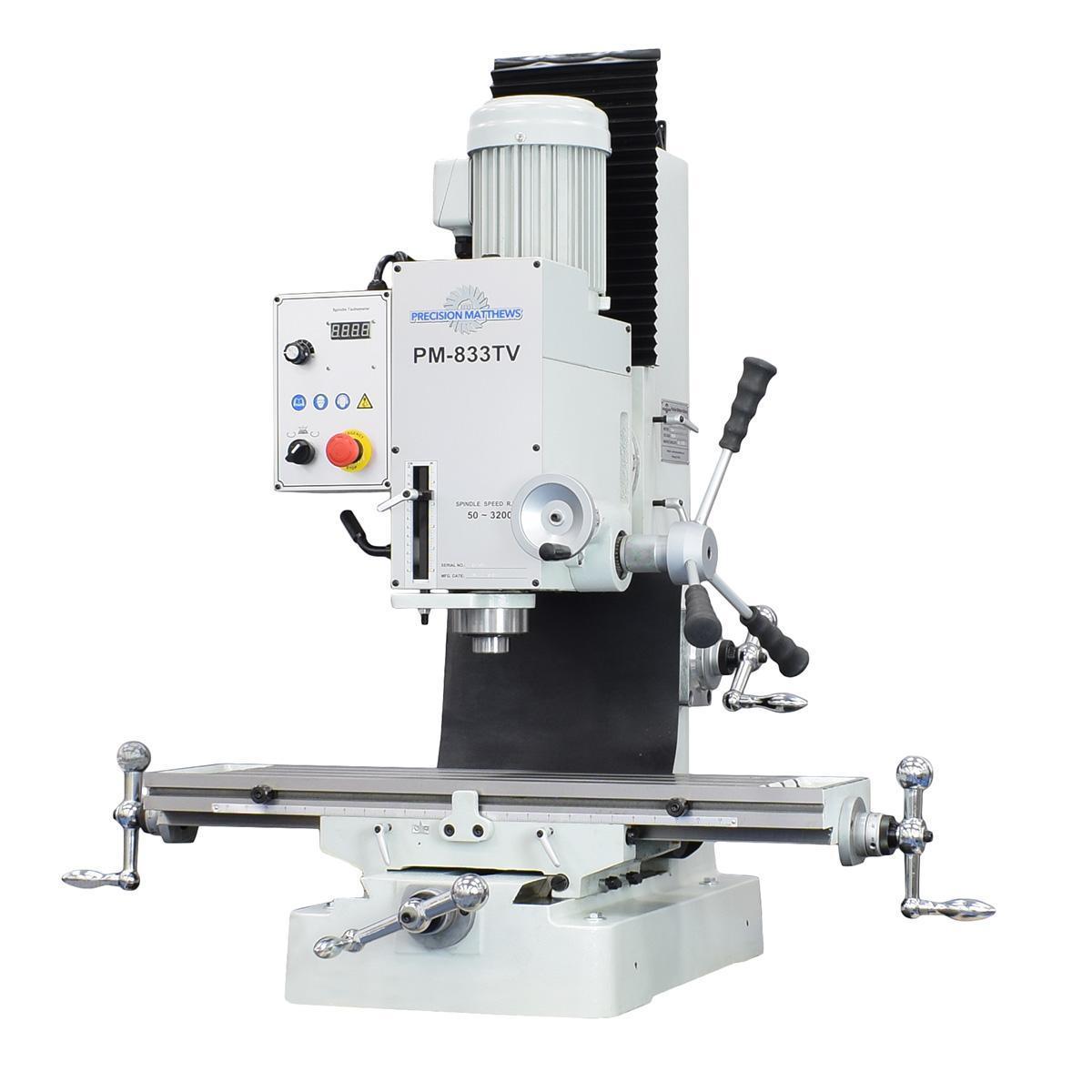

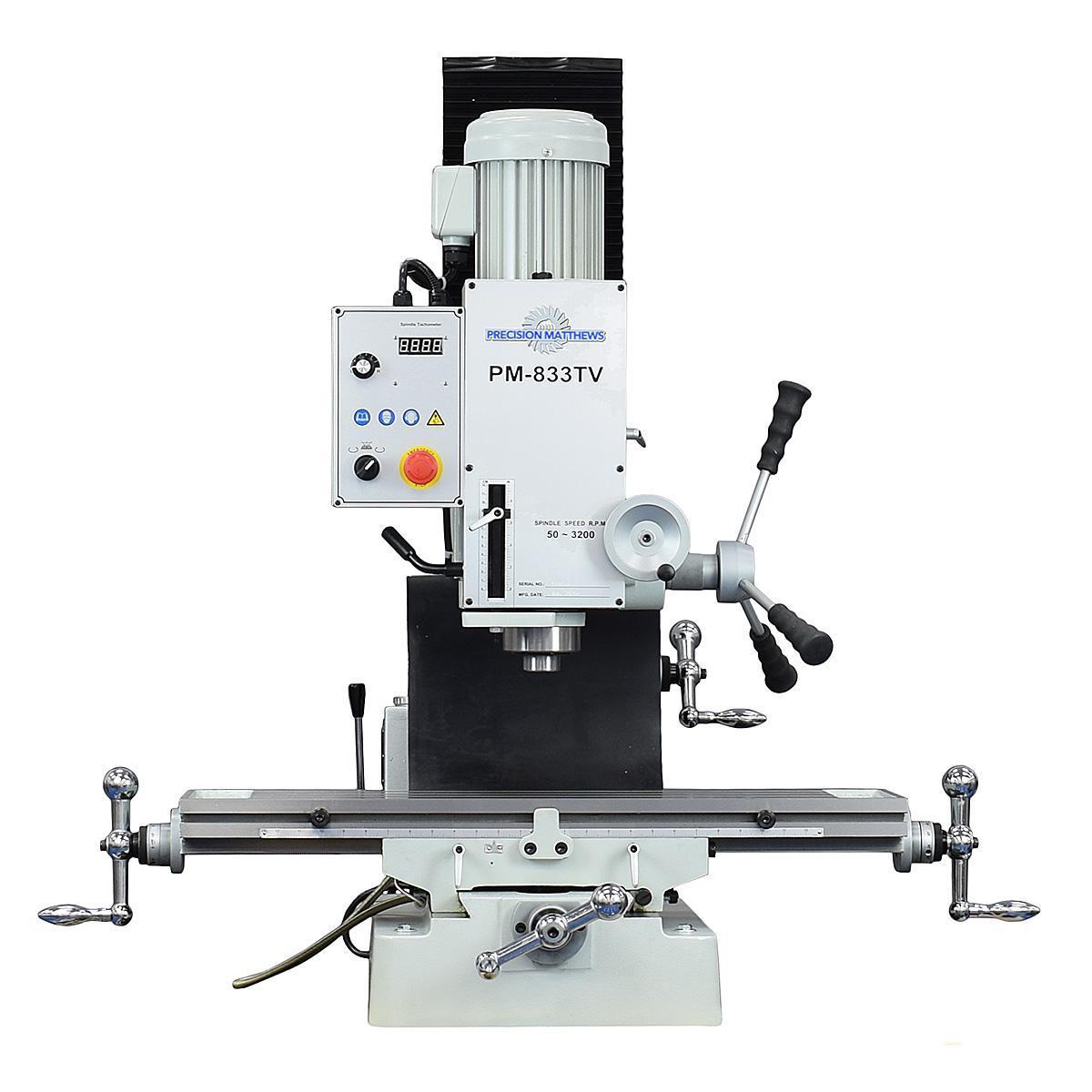

- Model: PM-833TV
- Table Size: 8-1/4×33”
- Table T Slot Size / Spacing Between: 5/8″ / 2-1/4″
- X Axis Travel: 21-3/4” Max
- Y Axis Travel: 11” Max
- Z Axis Travel (Head): 17-1/2” Max
- Max. Distance, Spindle to Table: 20-1/2” Max
- Quill Travel / Diameter: 4-3/4” / 2.952″ (75mm)
- Leadscrew Type: Precision Ground ACME Leadscrew W/ Backlash Adjustments on X and Y Axis
- Leadscrew Pitch: .100” (10 Threads Per Inch)
- Dial Graduations: .001”
- Spindle Taper: R8
- Spindle Speed Range: 50-3200 Infinitely Variable (Belt Drive, one step, built in VFD Drive for variable speeds)
- Speed Change Type: Knob (speed can be changed while running)
- Spindle Bearing Type: High Precision Tapered Roller Bearings, Fully Adjustable
- Spindle Bearing Class: C5
- Main Motor HP: 2 HP
- Overall Height to reach Maximum top of Z Axis Travel: 88”
- Height with head at normal working height: 75”
- Height of Table Working Surface while mounted on optional stand: 39-1/2″
- Front to back - Rear of Machine to Front of Y Axis Handle: 34-5/8″
- Chip Tray Size (At top of base): 30″ x 24-1/2″
- Width X Axis Table Handles, Tip to Tip: 41-3/4”
- Machine Weight: 750 LBS (Without Stand) 880 (With Stand) (833TV model is lighter than gear head 833T model due to having a belt drive which is lighter, all the gears, shafts, extra bearings, etc in the headstock are not needed with the belt drive, but same body of machine so same rigidity)
- Main Motor Power: 2HP
- Voltage / Phase: 220 Volt Single Phase Power (Standard 208V and 240V single phase is fine)
- Country of Origin: Taiwan
- Warranty: 5 Years
- Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)
|
