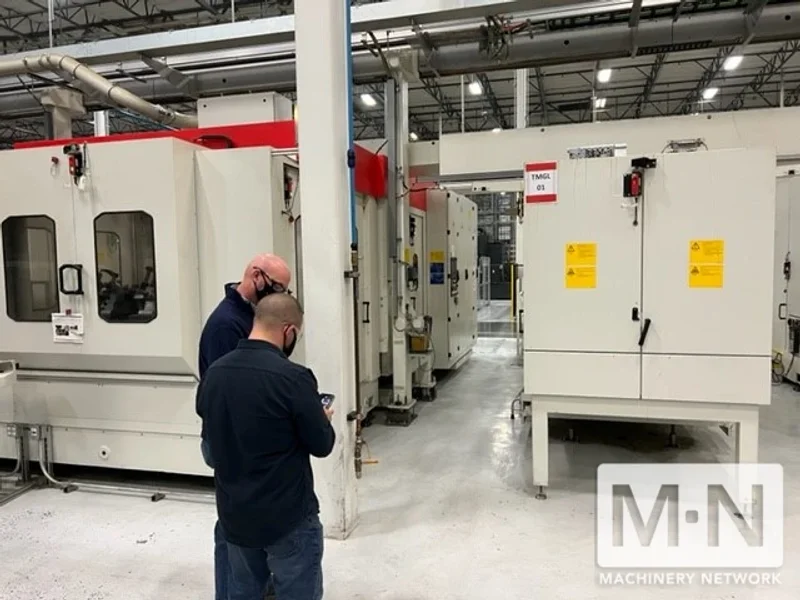

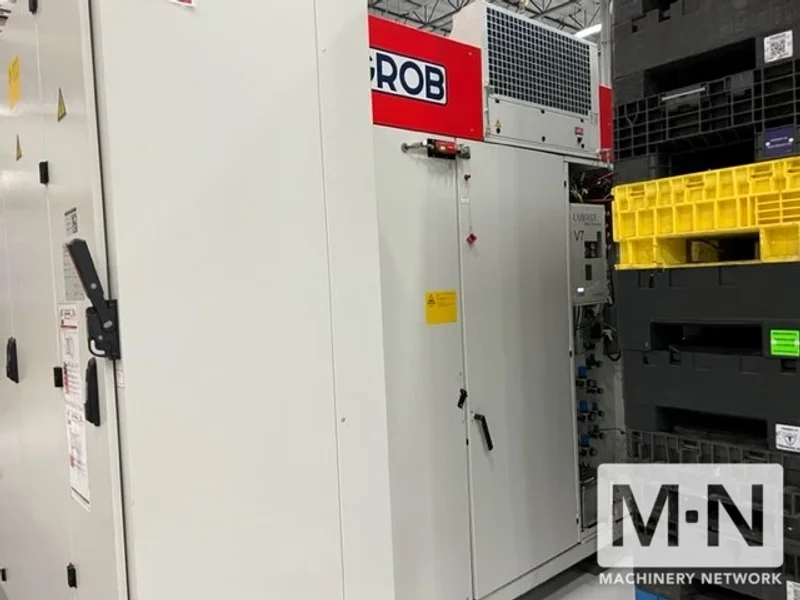

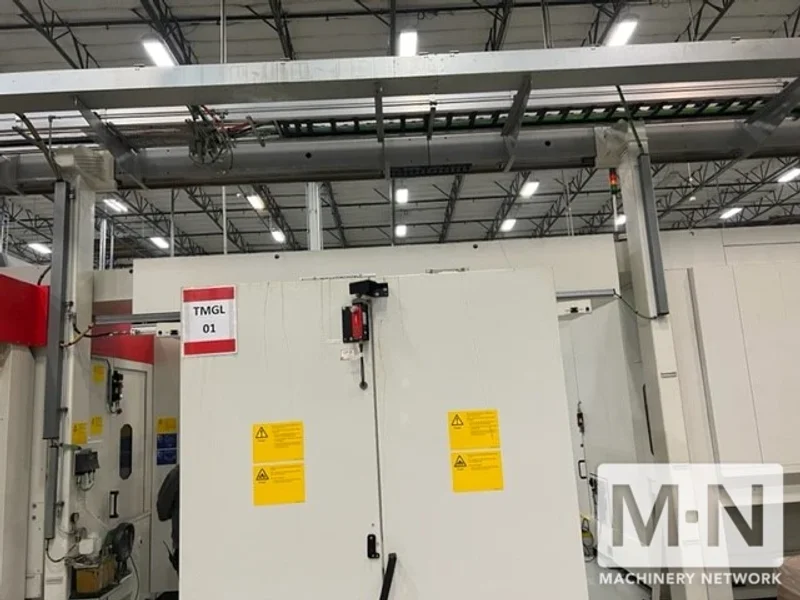

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

3 x Grob G520 5-axis CNC Vertical Machining Cell with robot/deburr station and integrated pallet FMS

Brand

ACME

Category

Filtration Systems

Type

Coolant Filtering Systems

Model

G520

Stock #

40760

Year

Not specified

Condition

Not specified

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers

Manufacturer:

Model:

G520

Stock #:

40760

Status:

For Sale

Description

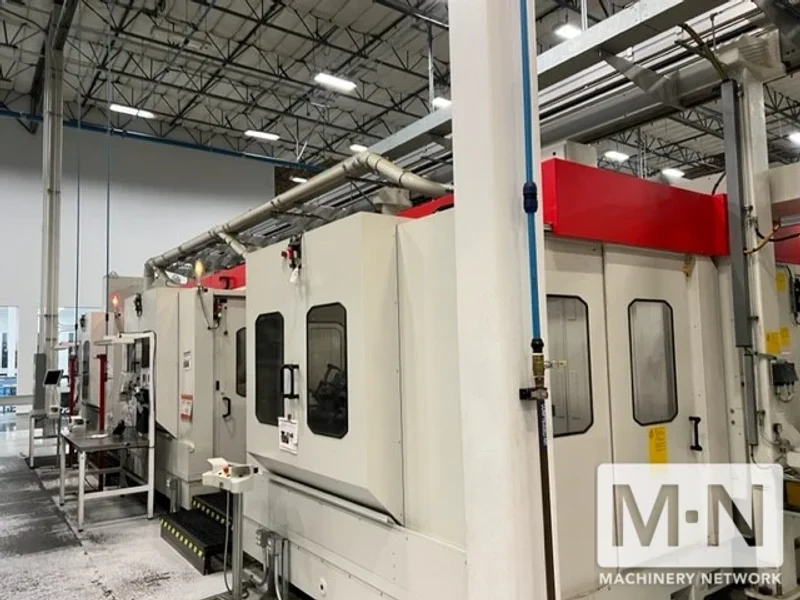

Grob # 1 - G520
Grob # 2 - G520
Grob # 3 - G520
Fanuc M-900iB/400 w R-30iB controller
Deburr station

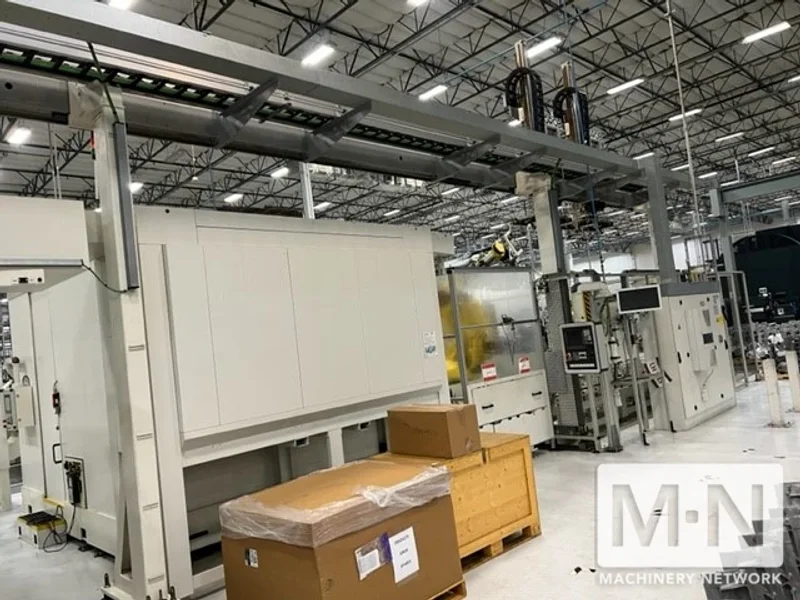

Linear Gantry
Robot cell
Grob 5-axis universal machining center
replacement costs: $5 million

Specifications

Technical Data
Working travels......................................... 750/840/970
in X-/Y'-/Z-axis (mm)

Max. speeds............................................. 90/75/100
in X-/Y'-/Z-axis (m/min)

Interference diameter................................... 2x798
(mm)

All technical data
Chip-to-chip time t1..................................... 2.6
according to VDI 2852 (s) relative to speed (rpm)

Distance between spindles................................ 800
(mm)

Positioning accuracy..................................... 0.006
in X-/Y'-/Z-axis (mm)

Total weight............................................. 26,200/32,200
without/with pallet changer (kg)

Table load with clamping fixture and part................ 2,100/2x625
(kg) (A'-axis/A'-/B-'-axis)

No files or videos to display
