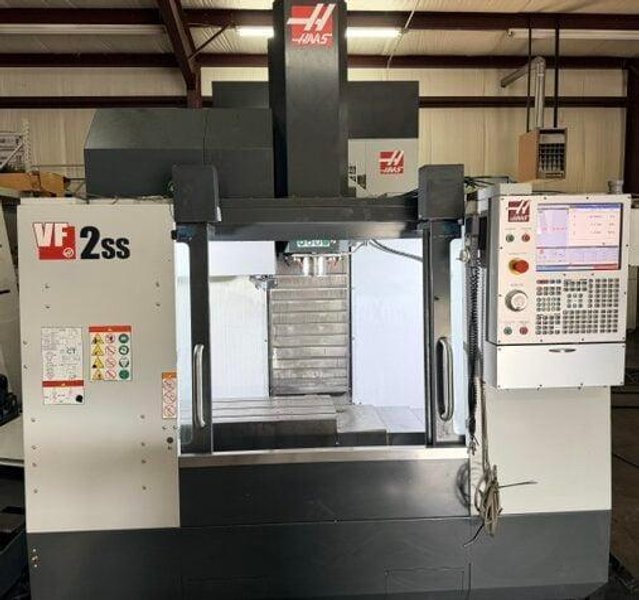

30” X 16” X 20” Vertical Machining Center with Haas Next Generation CNC Control, 12” TFT, USB Port, Through - Spindle Coolant, Wireless Intuitive Probing System, High Speed Machining, Programmable Coolant Nozzles, Chip Auge, Rigid Tapping, Spindle Orientation, User- Definable Macros, Coordinate Rotation & Scaling, Visual Part Programming System and Auto Door

GENERAL SPECIFICATIONS
Travels (X / Y / Z):                        30” X 16” X 20”
Table Size:                            36” X 14”
Spindle Taper:                        CAT 40
Spindle Speed:                        12,000 RPM
Spindle Motor:                        30 HP
Tool Changer:                        30-Position Side-Mounted
Table Load Capacity:                    1,500 Lbs
Rapid Traverse Rates:                    1,400 IPM
Max. Tool Diameter:                        3”
Max. Tool Length:                        11”
Max. Tool Weight:                        12 Lbs
Machine Dimensions:                    88” X 92” X 118”H
Machine Weight:                        8,000 Lbs
Spindle Nose to Table Top:                    4” - 24”
Tool Change Time (Tool-to-Tool / Chip-to-Chip):        1.6 / 2.2 Seconds


INCLUDES: Haas Next Generation CNC Control, 12” TFT, USB Port, Through - Spindle Coolant, Wireless Intuitive Probing System, High Speed Machining, Programmable Coolant Nozzles, Chip Auge, Rigid Tapping, Spindle Orientation, User- Definable Macros, Coordinate Rotation & Scaling, Visual Part Programming System and Auto Door

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
