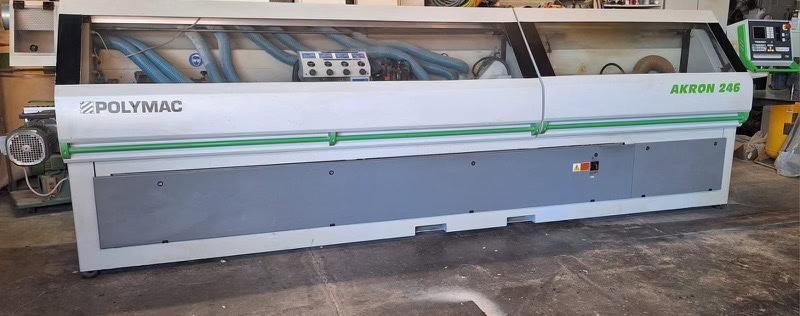

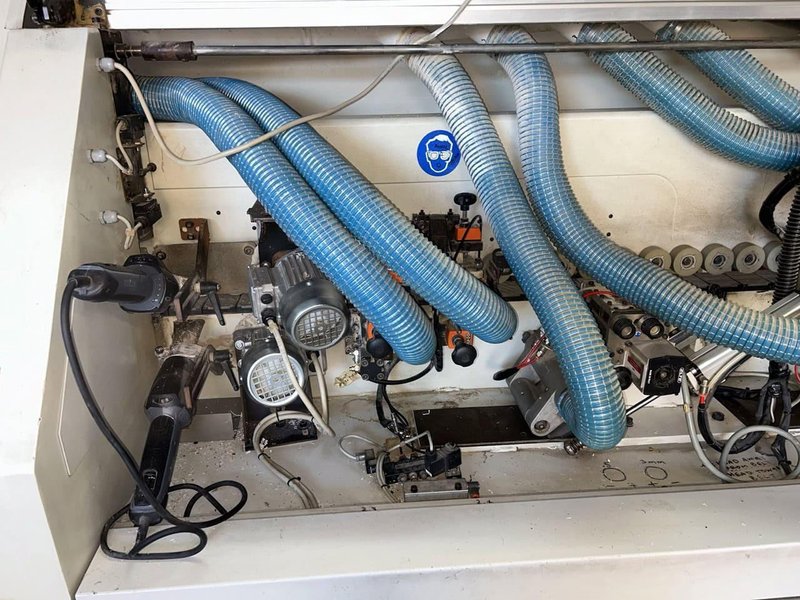

Biesse Polymac Akron 246 CNC Edgebander, 2005 – Corner Rounding, Pre Milling, New Motors, Under Power

Pressure Beam Type: Rollers Pre-Milling Station: 2 Motors Glue Station Pressure Rollers: 4 End Trimming Station: Straight & Bevel (2 motors) Rough Milling Station: 2 Motor Fine Milling Station: 2 Motor Corner Rounding Station: 2 Motor Flat Scraping Station: Top & Bottom Profile Scraping Station: Top & Bottom Buffing Station: Top & Bottom Heat: Top & Bottom

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Panel Height: 10-50 mm Edge-banding Material Height: 13-55 mm Min. Thickness of Edge-Banding Strip in Rolls: 0.4-3 mm Max. Edge Thickness w/Trimming Unit: 8 mm Max. Edge Thickness w/o Trimming: 3 mm Max. Section of Solid Wood: 8 x 55 mm Panel Protrusion from Track: 25 mm Min. Panel Length: 150 mm Min. Panel Width (150mm Length): 85 mm Min. Panel Width (250mm Length): 55 mm Chain Feed Speed: 12 m/min Dimensions: 18′ L x 4′ W x 5′ H Weight: 4,000 lbs Electrical: 230 V 3 Phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
