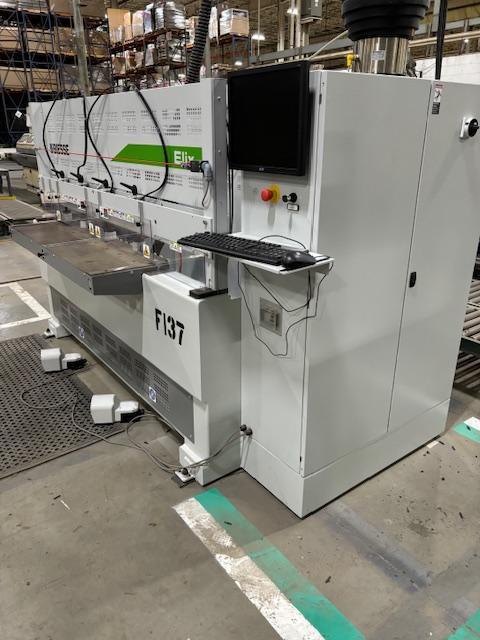

Biesse Elix K3 Dowel Drill and Insertion Machine, 2020

Max. Width: 51.2″ Thickness: 0.4″ – 1.6″ Min. Depth: 4.7″ X Axis:51.2″ Head Movement Speed: 131.2 ft/min Z Axis: 1.6″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Boring Unit:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotation Speed: 6000 rpm Depth: 1.2″ Max. Bits Diameter: 0.47″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Modified Dowel Insertion Size: .19″ to .24″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Dowel Insertion Unit:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Dowel Dim: 0.31″ x 1.18″ Max. Dowel Projection: 0.55″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Glue System:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Glue Tank Capacity: 2.1 gallons Max. Glue Density: 900 cps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – The Smart-Shot Dowel Insertion Unit – 2 Sensors to Prevent Dowel or Glue Misfire. – Dowel Unloading System – Glue Electronic Proportioning – Glue Injector Sensor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
