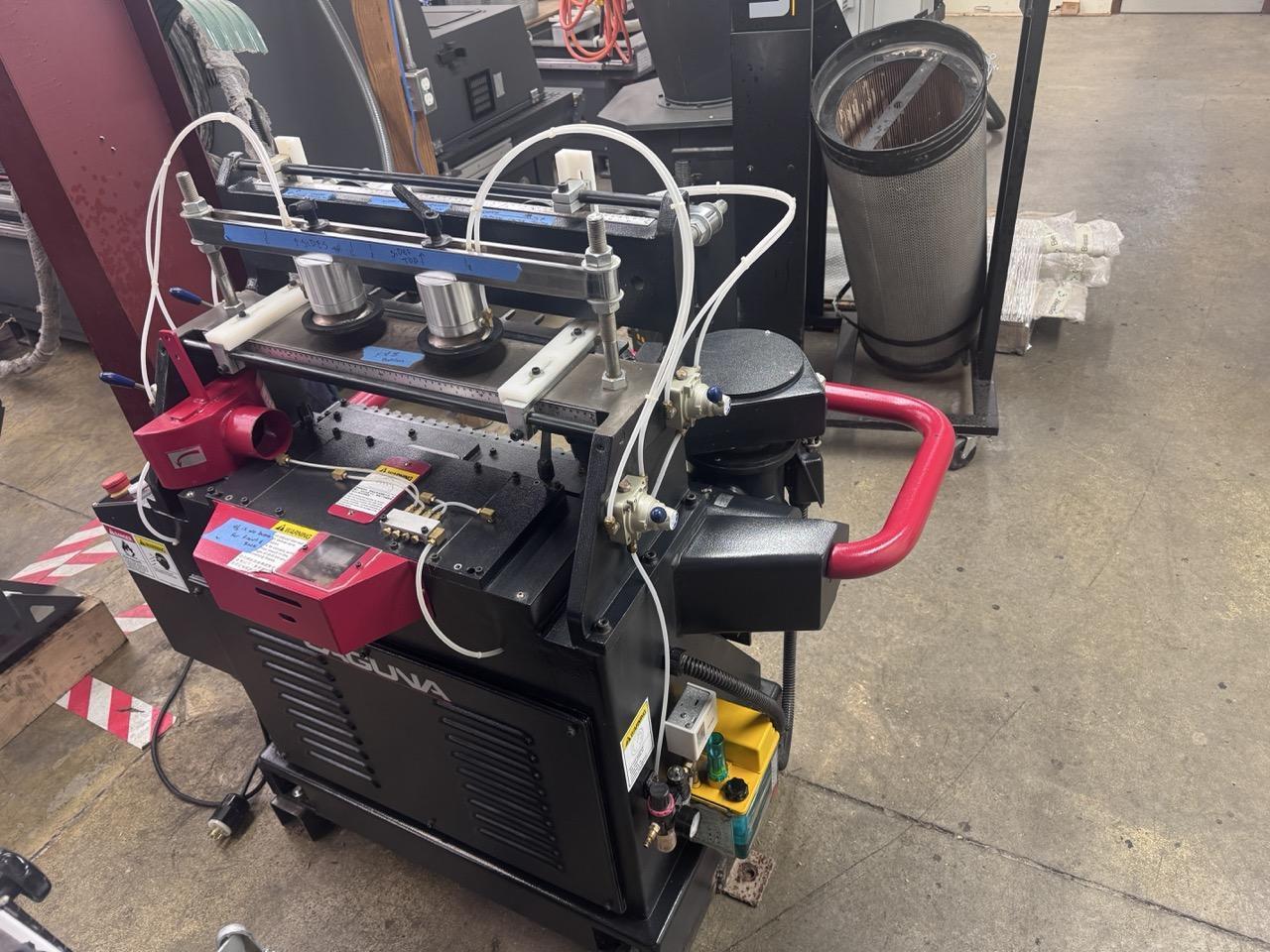

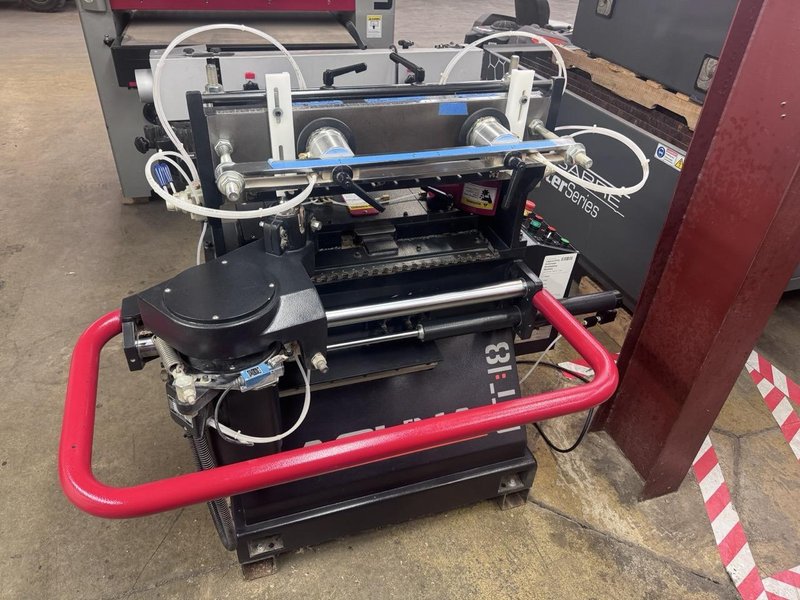

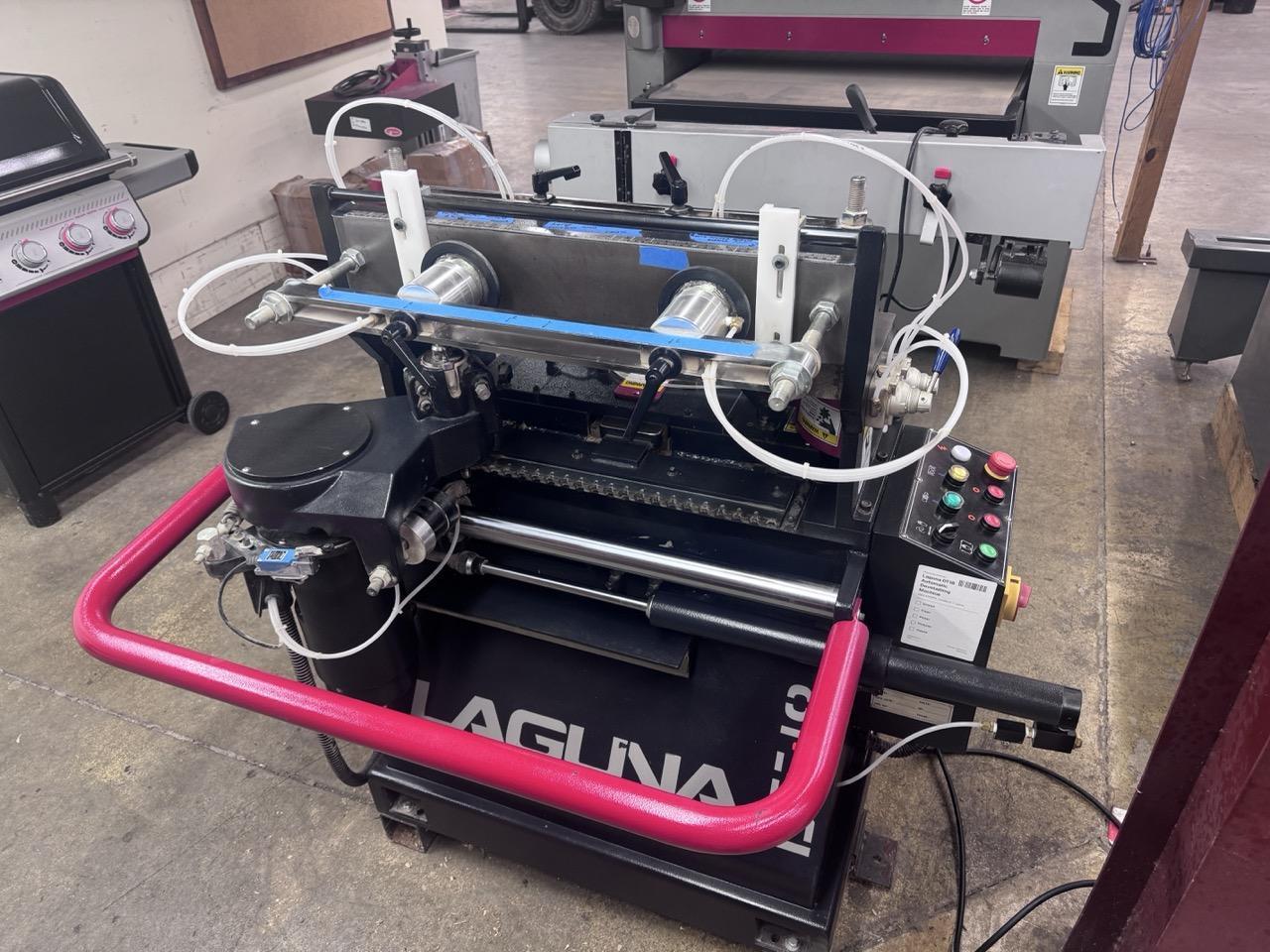

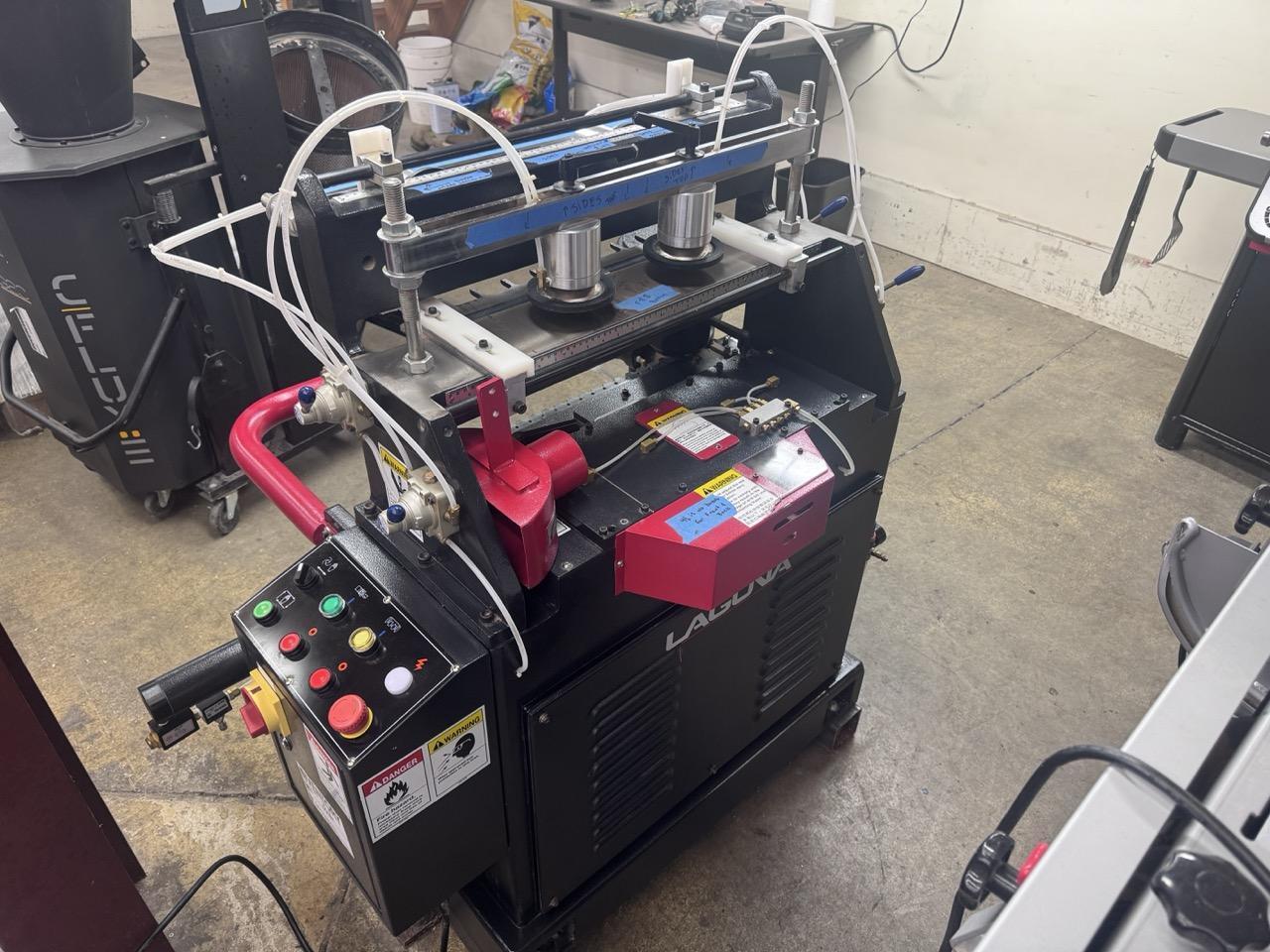

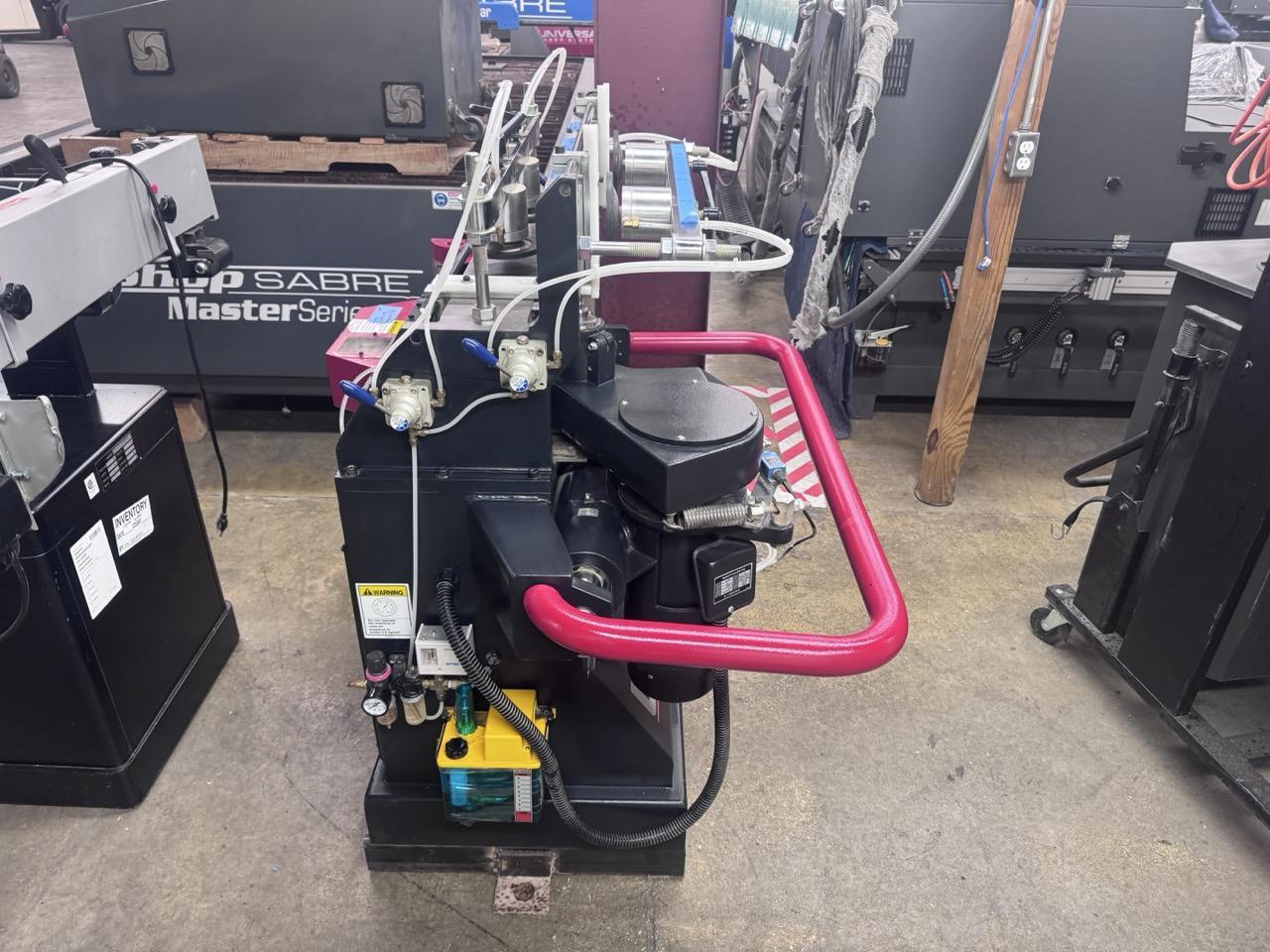

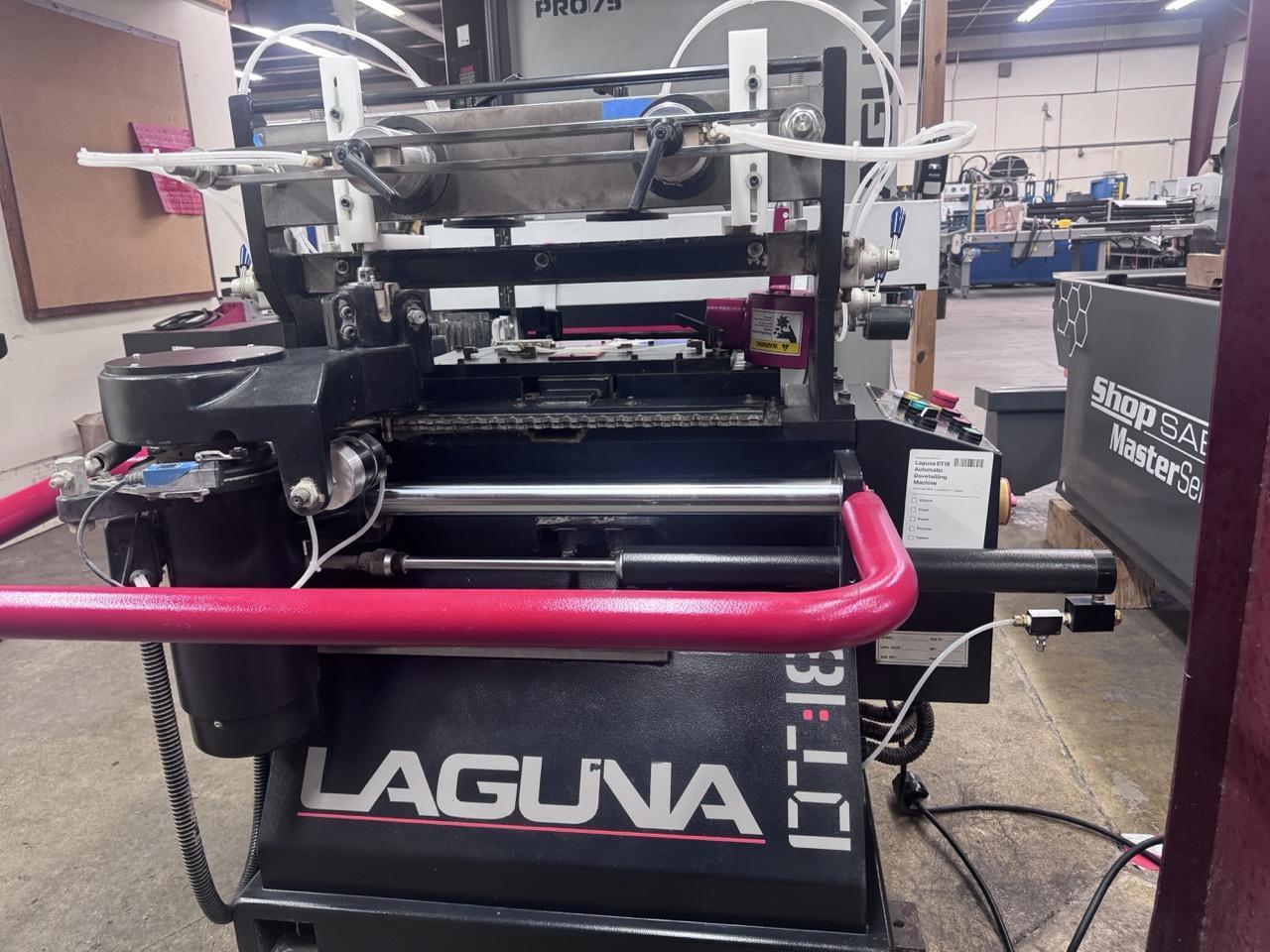

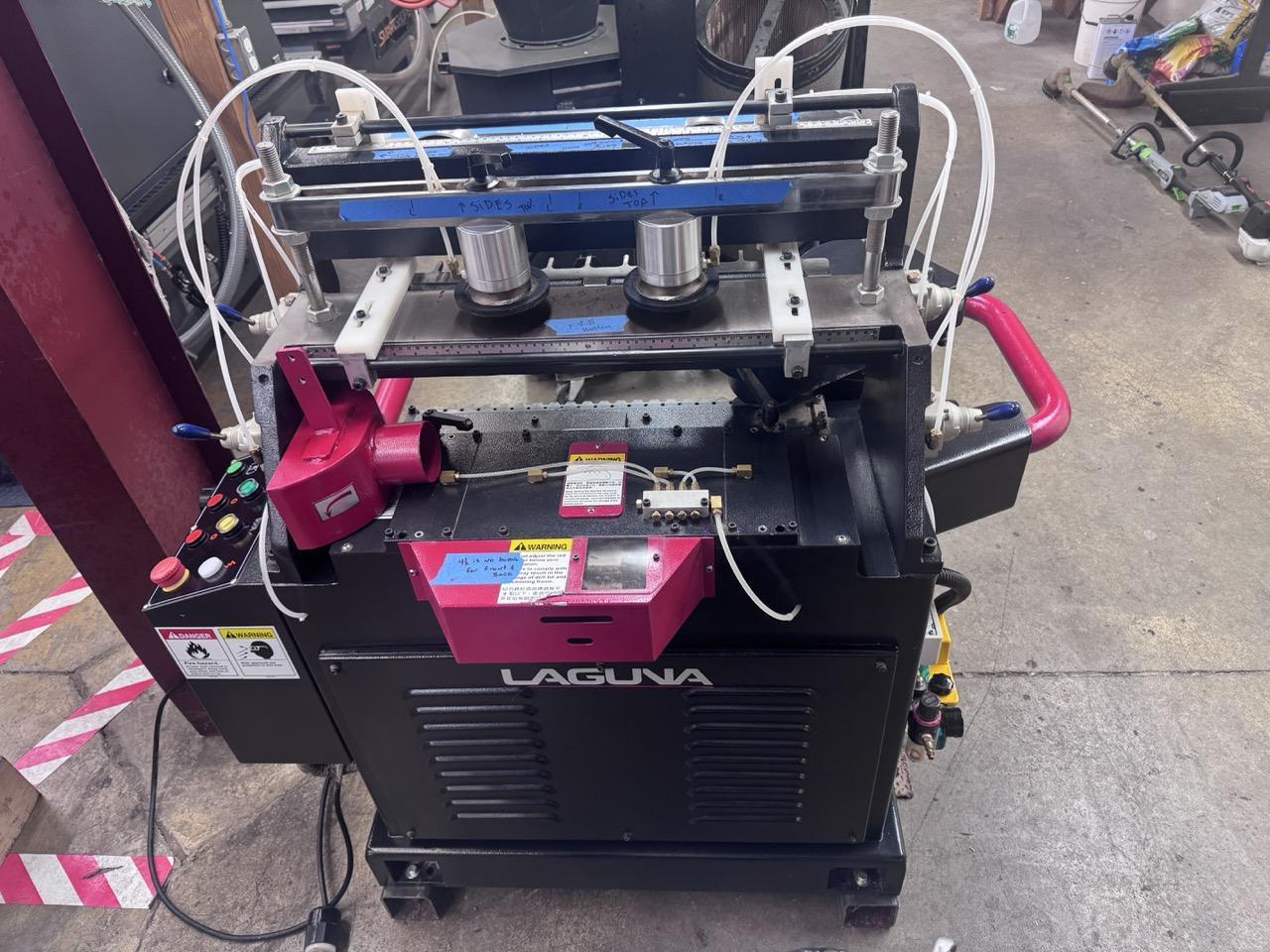

Laguna DT18 Automatic Dovetail Machine, 2023 – 2 HP 220V 3-Phase Woodworking Dovetailer

2024 Laguna DT18 automatic dovetail machine featuring a high-speed 21,500 RPM spindle, four independently controlled pneumatic clamps, simultaneous pin-and-tail cutting capability, and up to 59″ x 16″ workpiece capacity for efficient high-production drawer, cabinet, and furniture manufacturing.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: Laguna Tools Model: DT18 Year: 2024 Machine Type: Automatic / Semi-Automatic Dovetail Machine Application: Cabinetry, drawers, furniture and woodworking production SKU: MDT182203

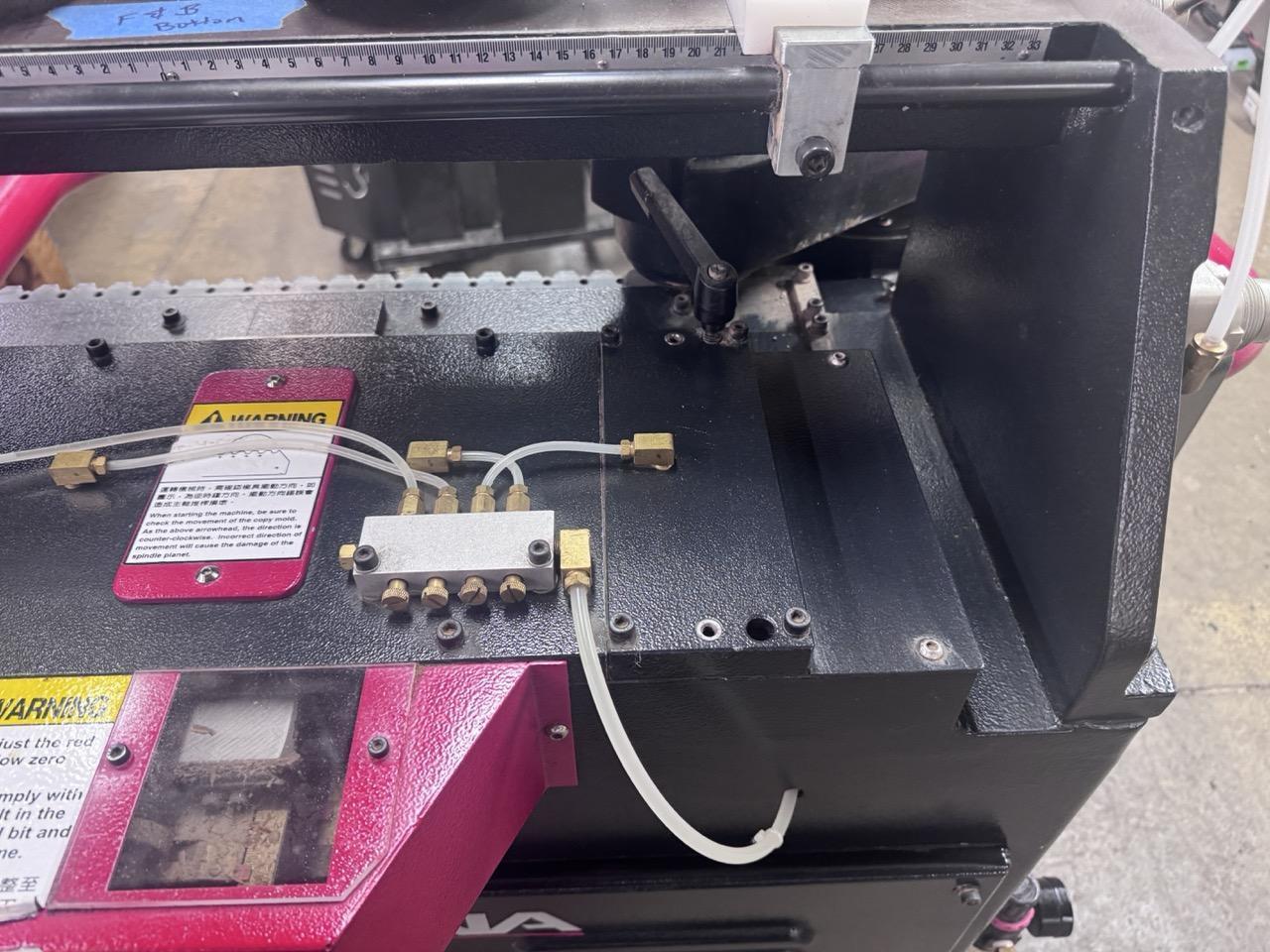

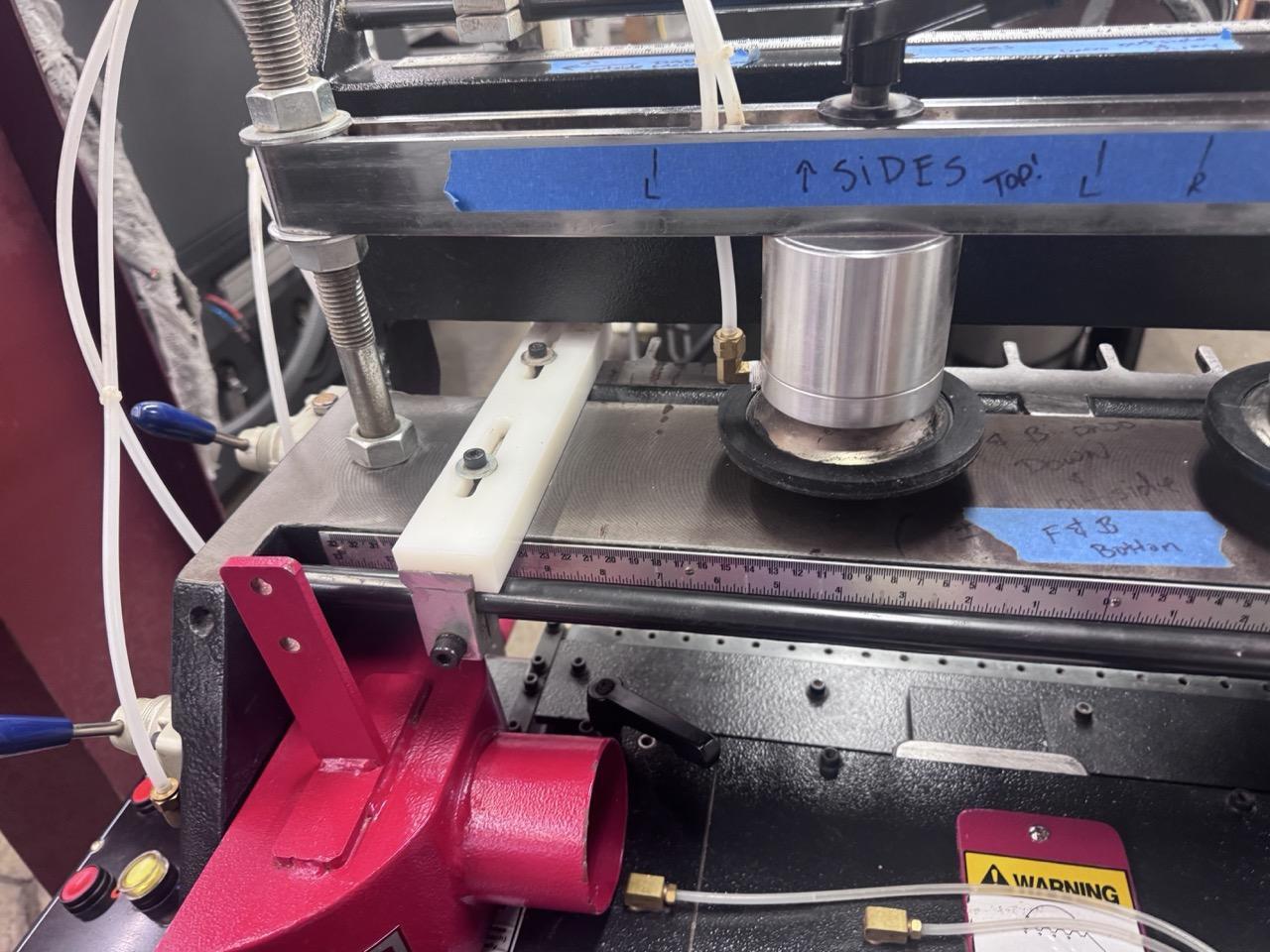

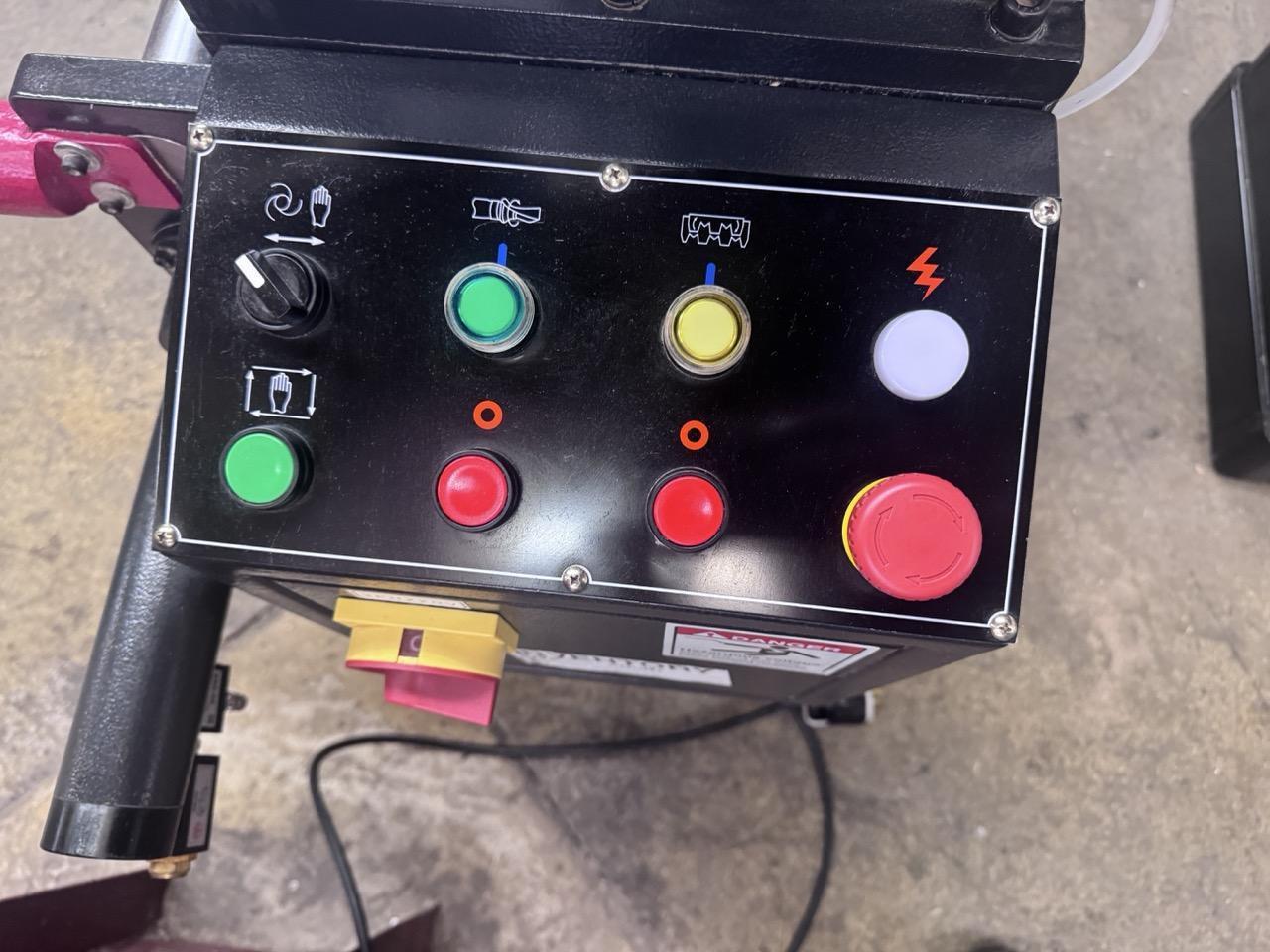

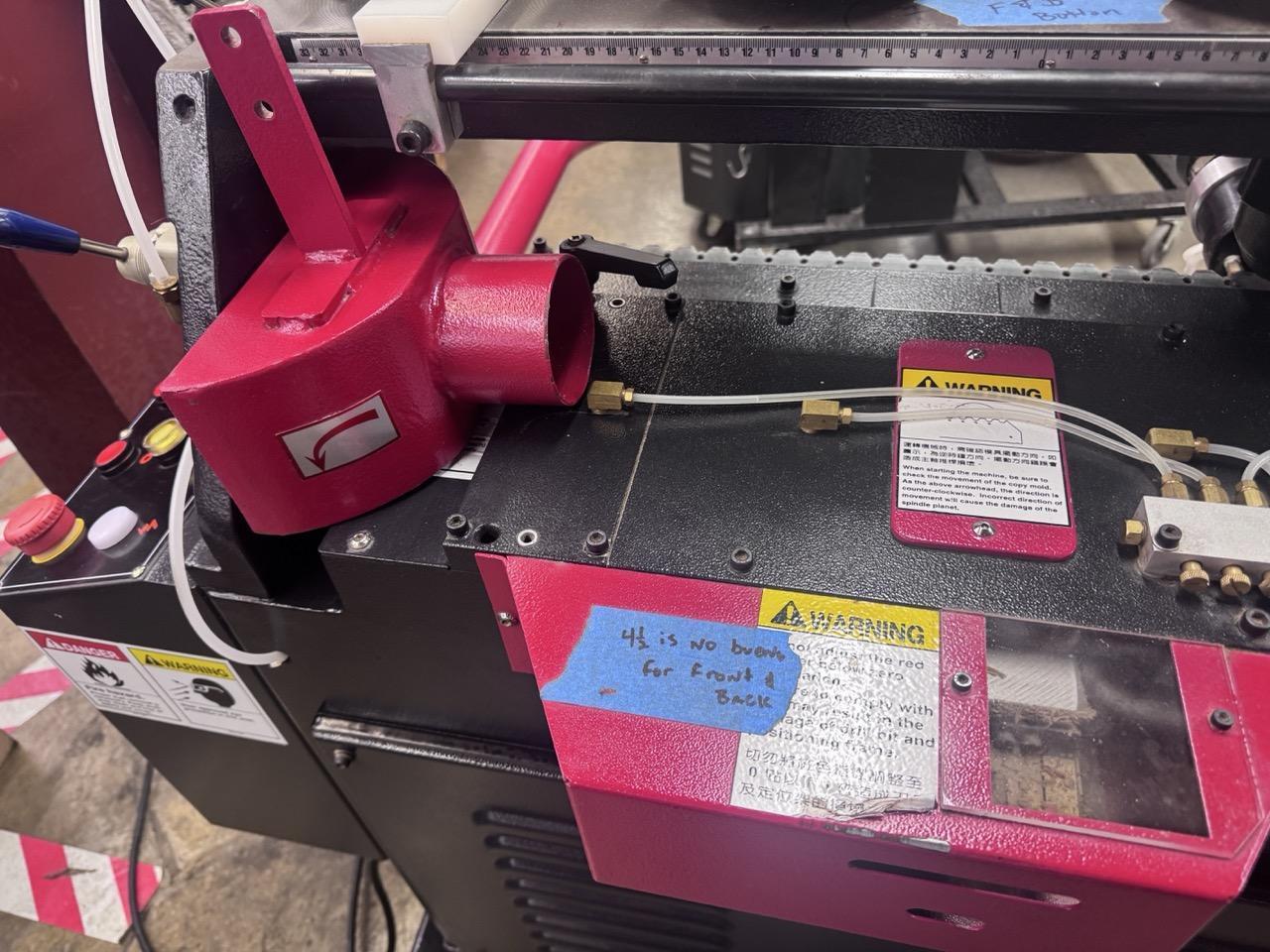

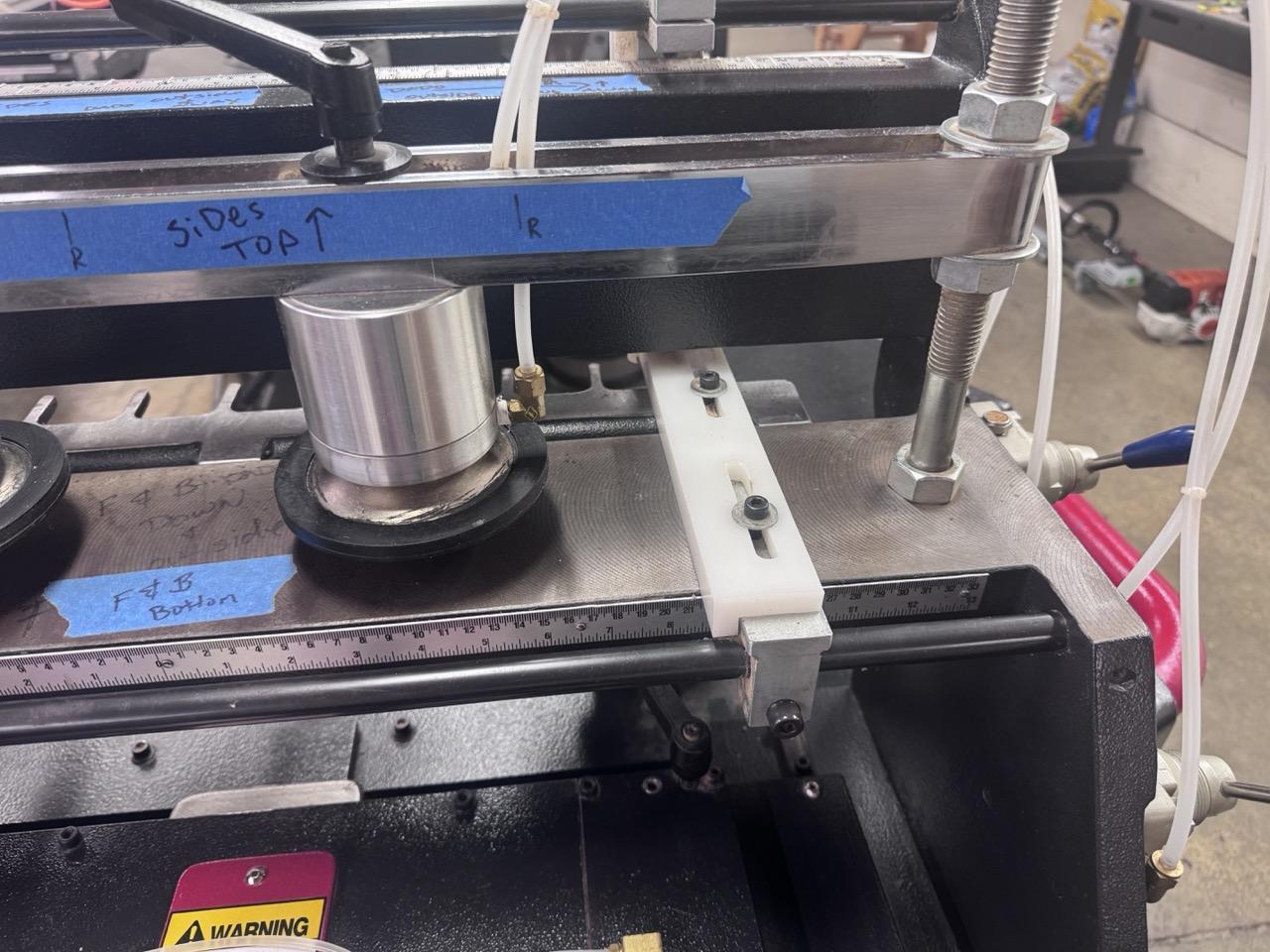

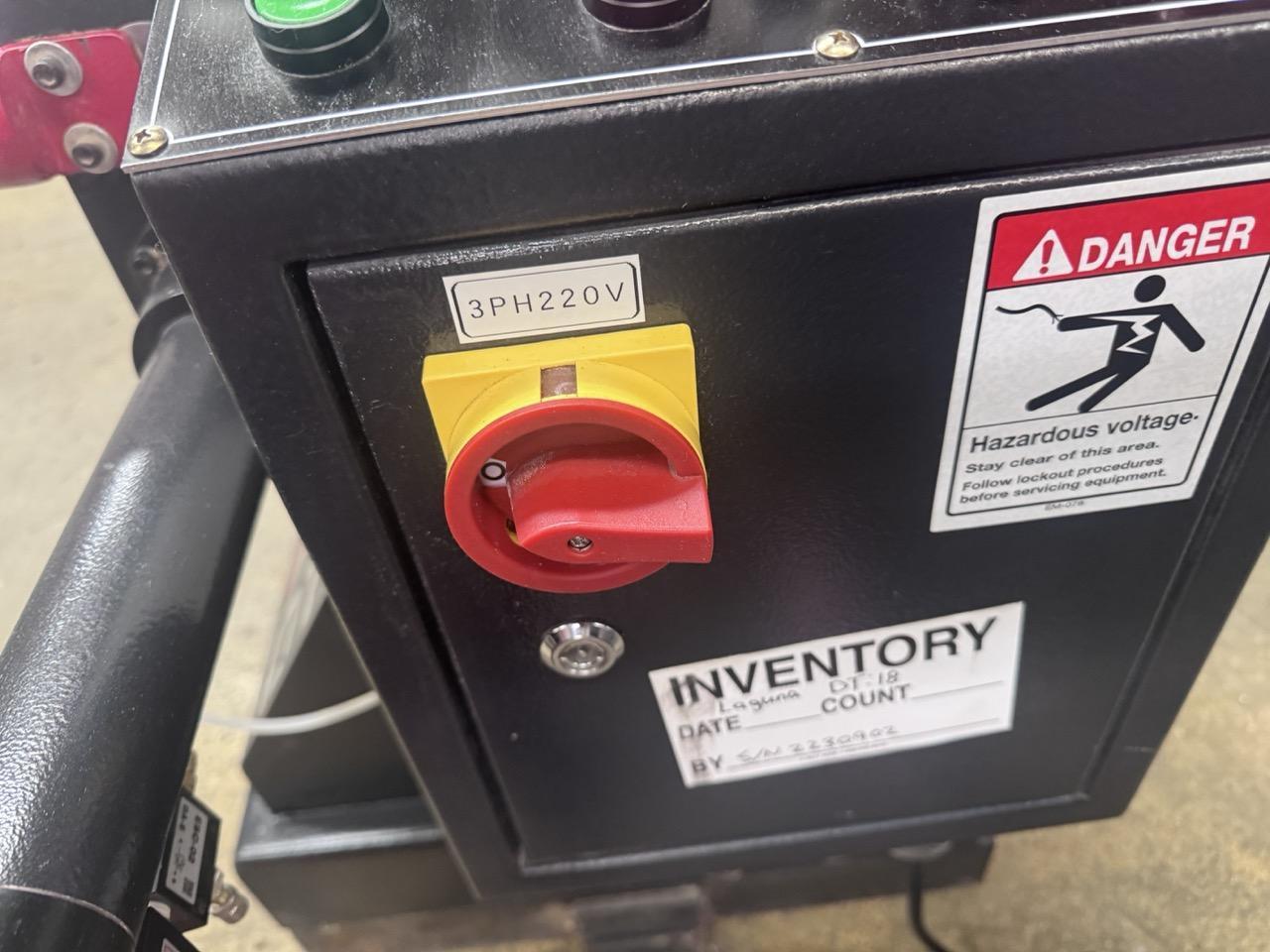

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor & Spindle Main Motor: 2 HP Voltage: 220V Phase: 3-Phase Spindle Speed: 21,500 RPM Collet-style cutter chuck High-speed dovetail cutting spindle Workpiece Capacity Maximum Workpiece Size: 59″ x 16″ Tenon Thickness Range: 1/8″ – 2-23/64″ Tenon Width Range: 15/64″ – 23/32″ Tenon Depth Range: 25/64″ – 1-3/16″ Cutter Vertical Adjustment: Up to 1-3/16″ Clamping & Operation 4 independently controlled pneumatic clamps Pins and tails can be machined separately or simultaneously Capable of machining two joints in a single cycle Centralized operator control panel Adjustable dovetail spacing Individual adjustment scales for repeatable setups Pneumatic workpiece clamping Automatic cutting cycle Production Approximate Production Capacity: 40–50 drawer boxes per hour, depending on workpiece and operator Designed for production cabinet and furniture shops Suitable for solid wood and common cabinet materials Air & Dust Collection Required Air Pressure: 71 PSI Dust Collection Port: 4″ Dimensions & Weight Machine Base: approximately 42″ x 22″ Overall Machine Size: approximately 56″ x 36″ Shipping Dimensions: approximately 60″ x 50″ x 50″ Machine Weight: approximately 1,320 lbs. Approximate Shipping Weight: 1,685 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
