Shandong Arrow FT36 Extruder, Pilot Scale, Twin Screw, HMMA (high moisture meat analogue), 2021

Shandong Arrow FT36 Extruder, Pilot Scale, Twin Screw, HMMA (high moisture meat analogue), 2021

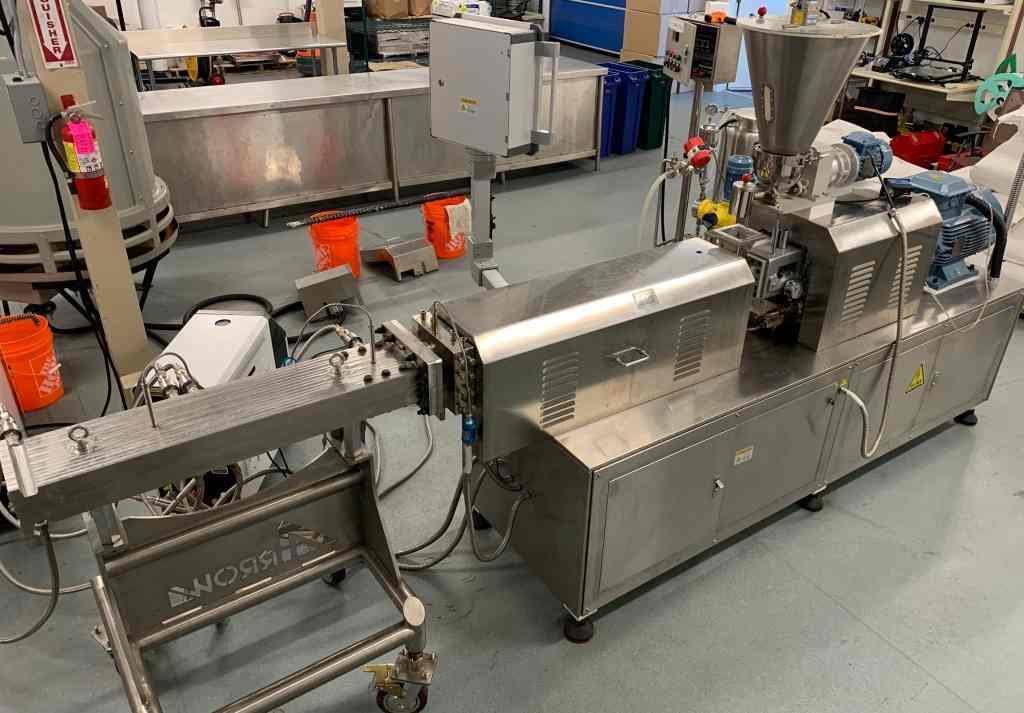

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Overview: pilot-scale, twin screws extruder with less than 300 hours of use.

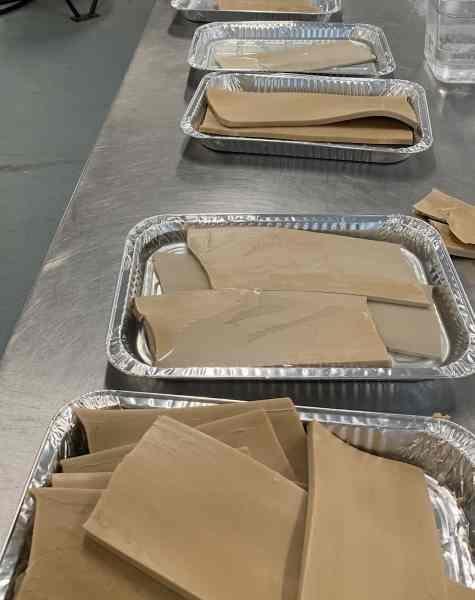

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The FT36 extruder is a specialized piece of equipment designed for the production of high-moisture meat analogs, essential for creating meat analogs with realistic textures and juiciness. The extruder is engineered for production of HMMA extrudates with up to 60% hydration, from formulations of pulse protein isolates of various kinds: pea, lentils, mung beans, fava beans, soy.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications: – Ratio (L/D): 32 – Capacity: 10-30 kg/hr – Screws RPM: 100-400 rpm – Voltage: 3 phase, 380 VAC (US Y-configuration) – Main motor: 18.5 kW (24.8 HP) – Feeder motor: 0.75 kW – Heater power: 11.2 kW – Cooling: circulated water – Screws direction: co-rotating – Sensors: equipped with temperature and pressure sensors

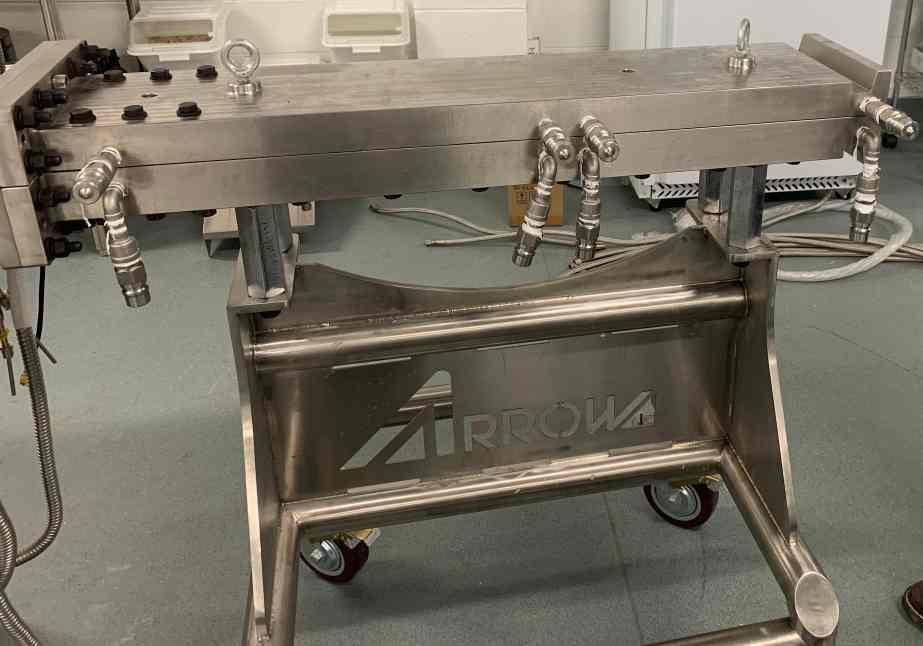

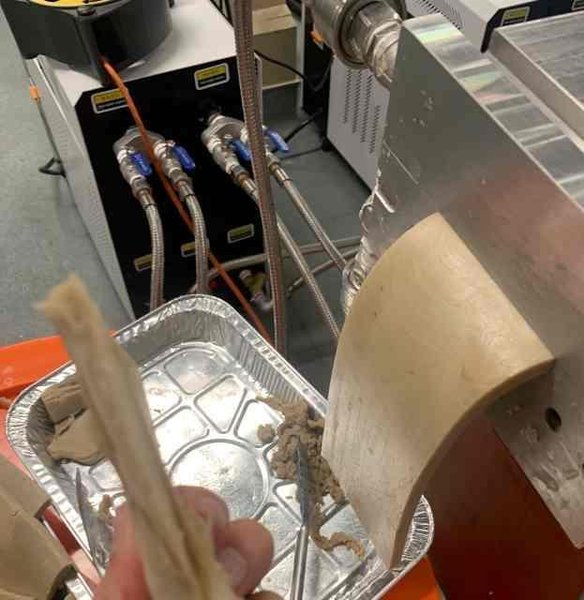

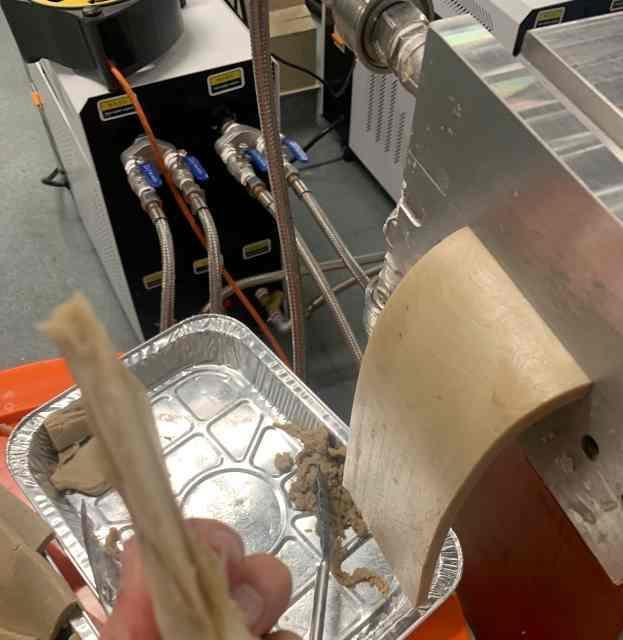

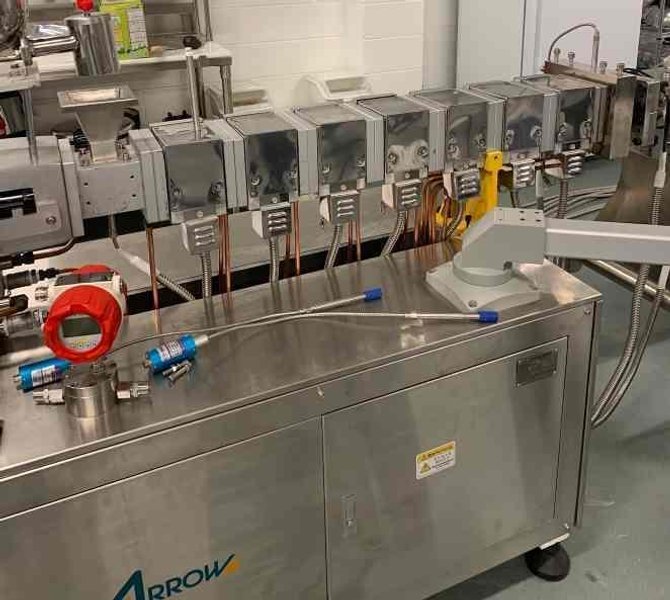

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: – Gear box: Professional gear fabrication and assembly for parallel twin-screw extruders, with automatic cooling lubrication filtering design, ventilation holes, and high output efficiency. – Screws: Co-rotating twin screws, 36mm diameter block-type combination screw made of high-strength, wear-resistant alloy, ensuring smooth surface, precision, and flexibility. – Barrel: Modular combination design with high-strength, wear-resistant alloy. Features independent heating tubes with an aluminum silicate insulation layer for efficient heat retention. – Feeder: Twin-screw feeding with adjustable speed via an inverter. The feeder hopper has a watch window to check the material level. – Control: PLC control with automatic temperature control, memory storage function, and various control modes to suit different materials and processing needs. – Cooling die: Specialized stainless steel cooling die for HMMA and texture creation. Coupled with two dedicated water temperature control units.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Components:

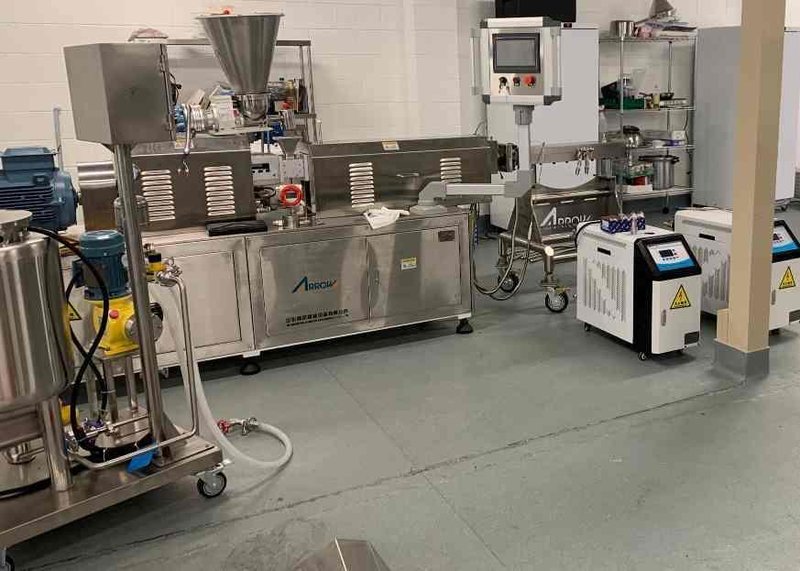

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1. Main Motor: ABB brand, providing reliable and efficient power to the extruder. 2. Inverter: Delta brand, used for speed control of the main motor and feeder motor. 3. Breaker: LG brand, providing circuit protection for the electrical system. 4. Relays: Omron brand, used for controlling electrical circuits and ensuring safe operation. 5. Contactors: LG brand, used for switching an electrical power circuit. 6. PLC: Delta brand, providing programmable logic control for automation and process control. 7. Additives Preparation Feeding: Includes a volumetric variable pump and a stainless steel tank with high & low-level switches and a filter. It also features a quick coupling for easy connection and disconnection.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heat and Cooling:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The extruder is equipped with a water cooling closed circuit that accurately controls the temperature of the cooling sleeve. It also features seamless pipe heating and cooling for fast and constant temperature control. The system also includes alarms for missing items, water shortage, over-temperature, and overload.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,HMI:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The extruder features PLC control with HMI and a large touch screen monitor, automatic temperature control, memory storage function, and various control modes to suit different materials and processing varieties. The main motor and feeding machine use frequency control.
