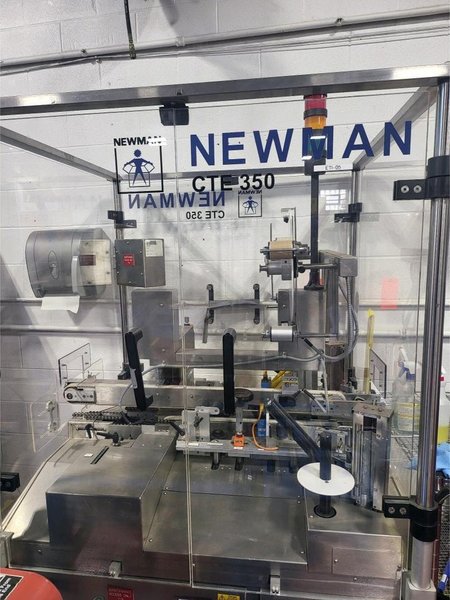

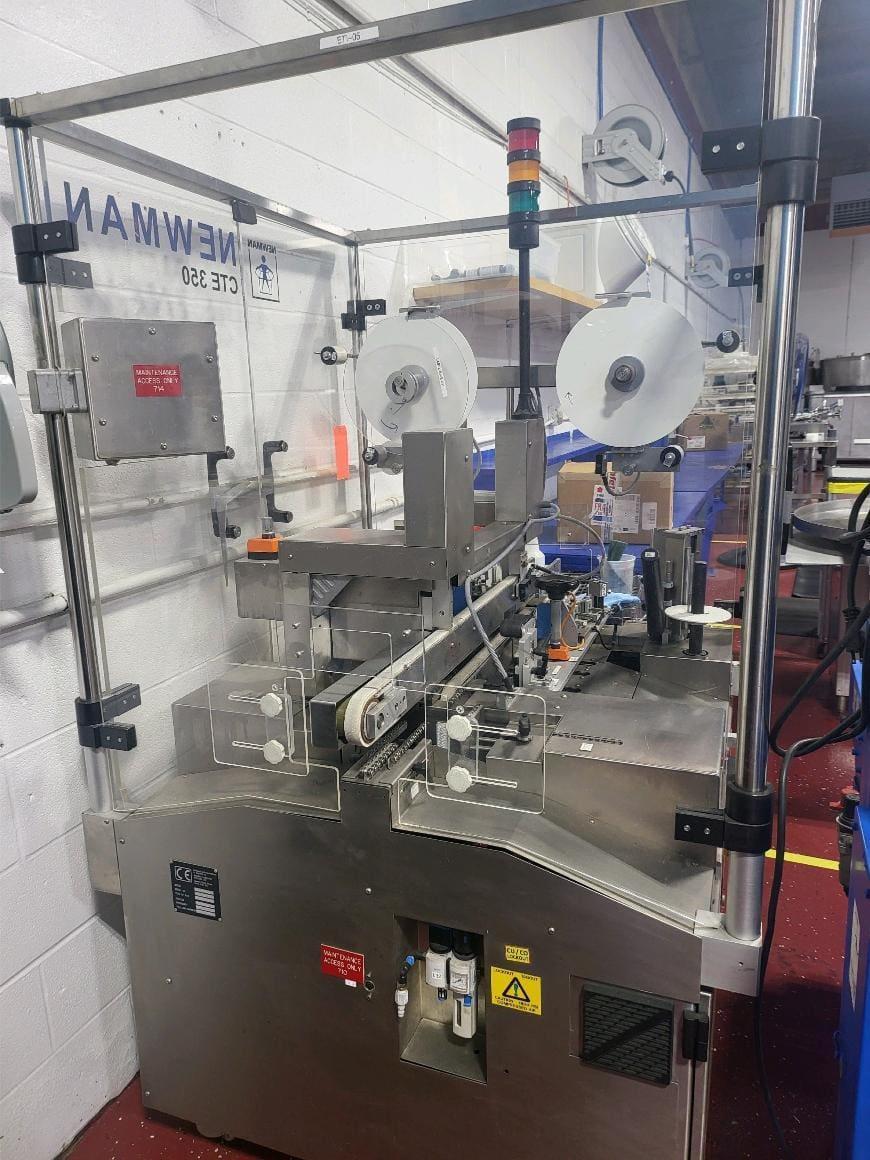

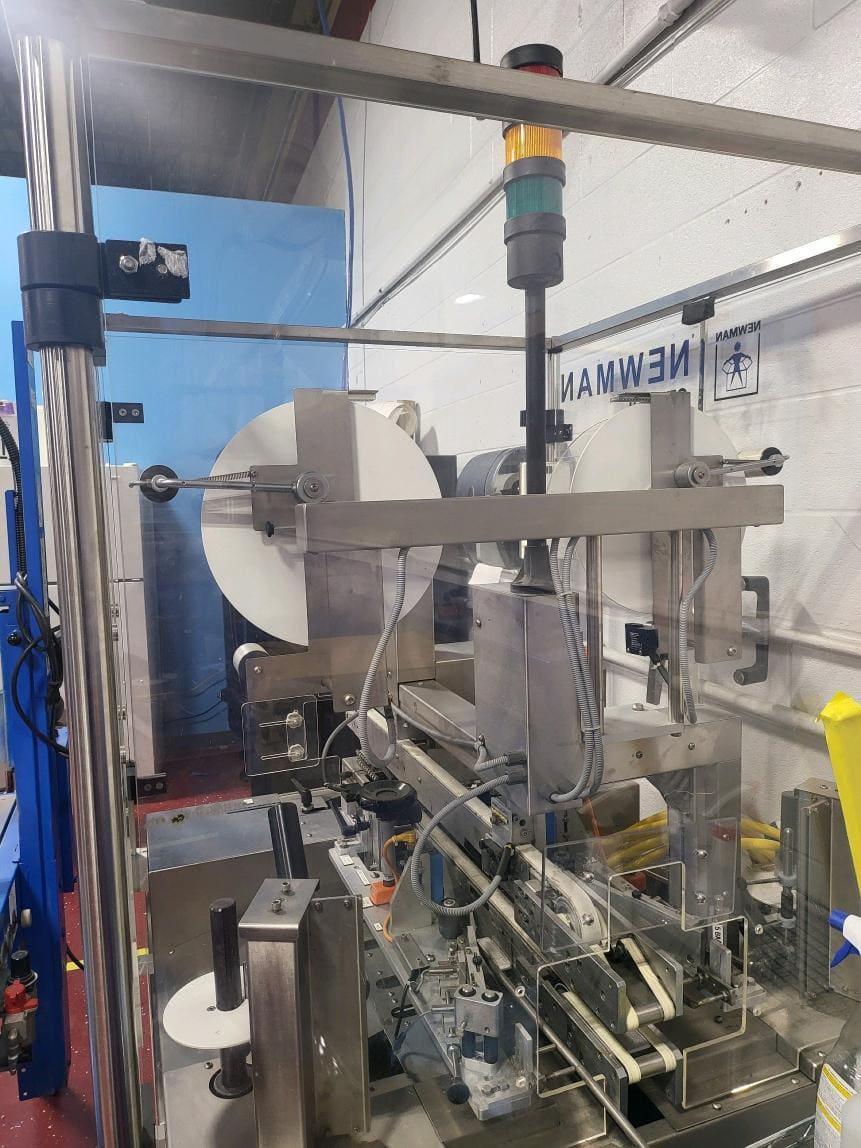

Newman CTE350 Tamper Evident Automatic Carton Labeler, 2007

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The CTE350 is a fully automatic labelling system which applies self-adhesive tamper-evident and hologram labels (security labels) to erected cartons. Designed primarily for the pharmaceutical industry where line space is at a premium, the compact design permits easy integration into existing packing lines.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications: – Carton size minimum: 12mm(H) x 20mm(W) x 65mm(L) – Carton size maximum: 120mm(H) x 120mm(W) x 240mm(L) – Label size minimum: 10mm (H) x 10mm (L) – Label size maximum: 40mm (H) x 25mm (L) – Maximum label reel diameter: 300mm – Speed: variable up to 350 CPM – Net weight: 420 Kg – Electrical supply: 230V-1Ph-50Hz, 1KW (60Hz option) – Compressed air: 60psi/4.2 Bar – Noise emission: <75dB @ 1m (subject to container type) – Aeroplane and reverse tuck formats can be accommodated

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
