CTM 360a Series Wrap Labeling System – Allen-Bradley Controls, Fully Operational, Ready to Run

Machine Overview

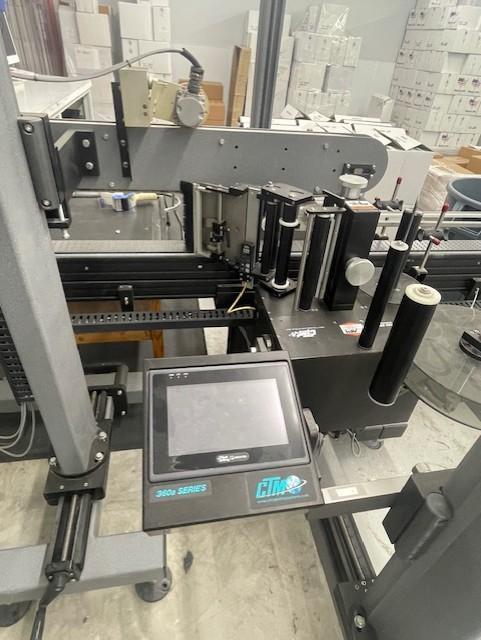

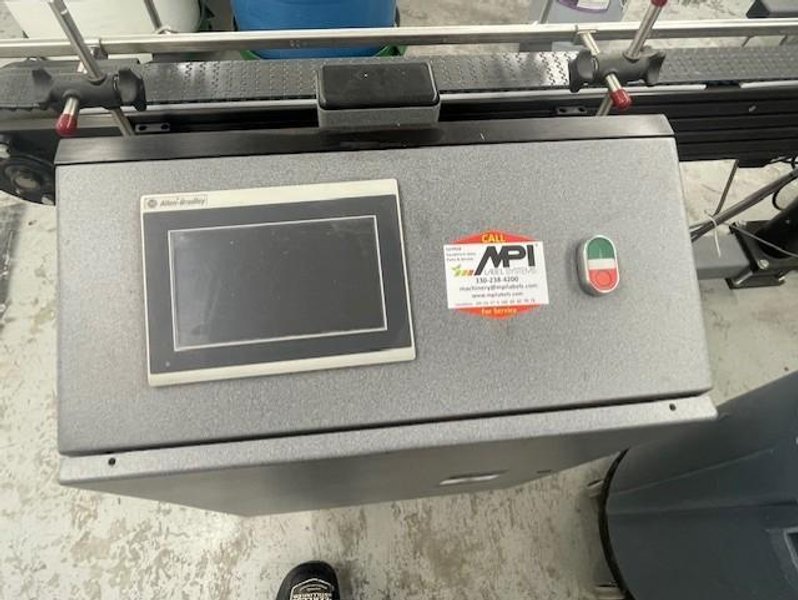

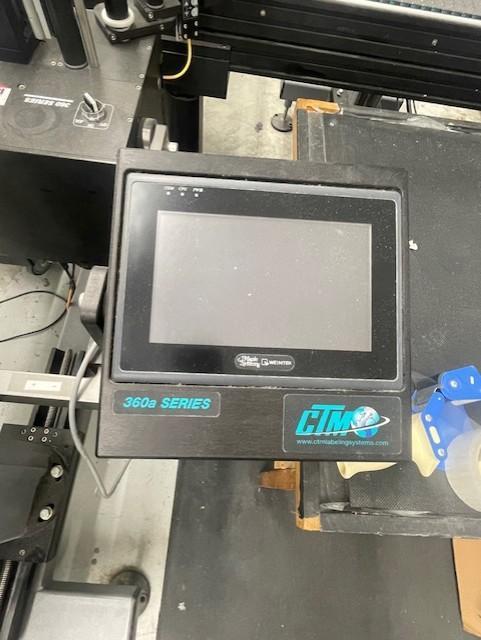

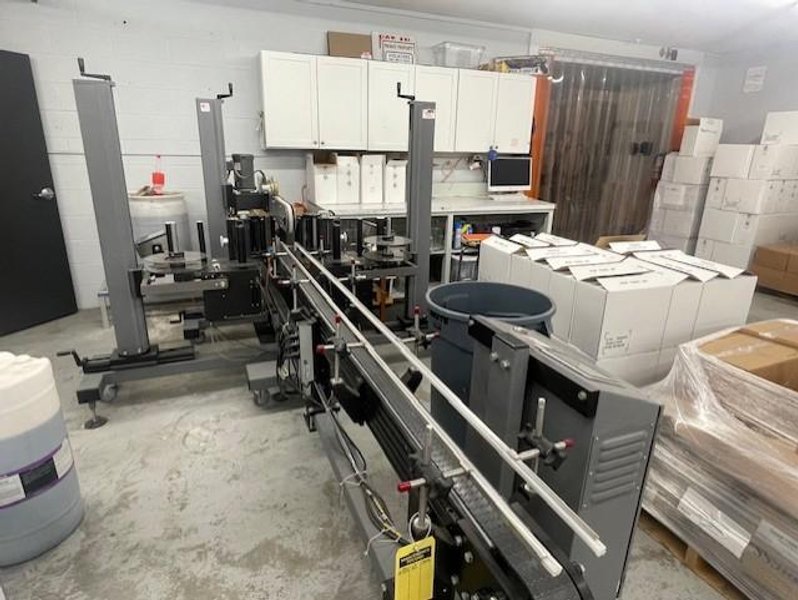

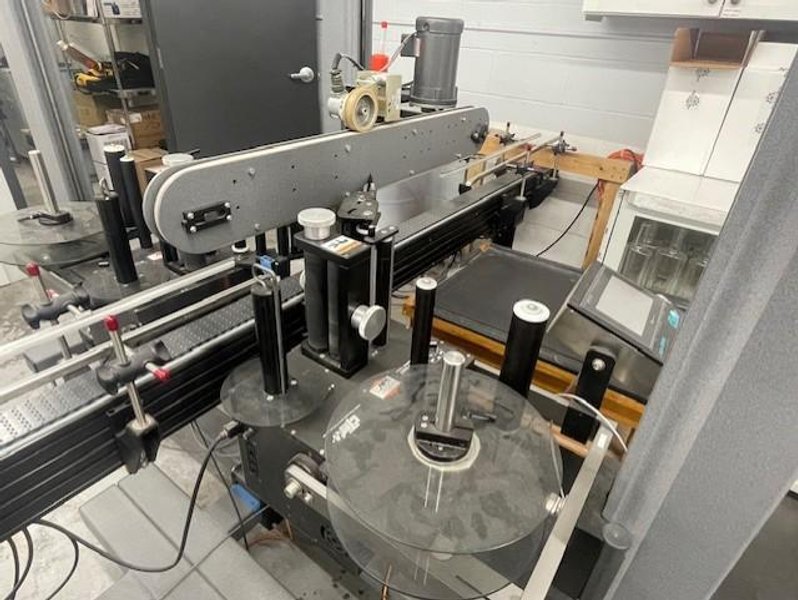

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This is a fully integrated CTM 360a Series print-and-apply labeling system, equipped with a tamp or tamp-blow applicator, synchronized conveyor, and Allen-Bradley interface controls. The system is designed for inline labeling of cartons, bottles, or flat-sided containers at moderate to high speeds with accurate label placement. Unit is powered by a 115V single-phase input and features dual control zones via Weintek touchscreen and AB safety console.

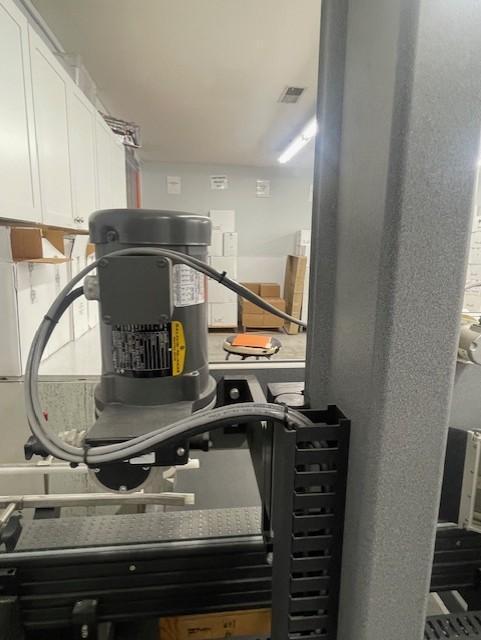

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications & Features -Label Application Mode: Tamp-Apply or Tamp-Blow (configurable) -Controller: Allen-Bradley HMI + Weintek touchscreen -Label Roll Capacity: 12″ OD rolls (est.), 3″ core -Web Width Capacity: Up to 6.5″ (standard for 360a) -Placement Accuracy: ±1/32″ with sensor-driven indexing -Throughput Capacity: 30–60 products/min (application dependent) -Power Requirements: 115V, 5A, 50–60Hz -Drive Configuration: Motorized conveyor with integrated label feed roll -Construction Stainless + powder-coated steel frames -Frame/Stand Info: R.L. Craig RLC4100-3-14 (adjustable mounting system) -Safety Features: Emergency stop, guarded motion zones, lockout-capable -Footprint (Est.): ~10 ft total line length including conveyors

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
