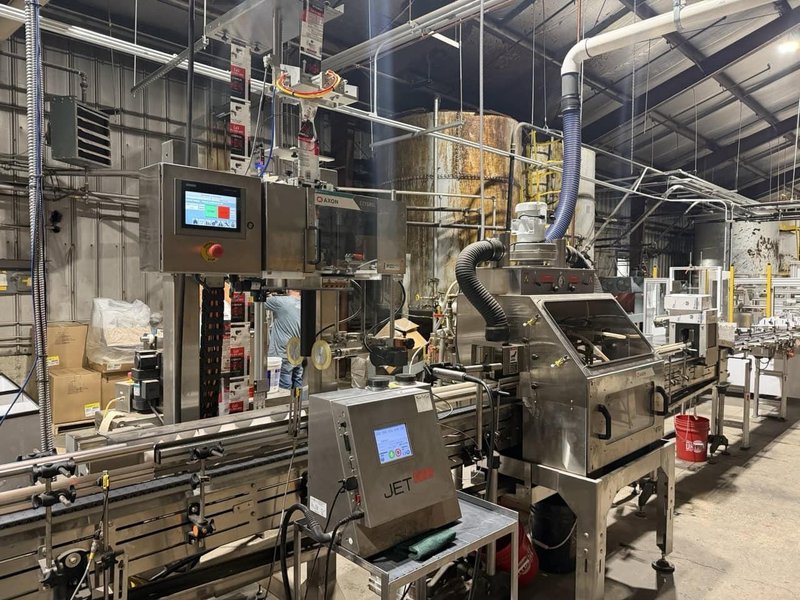

Axon 14 oz ThermoFlow Shrink Tunnel & EZ-150SL Shrink Sleeve Applicator, 2023

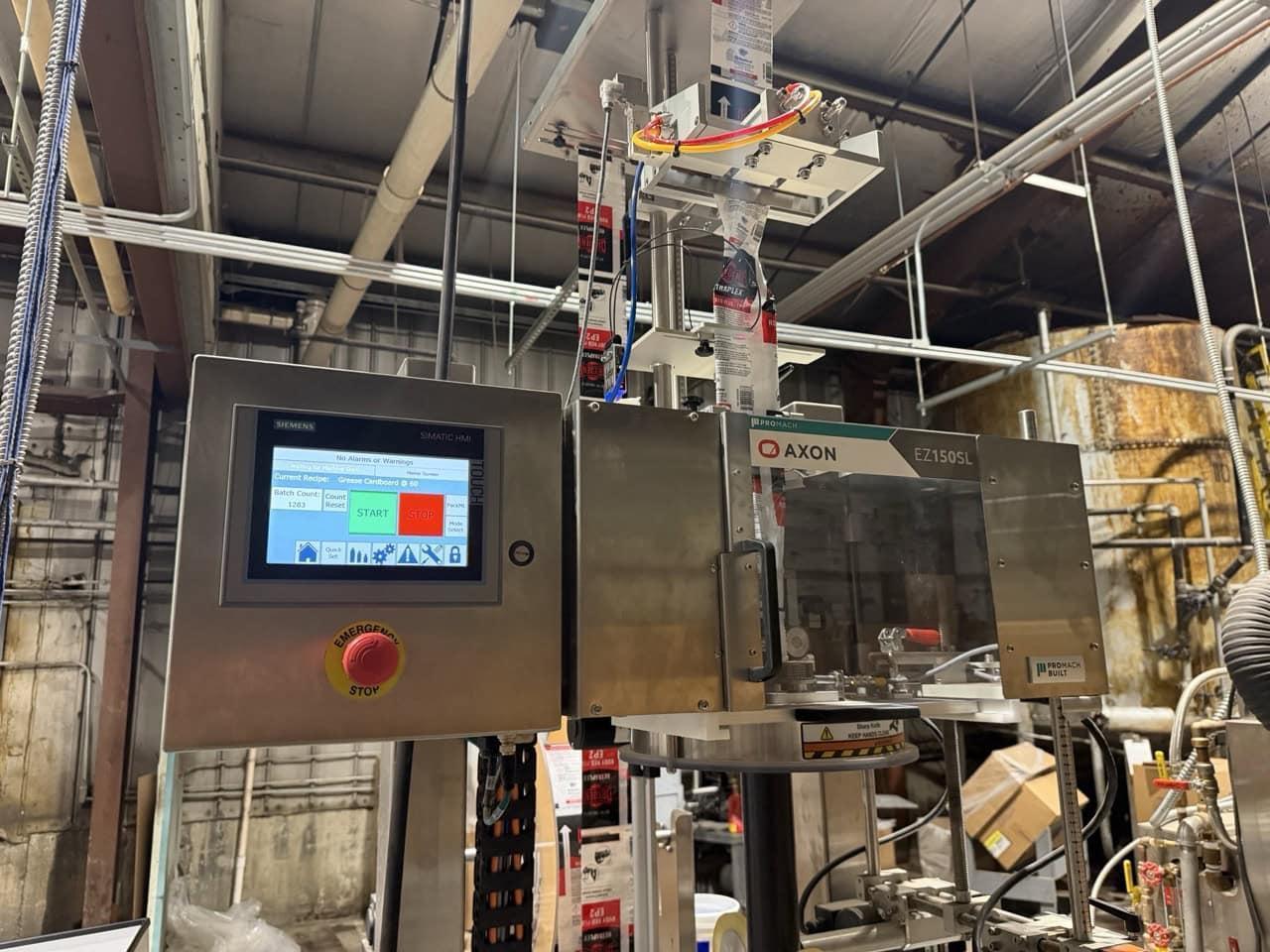

Axon EZ-150SL Shrink Sleeve Applicator (2023)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General Performance

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed: Up to ~150 containers per minute (depending on container size and film) — ideal for moderate volume operations like craft beverages and specialty packaging.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Film Lay-flat Width: Approximately 50 mm to 200 mm (2″ to ~8″) typical range.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Film Thickness: ~40 µm to 70 µm (1.5–3 mil) standard film range.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Container Diameter Range: Often ~30 mm (~1.2″) up to typical beverage/bottle widths (~100–125 mm), but exact range depends on your tooling and change parts.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Features

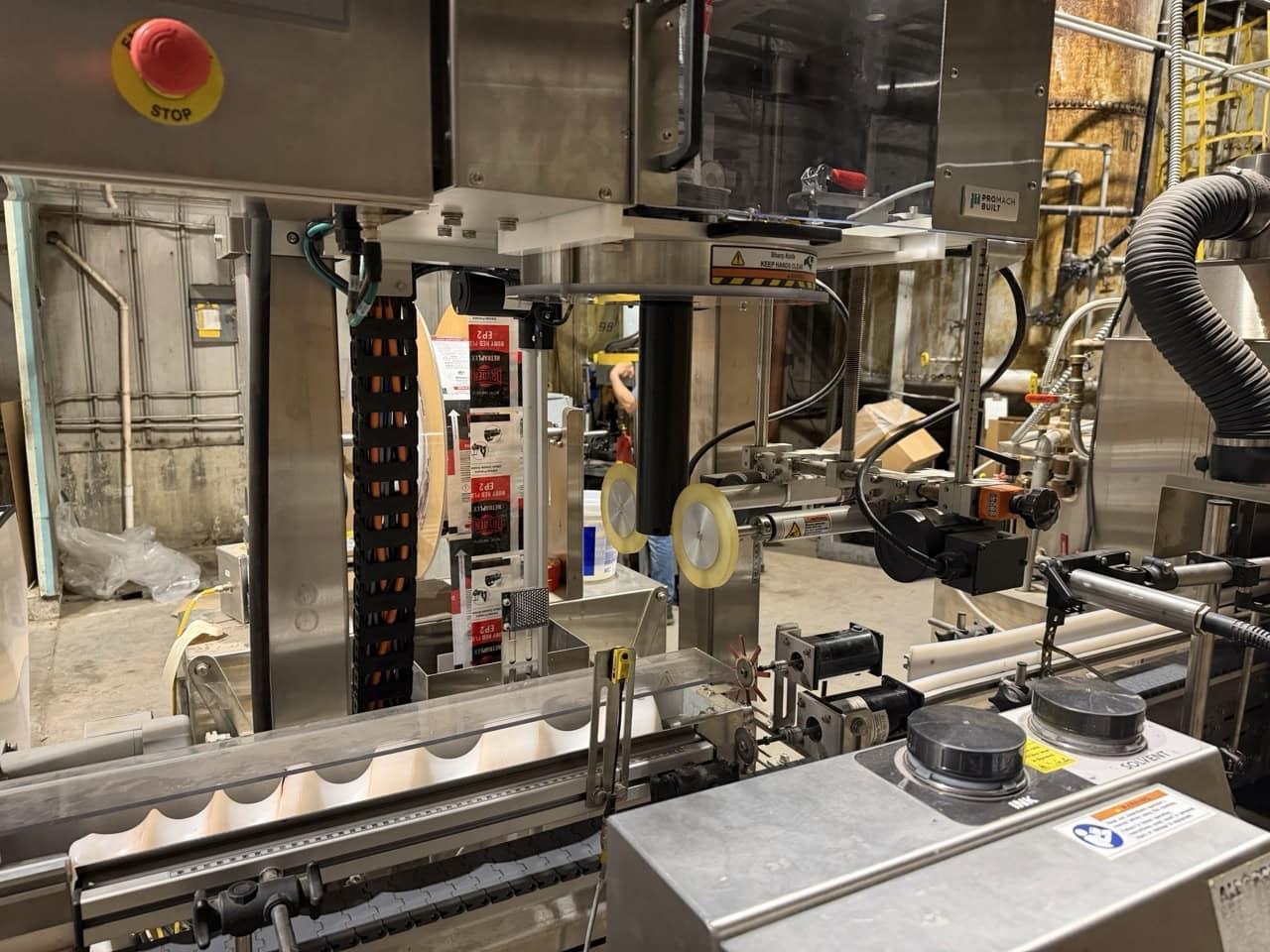

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Applicator Type: Mandrel-style with servo film feed and cut-to-length control.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls: PLC + HMI touchscreen for recipe and format control.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frame: Stainless steel construction (industrial).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Changeovers: Tool-less or quick changeover capability between formats/sizes.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utility Needs: Typical single-phase electrical service (varies by installed options); air usually required for pneumatics.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Typical Applications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Full body, partial body, tamper-evident, and multi-pack shrink sleeves.

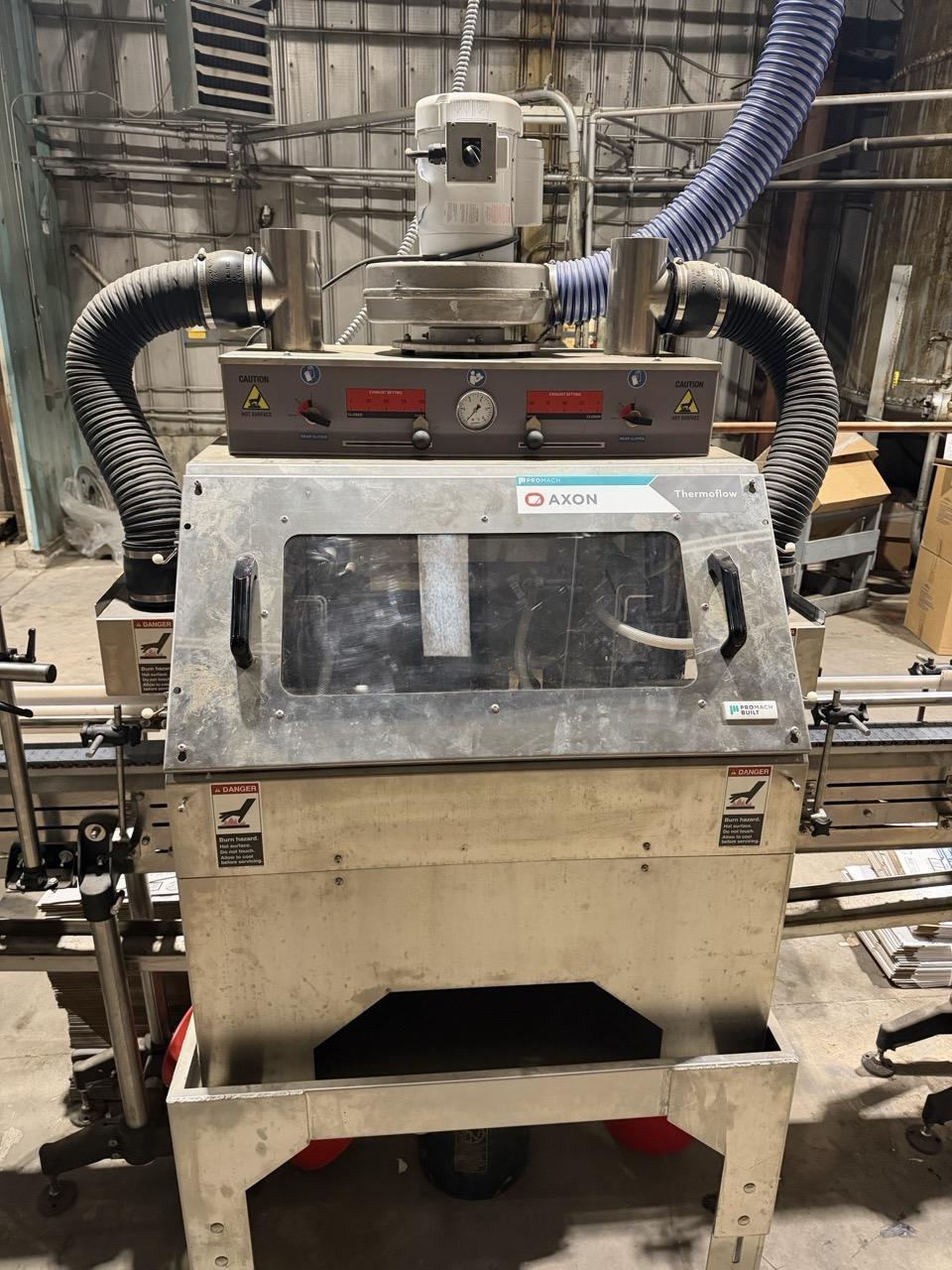

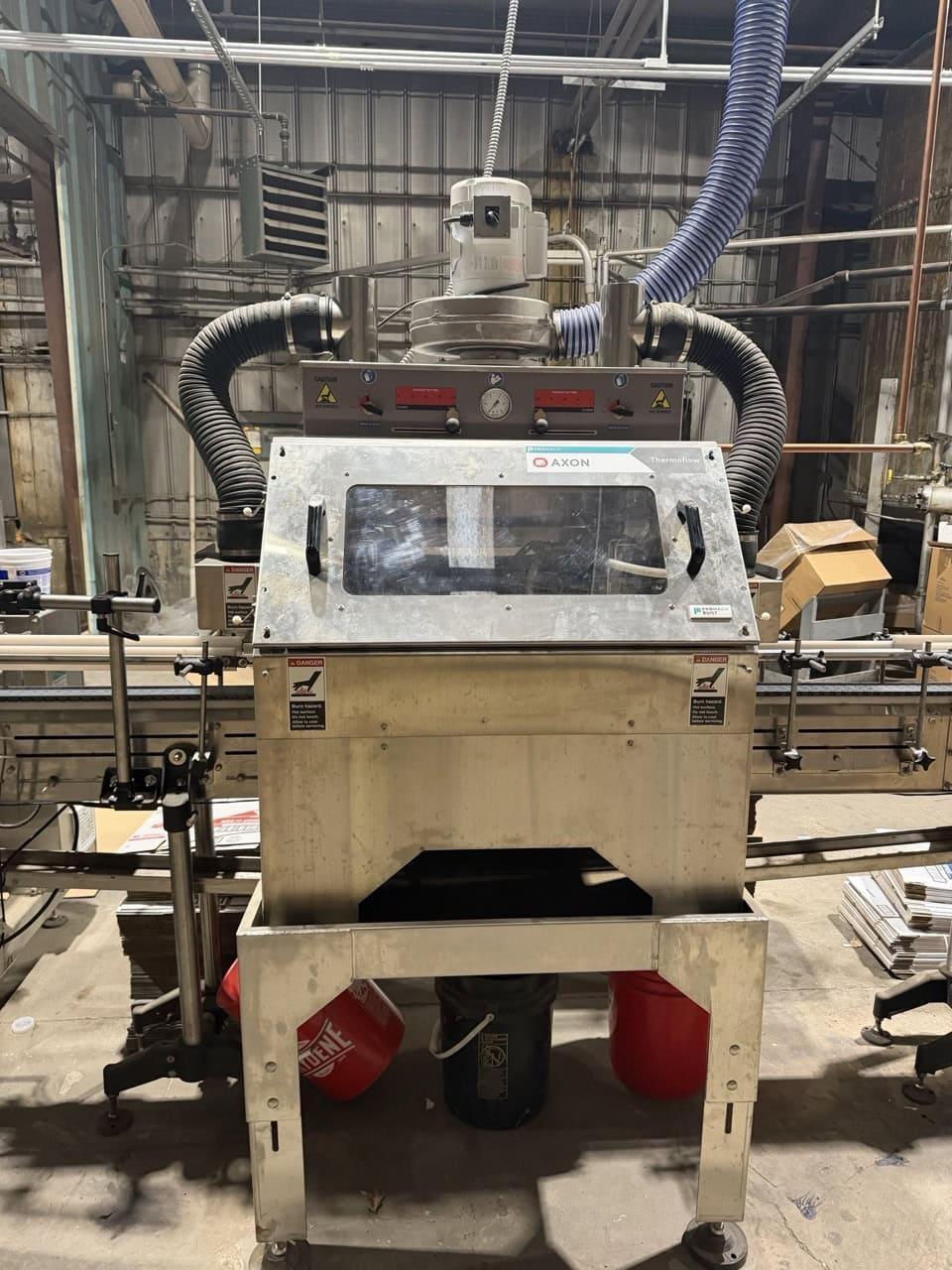

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axon ThermoFlow Low Pressure Steam Shrink Tunnel (2023)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heating System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Integrated low pressure steam shrink tunnel with built-in steam generator. No external boiler required.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Steam Pressure: ~15 PSI low pressure system (self-contained).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Steam Controls: Adjustable steam application for container size and sleeve type.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Condensate Collection: Built-in for efficient operation and cleanliness.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tunnel & Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Design: Stainless steel frame with tunnel housing and conveyor sized to match the applicator speed.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Container Range: Typically suitable for 1″–6″ OD containers — up to ~12″ tall, depending on configuration.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Conveyor Length & Width: Varies by model/integrator; one used system example shows ~36″ tunnel with ~217″ total conveyor length (from applicator through tunnel & outfeed).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Changeovers & Integration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool-less Changeovers: Quick adjustments for different container formats.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integration: Designed to match the EZ-150SL conveyor speed and control logic so the applicator → tunnel → downstream conveyors are synchronized.
