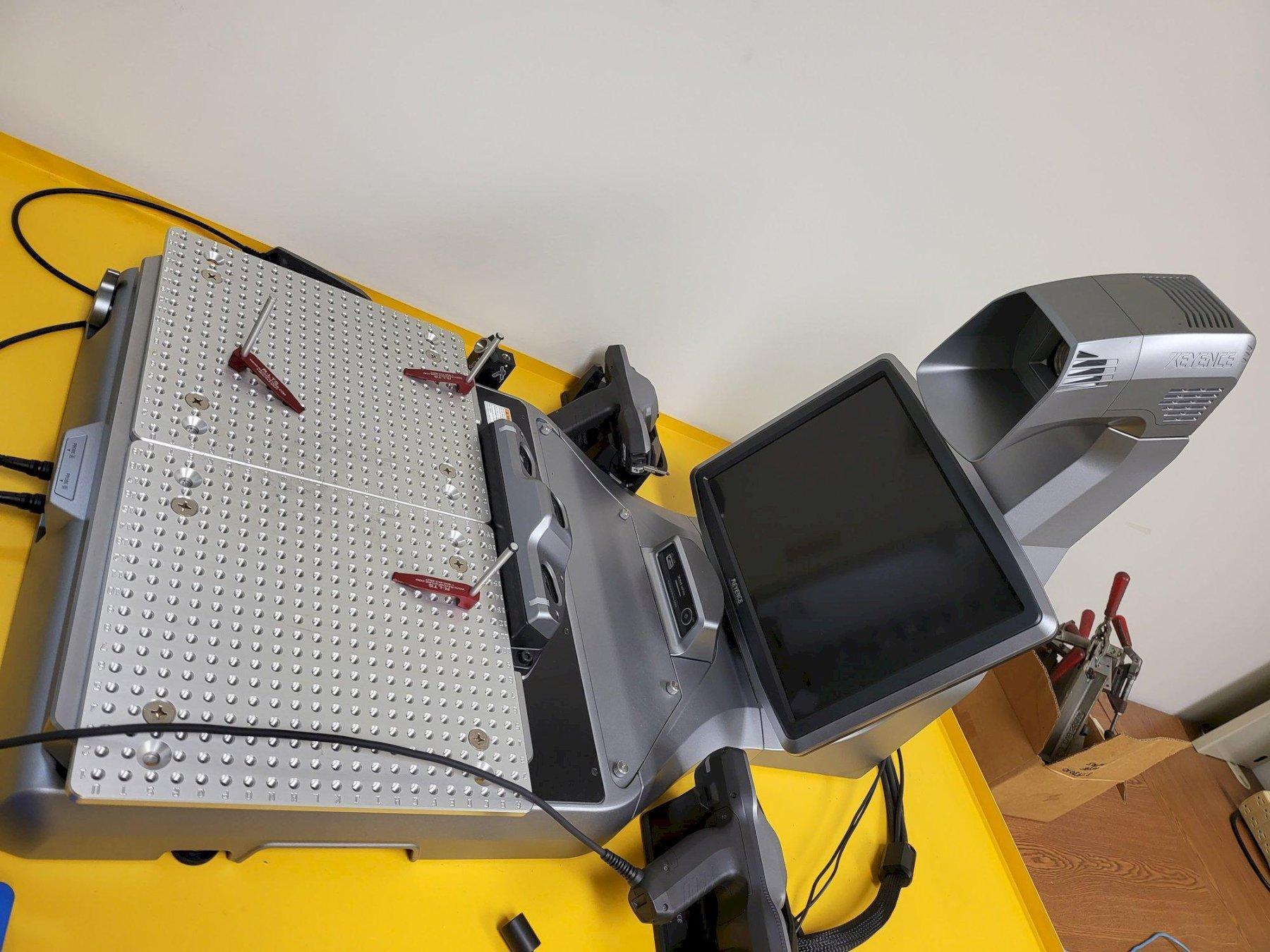

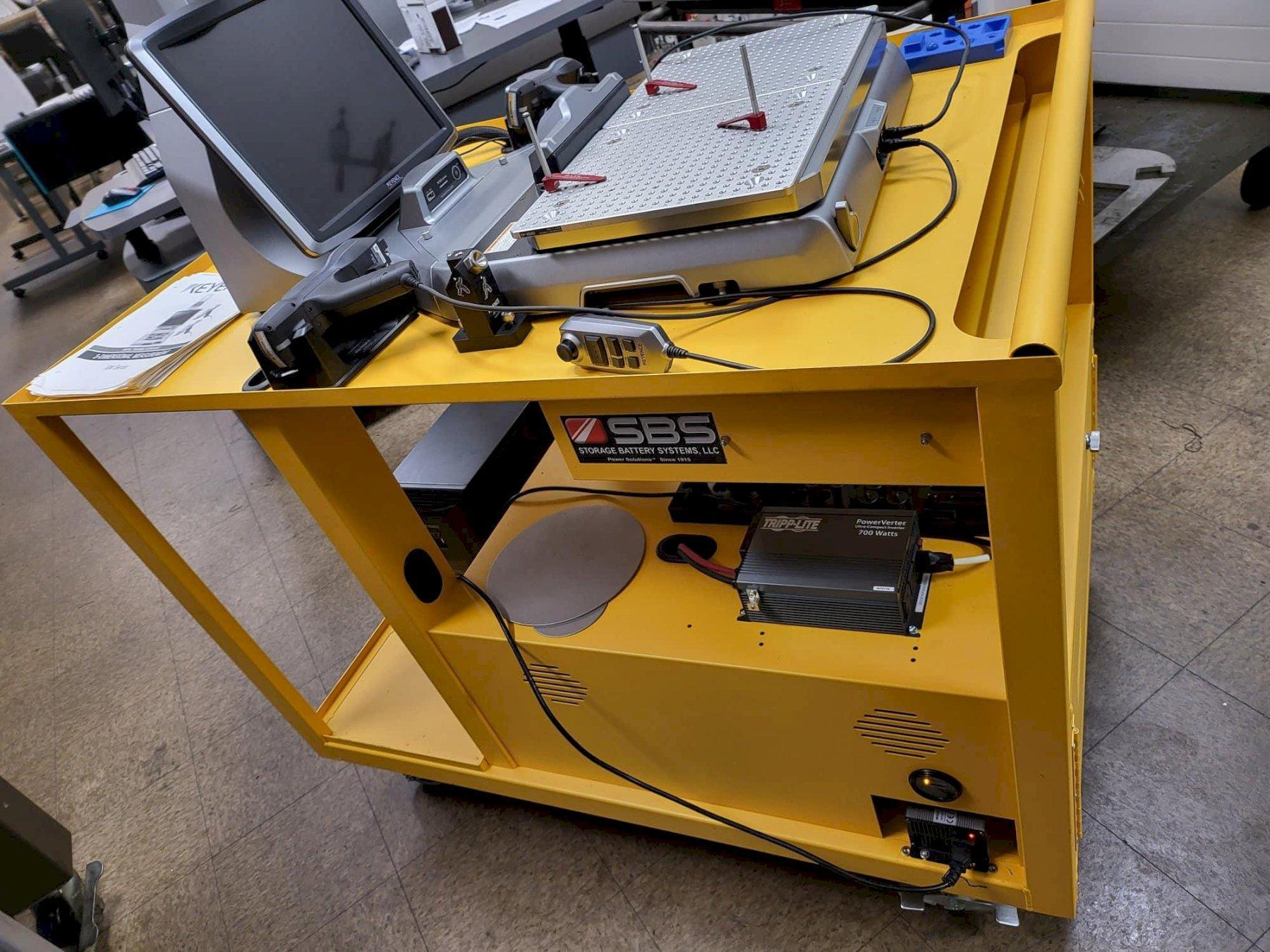

Keyence XM-T1200 Handheld CMM, 2018

Camera – Image Pickup Device: 4 megapixel CMOS image sensor Measuring Range: 600mm × 300mm × 200mm (23.62″ × 11.81″ × 7.87″) Min. Display Unit Distance: 1µm Min. Display Unit Angle: 0.0001 degrees Measurement Accuracy – Repeatability Stage Locked: ±3µm Stage Unlocked: ±4µm Stage Locked: ±8µm Stage Unlocked: ± (10 + L/100)µm Stage – Withstand Load: 25 kg Stage – X-Axis Movable Range: ±100 mm (±3.94″) Stage – Rotation Range: ±60° Number of Probes: 2 Stage Markers: 6 Marker Light Source: Near-Infrared LED (870 nm) Probe Connection Port: 2 Inputs Console Input: Dedicated Console External Remote Input: Non-Voltage Input (with and without Tangent Point): 2 Inputs Interfaces: USB 2.0 Series A: 3 ports Display: 15″ LCD Monitor (1024 × 768) Ambient Temperature: +10 to +35 °C (50 to 95 °F) Relative Humidity: 20 to 80 % RH (No Condensation) Dedicated Connector Weigh Head: Approx. 39.6kg (Including Camera and Cable) Console: Approx. 150g (Including Cable)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
