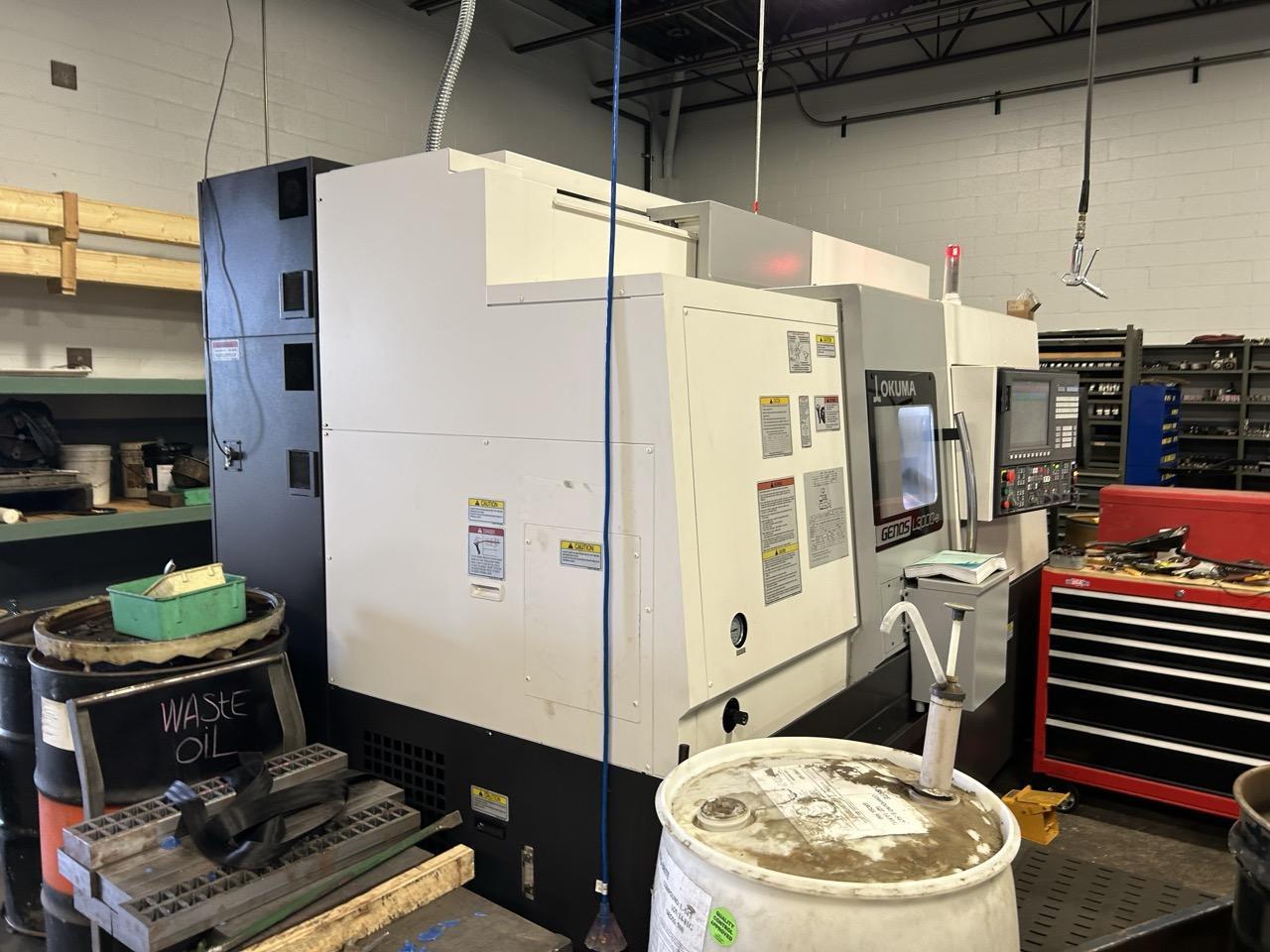

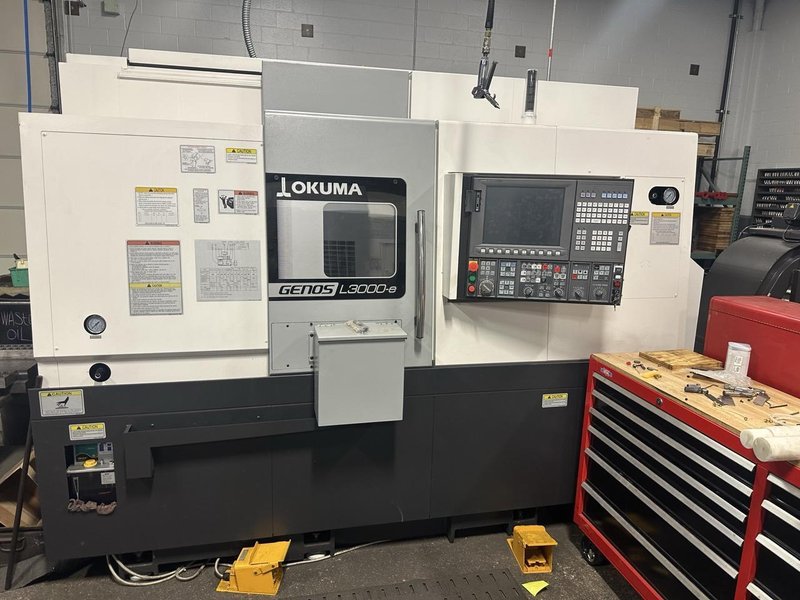

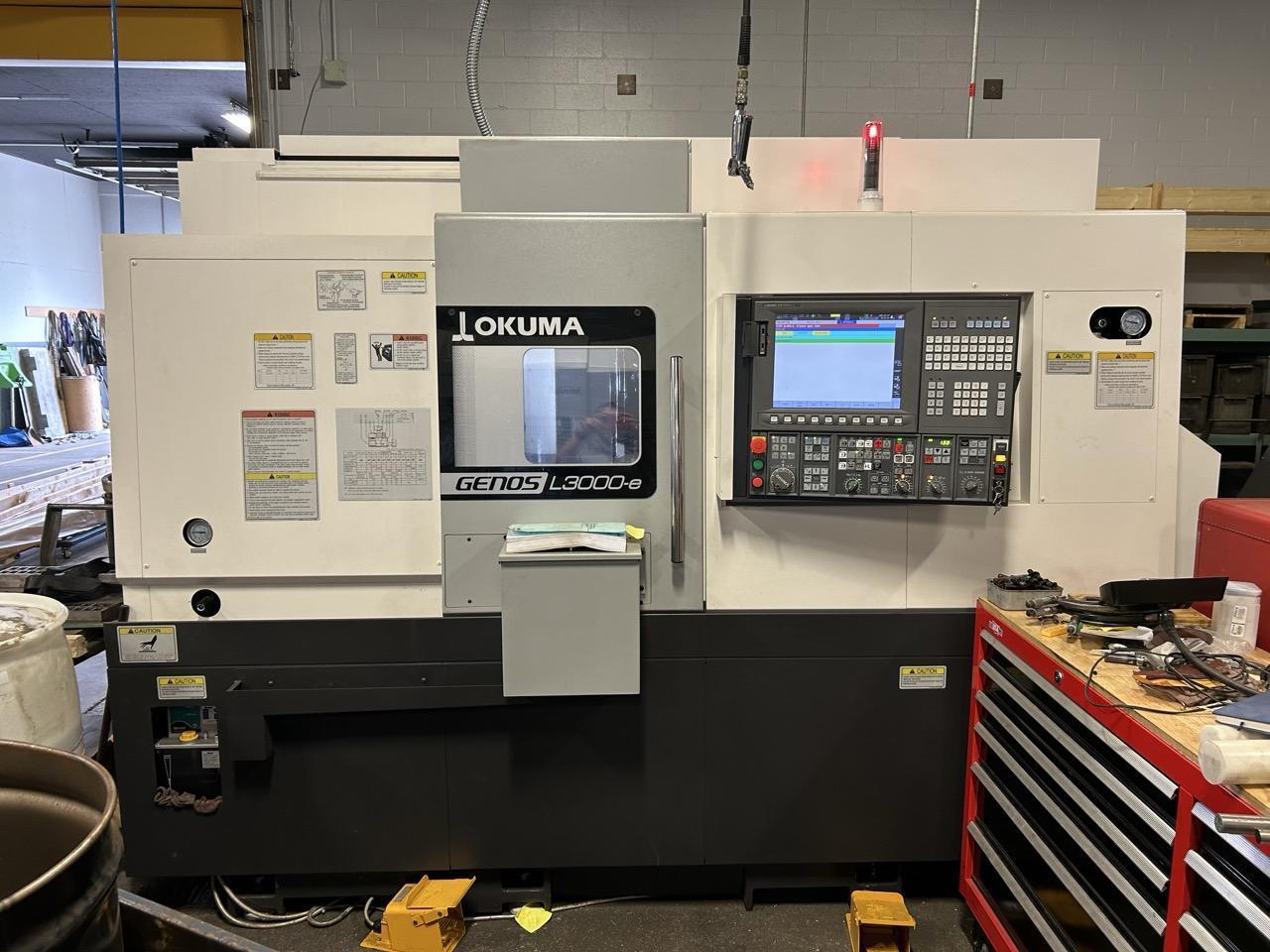

Okuma Genos L3000MYW-E X CNC Multi Axis Lathe, 2023 – Sub Spindle, Y Axis

Swing over Bed: 20.47″ Swing over Saddle: 10.24″ Max Recommended Turning Diameter:15.35″ X-Axis Travel: 9.25″ Y-Axis Travel: 3.94” Z-Axis Travel: 18.11″ Travel, W-Axis (Sub-Spindle): 20.47” Rapid Travel X-Axis: 984 IPM Rapid Travel Y-Axis: 393 IPM Rapid Travel Z-Axis: 1181 IPM Rapid Travel W-Axis: 984 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spinle Motor: 30HP Spindle Nose: JIS A2-8 Spindle Spindle: 3,800 RPM Spindle Bore: 3.15″

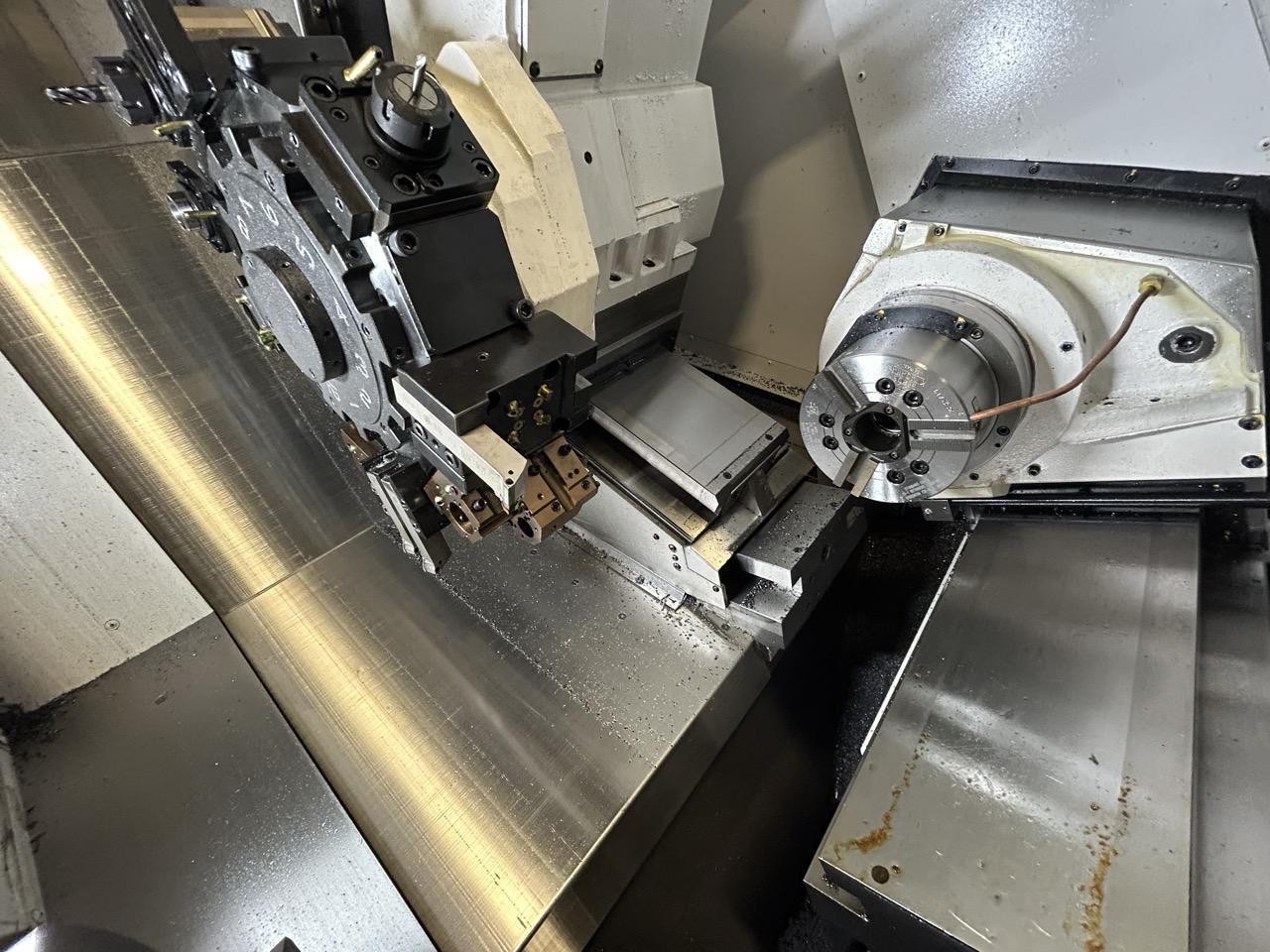

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub Spindle Speed: 6,000 RPM Sub Spindle Bore Diameter: 2.09″ Sub Spindle Motor: 10 HP Sub-spindle chuck type: Kitagawa B206

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret: V12 multitasking radial bolt-on

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Milling Spindle Speed: 6,000 RPM Milling Spindle Motor: 4.9 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Floor Space Required W x D x H (without Chip Conveyor): 112.4” x 82.56” x 89.17” Weight (lbs): 13,640

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Okuma OSP P300LA-e Control Sub Spindle Y Axis Live Milling Parts Catcher Barfeeder Interface Touch Setter Chip Conveyor Negative Tool Radius Compensation 2 GB Ram Memory 2 USB Ports 3D Simulation Ethernet Interface Chuck, 3-Jaw Hydraulic Kitagawa B210 Tooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
