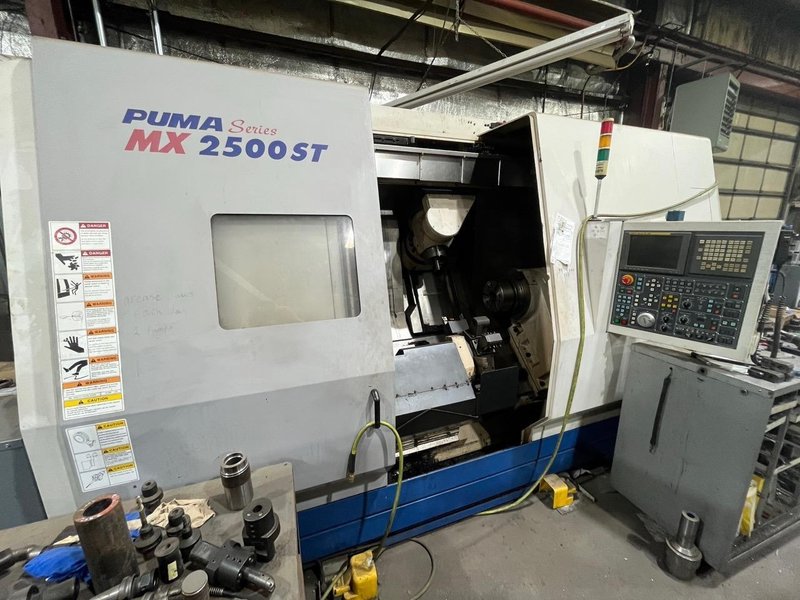

Doosan Puma MX2500ST Multi-Axis Lathe, 2006 – Fanuc 18i-TB Control, Sub Spindle, Y Axis
Brand
Not specified
Category
Model
Puma 2500ST
Stock #
47119
Year
2006
Condition
Not specified
Location
Michigan
|
Maximum Turning Diameter 21.25″
Maximum Turning Length 40.15″
Bar Working Diameter 2.99″
X-axis Travel 7.28″
Z-axis Travel 44.88″
Main Spindle Speed 3,500 Rpm
Spindle Nose A2-8
Spindle Bore Diameter 3.54″
Live Milling Speed 10,000 Rpm
B-axis Indexing 0.001 Deg
Tooling Shank Captco-c6
Main Spindle Motor 34 hp/29 Hp
Live Milling Motor 20 Hp
Approximate Dimensions 180″ X 91″
Approximate Height 102.36″
Approximate Weight 27,500 Lbs

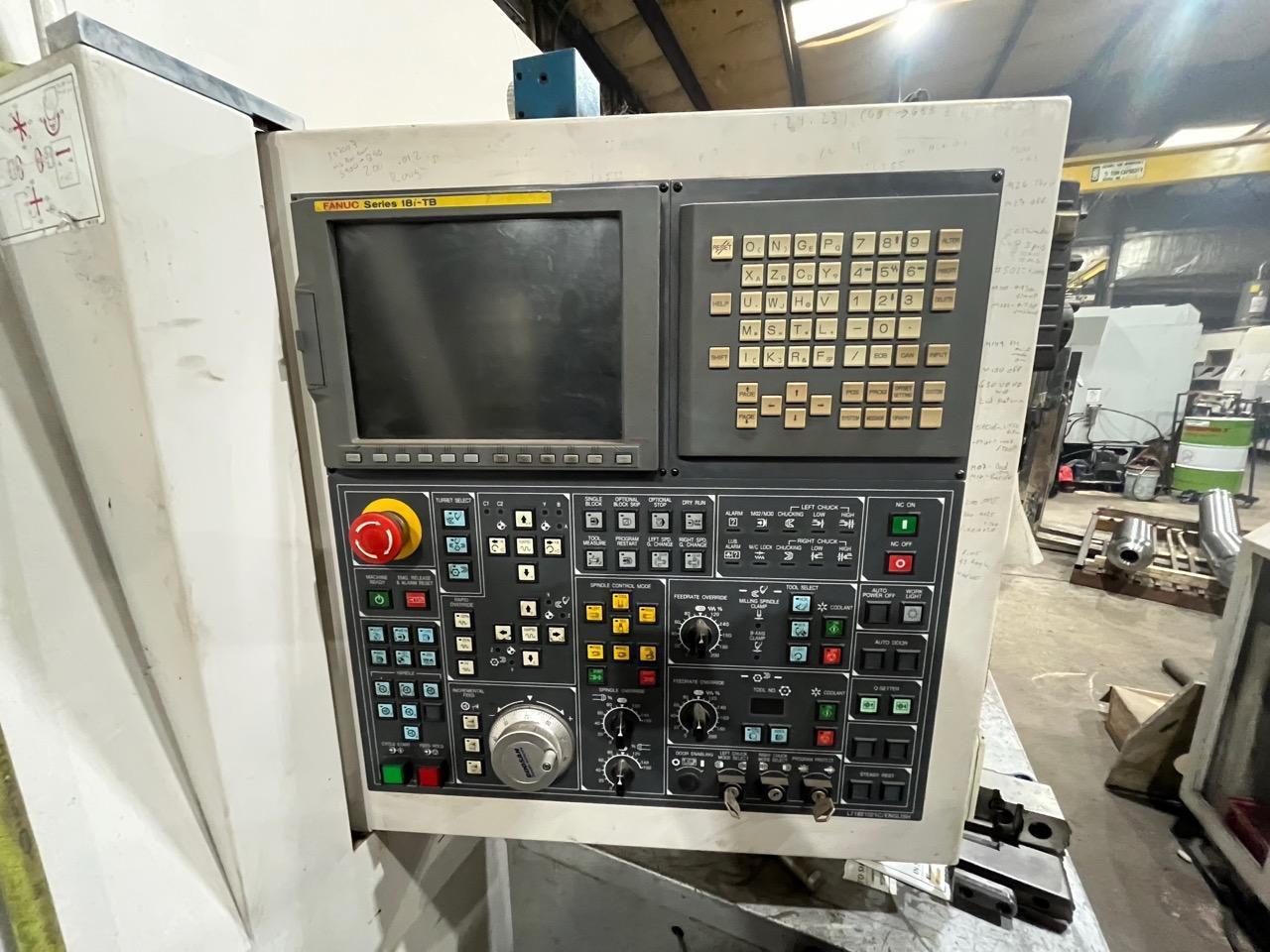

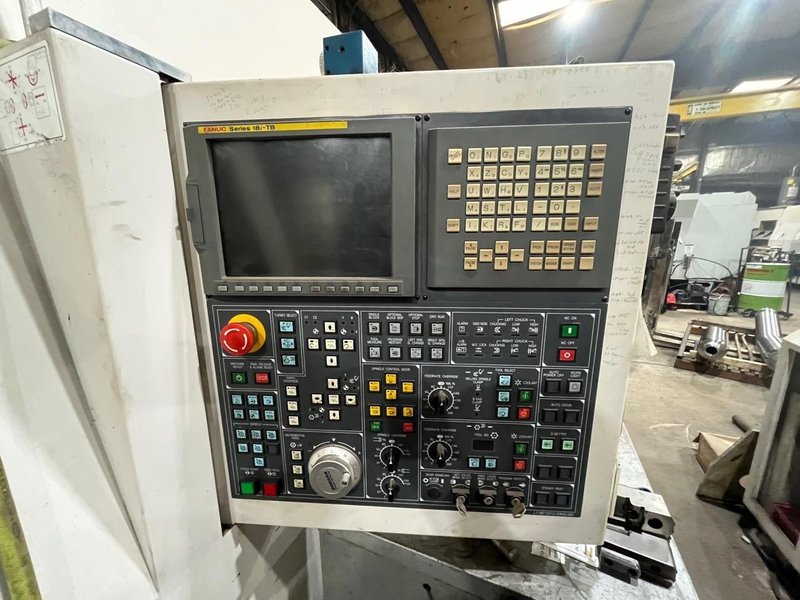

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 18i-tb Control 10″ Diameter Left & Right Chucks B-axis Milling Spindle 12 Station Lower Turret With Live Milling Sub-spindle C-axis Y-axis 40 Station Automatic Tool Changer Chip Conveyor All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
