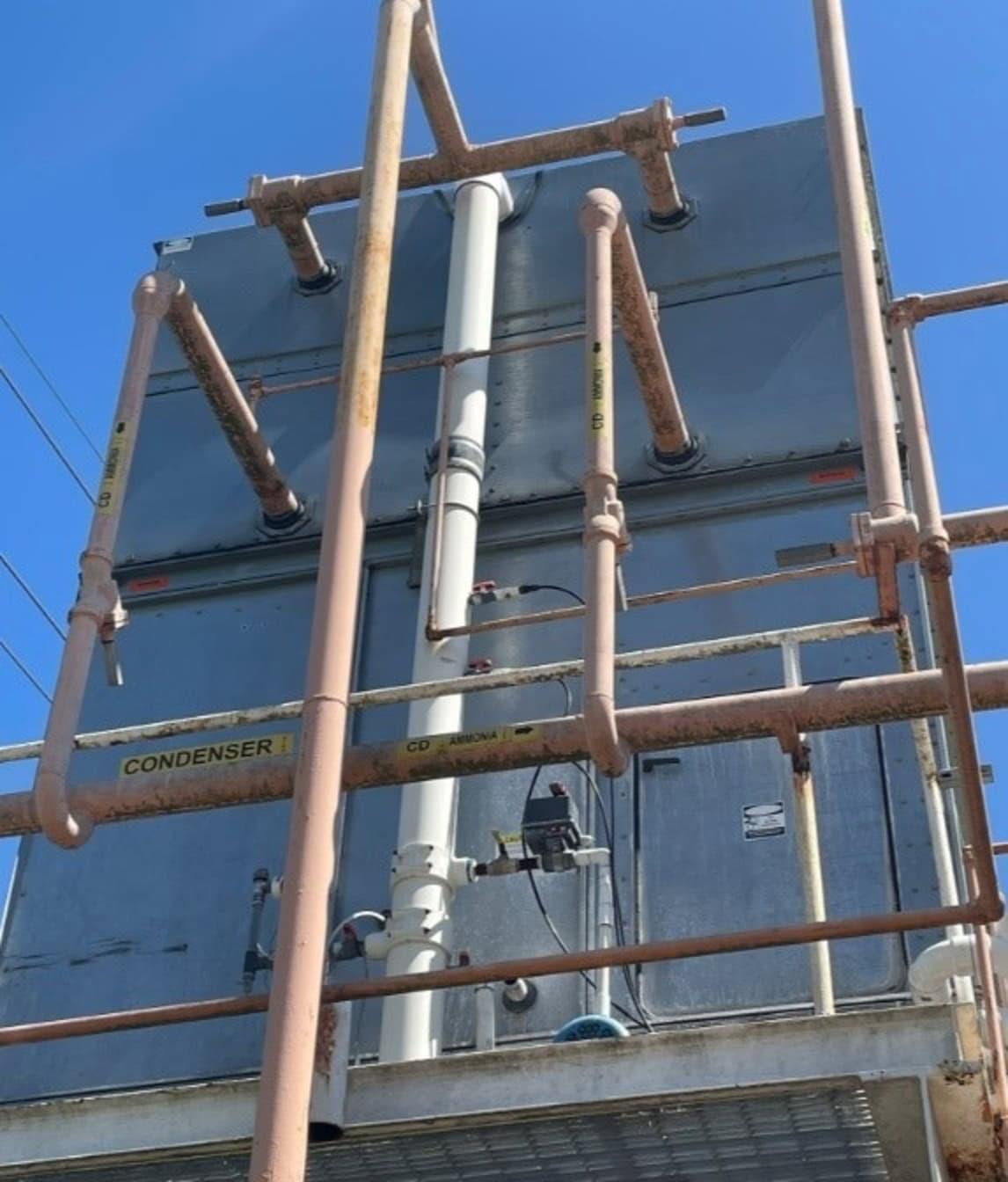

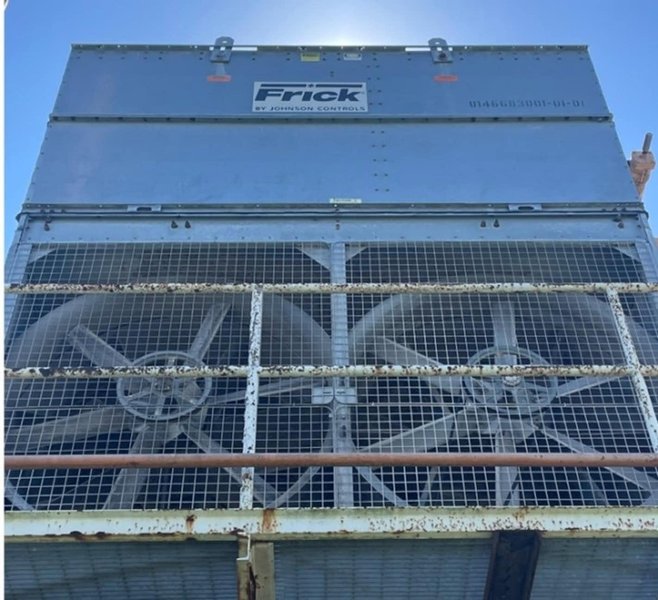

335 Evaporative Tons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rated for R-717 and R-134a Refrigerants

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Base Heat Rejection = 6953 MBTUH

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heat Rejection: 5030 MBTUH @ 76.3°F condensing and 78°F Wet Bulb w/ R-717 refrigerant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,30 HP Fan Motor (2)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,5HP Pump Motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air Flow Rate: 68,600 CFM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 12′ 5″ x 9′ 10″ x 15′ 4″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 16,820 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Also Included: Mycom 200VLG Rotary Screw R-717 Refrigerant Compressor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,400HP 480V 3PH 428A

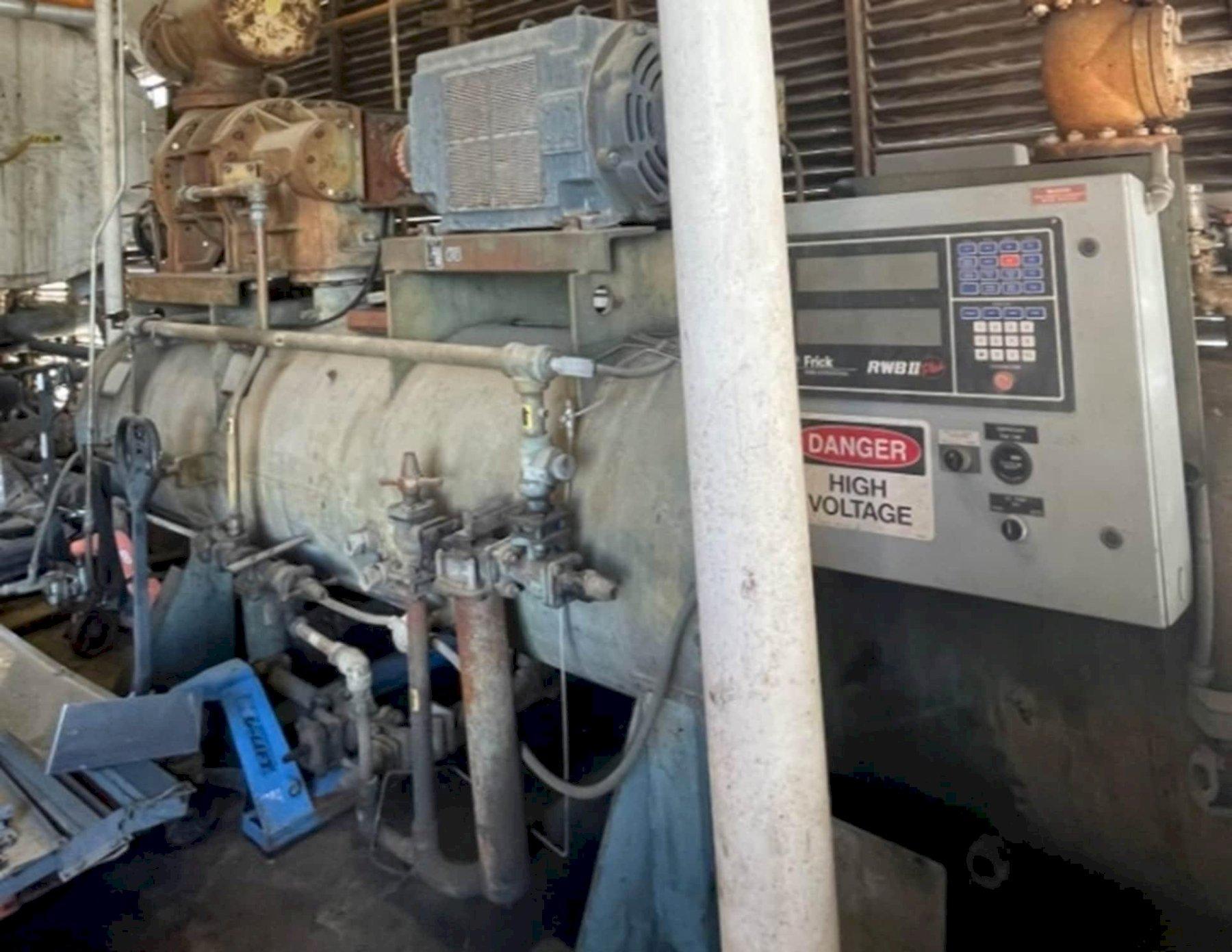

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frick RWB II-399B3 Refrigerant R-717 Rotary Screw Compressor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,250HP 460V 3PH 272A

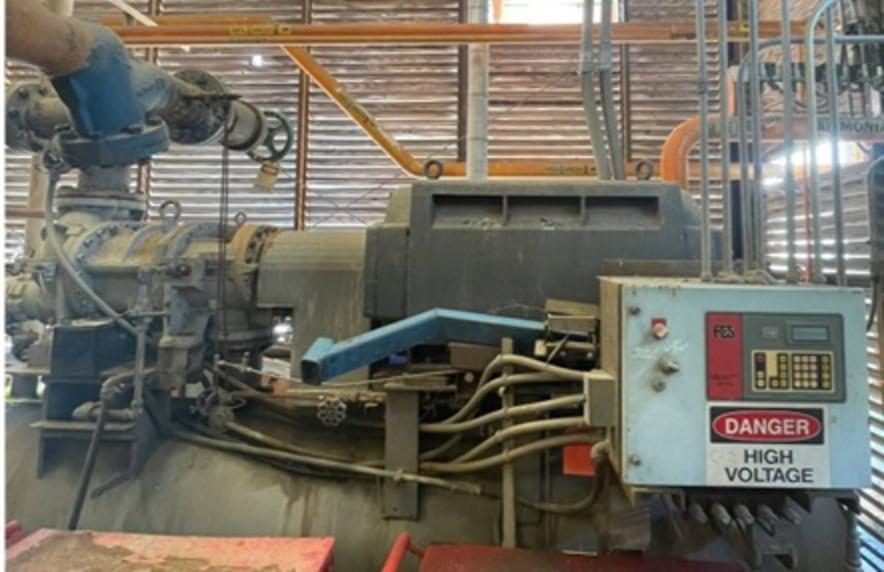

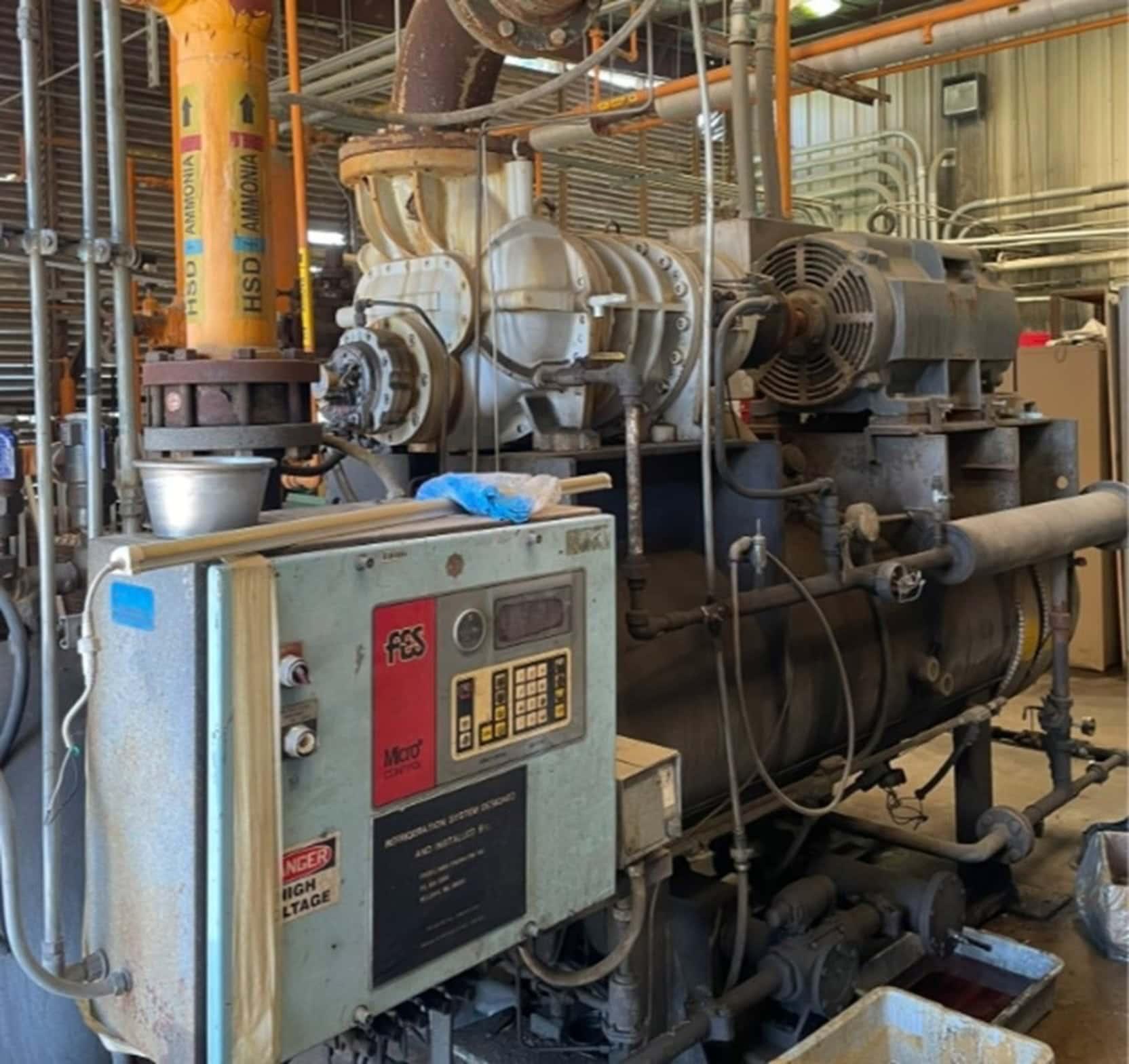

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FES 480B-ME Rotary Screw R-717 Refrigerant Compressor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,350HP 460V 3PH 384A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
