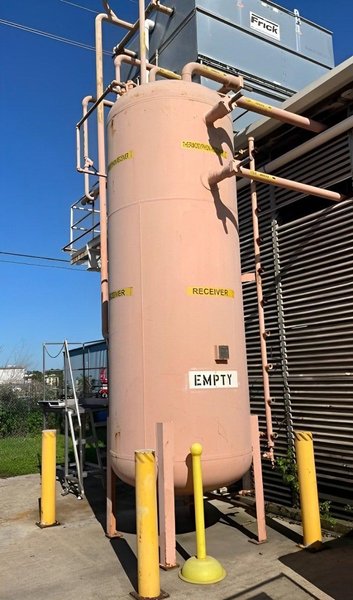

Vessels are built in accordance with ASME Boiler & Pressure Vessel Code, Section VIII, Division 1.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• For use with R-717 Ammonia Refrigerant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Capacity: 167 tons @ 0° F w/ R-717 Refrigerant

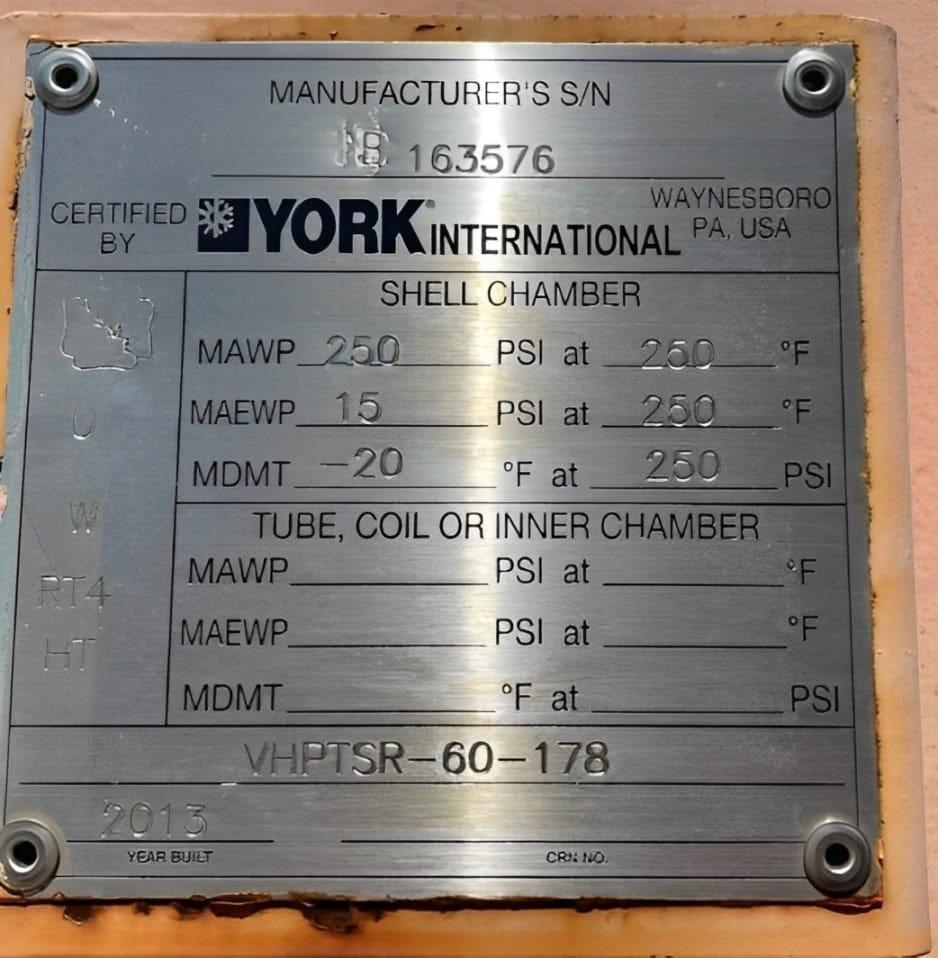

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• MAWP: 250 psi @ 250°F

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• MDMT: -20°F @ 250 psi

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Outer Diameter: 30″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Overall Length: 113″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Head Depth: 9.6″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Operational Charge: 726.9 lbm R-717

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Surge Volume: 8.56 cubic feet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Weight 1,800 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
