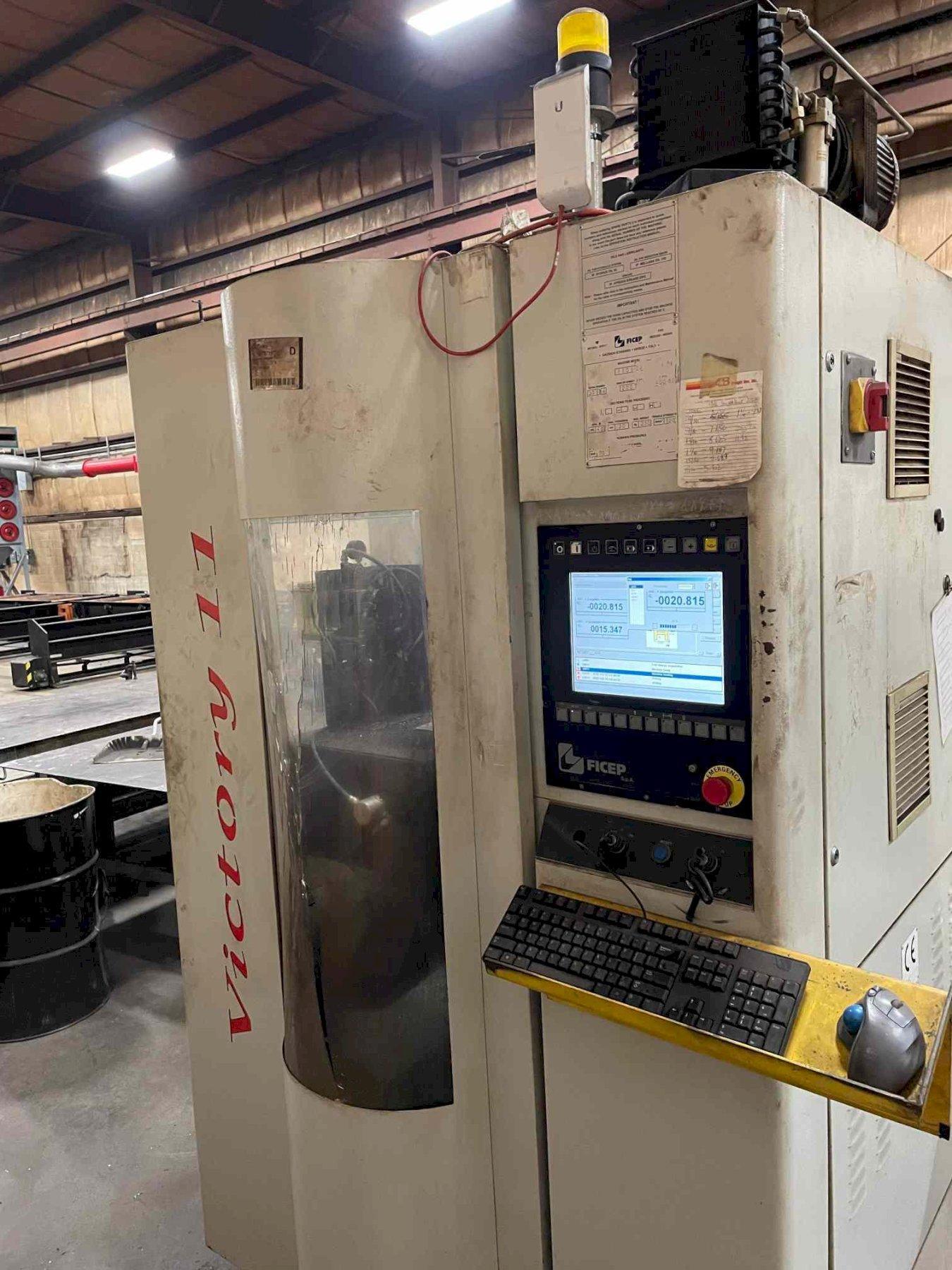

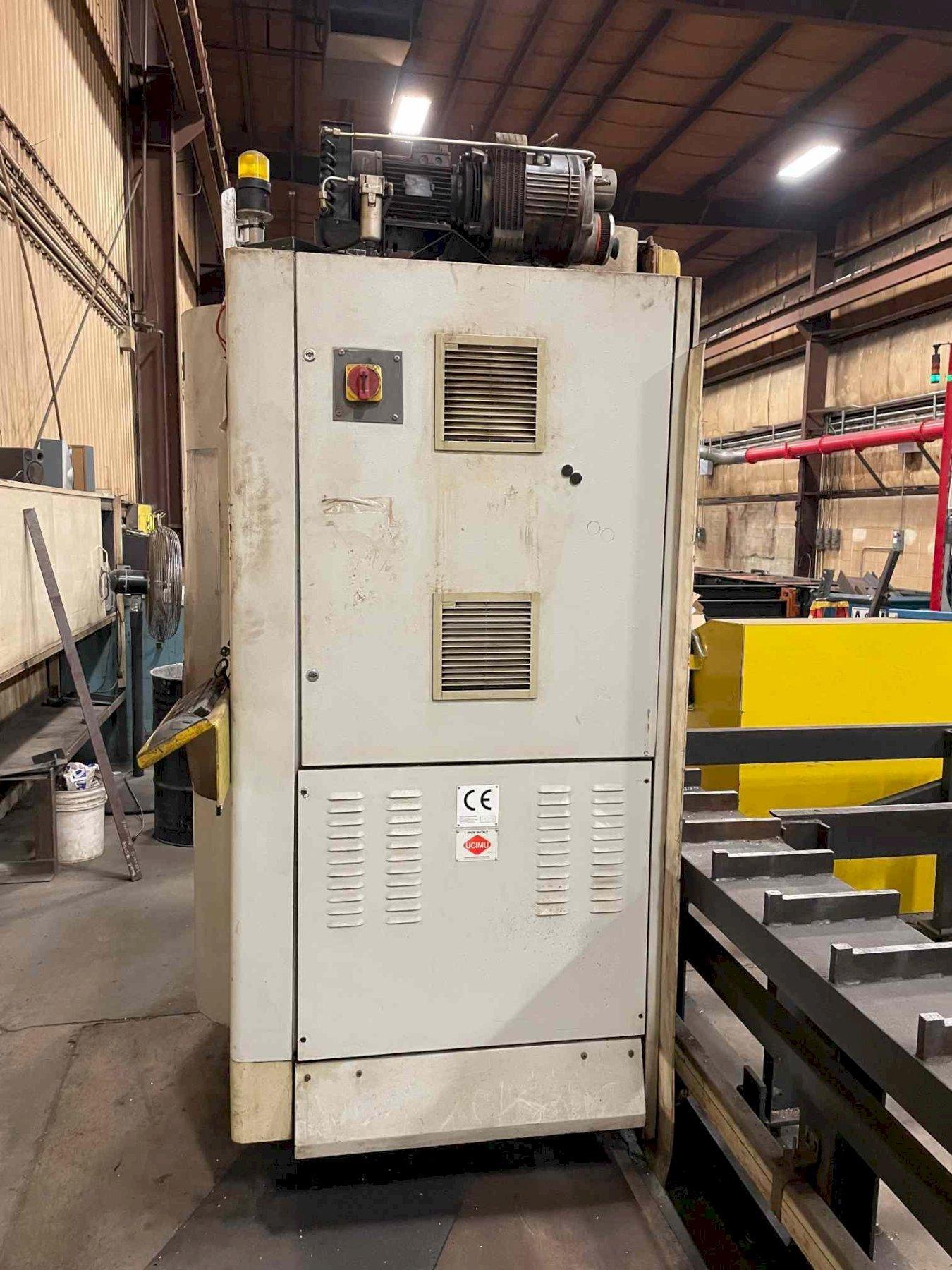

FICEP Victory 1101DX Beam Drill, 2007

Drilling Capacity: 40’ L X 44” H Max Weight of Beam: 771 Lbs Table Length: 60’ Beam Length: 50’ Number of Spindles: 1 Spindle Taper: No. 4 MT Spindle Motor: 7.5 HP Spindle Speed: 170-1000 RPM Drilling Feeds: Infinitely Variable Max Hole Diameter: 1-11/16” Max Feed Rate: 850”/ Min Positioning Speed: X-Axis (Portal): 65’/ Min Y-Axis (Drill Head): 16’/ Min Hydraulic Power unit: 5 HP CNC Controls: PC-Based Tooling Pallet: Quick Change Cooling System: Internal and External

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

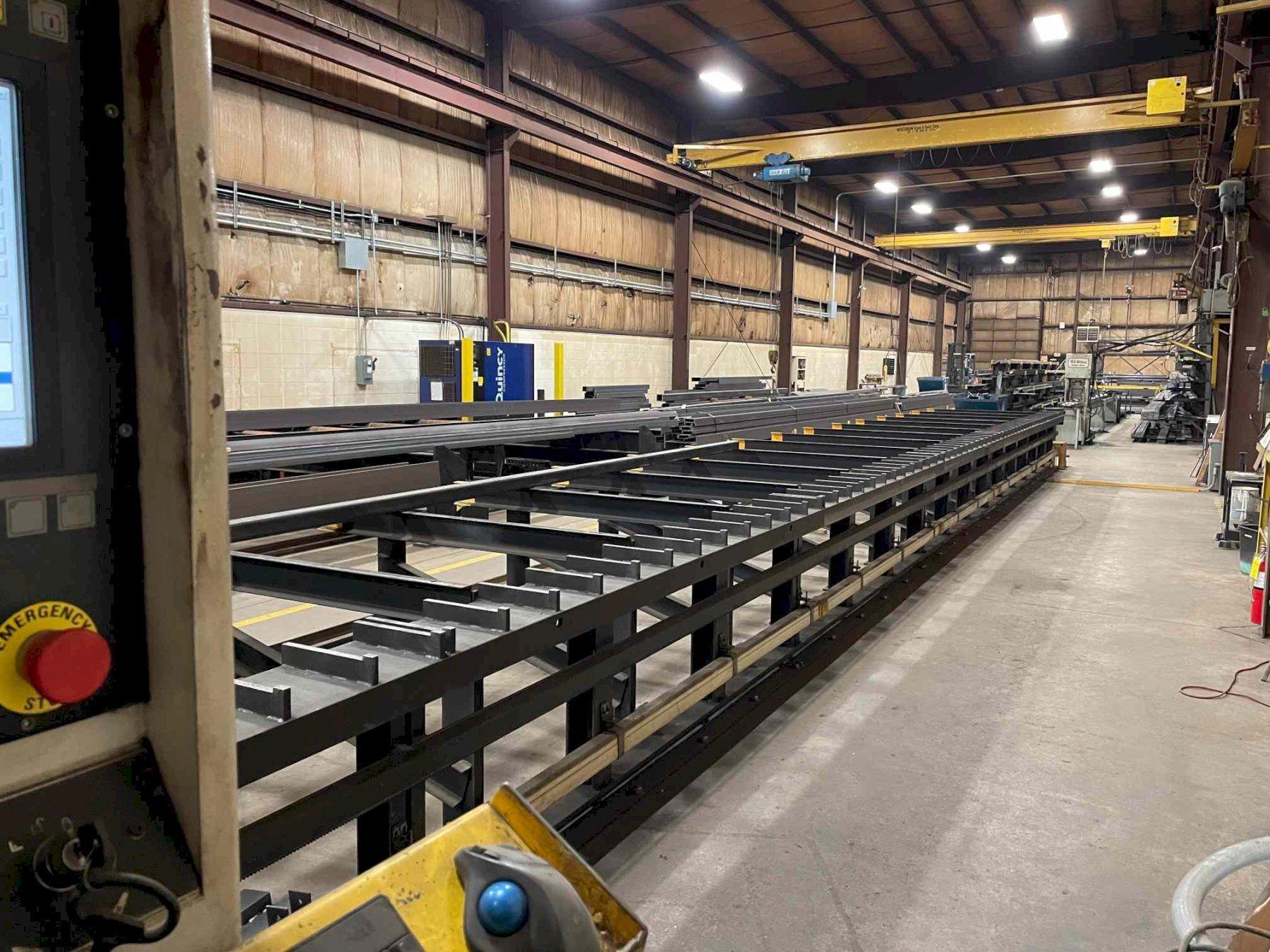

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All Conveyors and Rails in the photos

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
