Ficep Beam Line, 2016 – Coper, Drill, Saw

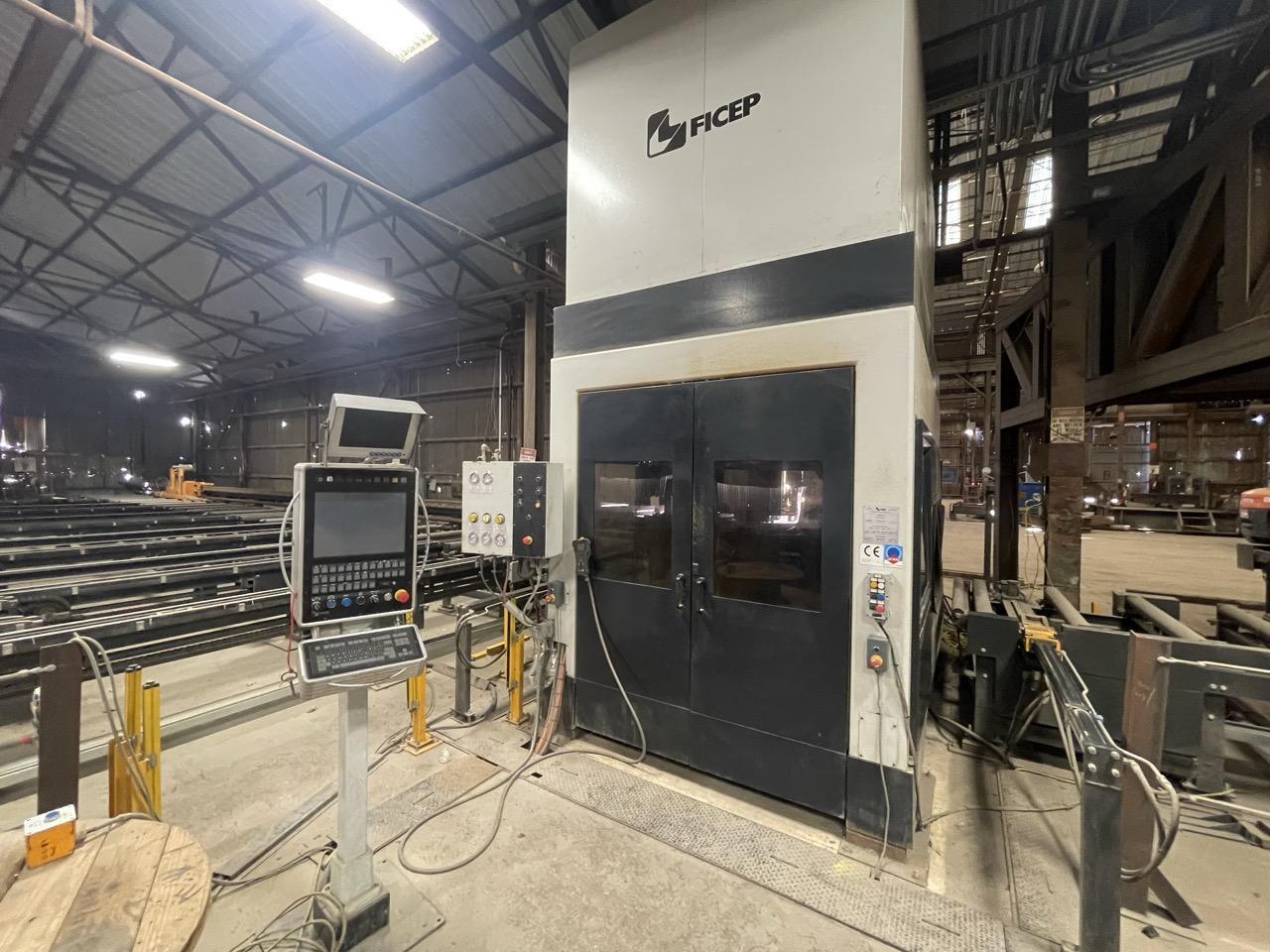

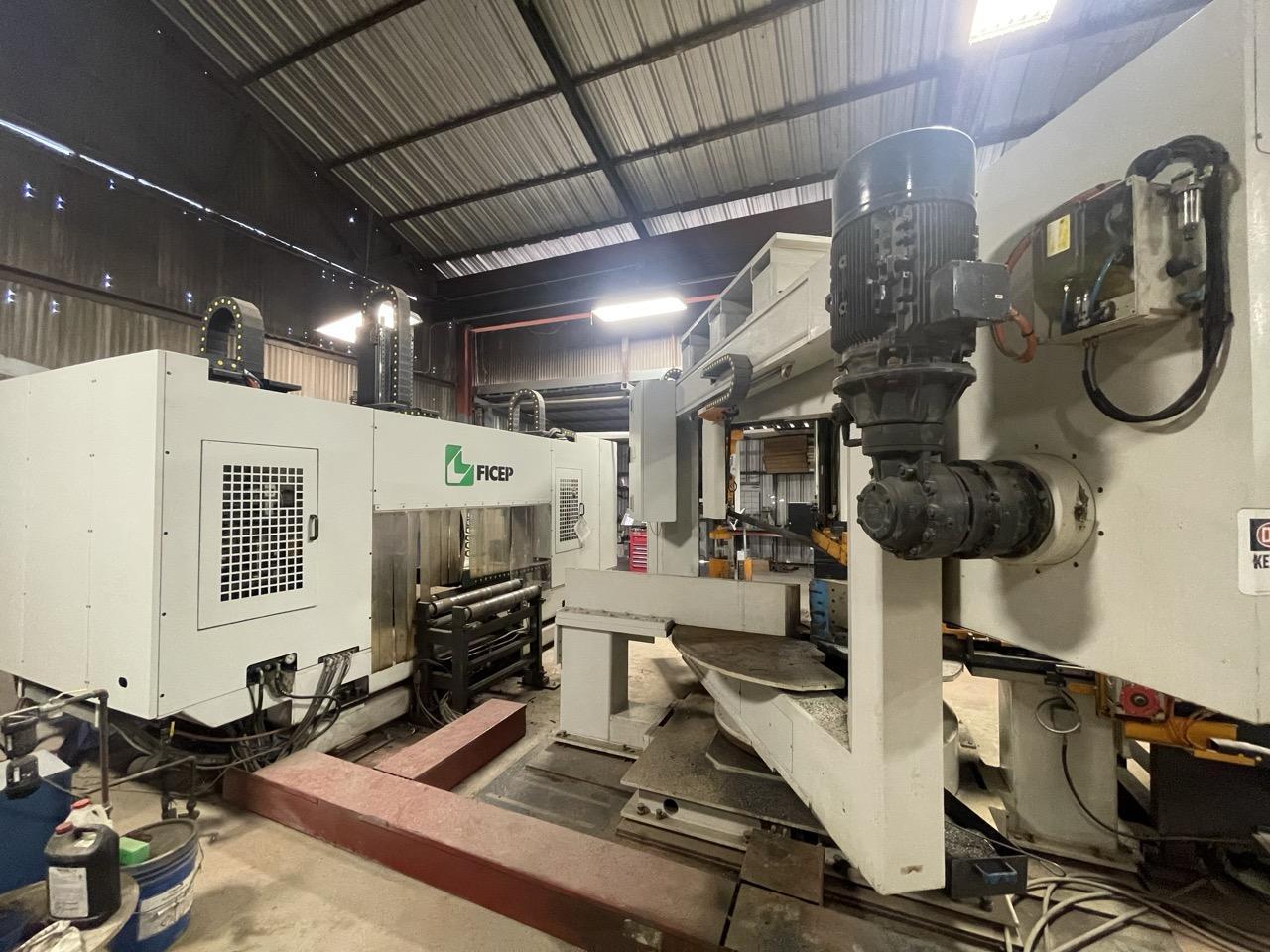

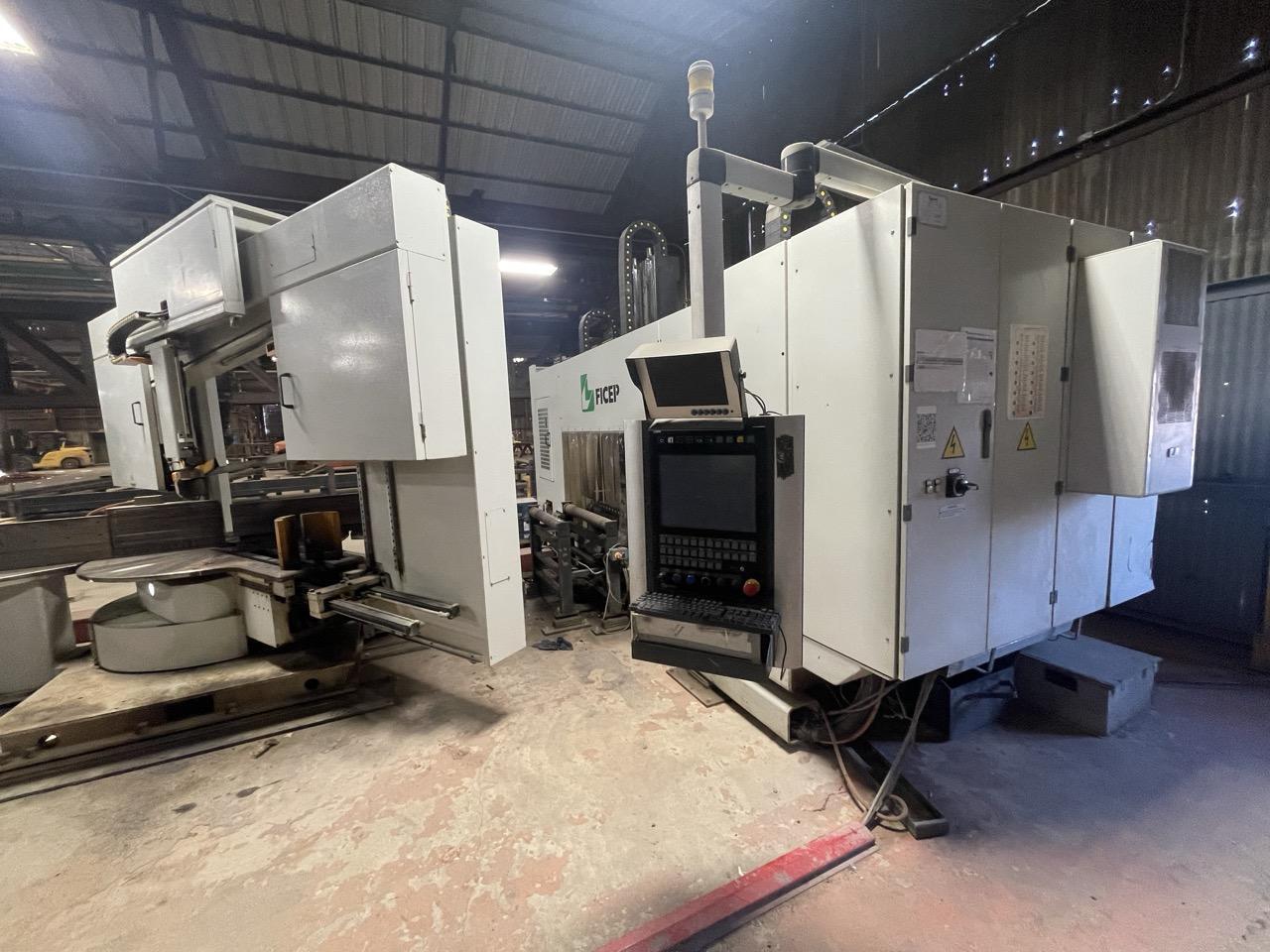

2016 FICEP 1103 DDVB 3-Spindle Drill 2016 FICEP Katana K115 Automatic CNC Horizontal Band Saw 2016 EMS Automated Material Handling 2016 FICEP 1201 FRC CNC Robotic Thermal Coping System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Beam Depth (min-max): 3.125″ – 44″ Flange Height (min-max): 0.375″ – 19.75″ Minimum Length to be Transferred: 98″ Maximum Length to be Transferred: 65′

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,I-Beams (without camber) Beam Depth (min-max): 3.125″ – 44″ Flange Height (min-max): 1.625″-19.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Channels (w/ flanges oriented downward) Channel Depth (min-max): 3.125″ – 44″ Flange Height (min-max): 1.75″-11.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Angles: Leg Height (unequal legs as well) Minimum: 3.125″ x 3.125″ x 0.375″ Maximum: 10″ x 10″ x 1.5625″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Flats Width (min-max): 4″ – 43.25″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Square Tubes Size (min-max): 3.125″ x 3.125″ – 19.75″ x 19.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rectangular Tubes Size (min-max): 3.125″ x 1.5625″ – 43.25″ x 19.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drilling Capacities Vertical Drill Heads: 1 Horizontal Drill Heads: 2 Spindles Per Drill Head: 1 Maximum Hole Diameter: 1.5625″ Maximum Drilling Thickness: 4″ Spindle Rotation Motor Per Head (S6-40%): 22 hp Tool Holder: ISO 40 Spindle Rotation Speed: 180 – 5000 rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Band Sawing Unit Model K 115 Sawing Capacity at 90° (min-max): 3.125″ x 0.375″ – 43.25″ x 20″ Sawing Capacity at 45°: 27.5″ x 20″ Sawing Capacity at 60°: 19.75″ x 19.75″ Band Motor Power: 20 hp Toothed Band’s Size: 2.12″ x 0.063″ x 390.55″ Toothed Band’s Speed: 196 – 557 fpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Section Weight: 18,000 lbs Maximum Weight Per Foot As Standard: 300 lbs/ft Maximum Carriage Speed: 164 fpm Passline: 33.5″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
