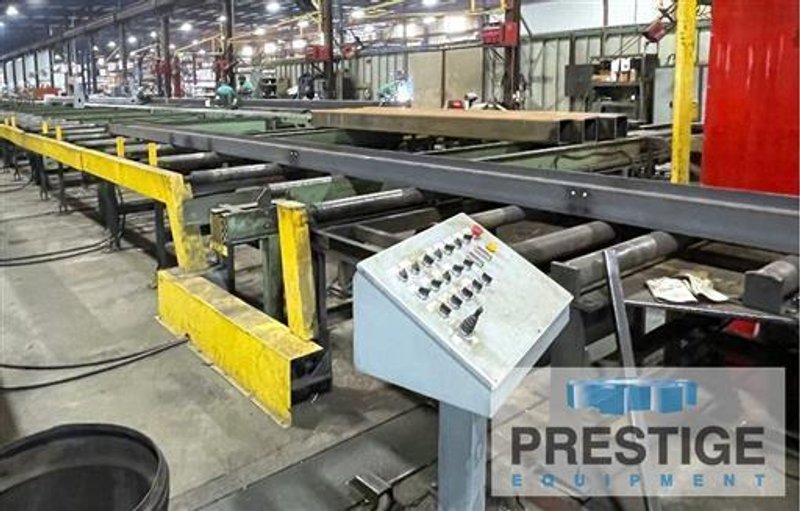

Ficep 1001 DDB Drill & Saw Line with Material Handling

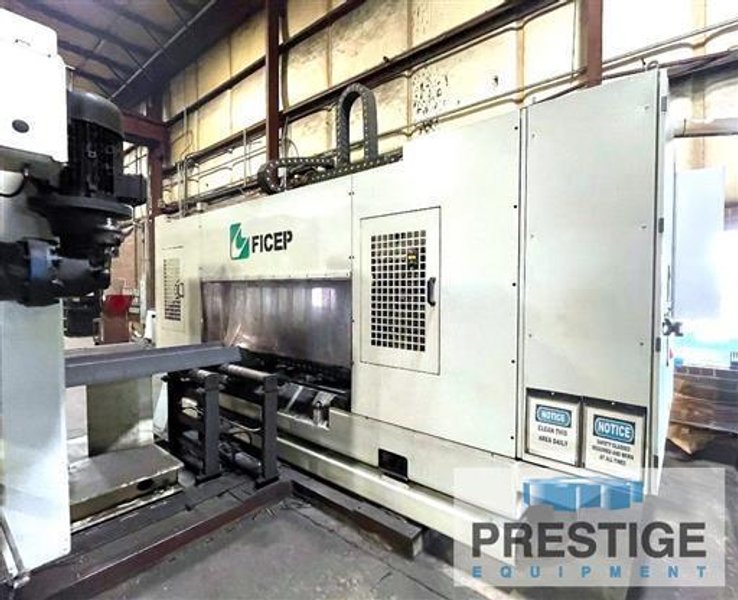

FICEP 1001 DDB DRILL:
No. Of Spindles, Rotating 1
Beam Depth, Min - Max 3-1/8" - 40"
Flange Height, Min - Max 3/8" - 17-3/4"
Maximum Drill Diameter 1-9/16"
Maximum Drill Thickness 4"
Spindle Motor 22 HP
Spindle Speed 180 - 2500 RPM

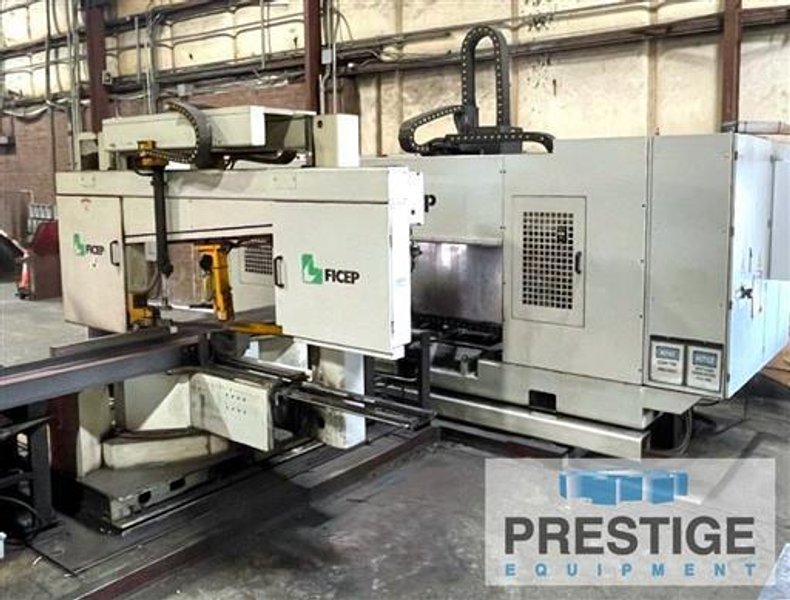

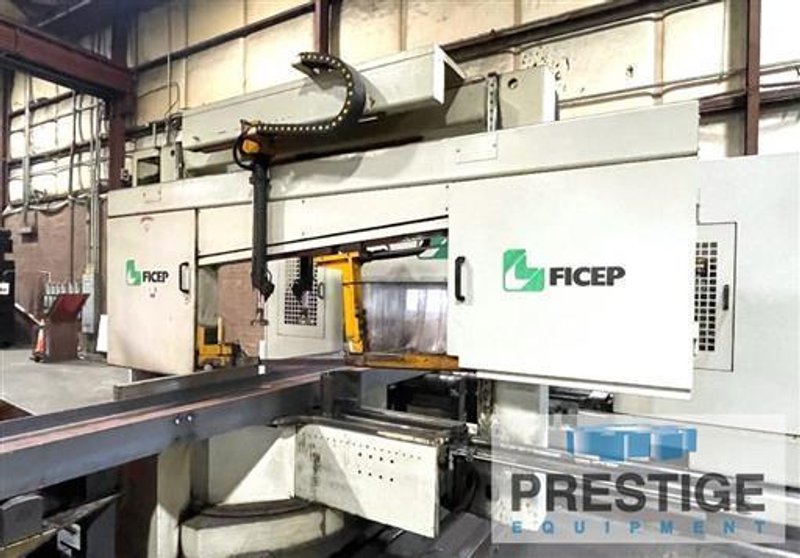

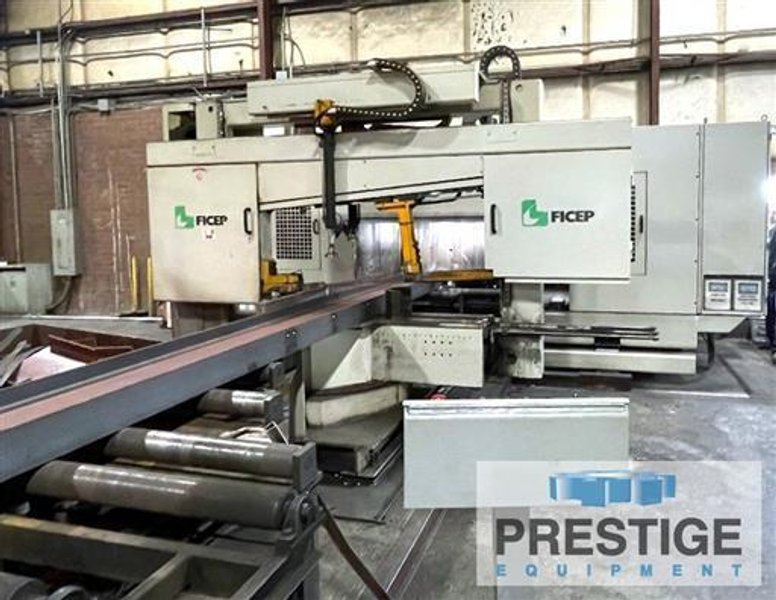

FICEP K100 BAND SAW:
Max. Sawing Capacity at 90° 40" x 17-3/4"
Sawing Capacity at 45° 24-3/8" x 17-3/4""
Sawing Capacity at 60° 13-3/4" x 13-3/4"
Blade Speed 196 - 557 FPM
Motor Power 12 HP



Equipped With:

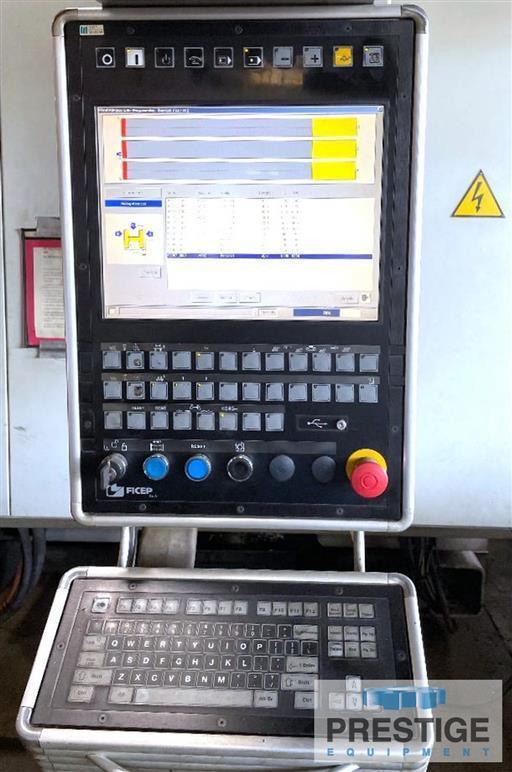

Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
(6) Position Tool Changer
Scribing On 3-Sides
Carriage Feed

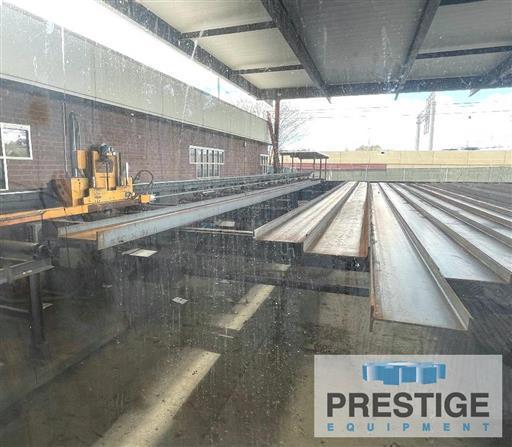

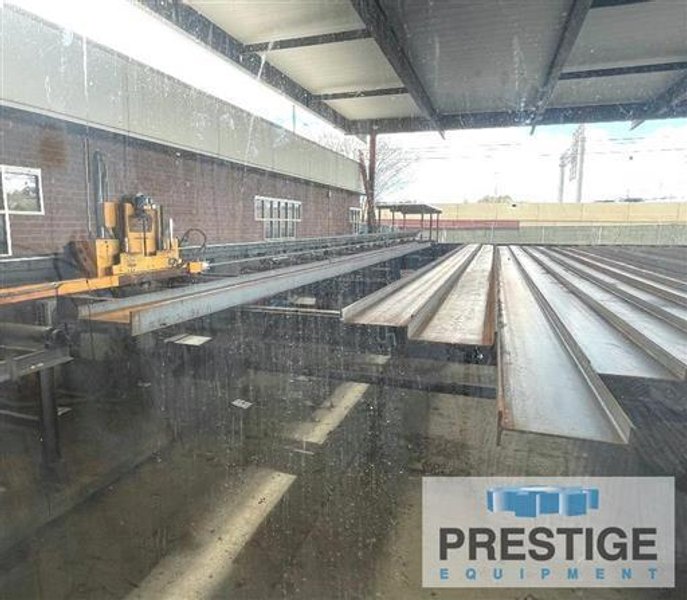

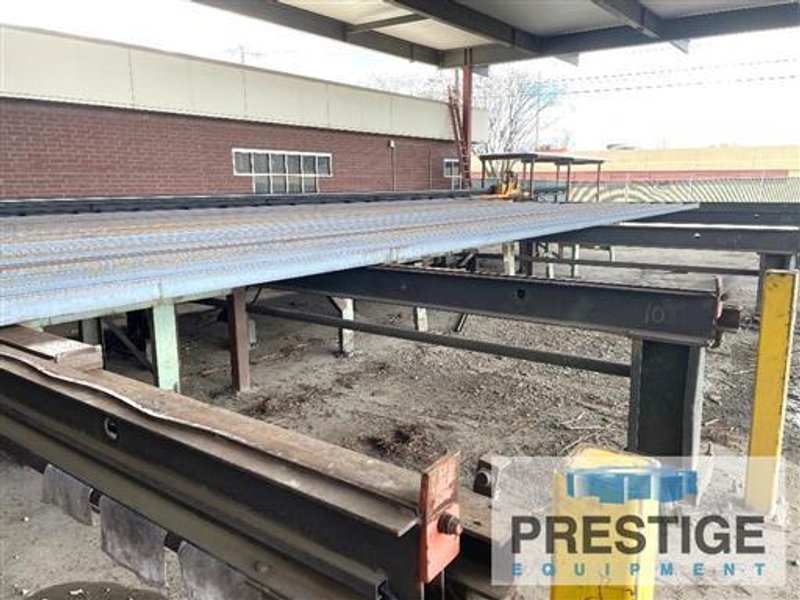

65' Powered Infeed Conveyor With Transfers
40' Outfeed Powered Conveyor


NOTES: Inspect In Plant Under Power
