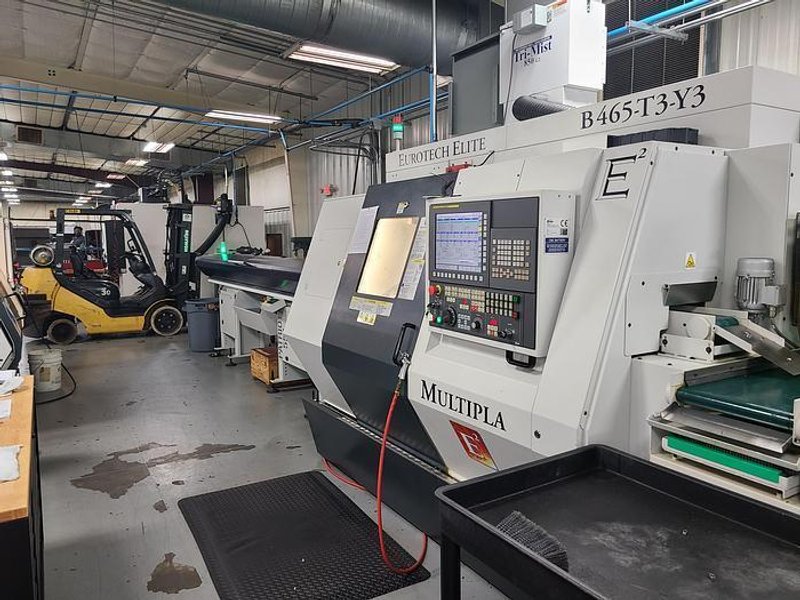

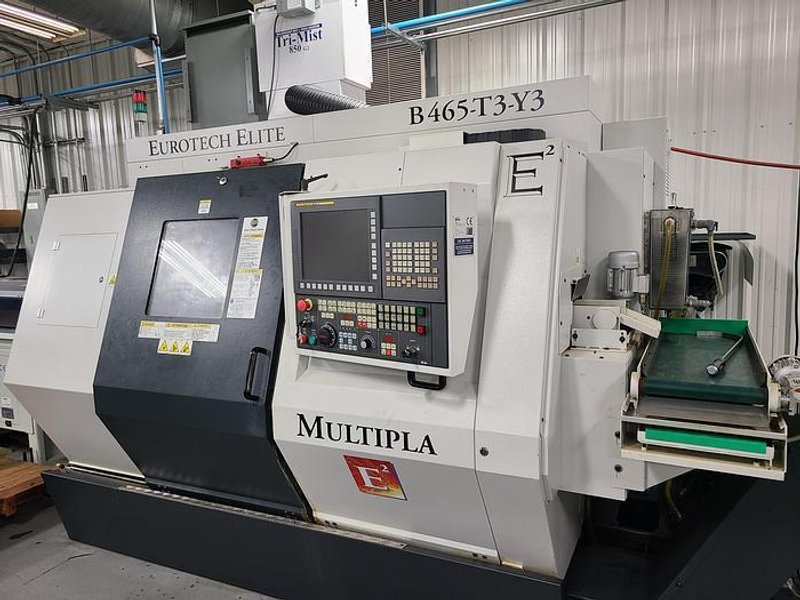

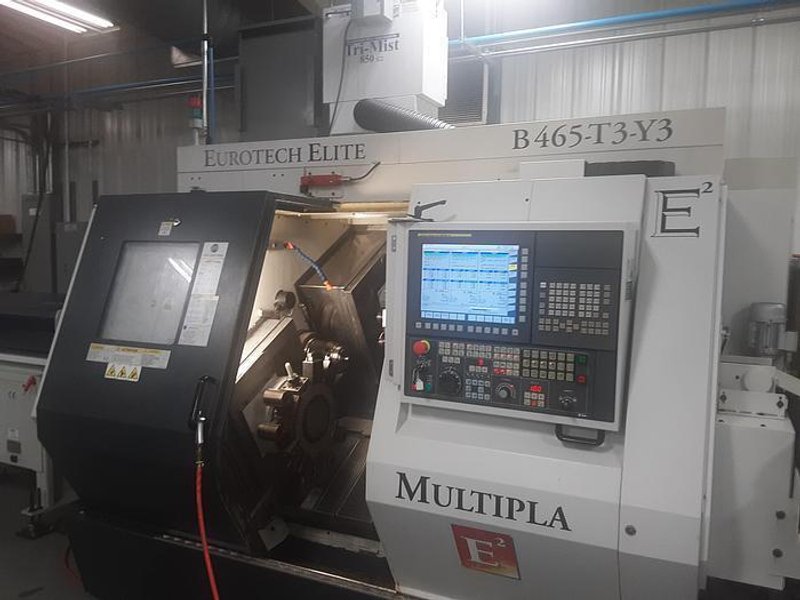

Eurotech B465 T3-Y3 Multipla CNC Lathe, 2020 – Bar Feeder, Sub Spindle, 3 Turrets

Power: 35 hp Control: Fanuc 31iB Bar Capacity: 2.56″ Chuck Diameter: 8″ Distance Between Centers: 37.5″ Swing Over Diameter: 20″ Main Spindle

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle Spindle Speed: 4,000 RPM Spindle Nose: 6″ Spindle Bore: 3.15″ Chuck Diameter: 10″ Motor Power: 35 HP C-Axis Min. Programmable value: 0.001 Degrees

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub-Spindle Spindle Speed: 5,000 RPM Spindle Nose: 5″ Spindle Bore: 2.17″ Chuck Diameter: 6/8″ Motor Power: 15 HP C-Axis Min. Programmable value: 0.001 Degrees Offset Stroke: 4.72″ B-Axis Stroke (Rapid Traverse): 26.35 – 1181 IPM

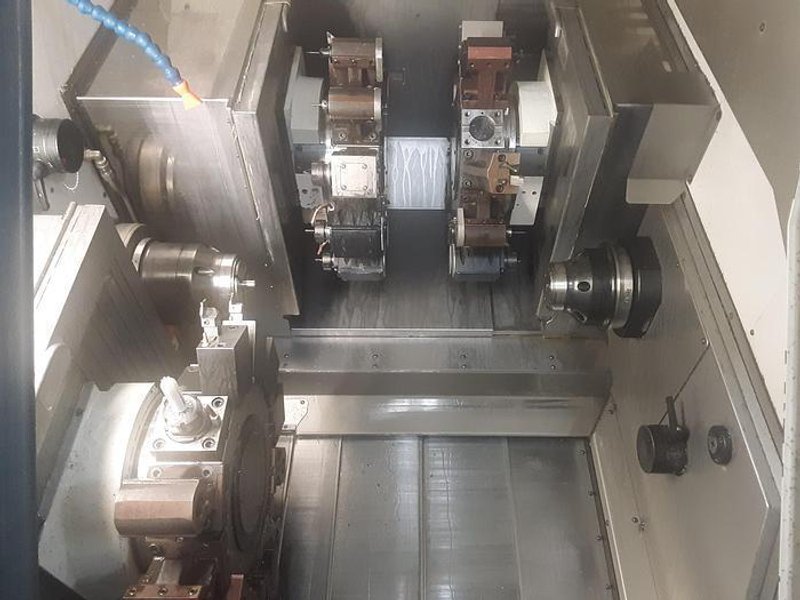

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turrets: Number of Turrets: 3 Number of Stations: 12 Number of Tools: 192 Turret Indexing: 15 Seconds Number of Live Tool Stations: 36 Number of Live Tools: 72 Live Tool Speed: 4,000 RPM Motor Powered: 5 Geared Rapid Traverse (X1/X2/X3): 708 IPM Rapid Traverse (Z1/Z2/Z3): 1181 IPM Rapid Traverse (Y1/Y2/Y3): 3.54 (-1.57/+2.32) – 354 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hours Power on: 10352 H Run time: 5719 H Cutting time: 1069 H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions Machine with Chip Conveyor: 173″ x 85″ x 89″ Spindle Center Height: 42″ Machine Weight with Chip Conveyor: 18,500

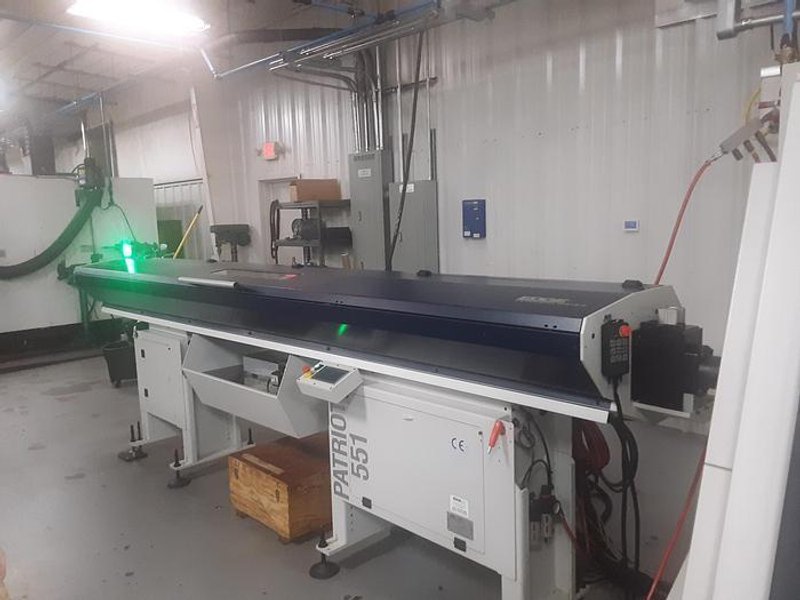

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 31iB CNC Control Tri-Mist 850 G2 Mist Collector 12 Foot Top X-Files Magazine Barfeed LNS Magnetic Chip Conveyor in addition to Standard Chip Conveyor (2 chip conveyors included) EU-1000-2 HP Coolant System Royal QC-80 Main Spindle Collet Chuck Royal QC-42 Sub-Spindle Collet Chuck 200mm Ejector Option Fargo DA 51XN1/FE Transformer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
