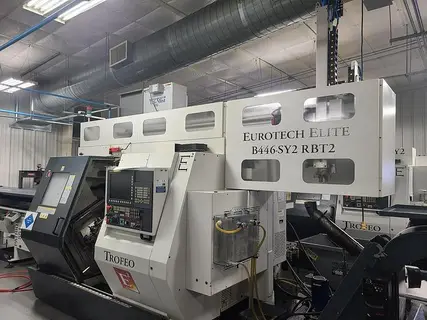

Eurotech B446-SY2 RBT2 TROFEO CNC Multi-spindle Lathe, 2020 – Barfeeder, 1000PSI

General Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machining Capacity:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bar Capacity: 2.56″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chuck Diameter: 8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Distance Between Centers: 37.5″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Swing Over Diameter: 20″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 4,000 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Nose: 6″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Bore: 3.15″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chuck Diameter: 10″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor Power: 35 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,C-Axis Min. Programmable value: 0.001 Degrees

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub-Spindle:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 5,000 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Nose: 5″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Bore: 2.17″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chuck Diameter: 6/8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor Power: 15 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,C-Axis Min. Programmable value: 0.001 Degrees

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Offset Stroke: 4.72″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,B-Axis Stroke (Rapid Traverse): 26.35 – 1181 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turrets:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Number of Turrets: 3

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Number of Stations: 12

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Number of Tools: 192

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret Indexing: 15 Seconds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Number of Live Tool Stations: 36

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Number of Live Tools: 72

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Live Tool Speed: 4,000 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor Powered: 5 Geared

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse (X1/X2/X3): 708 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse (Z1/Z2/Z3): 1181 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse (Y1/Y2/Y3): 3.54 (-1.57/+2.32) – 354 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hours:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power on hours: 10117H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Run time: 6956H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting time: 4760H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 31iB CNC Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tri-Mist 850 G2 Mist Collector

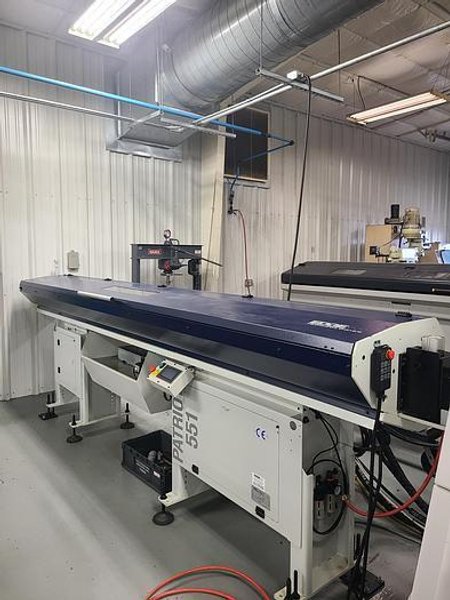

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,12 Foot Edge Patriot 551 Magazine Barfeed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,LNS Magnetic Chip Conveyor in addition to Standard Chip Conveyor (2 chip conveyors included)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1000 PSI HP Dual Pump Coolant System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Coolant Thru Sub-Spindle

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Royal QG-65 Main Spindle Collet Chuck

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Royal QG-42 Sub-Spindle Collet Chuck

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,200mm Ejector Option

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fargo DA 51XN1/FE Transformer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dimensions: 173″ x 85″ x 89″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Weight: 18,500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
