2000 EUROTECH 710SLL | Lathes, CNC (3-Axis or More)

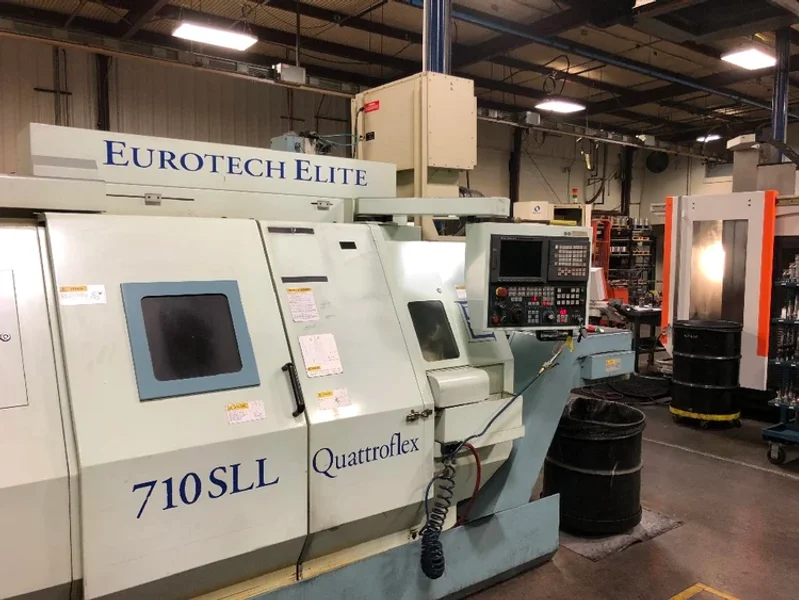

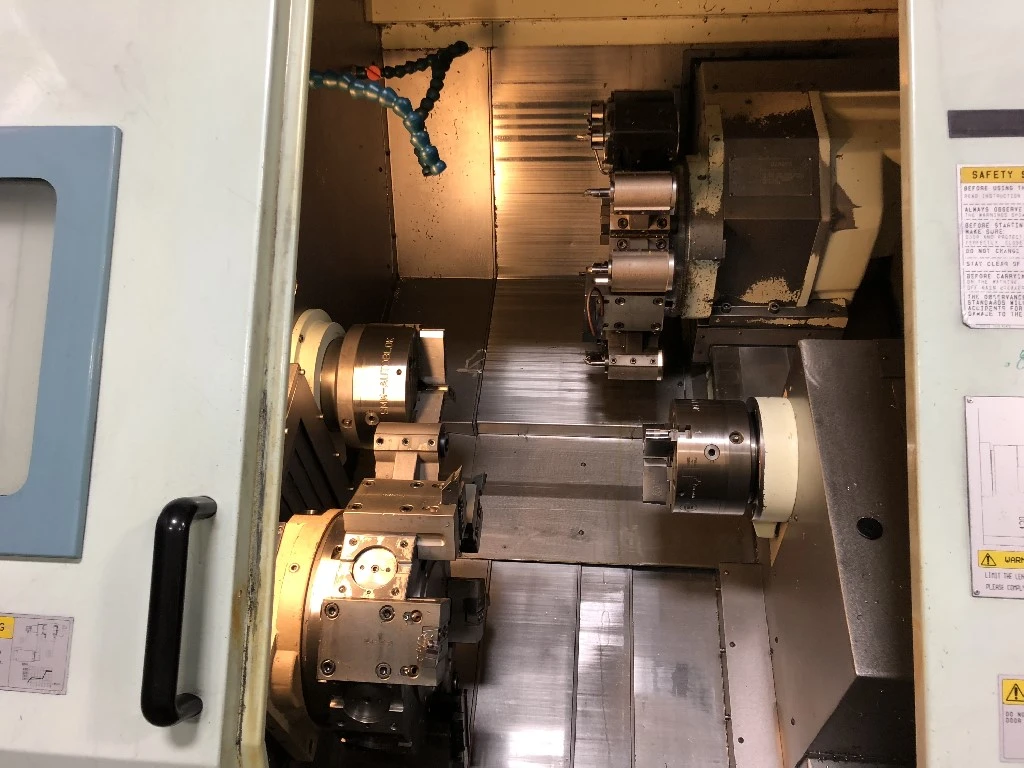

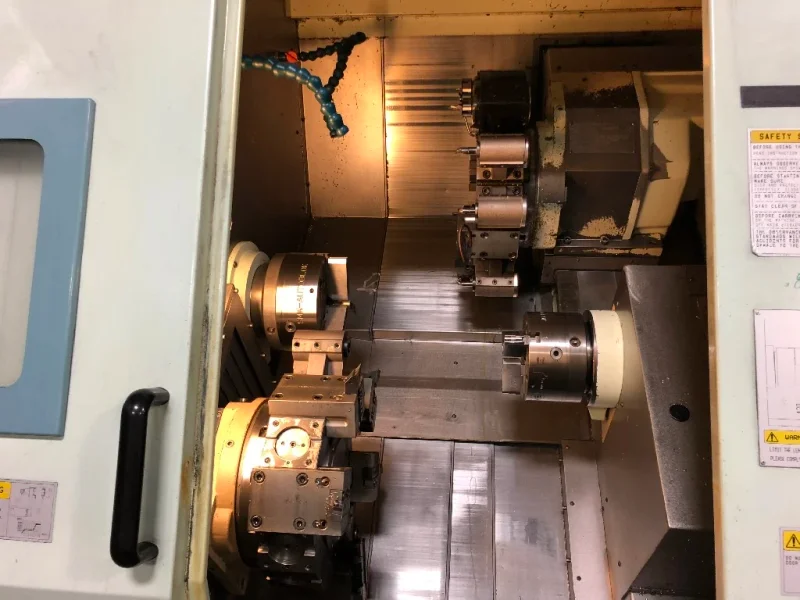

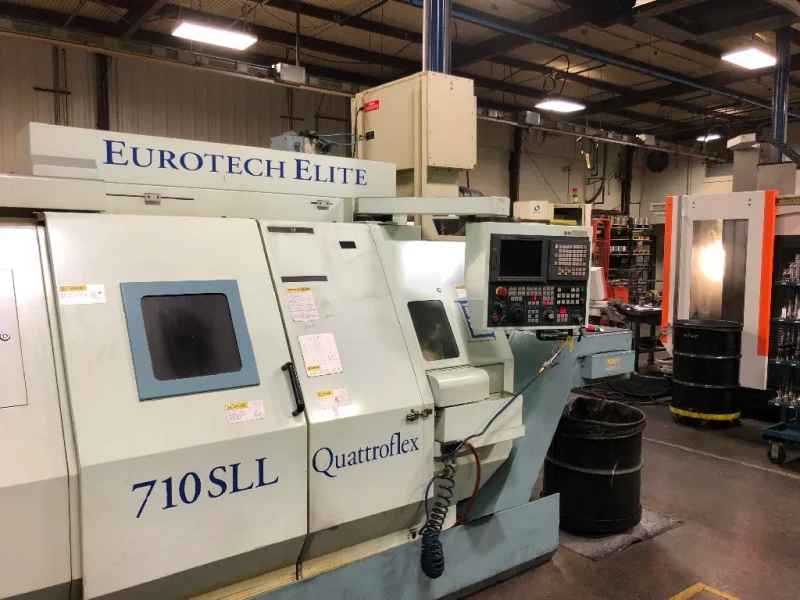

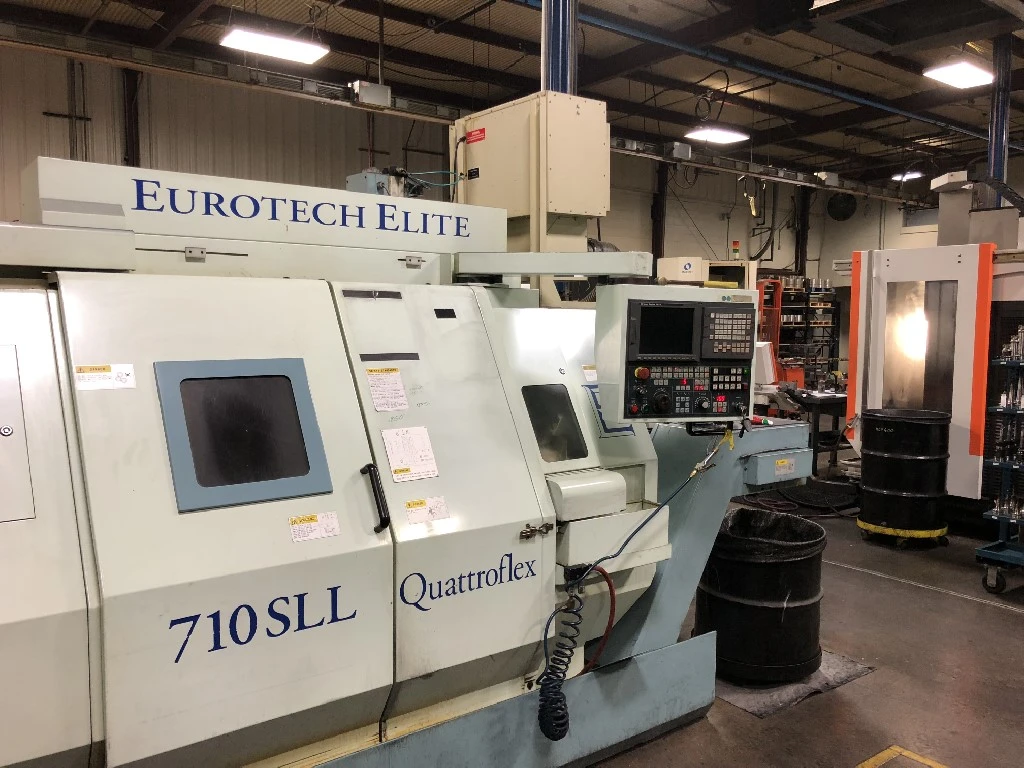

Eurotech 710SLL CNC Turning Center with Twin Turrets, Sub Spindle, Live Tooling

New: 2000; Installed: 2001

Specifications:

 Chuck Size 8.25"

 Max Diameter Bar Capacity 2.75"

 Max Turning Diameter (Main / Sub Spindle) 7.87" / 6.3"

 Distance Between Spindles 27.55"

 Max Machining Length (Main / Sub) 11.81" / 7.87"

 Spindle Motor 35 / 30 HP

 Spindle Speed 100 - 5000 RPM

 Spindle Bore 3.15"

 Spindle Nose A2-6

 Spindle Torque 160 ft. lbs.

 Tools (Upper / Lower Turret) 12 (All Live)

 Milling Speed 100 - 4000 RPM

 Milling Motor 5 HP

 Sub Spindle Chuck 6.5"

 Sub Spindle Bore 2.2"

 Sub Spindle Nose A2-5

 Sub Spindle Speed 100 - 5000 RPM

 Sub Spindle Motor 15 / 12 HP

 Sub Spindle Travel (X / Z) 4.72" / 16.53"

 Rapid Traverse Rates (X / Z) 472 / 787 IPM

 X-Axis Travel (Upper / Lower Turret) 6.5" / 6.22"

 Z-Axis Travel (Upper / Lower) 14.96" / 9.45"

 C-Axis Index (Main & Sub Spindle) .001 Degree

 Machine Dimensions (L x W x H) 161.7" x 83.8" x 86.8"

 Machine Weight 8690 lbs.

Equipped With::

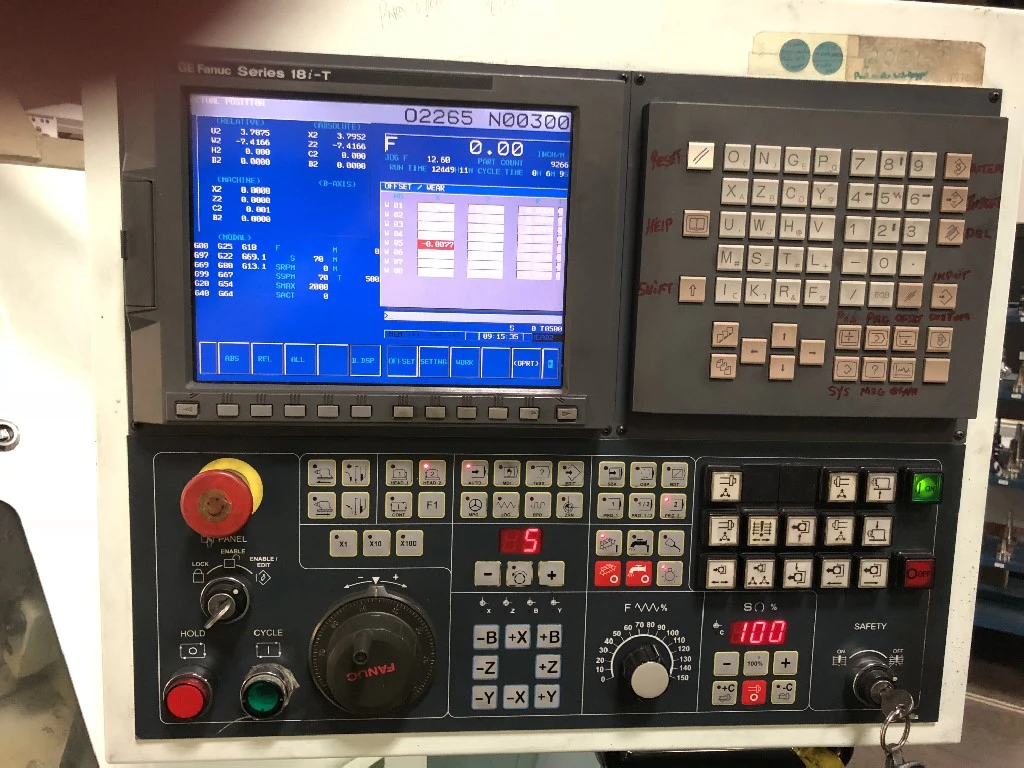

 GE Fanuc 18i-T CNC Control w/ 10.4" Color LCD

 C-Axis Milling Capability

 Programmable Sub Spindle Moves in X- and Z-Axes

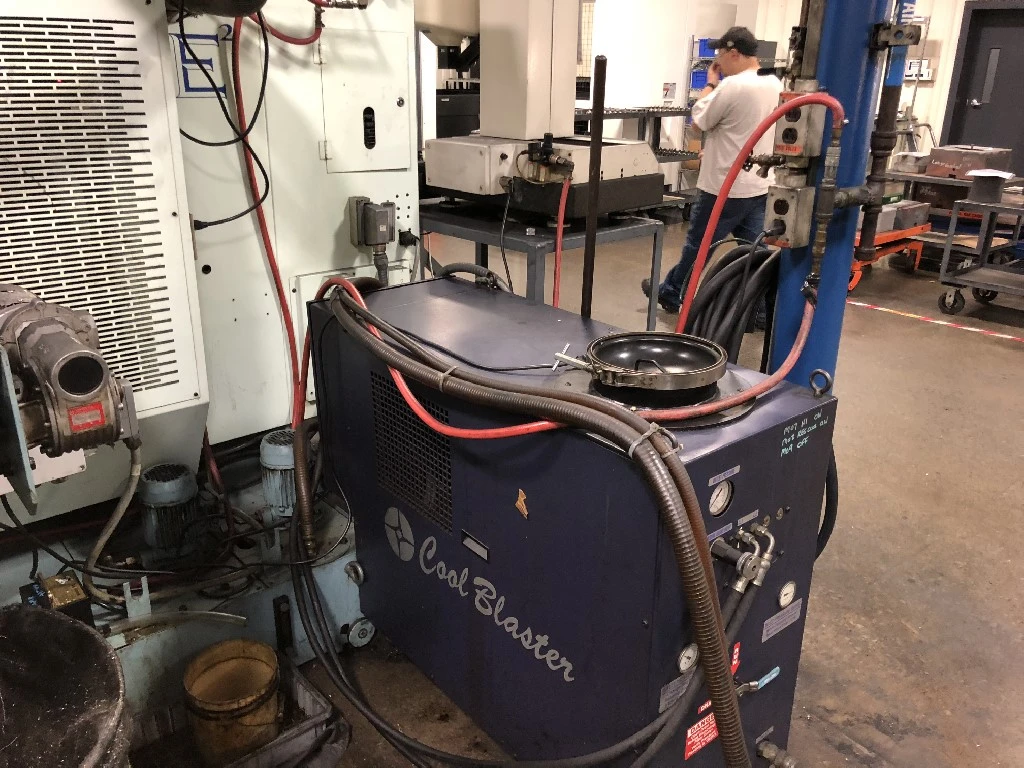

 High Pressure Coolant

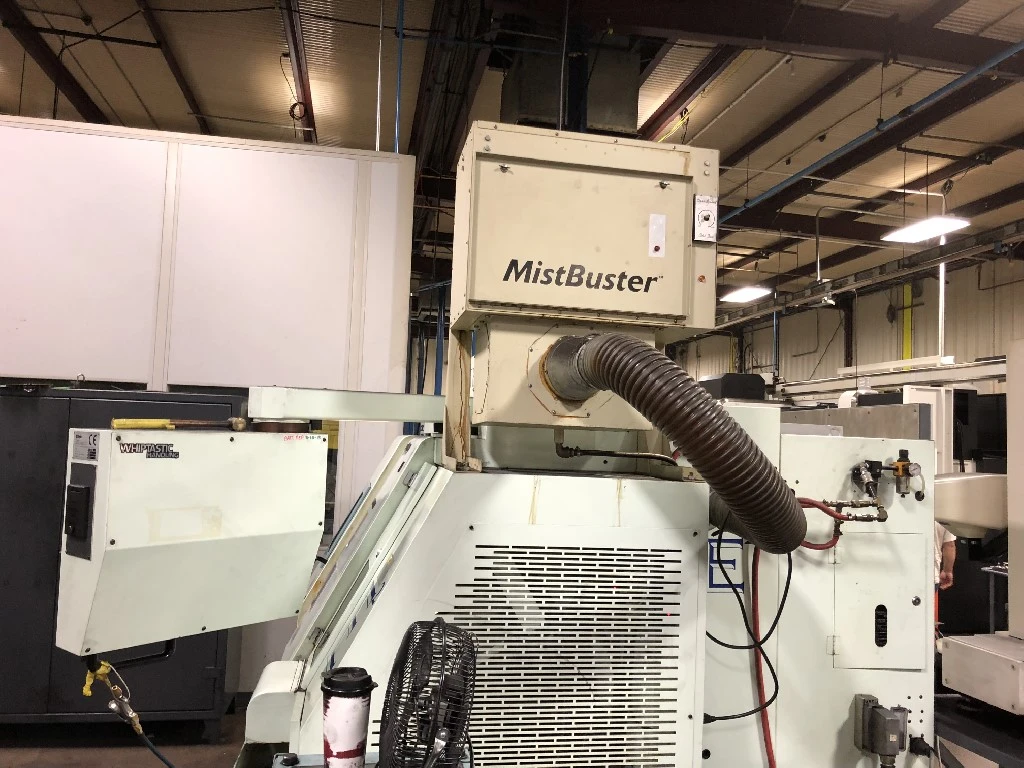

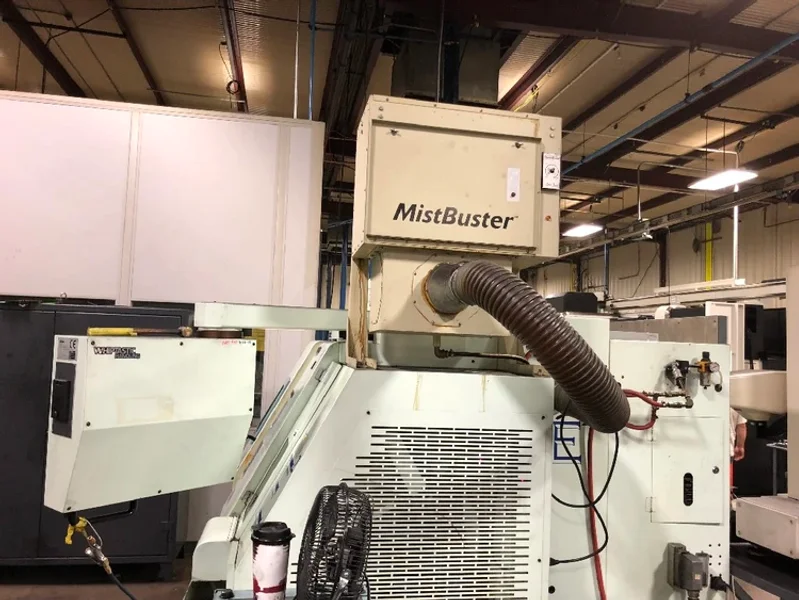

 Mist Collector

 SMW Autoblock Chucks

 Collet Chucks

 Live Tool Holders (Approx 9)

 Parts Catcher

 Bar Feeder Interface

 Tool Eye

 & More

 Operating Time: 12,555 hours

 Cutting Time: 5,244 hours
