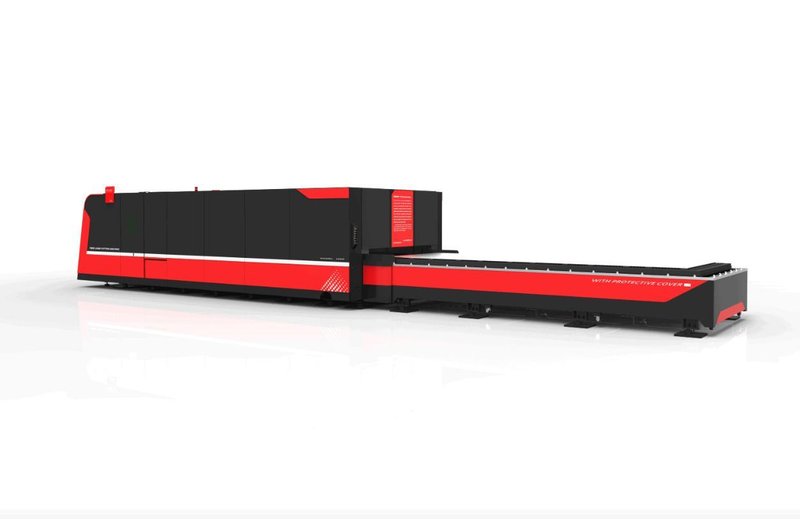

6000 Watt DNE D-Soar 1530 Fiber Laser, 2024 – Brand New- 5’x10′ Table, Dust Collector, Warranty

Wattage: 6000 (Configurations available up to 15k) Table Size: 5′ x 10′: (Table size up to 8’x20′ available)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Range of adjustment (W): 600-6000 Wavelength: 43″ Steel (max. cutting thickness): .79″ Stainless Steel (max. cutting thickness): .63″ Aluminum (max. cutting thickness): .55″ Brass (max. cutting thickness): .31″ Copper (max. cutting thickness): .55″ Max. total electric consumption of system (with exhaust, chiller): 58 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Normal Sheet Size: 59″ Normal Sheet Size: 118″ Cutting Area (X): 61″ Cutting Area (Y): 120″ Cutting Area (Z) 11 Max. Positioning Speed Parallel Axis (X/Y): 262 ft./min Max. Positioning Speed Simultaneous: 361 ft./min Bilateral Repeatability of positioning of one axis R: 0.0008″ Average bilateral position deviation of one axis M: +/- 0.002″ Edge detection accuracy: +/- 0.02″ Max. workpiece weight: 2,205 lbs. Machine weight (without chiller and dust extraction): 2,205 lbs. Table change over time (2 level table) – unloaded: 17s Table change over time (1 level table-hydraulics lifting)- unloaded: 50s Length x Width x height: 336″ x 120″ x 102″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,-Member of the high quality Swiss machine tool group , Bystronic -Shuttle tables standard -Inhouse cutting head, not third party. -European components throughout -UL & FDA Certified machines unlike many other imported machines. -Quoted fully turnkey with install, software, training – all but shipping & rigging. -Over 3000 D Soars installed in 100 countries
