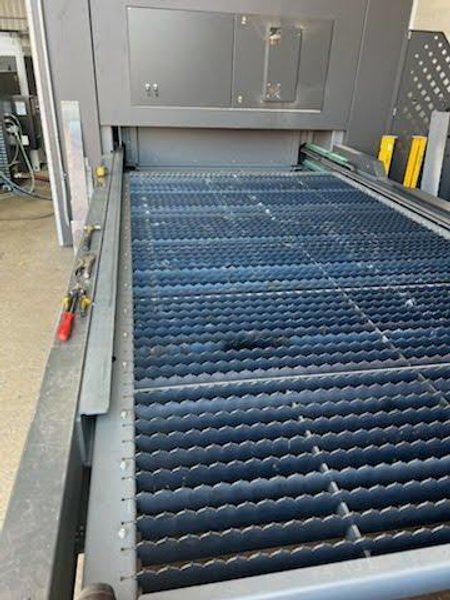

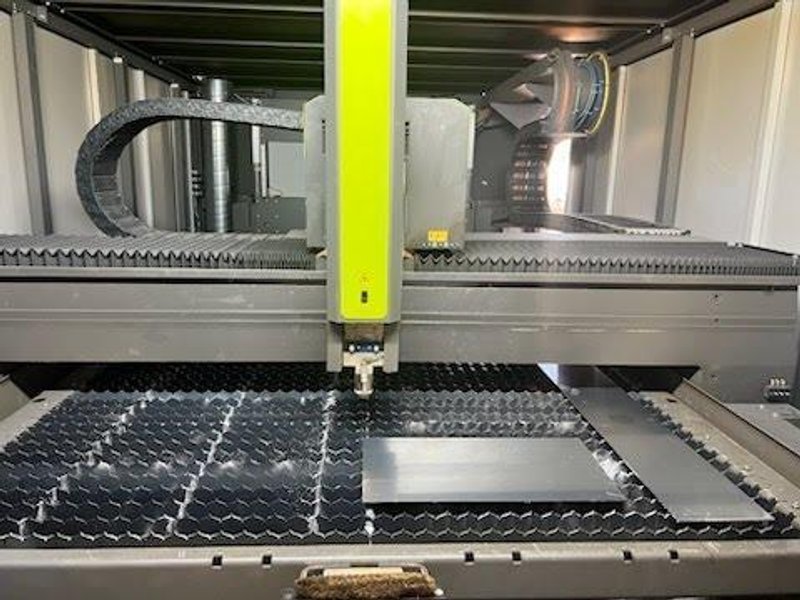

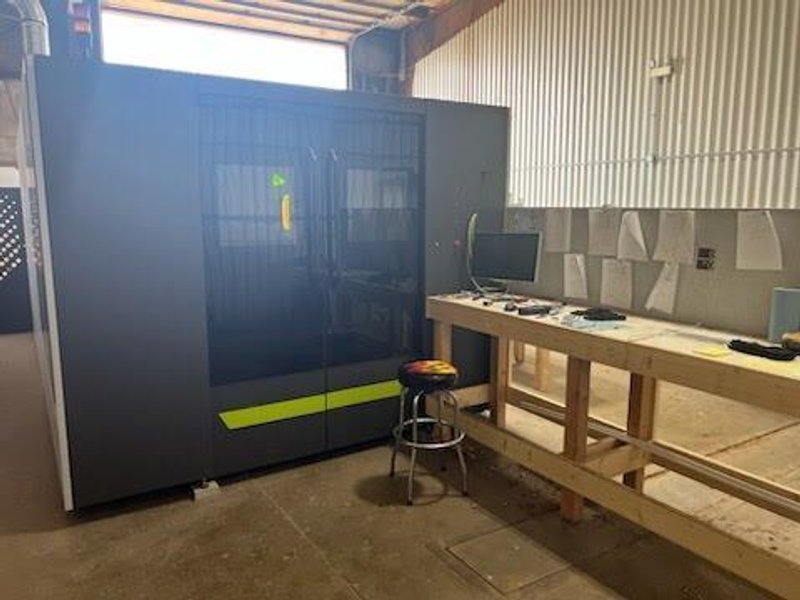

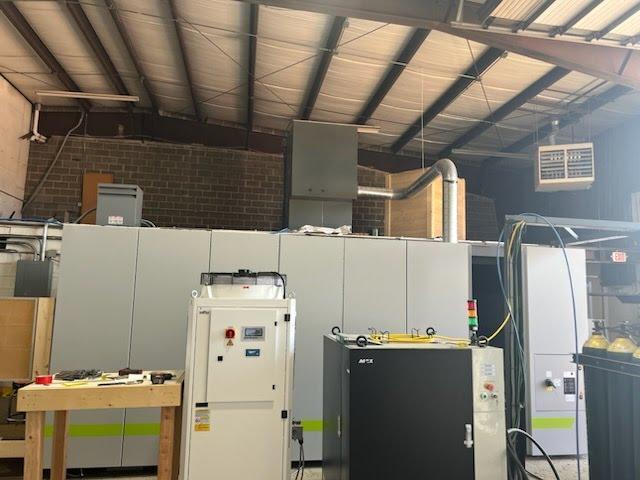

6000 Watt DNE (Bystronic) LC3 3015 Fiber Laser, 2021 – 5’x10′ Table, TD Dust Collector

Power: 6000W Laser Type: Fiber Sheet Size: 5′ x 10′ Max Positioning Speed X/Y: 3937 IPM Max Simultaneous Positioning Speed: 5511 IPM Bilateral Repeatability of Positioning of One Axis R (Following ISO 230-2:2014(E)): ±0.002″ Bilateral Repeatability of Positioning of One Axis M (Following ISO 230-2:2014(E)): ±0.004″ Edge Detection Accuracy: ±0.019″ Max Weight of Workpiece: 1,984 Lbs Table Changeover Time: 24 s Polarization: Unpolarized Wavelength: 1 µm Pulse Frequency: 1 – 2500HZ

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Sheet Thicknesses: Steel: 0.750″ Stainless Steel: 0.750″ Aluminum: 0.750″ Brass: 0.375″ Copper: 0.375″ Total Electrical Consumption of System: 29kW

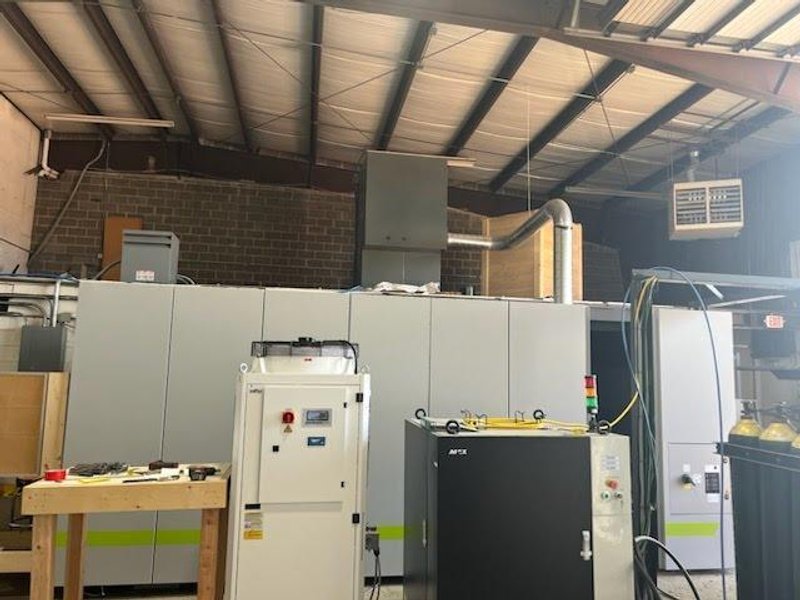

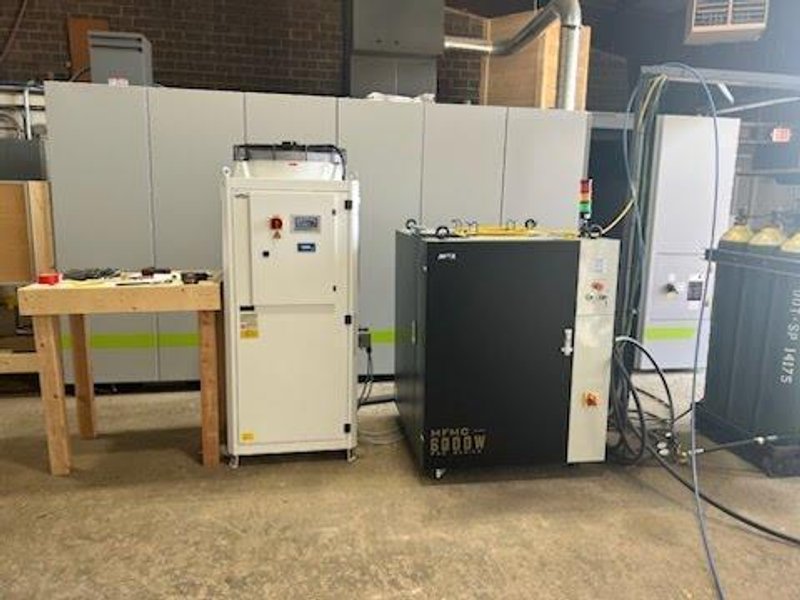

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – Max Photonics MFMC 6000W Pro Series Power Source – Donaldson Torit Fume Extraction System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
