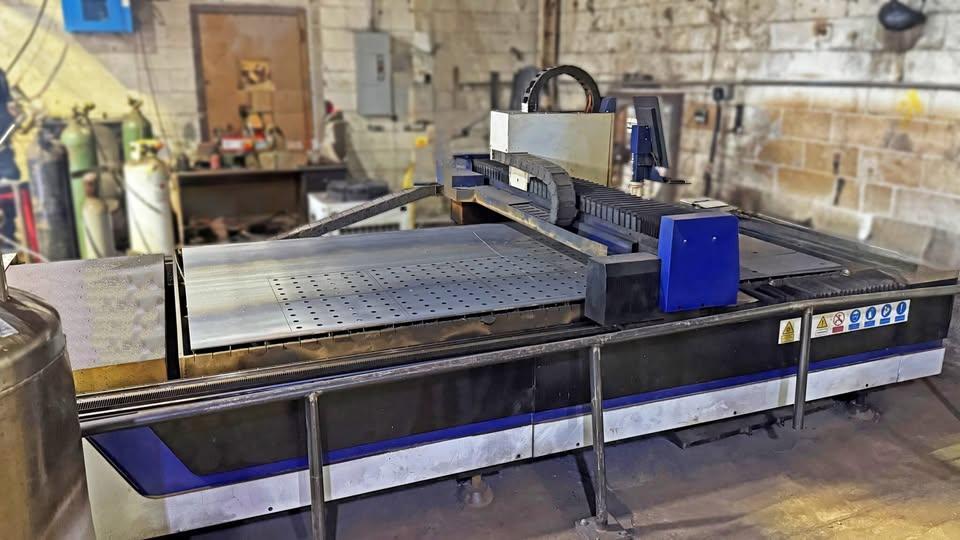

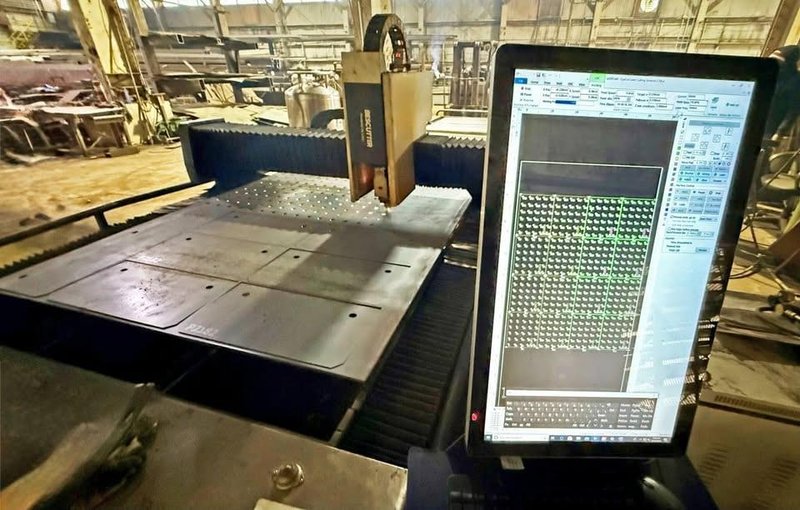

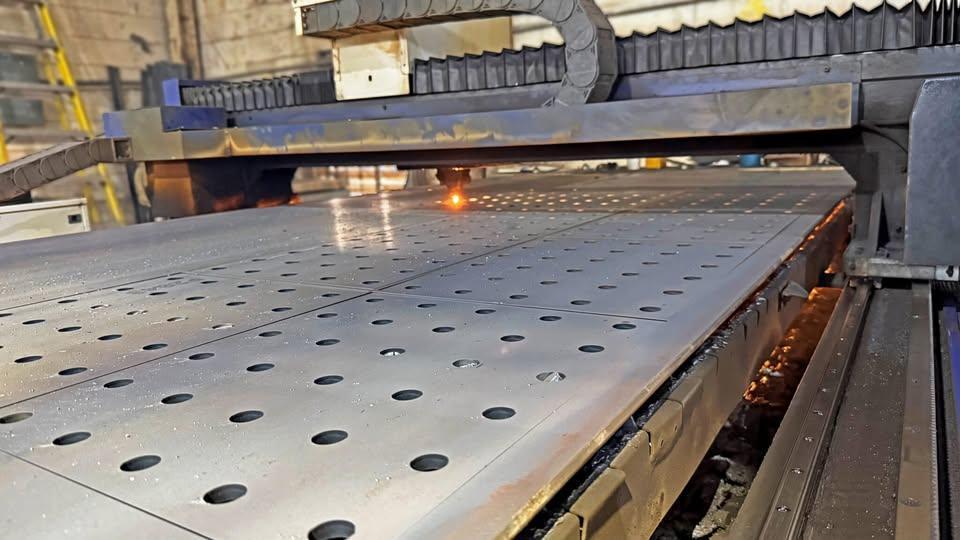

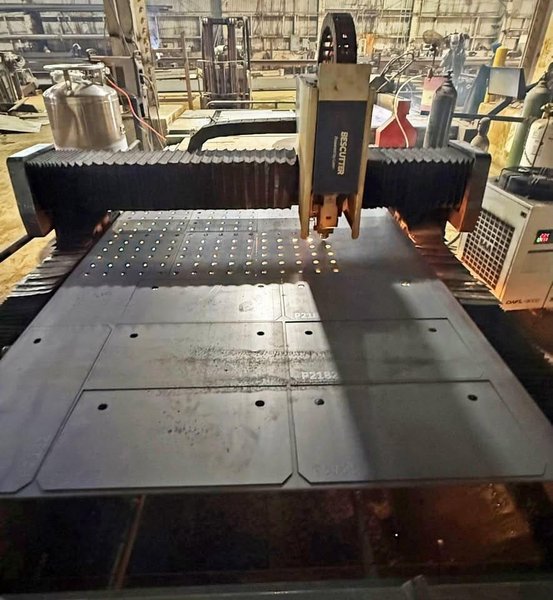

3,000 Watt Bescutter F-3015 CNC Fiber Laser, 2022 – 5′ x 10′ Table, Chiller
Brand
Category
Type
Model
F-3015
Stock #
391128
Year
2022
Condition
Not specified
Location
Not specified
|
Table Size (L × W): 120″ × 60″
X Axis: 120″
Y Axis: 60″
Z Axis: 4.7″
Laser Power: 3000 W
Positioning Accuracy: ±0.05 mm per 1000 mm
Repeatability: ±0.02 mm per 1000 mm
Max Speed: ~2362 in/min
Drive System: Rack and Pinion

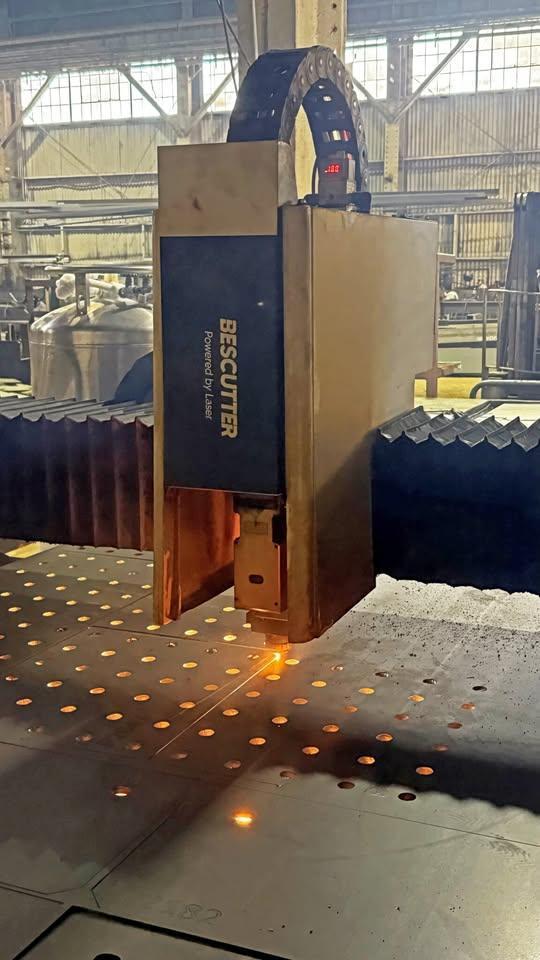

Laser Head: Auto-Focus Raytools
Weight: ~9,900 lbs
Power Requirement: Three-Phase 380 V/240 V/460 V

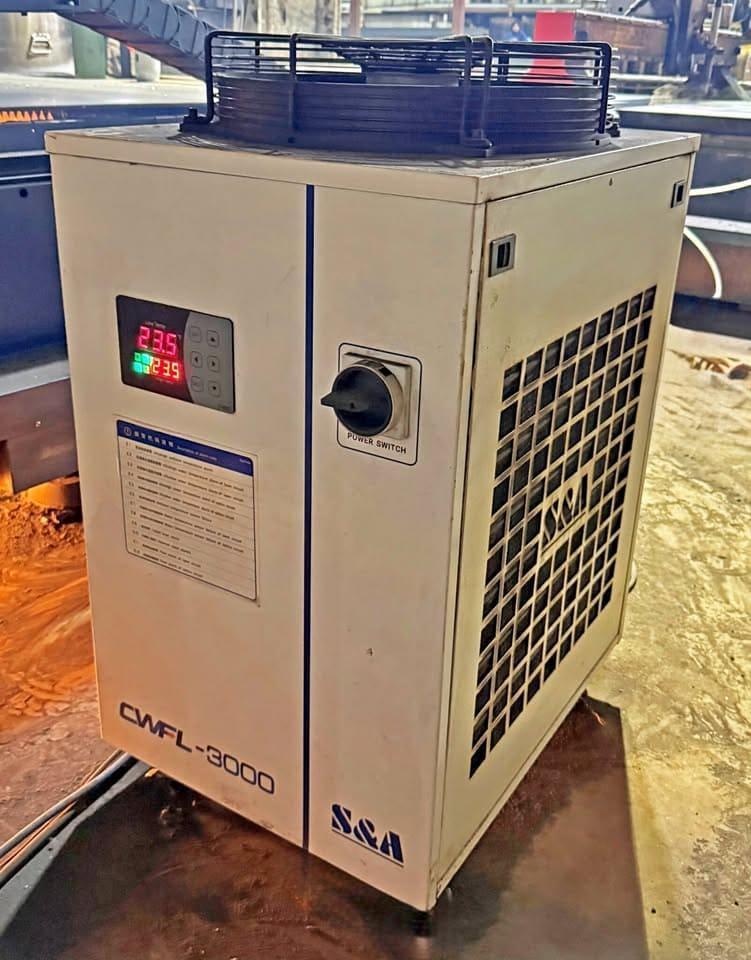

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CNC Control CWFL-3000 Water Circulated Chiller Auto-Focus Fiber Laser Head Rack and Pinion Drive All Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
