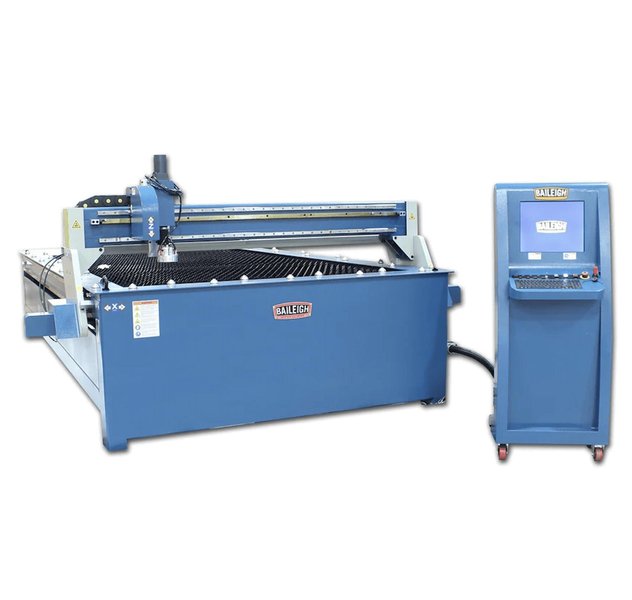

5′ x 10′ Baileigh PT-105HD-V2 CNC Plasma Cutting Table, 2023 – Brand NEW, Automatic Torch Height Control, 1-Year Parts Warranty

Model
PT-105HD-V2
Stock #
664274
Year
2023
Condition
Not specified

Location

Not specified

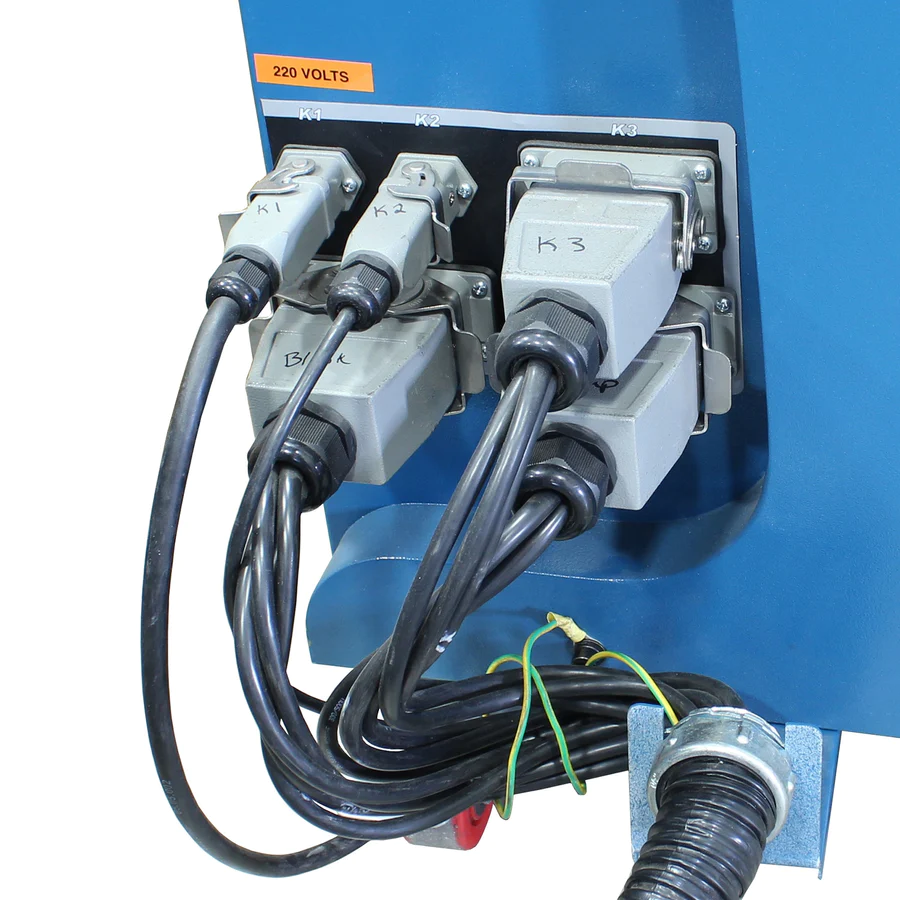

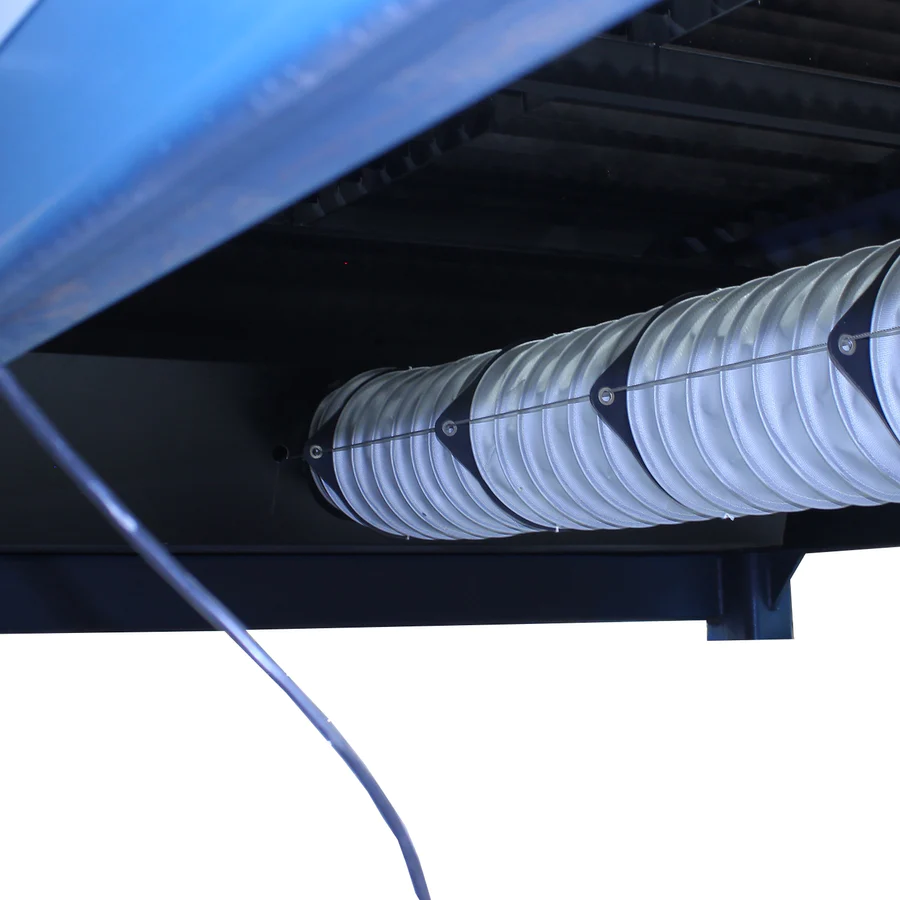

Table Style: Down Draft Or Water Table Travel Speed: 315 Inches Per Minute Table Dimensions: 60″ x 140″ Table Load Capacity: 1″ Mild Steel Capacity Depends on Plasma System Chosen Drive: Servo Motor Power: 220V / 1-phase Shipping Weight: 4000lbs Shipping Dimensions (Inches): 160″ x 102″ x 68″

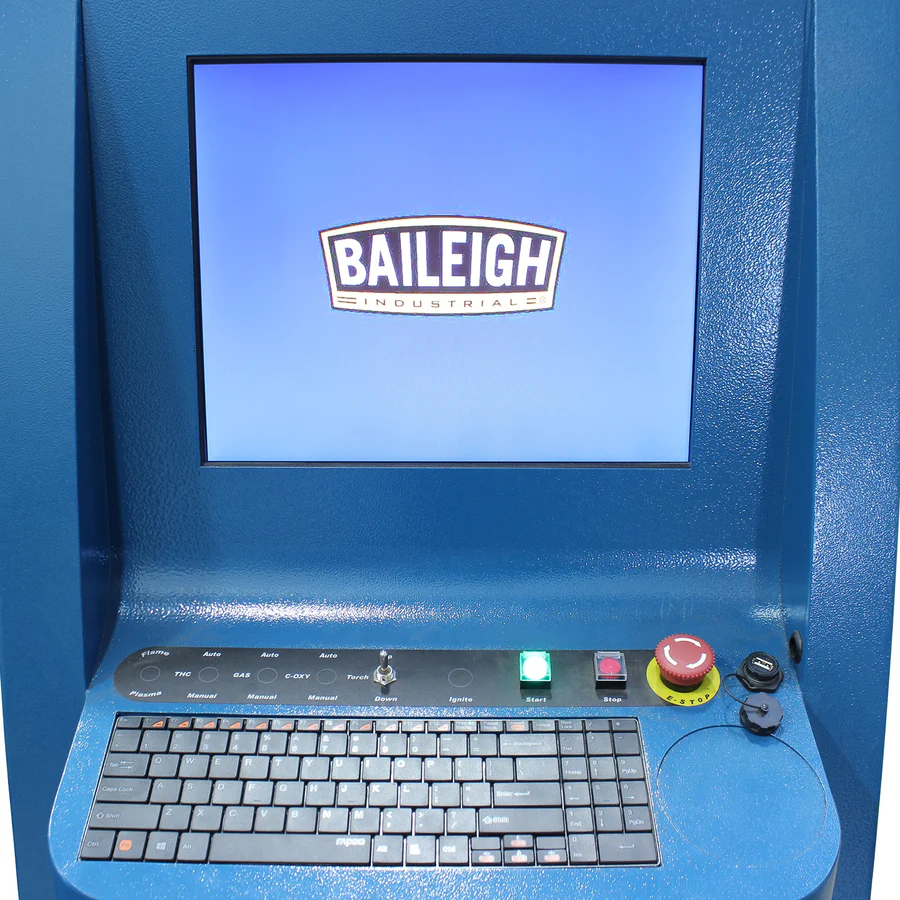

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Runs on 220-volt single-phase power. Control the X, Y, and Z-axis movement from the sturdy podium with a large console screen and keypad. Includes easy-to-learn design software that you can load into any basic PC (more details below). The console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer. Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials. Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry. Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid structural steel. Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage. High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control. Axes ride on heavy-duty Hiwin square rails. Wipers on rails keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up. Our design reduces the risk of damaging the table while loading or pinching your forklift—unlike competing plasma tables with recessed work areas. Weigh an impressive 3520 lbs. Fully-welded boxed tubing construction can easily support the weight of maximum capacity material. Steel framework will hold its shape and stay accurate for decades, unlike many competitors’ aluminum frames, which buckle and warp under heat. Arrives 80% Pre-built to save you time and effort. The downdraft trolley follows the torch wherever it’s cutting for more focused fume extraction. It also catches your small parts so you can collect them at a convenient location. Covered by a 1-year parts warranty.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
No files or videos to display

Want to request a quote from the owner of this listing?
