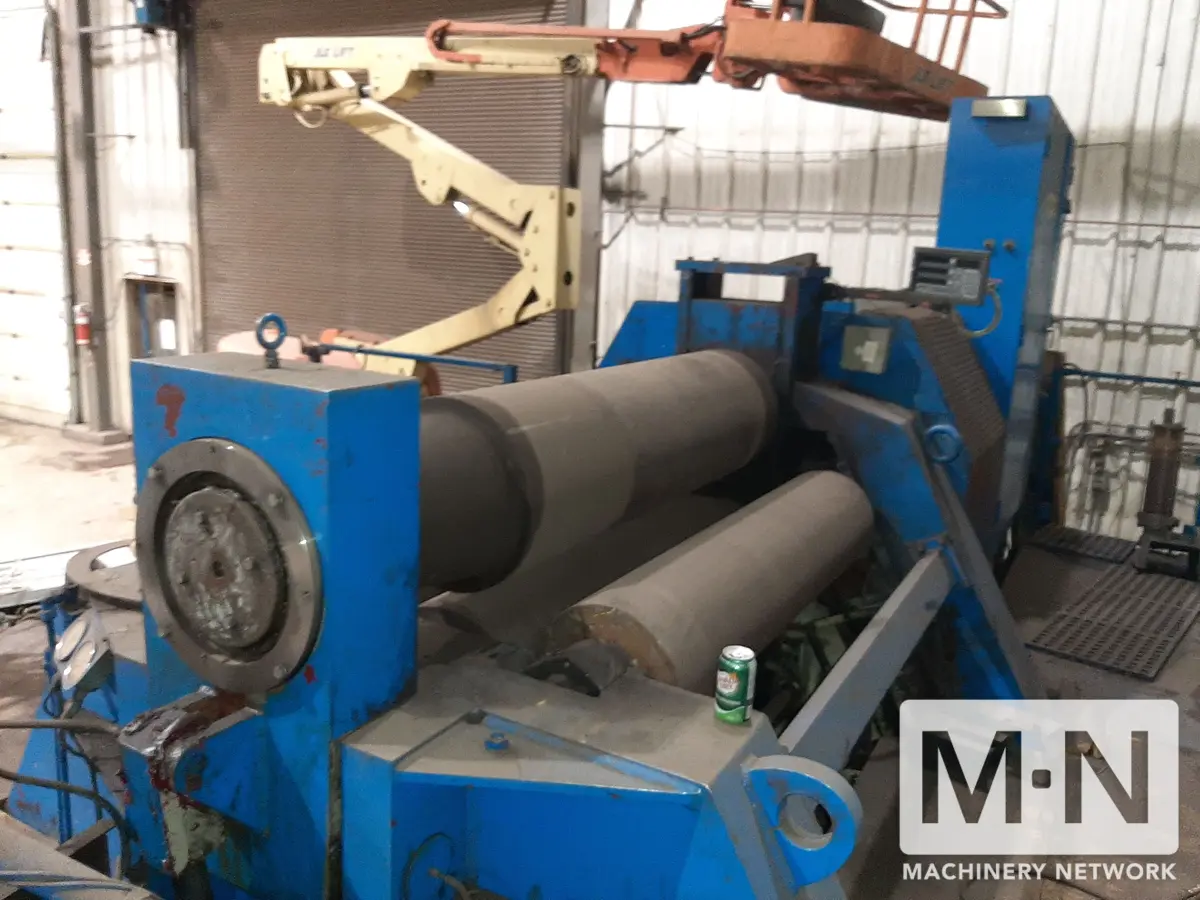

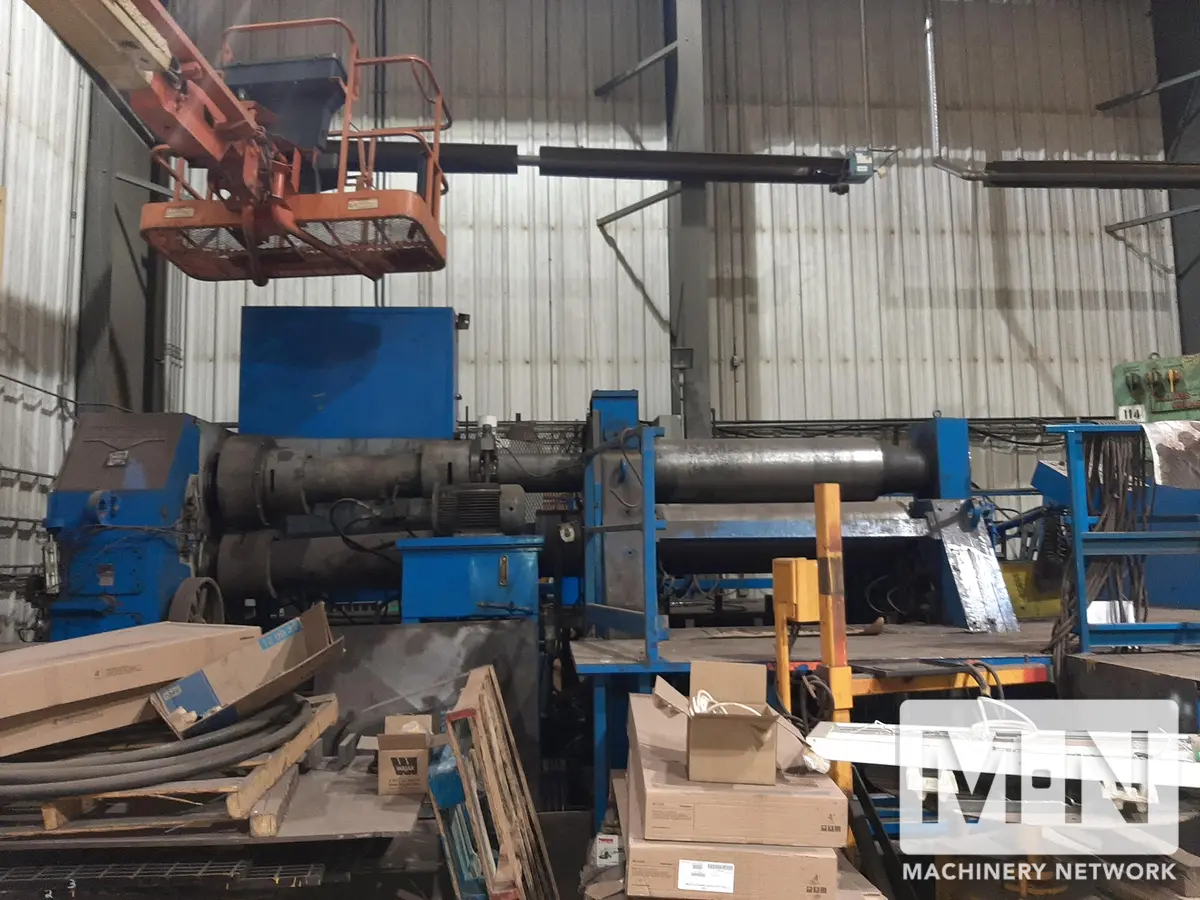

5' X 2" HAUSLER 3 ROLL HYDRAULIC PLATE ROLL

5' X 2" HAUSLER 3 ROLL HYDRAULIC PLATE ROLL

Name: 5' X 2" HAUSLER 3 ROLL HYDRAULIC PLATE ROLL
Brand: HAUSLER
SKU: 40670
Availability: InStock

Brand

HAUSLER

Location

Not specified

Specifications
Files & Videos

Overview

Type:

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Manufacturer:

HAUSLER

Model:

VRM 1.5/19

Year:

1972

Stock #:

40670

Status:

For Sale

Description

1972 HAUSLER VRM Hydraulic Plate Roll available. Bends up to 60" width and 2" thickness. 60HP main drive, cone bending feature. Ideal for precise 514 material bending. Used, professional grade equipment.

ImperialMetric

Hyd/Mech	Hyd	Hyd

Material Bending Width – 60”
Bending Thickness – 2”
Prebend Thickness – 1-3/4”
Upper and Lower Roll Diameter: 17.72”
Bending Roll Diameter: 13.78”
Electrical: 460V/AC

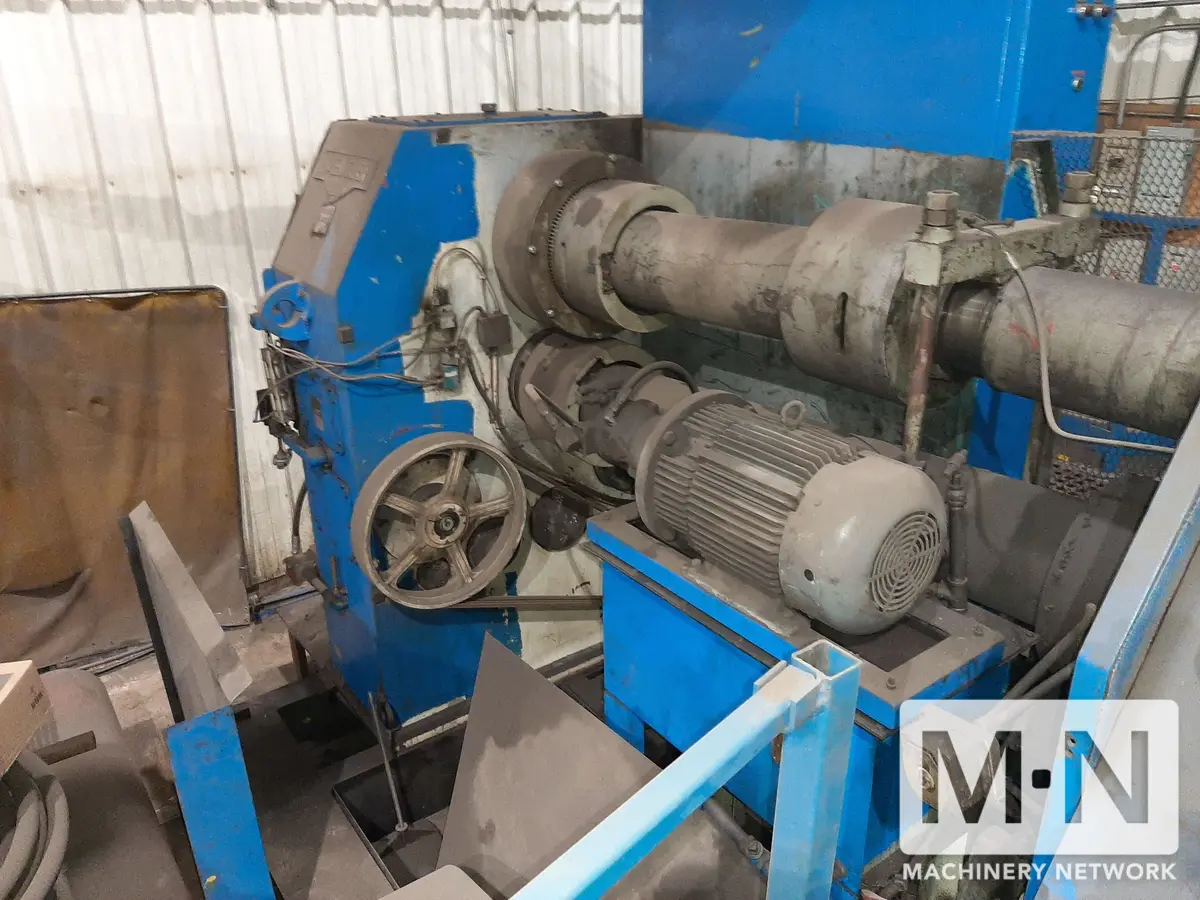

Main Drive: 60HP
Hydraulic Pump: 20HP
Hinge and upper roll tilt operated hydraulically
Lowering of lower roll operated hydraulically
Adjusting Movement: Operated hydraulically
Machine Dimensions:
Width: 108”
Length: 228”
Height: 112”
Weight: 65,000 lbs
Features:
Cone bending attachment
Guide shoe connection roller
Optical indicator
One Man operation
Automatic plate alignment
Definite internal and external drive
Plate Edge Setting with shortest flat
Accurate rolling Tolerance
