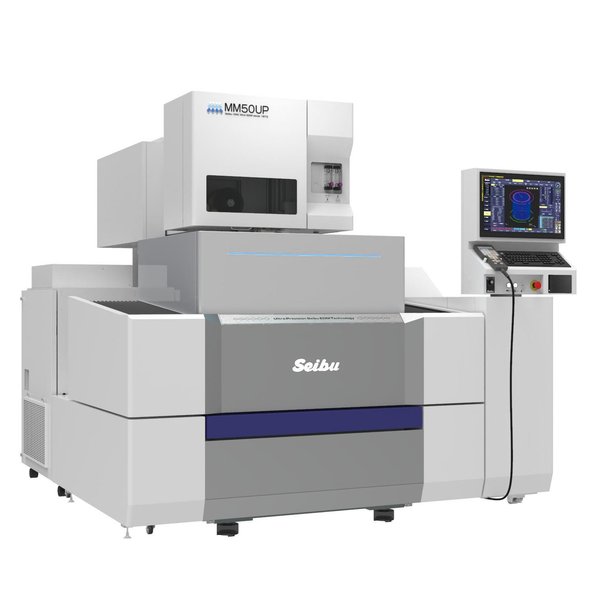

Seibu MM50UP "Ultra Precision" Wire EDM, X, Y, Z axis travel, +/-1um Pitch Cutting Accuracy, X, Y, Z axis travel: 19.7” x 15.7” x 12.2”, Wire diameter: .002” - .012”; Seibu SmartNC Control +more

Brand
SEIBU
Category
EDM Machines
Type
Wire EDM
Model
Seibu MM50UP "Ultra Precision"
Stock #
Seibu MM50UP "Ultra Precision"
Year
Not specified
Condition
New

Location

Not specified
Seibu’s MM50UP "Ultra Precsion" wire EDM



High Speed-High Precision
Seibu’s MM50UP "Ultra Precision" Wire EDM is built for the ultimate in wire EDM precision. The machine is designed to deliver high material removed rates while holding a pitch accuracy of ±1 micron.

Machine castings are ground and hand scrapped for complete flatness. Guideways are checked for flatness lasered for straightness and test cuts are performed on all machines which are then checked on a CMM for accuracy resulting high precision parts.

The MM50UP "Ultra Precision" Wire EDM features the user-friendly Seibu Smart NC Control (Fanuc Drives/Control) series control with a 21.5-inch TFT LCD touchscreen that contains over 4000 cutting conditions. The GUI for Windows graphical interface makes it easy for operators to learn the control. The control has been customized to show more information so operators can check the necessary cutting data or maintenance work on any screen at any time. The control has been customized to show more information so operators can check the necessary cutting data or maintenance work on any screen at any time.

Seibu Smart NC Control (Fanuc Drives/Control)

There is Seibu Control consistency across all models of Seibu wire edms.



Specifications

X, Y, Z axis travel 19.7” x 15.7” x 12.2”
Max. workpiece weight 1763 lbs.
max. workpiece dimensions WxDxH 33.5” x 28.7”x 11.8”
Wire diameter .002" to .012"
Automatic wire threader - AWF-4 standard
U-V axis travel ±2.4” × ±2.4”
Max.taper angle ±10° @ 11.8”
（±45°/1.6”： option)
Machine Dimensions WxDxH 75.6” x 89.0” x 80.1”
Machine Weight 7,716.2 lbs.

Selling Features

• 100% made in Japan
• hand scraped meehanite castings
• Seibu Smart NC Control (Fanuc Drives/Control)
• air cooled cabinets
• 17" dry annealing auto. wire feeder
• absolute glass scale feedback
• core stitch circuit
• super fine finish circuit
• anti-electrolysis circuit
• corner control
• workpiece straightness circuit
• different height software
• hardened insultated work table
• vertical worktank door with signal lights
• worktank sensors
• automatic water level control
• LED worktank light
• remote control handbox
• dielectric chiller
• pre filter
• 4 MAN Triple bellow paper filters (Filters Sit out of Water with Air Blow Out)
• 2 DI bottles
• wire alignment block
• tool box

Optional Items
• 45° degree taper
• EL coating
• rotary table
• thermal adjust 24
• small hole attachment device
• 20kg wire spooler

Specifications are subject to change without prior notice.
