Seibu M25LP "Ultra Precision" Wire EDM, (Oil Type), +/-1um Pitch Cutting Accuracy, X, Y, Z axis travel: 9.8” x 9.8” x 7.9”, Wire diameter: ..002” - .008” (.002:option); Seibu Smart NC Control +more

Brand
Model
M25LP "Ultra Precision"
Stock #
M25LP "Ultra Precision"
Year
Not specified
Condition
New
Location
Not specified

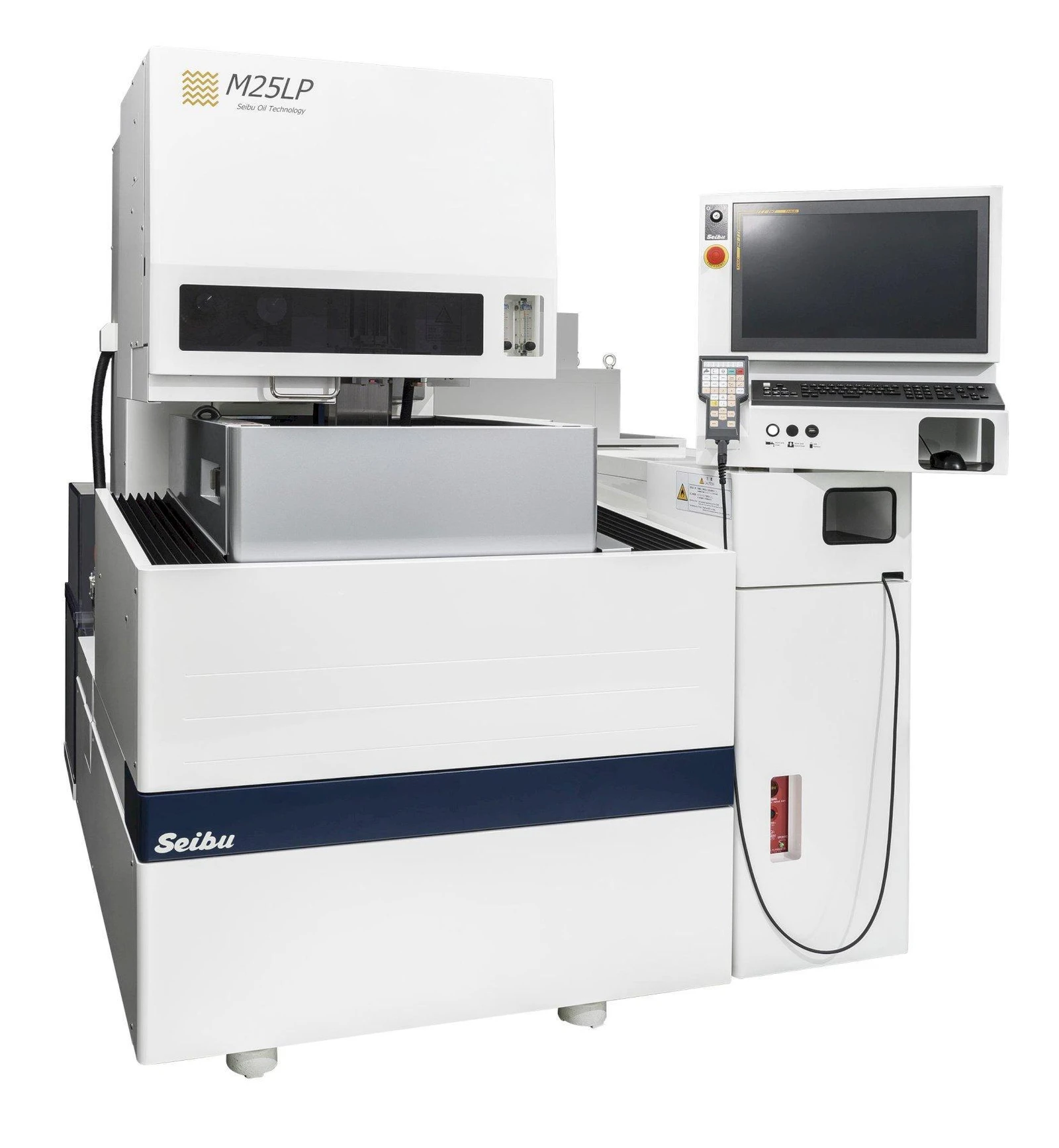

Seibu M25LP "Ultra Precision" Wire EDM, (Oil Type)



High Speed-Ultra Precision

Seibu M25LP "Ultra Precision" Wire EDM, (Oil Type) is built for the ultimate in wire EDM precision. The machine is designed to deliver high material removed rates while holding a pitch accuracy of ±1 micron.

Machine castings are ground and hand scrapped for complete flatness. Guideways are checked for flatness lasered for straightness and test cuts are performed on all machines which are then checked on a CMM for accuracy resulting high precision parts.

The M25LP "Ultra Precision" features the user-friendly Seibu Smart NC Control (Fanuc Drives/Control) with a 21.5-inch TFT LCD touchscreen that contains over 4000 cutting conditions. The GUI for Windows graphical interface makes it easy for operators to learn the control. The control has been customized to show more information so operators can check the necessary cutting data or maintenance work on any screen at any time.

Seibu Smart NC Control (Fanuc Drives/Control)

There is Seibu Control consistency across all models of Seibu wire edms.

Specifications

Axis travel XYZ 9.8” x 9.8” x 7.9”
Max. workpiece weight 330 lbs.
max. workpiece dimensions WxDxH 10.6” x 10.6” x 3.9”
Wire diameter .002” - .008” (.002:option)
Automatic wire threader - AWF-4 standard
U-V axis travel ±1.4” × ±1.4”
Max.taper angle ±10° @ 3.9”
(Not an option)
Machine Dimensions WxDxH 69.7” x 80.3” x 79.4”
Machine Weight 6,820 lbs.

Selling Features
• 100% made in Japan
• hand scraped meehanite castings
• Seibu Smart NC Control (Fanuc Drives/Control)
• air cooled cabinets
• 17" dry annealing auto. wire feeder
• absolute glass scale feedback
• core stitch circuit
• super fine finish circuit
• anti-electrolysis control
• corner control
• workpiece straightness circuit
• different height software
• hardened insulated work table
• vertical worktank door with signal lights
• worktank sensors
• automatic water level control
• LED worktank light
• remote control handbox
• dielectric chiller
• pre filter
• 4 MAN Triple bellow paper filters (Filters Sit out of Water with Air Blow Out)


• 2 DI bottles
• wire alignment block
• tool box

Optional Items
• 45° taper (Not Available on the M25LP)
• EL coating
• rotary table
• thermal adjust 24
• small hole attachment device
• 20kg wire spooler

Specifications are subject to change without prior notice.
